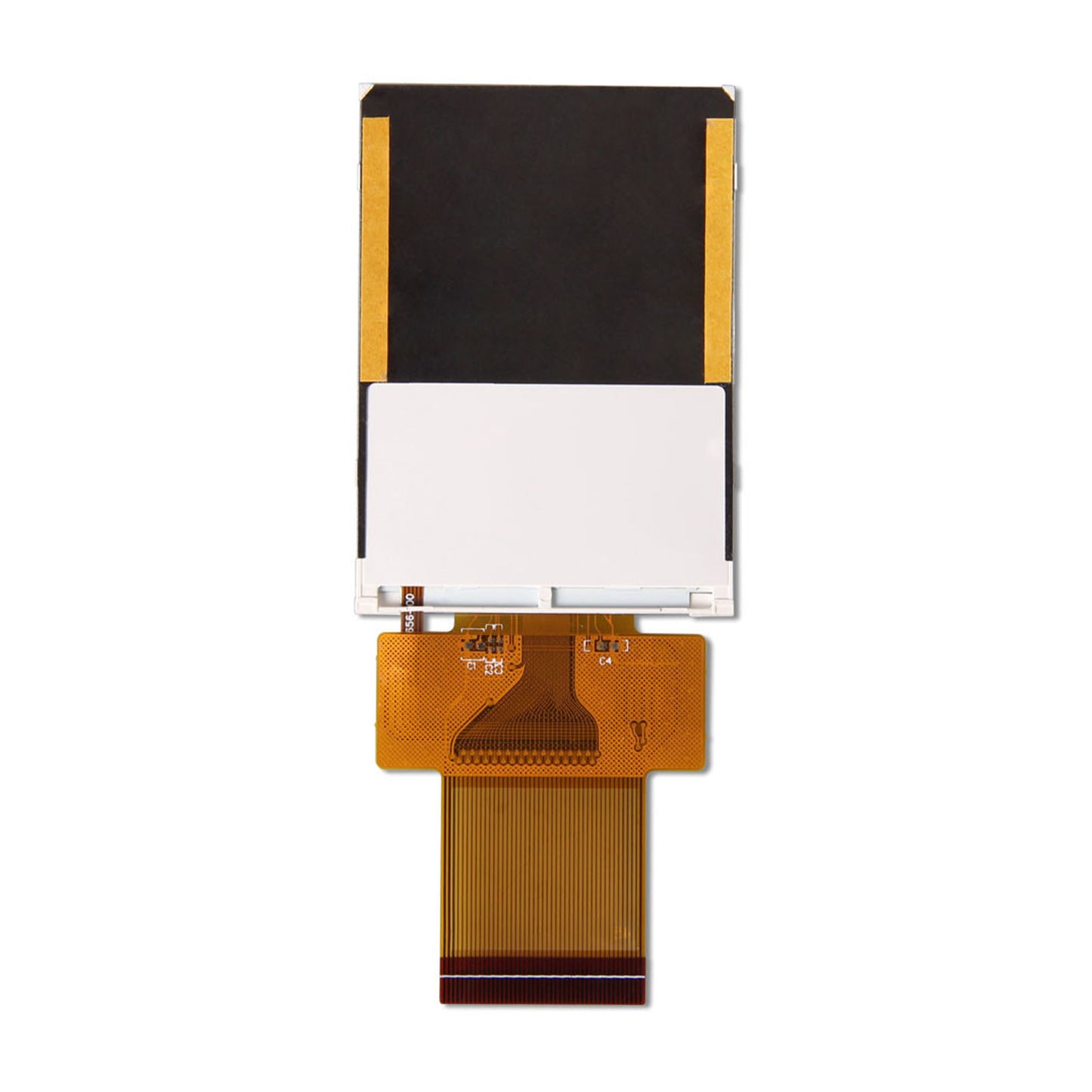

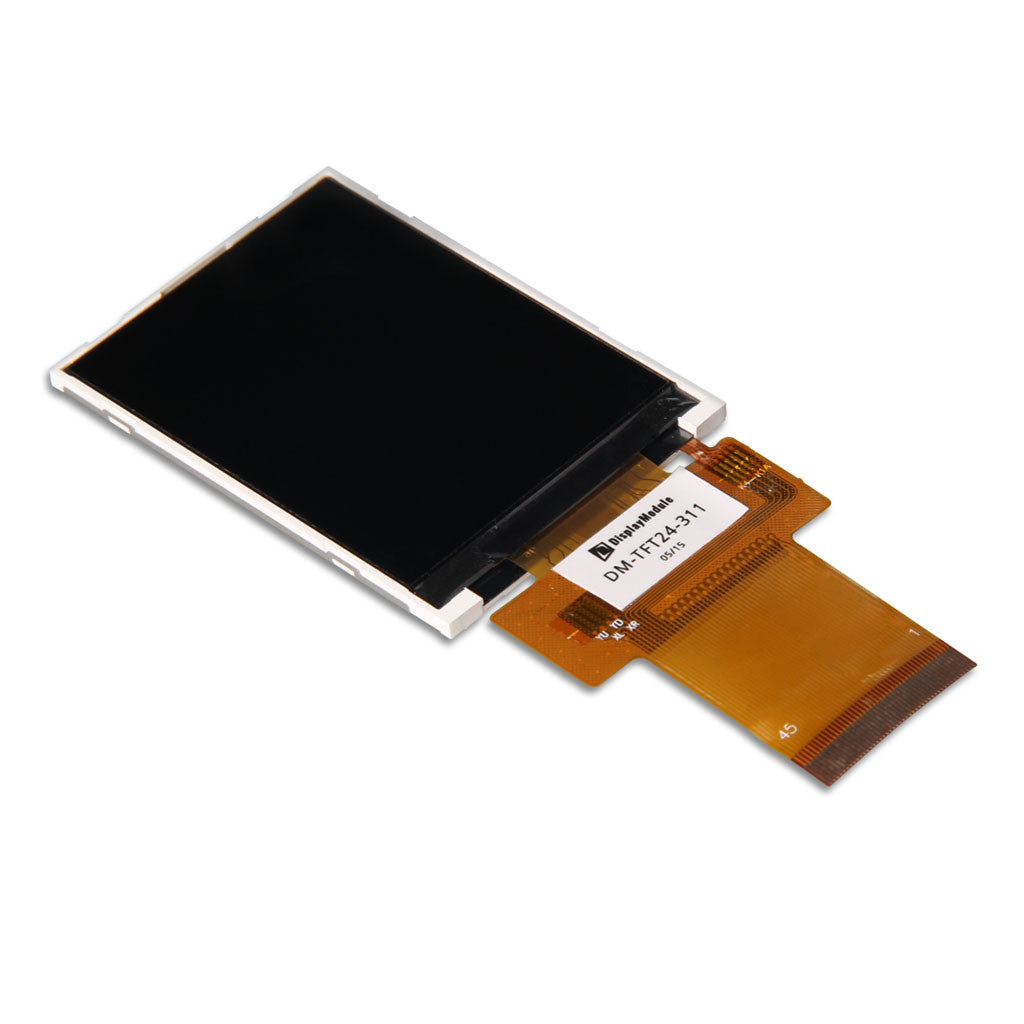

2.4" TFT Display 240x320 - SPI, MCU, RGB
2.4" TFT Display 240x320 - SPI, MCU, RGB
SKU:DM-TFT24-311
Regular price
$14.90 USD
Regular price
$13.88 USD
Sale price
$14.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| 1 pcs | original price |
| 5 pcs | 8% off |
| 10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $400. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share
Display Specifications
- Diagonal Dimension : 2.4inch
- Resolution : 240x320 pixel
- View Direction : 12 o’clock
- Touch Mode : None
- Module Dimension : 47.72(H)x60.26(V)x5.8(D) mm
- Viewing Area : 36.72(H)x48.96(V) mm
- Supply Voltage : 3.3 V
- Interface : 8/16bit MCU, 3/4 SPI+16/18bit RGB
- Luminance : ≥250 cd/m2
- Drive IC : ST7789V
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Dimensions
Resources
- DM-TFT24-311
- Display Controller: ST7789V-V1.4
