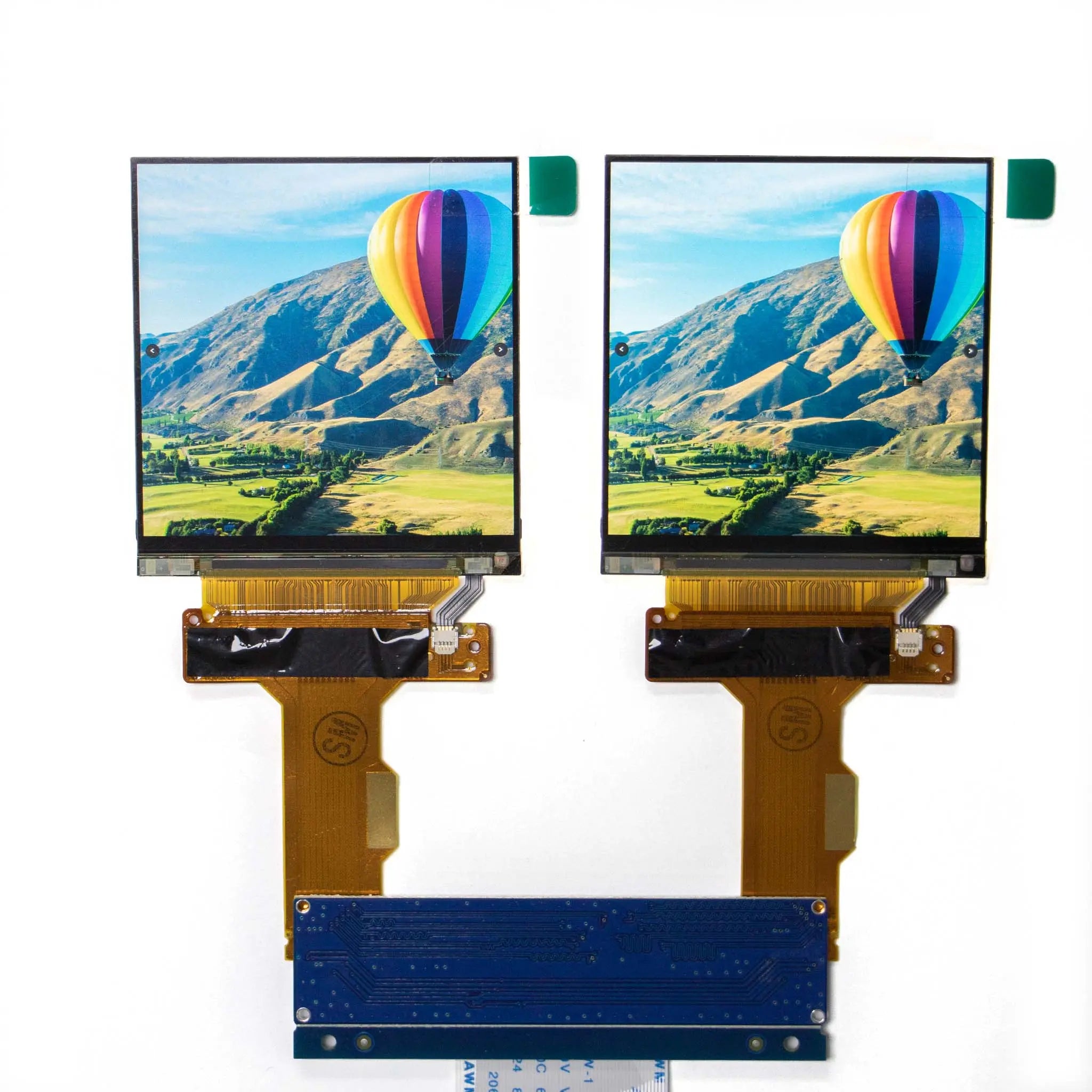

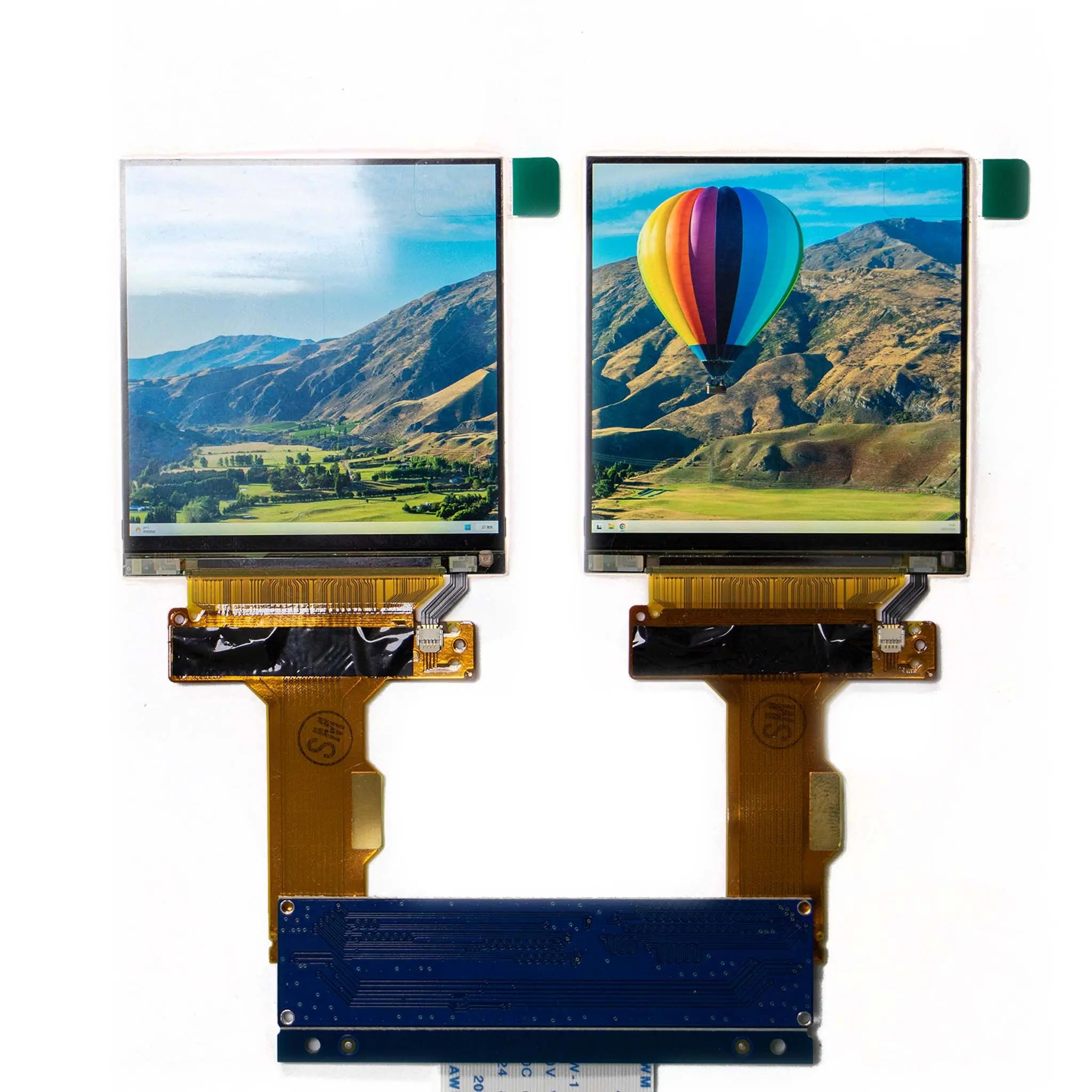

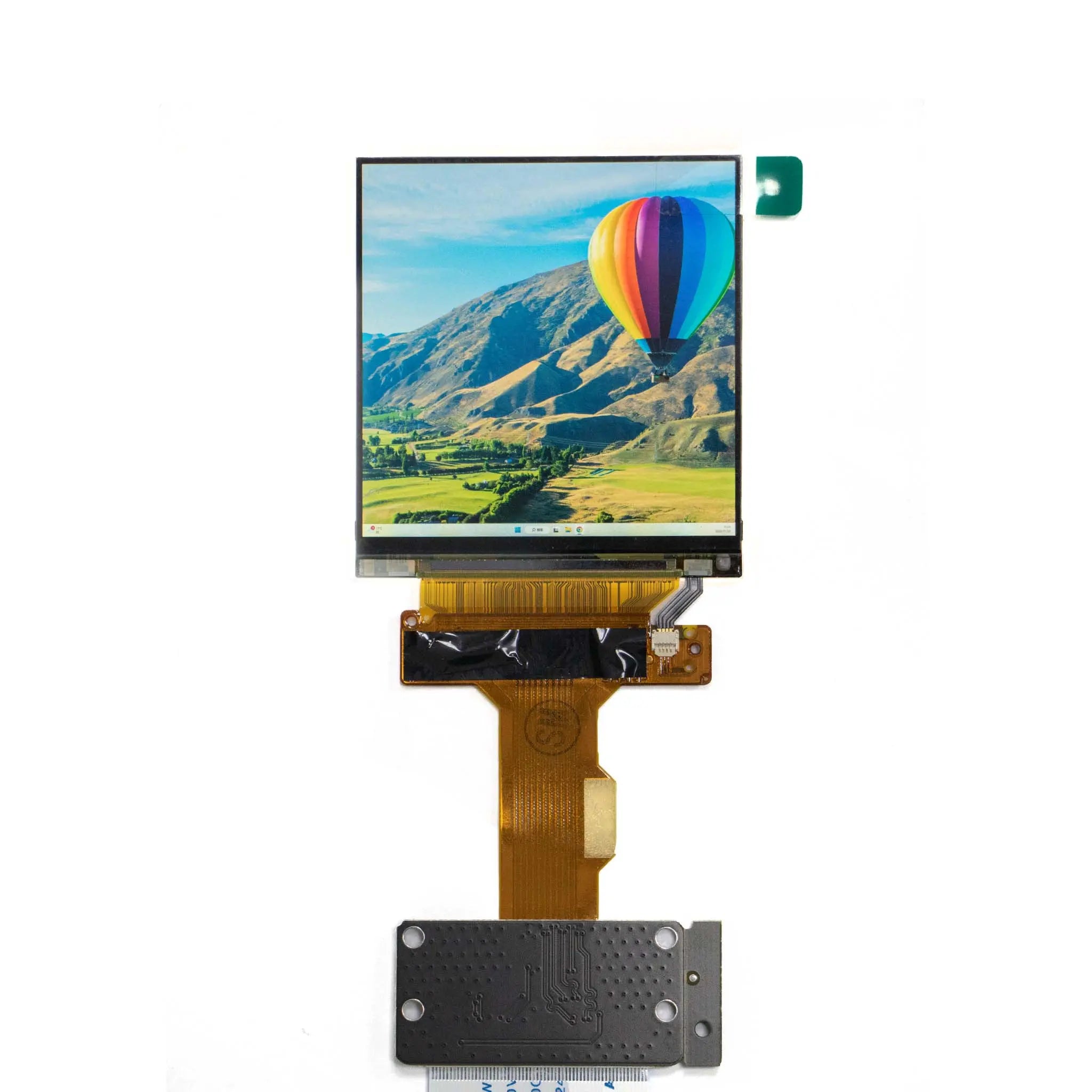

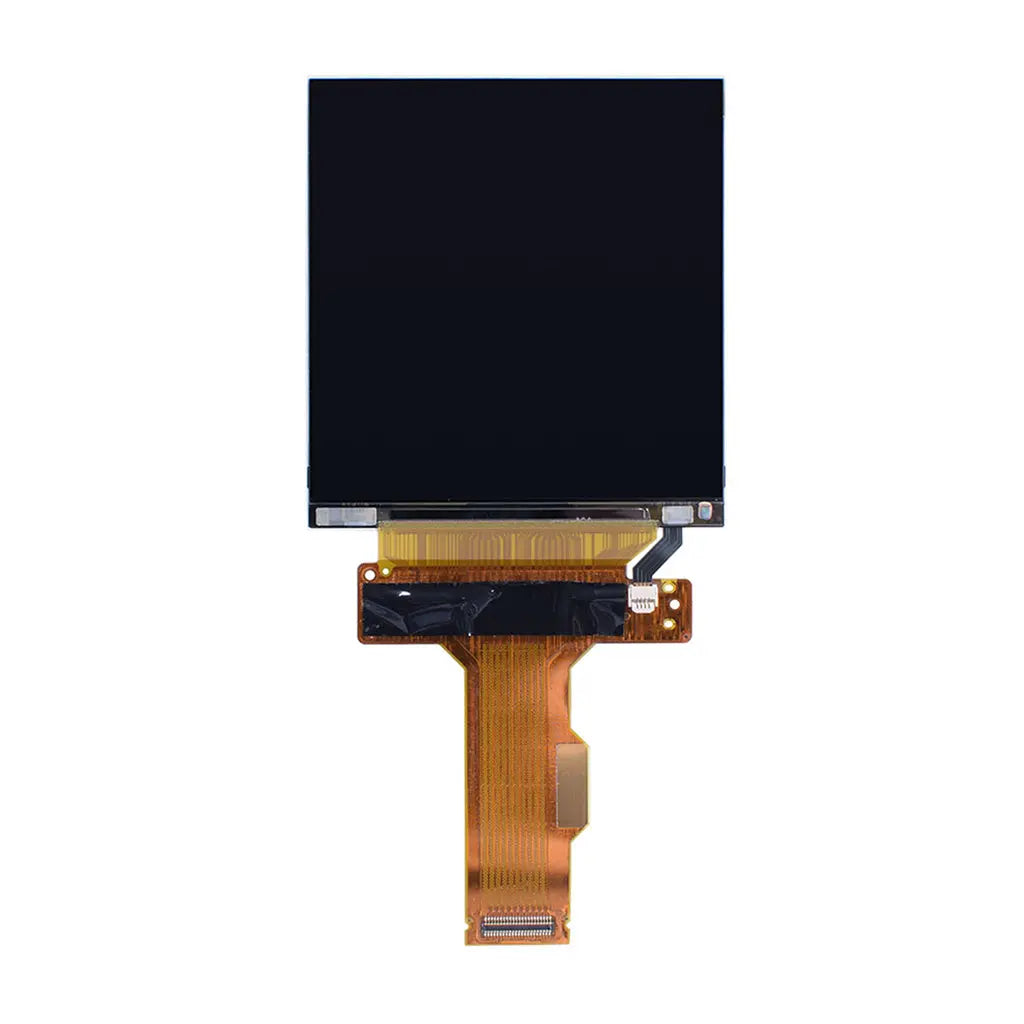

DM-TFT29-392-1
$56.99
If you want the panel without the breakout board and/or larger quantities(10+) . Contact us for a quotation.
| Module Overall Specs | |||
|---|---|---|---|
| Virtual Screen Size | 100 | inch | |
| Eye Box | 8 | mm | |
| Exit Relief | 10 | mm | |
| Transmittance | 26%² | ||
| FOV | 42(Diagonal) | degree | |
| Weight（monocular） | 14 | g | |
| Module Overall | |||
|---|---|---|---|
| Screen Size | 2.1" | - | |
| Resolution | 1600RGB x 1600 | - | |
| Typical Contrast Ratio | 1100 | - | |
| Module dimension | 54.24(H)x59.02(V)x1.365(D) | mm | |
| Viewing area | 51.84(H)x51.84(V) | mm | |
| Background LED | LED Normally Black | - | |
| Weight | 7 | g | |
