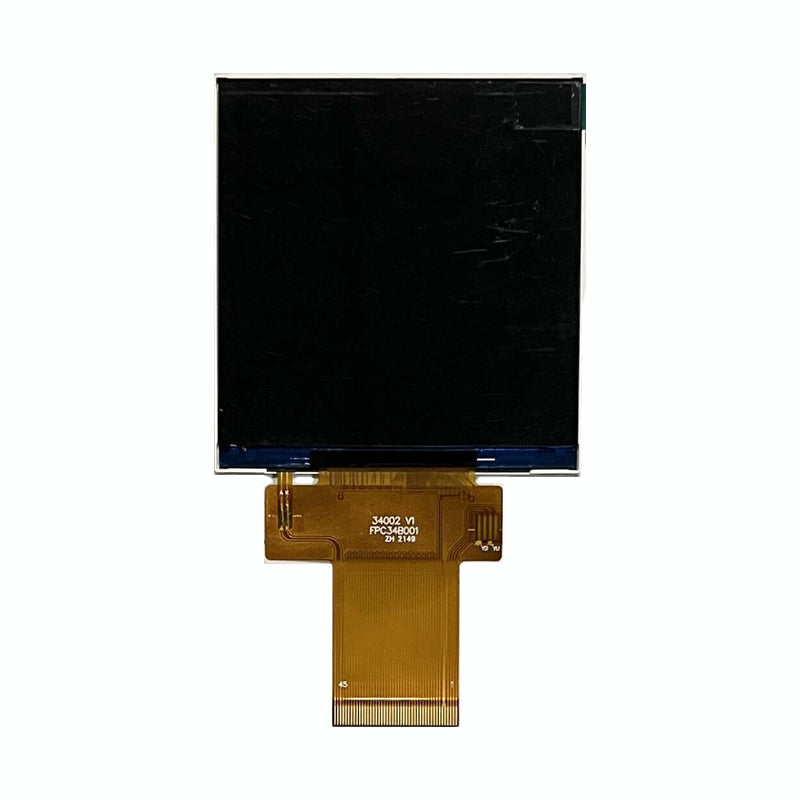

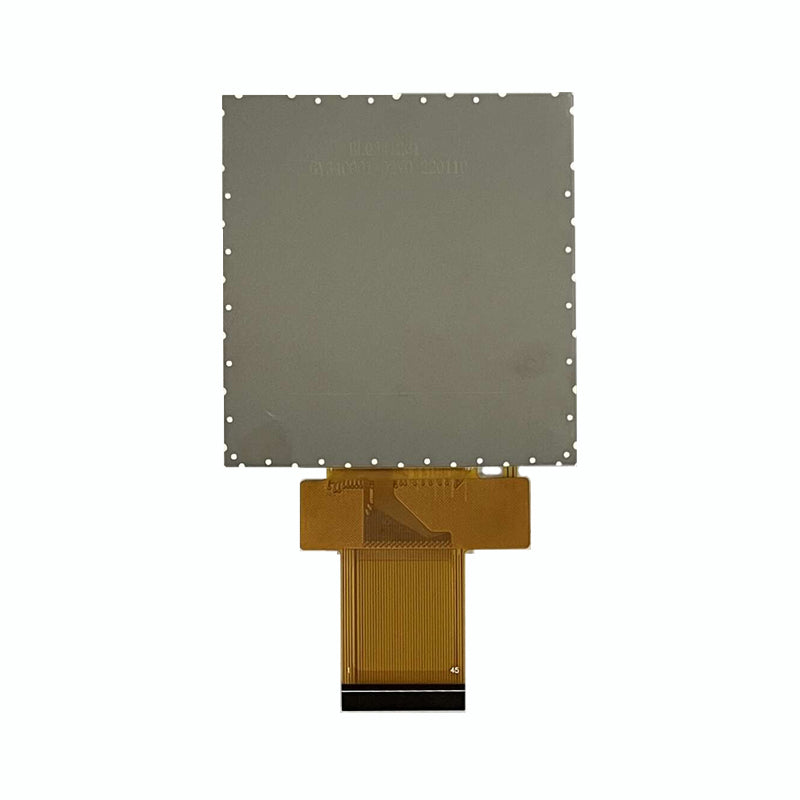

3.4" 480×480 TFT LCD Display Specifications
This 3.4-inch TFT LCD offers a 480×480 resolution, transmissive normally black mode, and 1000 cd/m² luminance. It supports flexible interfaces including SPI and RGB, making it ideal for compact embedded systems requiring high brightness and versatility.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 3.4 | inch |
| Resolution | 480 × 480 | pixels |
| View Direction | 60.48 × 60.48 | mm |
| Display Mode | Transmissive, Normally Black | - |
| Module Dimension | 65.72 × 69.64 × 2.45 | mm |
| Viewing Area | 60.48 × 60.48 (A.A) | mm |
| Supply Voltage | 3.3 | V |
| Interface | 3SPI + 16/18/24-bit RGB | - |
| Luminance | 1000 | cd/m² |
| Drive IC | ST7701S | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
Mechanical Dimensions
Please refer to the mechanical drawing below for module dimensions and mounting guidelines.
Technical Resources
Download the datasheet and available code package for complete electrical, optical, and integration specifications.
| Specification name | Specification Value |
|---|---|
| Device interface | 3.5 mm |
3.4" 480 X 480 TRANSMISSIVE...
