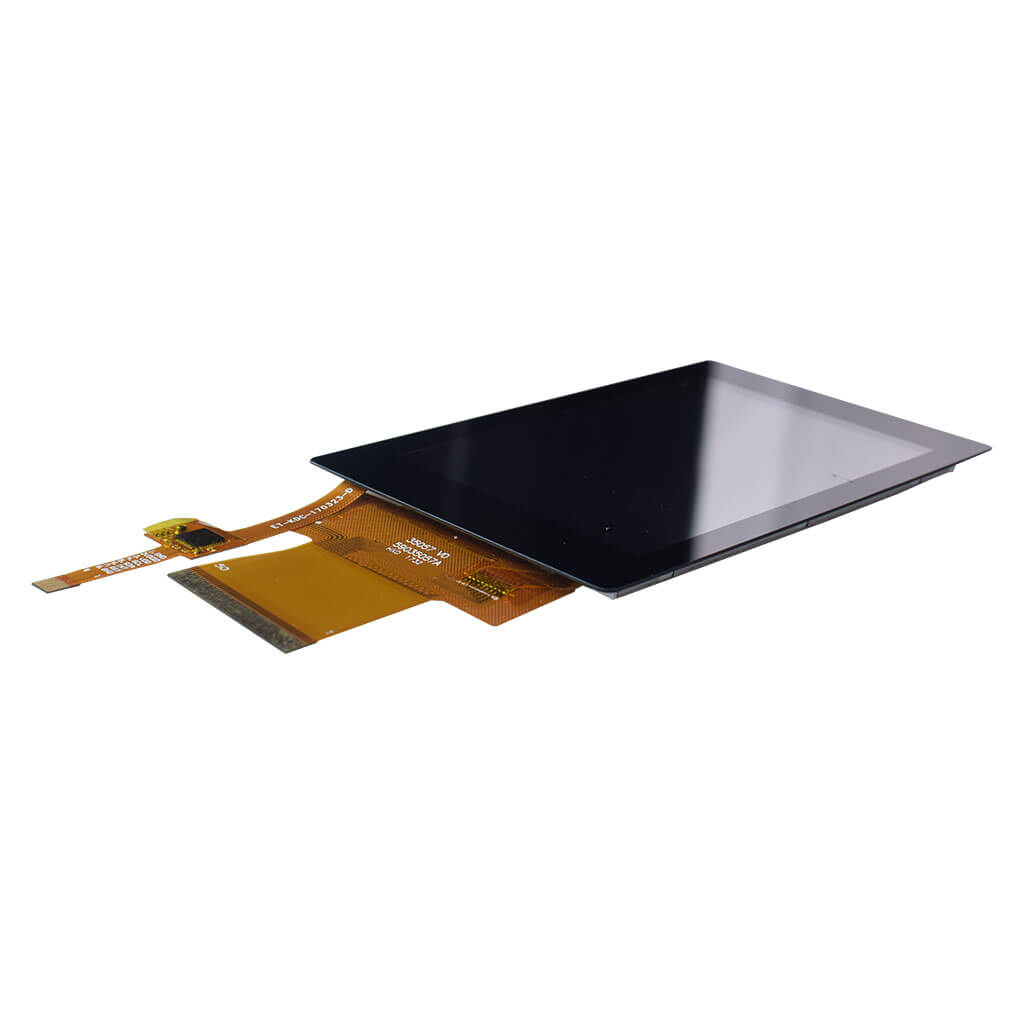

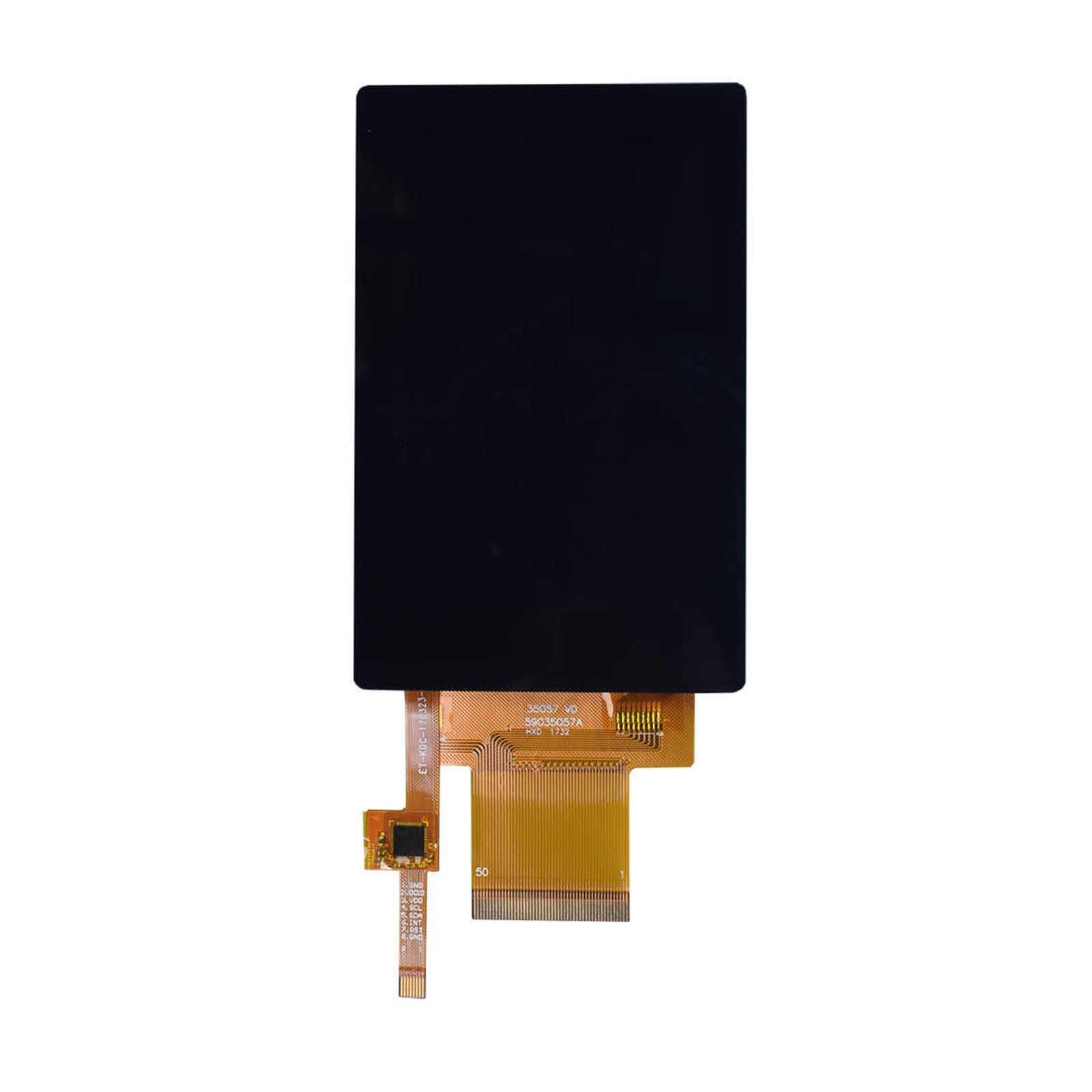

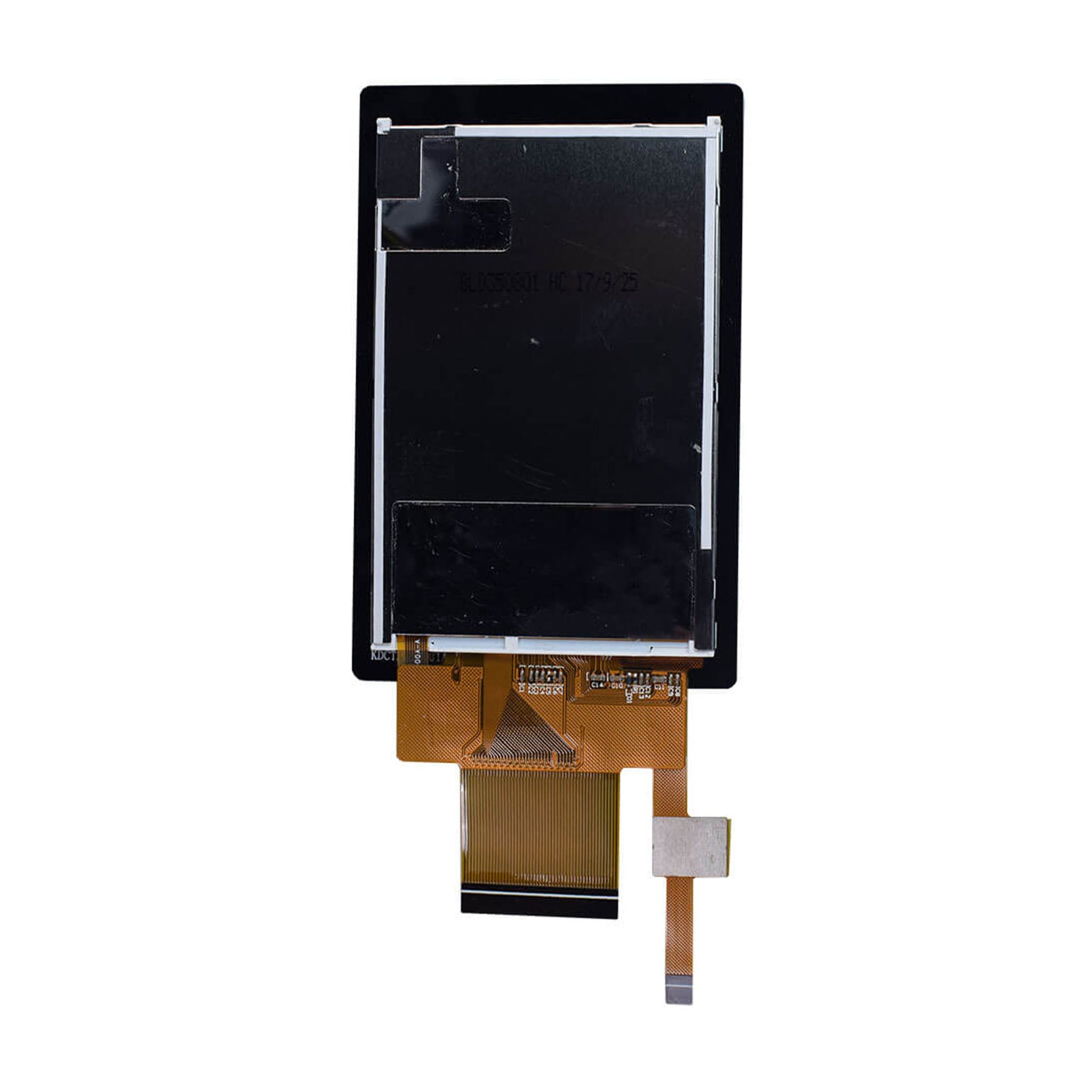

3.5" IPS Display 320x480 Touch - SPI, MCU, RGB
High-performance 3.5-inch IPS TFT-LCD display with 320×480 resolution, delivering exceptional viewing angles and vivid color reproduction. Featuring advanced touch functionality and multiple interface options for versatile integration.
Engineered with In-Plane Switching (IPS) technology, this display provides consistent color and clarity from all viewing directions up to 178 degrees. The integrated touch functionality supports precise input control for interactive applications.
- Multi-Interface Support: Comprehensive connectivity including 8/9/16/18-bit MCU parallel interface, 3/4-line SPI serial interface, and RGB interface with DE/HV sync modes.
- Advanced Driver IC: Powered by ST7796SI controller supporting up to 262K colors with programmable gamma correction and power management.
- Robust Construction: Compact module dimensions of 54.58×83.57×2.18 mm with wide operating temperature range (-20℃ to +70℃).
- Touch Integration: Built-in touch components supporting precise input for interactive applications and user interfaces.
| Technical Parameter | Specification |
|---|---|
| Diagonal Dimension | 3.5 inch |
| Resolution | 320(RGB)×480 pixels |
| View Direction | All Directions (IPS Technology) |
| Touch Mode | With Touch Components |
| Module Dimension | 54.58×83.57×2.18 mm |
| Viewing Area | 48.96(H)×73.44(V) mm |
| Supply Voltage | 2.8V |
| Interface | 8/9/16/18-bit MCU, 3/4-line SPI, RGB Interface |
| Luminance | 600 cd/m² |
| Drive IC | ST7796S |
| Operation Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
Customized display solutions for industrial, medical, and commercial applications with flexible integration options and volume pricing.
- Custom Configuration: Tailored display solutions with modified interfaces, touch configurations, and mechanical adaptations to meet specific application requirements.
- Volume Procurement: Competitive pricing for bulk orders with dedicated technical support and customized delivery schedules for manufacturing integration.
- Technical Integration Support: Comprehensive documentation, reference designs, and engineering support for seamless product integration and accelerated time-to-market.
Rugged display solution for industrial control systems, automation equipment, and process monitoring with wide temperature operation and multiple interface options.
High-reliability displays for medical instrumentation, patient monitoring systems, and diagnostic equipment requiring precise color reproduction and touch interaction.
Compact display solution for portable devices, smart home controls, and entertainment systems with excellent viewing angles and touch functionality.
Designed for seamless integration with various microcontroller platforms and development environments.
- MCU Interface Compatibility: Supports 8080-series parallel interface with 8/9/16/18-bit data bus width for flexible microcontroller integration.
- SPI Interface Options: 3-wire and 4-wire SPI serial interfaces for reduced pin count requirements and simplified board layout.
- RGB Interface Support: Direct RGB input with DE (Data Enable) or HV (Horizontal/Vertical Sync) timing modes for video processor connectivity.
- Wide Voltage Range: Compatible with 1.65V to 3.3V I/O systems with separate analog and digital power domains for optimal signal integrity.
Technical Documentation: Complete datasheets, application notes, and reference designs available for download to support your development process.
Resources: Product Datasheet | Driver IC Documentation
Technical Support: Comprehensive engineering support available for integration guidance, troubleshooting, and custom configuration requirements.
Dimensions
