7.0" IPS Display1280x800 Kit

Regular price $79.00
Shipping calculated at checkout.
SKU: DM-TFT70-106

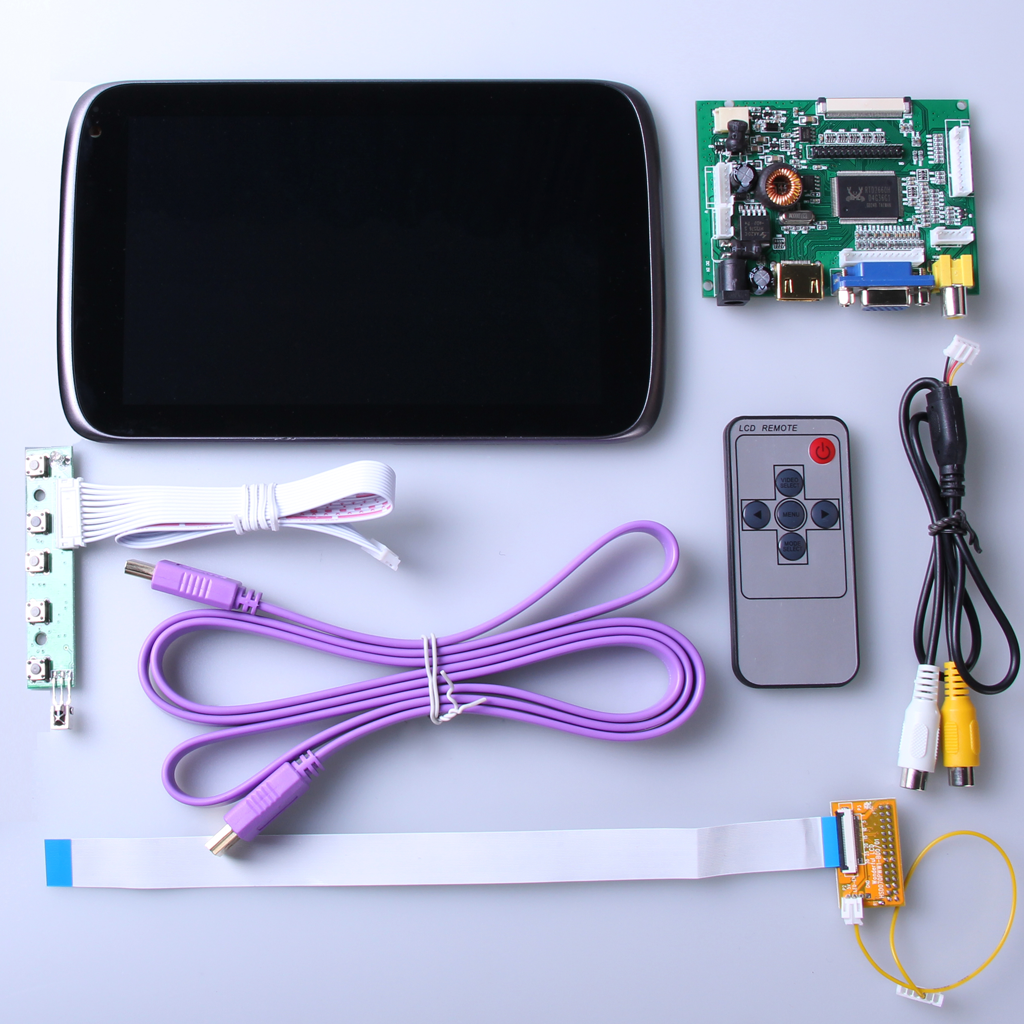

7.0-inch IPS display kit with a 1280x800 resolution
$79.00
Default Title

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Display Specifications

  • Diagonal Dimension : 7.0 inch
  • Resolution : 1280x800 pixel
  • View Direction : All
  • Touch Mode : None
  • Module Dimension : 161.2 x 105.5 x 4.5 mm
  • Viewing Area : 150.72(H) x 94.2(V) mm
  • Supply Voltage : 3.3 V
  • Interface : LVDS
  • Luminance : 400 cd/m2
  • Drive IC : -
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃

Dimensions

Resoures

DM-TFT70-106
HSD070PWW1-B00 Panel Datasheet

Drawings

DM-TFT70-106 Autocad 2D Front View Drawing

You can use IGC's Brava! free DWG viewer to view the drawings

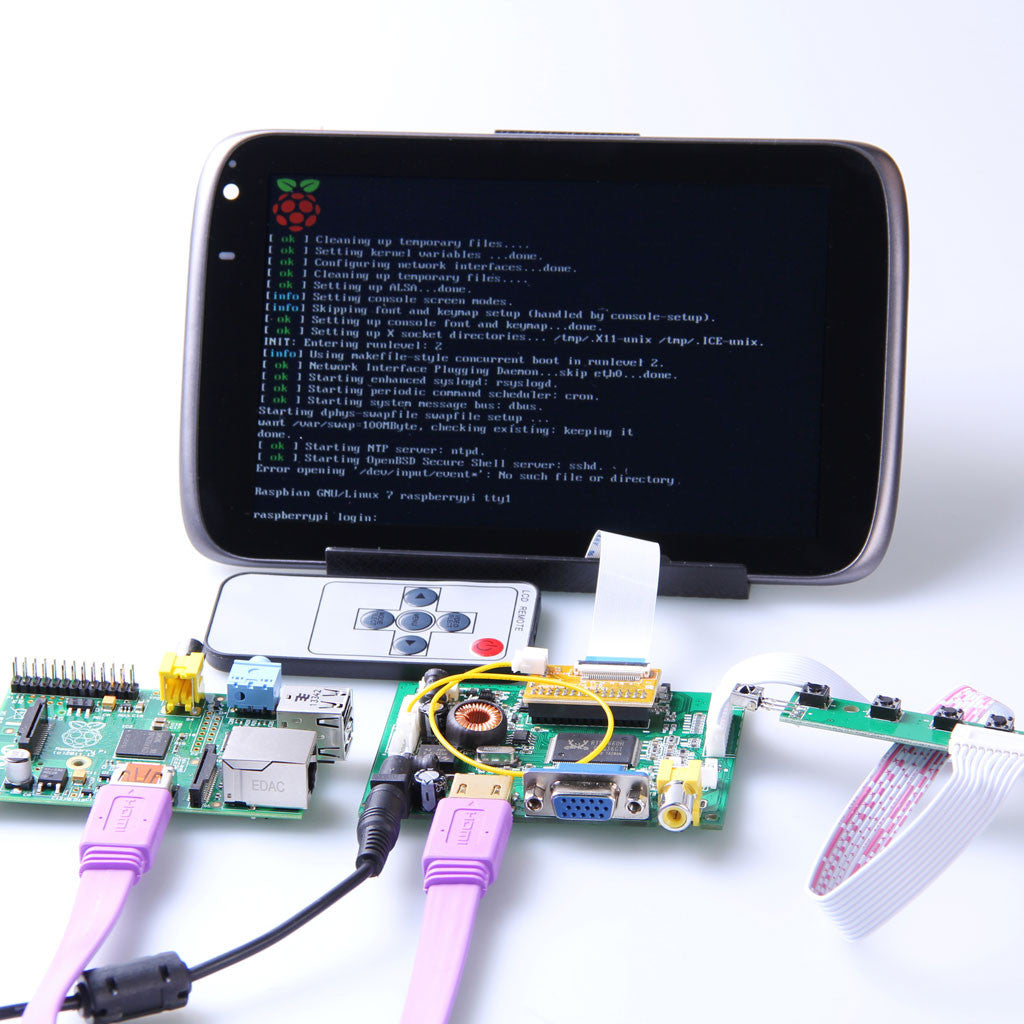

Settings for Raspberry Pi

Please use the following config file for optimal settings, please visit http://elinux.org/R-Pi_ConfigurationFile for more information about these settings.
# uncomment if you get no picture on HDMI for a default "safe" mode
#hdmi_safe=1

# uncomment this if your display has a black border of unused pixels visible
# and your display can output without overscan
disable_overscan=1

#overscan_left=-40
#overscan_right=-40
#overscan_top=-40
#overscan_bottom=-40

hdmi_drive=1
hdmi_group=2
hdmi_mode=28

# uncomment to force a console size. By default it will be display's size minus
# overscan.
#framebuffer_width=1280
#framebuffer_height=720

# uncomment if hdmi display is not detected and composite is being output
hdmi_force_hotplug=1

# uncomment to force a specific HDMI mode (this will force VGA)
#hdmi_group=1
#hdmi_mode=1

# uncomment to force a HDMI mode rather than DVI. This can make audio work in
# DMT (computer monitor) modes
#hdmi_drive=2

# uncomment to increase signal to HDMI, if you have interference, blanking, or
# no display
#config_hdmi_boost=4

# uncomment for composite PAL
#sdtv_mode=2

#uncomment to overclock the arm. 700 MHz is the default.
#arm_freq=800

# for more options see http://elinux.org/RPi_config.txt
