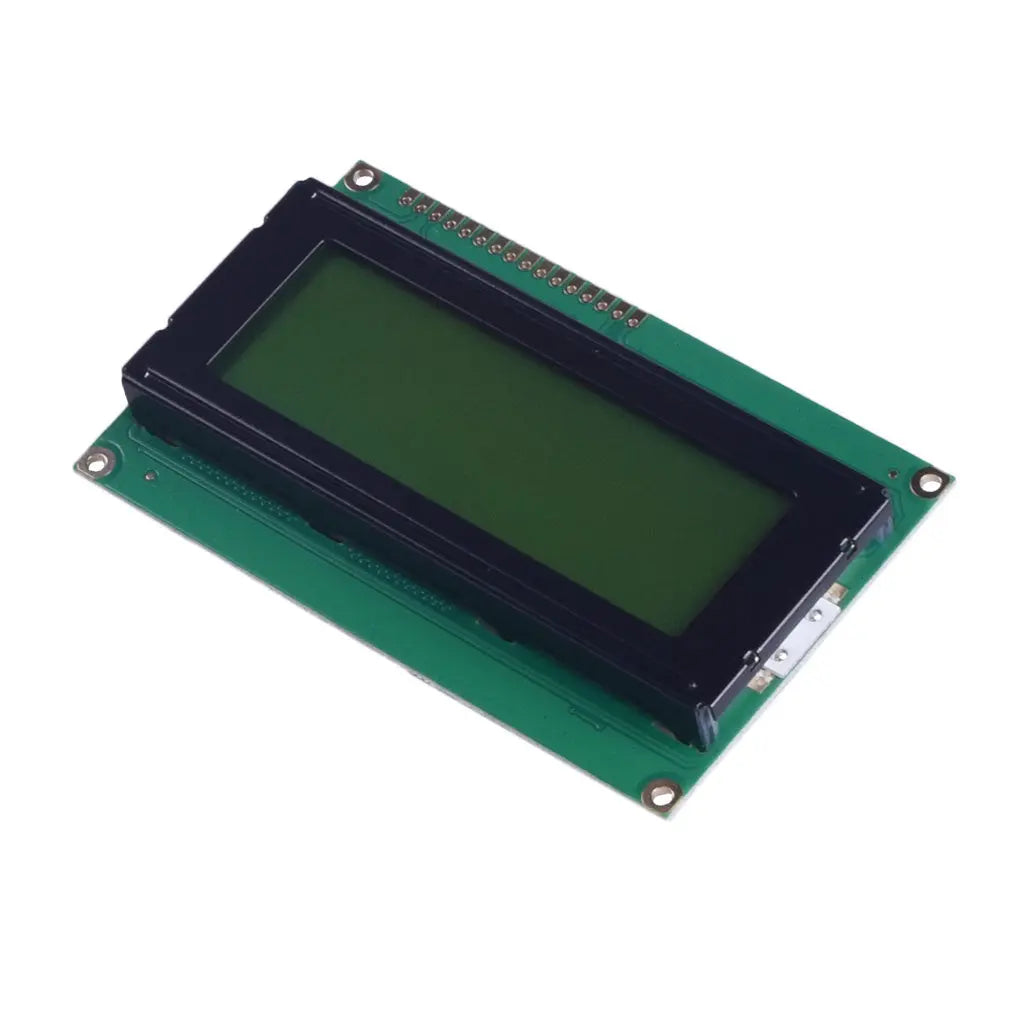

Top view of 20-character x 4-line LCD module

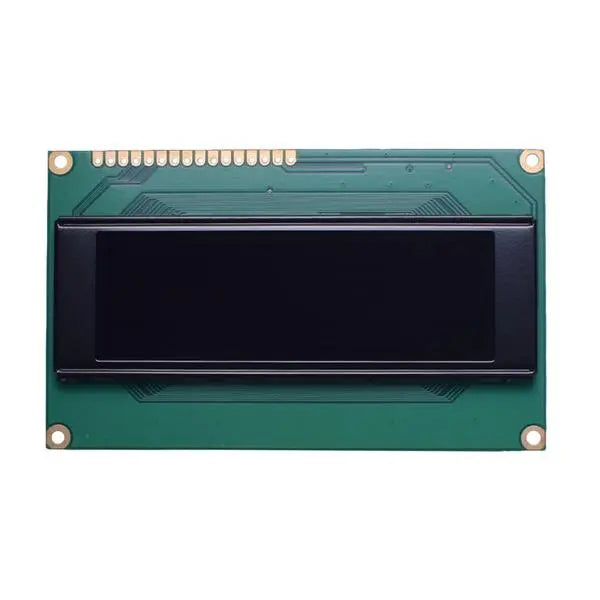

Front of 20-character x 4-line LCD module

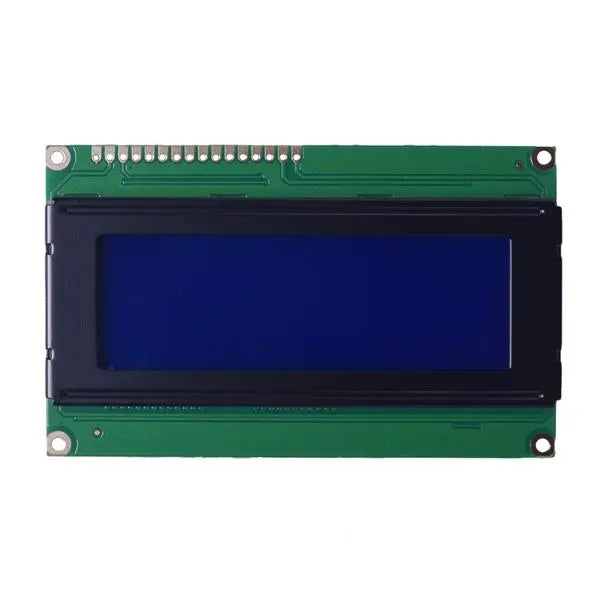

A blue backlight 20-character x 4-line LCD module

20x4 Character LCD STN Transflective - MCU

Regular price $24.90
Sale price $24.90 Regular price $15.49
Datesheet:
  • Availability:
    In Stock
  • SKU:
    DM-LCD2004-442
Yellow Green
Gray
Blue
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Display Format : 20 characters x 4 lines
  • Display Mode : STN Positive, Yellow Green, Transflective
  • View Direction : 6:00
  • Module Dimension : 98.0 x 60.0 x 13.6(MAX) mm
  • Power Supply : 5.0 V
  • Backlight : Yellow Green LED
  • Interface : 6800 Series MPU Interface
  • Controller IC : ST7066U
  • Operation Temperature : -20℃~70℃
  • Storage Temperature : -30℃~80℃
  • Weight : 69.6 g
