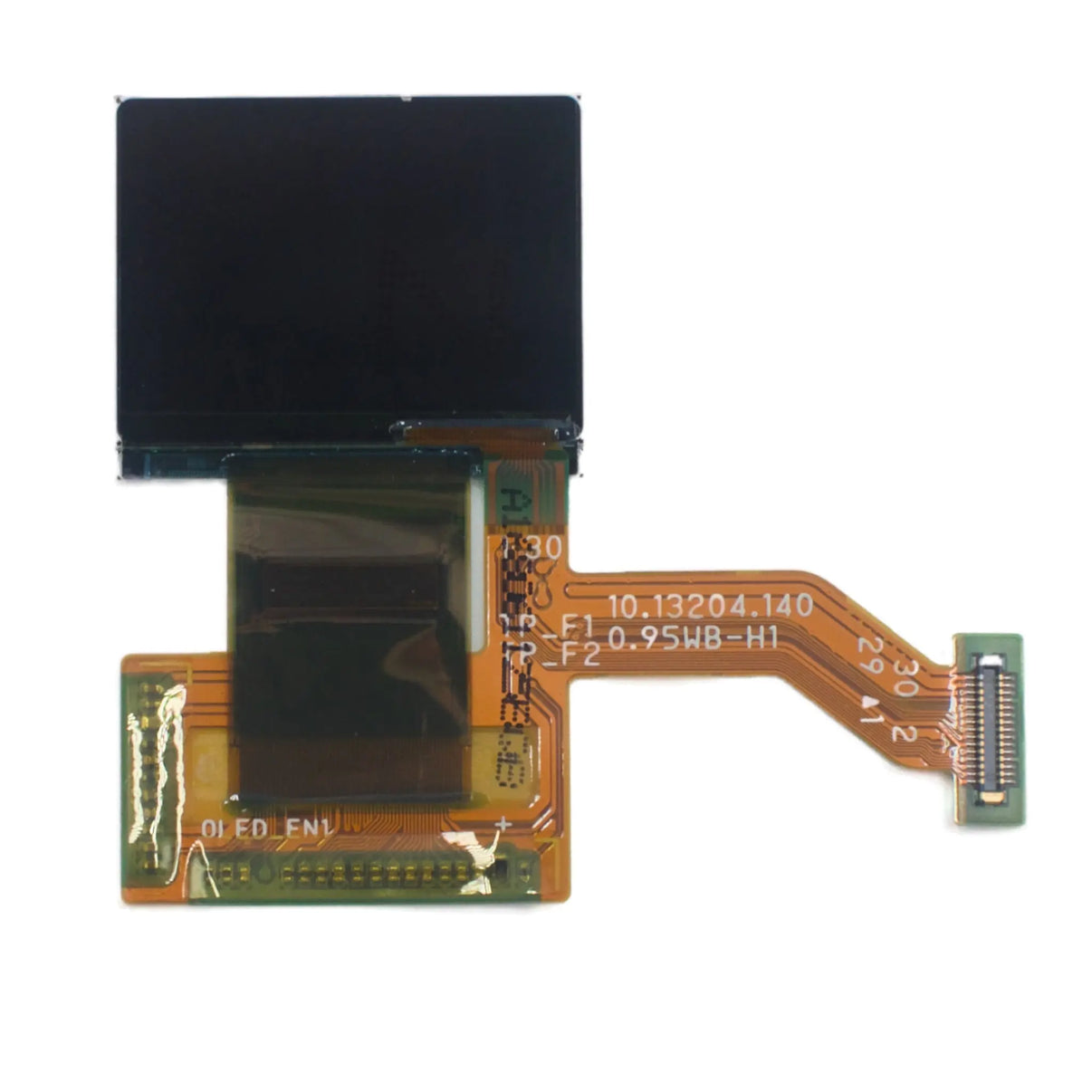

0.95" 180×120 AMOLED Display Specifications
The DMGXO0095S8NA is a 0.95-inch AMOLED module offering a vibrant 180 × 120 resolution with real RGB pixel arrangement. Featuring a compact 0.75 mm thickness, RM67160 driver IC, SPI interface, and CTP support, it's an excellent solution for smart wearables, mini dashboards, and premium embedded displays.
| Parameter | Specification | Unit |
|---|---|---|
| Screen Size | 0.95 | inch |
| Resolution | 180 × 120 | pixels |
| Display Mode | AMOLED | - |
| Pixel Pitch | 111.3 × 111.3 | µm |
| Pixel Arrangement | Real RGB | - |
| Active Area | 20.03 × 13.36 | mm |
| Module Dimensions | 22.23 × 18.32 × 0.75 | mm |
| LTPS Glass Outline | 22.23 × 18.32 | mm |
| Encapsulation Glass | 22.23 × 16.72 | mm |
| Glass Thickness | 0.2 / 0.3 | mm |
| Brightness | 350 (TYP) | cd/m² |
| Color Depth | 16.7M (RGB 8-bit) | colors |
| Touch Mode | CTP | - |
| Interface | SPI | - |
| Driver IC | RM67160 | - |
| Weight | 0.83 | g |
Mechanical Dimensions
