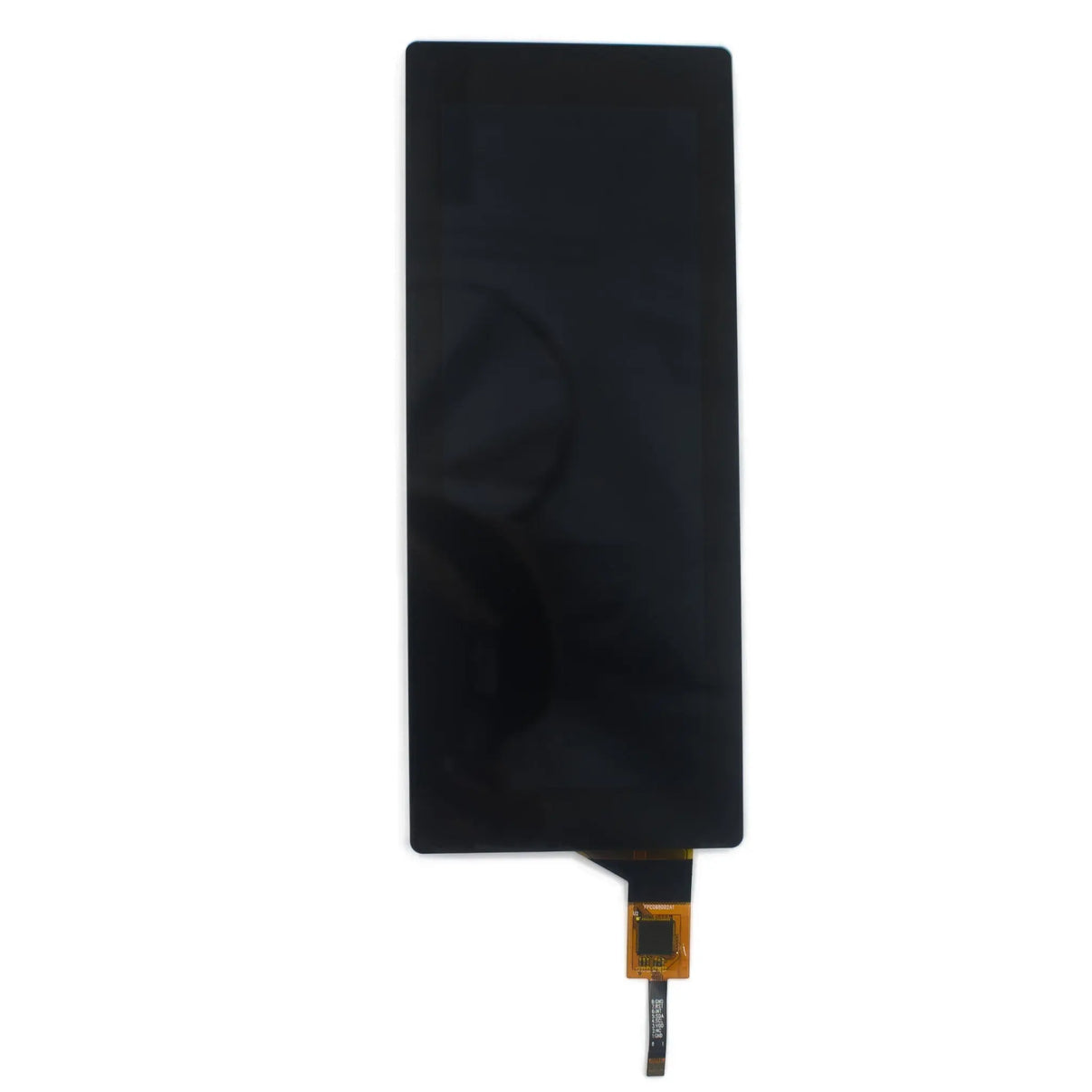

6.75" TFT LCD Display 480×1280 | DMKDI06801GCA
The DMKDI06801GCA is a 6.75-inch TFT-LCD module with a 480×1280 resolution, RGB vertical stripe pixel layout, and 16.7 million colors. It supports a 4-Lane MIPI interface with I²C control and features a narrow-pitch pixel design of 0.0418×0.1254 mm. Ideal for handheld terminals, control panels, or embedded visual interfaces requiring narrow-width HD rendering.
| Parameter | Specification | Unit |
|---|---|---|
| Screen Size | 6.75 | inch |
| Display Mode | Transmissive / Normally Black | - |
| Resolution | 480 (RGB) × 1280 | pixels |
| Pixel Pitch | 0.0418 × 0.1254 | mm |
| Color Depth | 16.7M | colors |
| Color Arrangement | RGB Vertical Stripe | - |
| Interface | 4-Lane MIPI, I²C | - |
| Active Area | 60.192 × 160.512 | mm |
| Module Dimensions | 78.02 × 191.10 × 6.34 | mm |
| Weight | 125 | g |
Mechanical Dimensions
Technical Resources
- 📄 Datasheet: DMKDI06801GCA
| Specification name | Specification Value |
|---|---|
| Device interface | MIPI |
