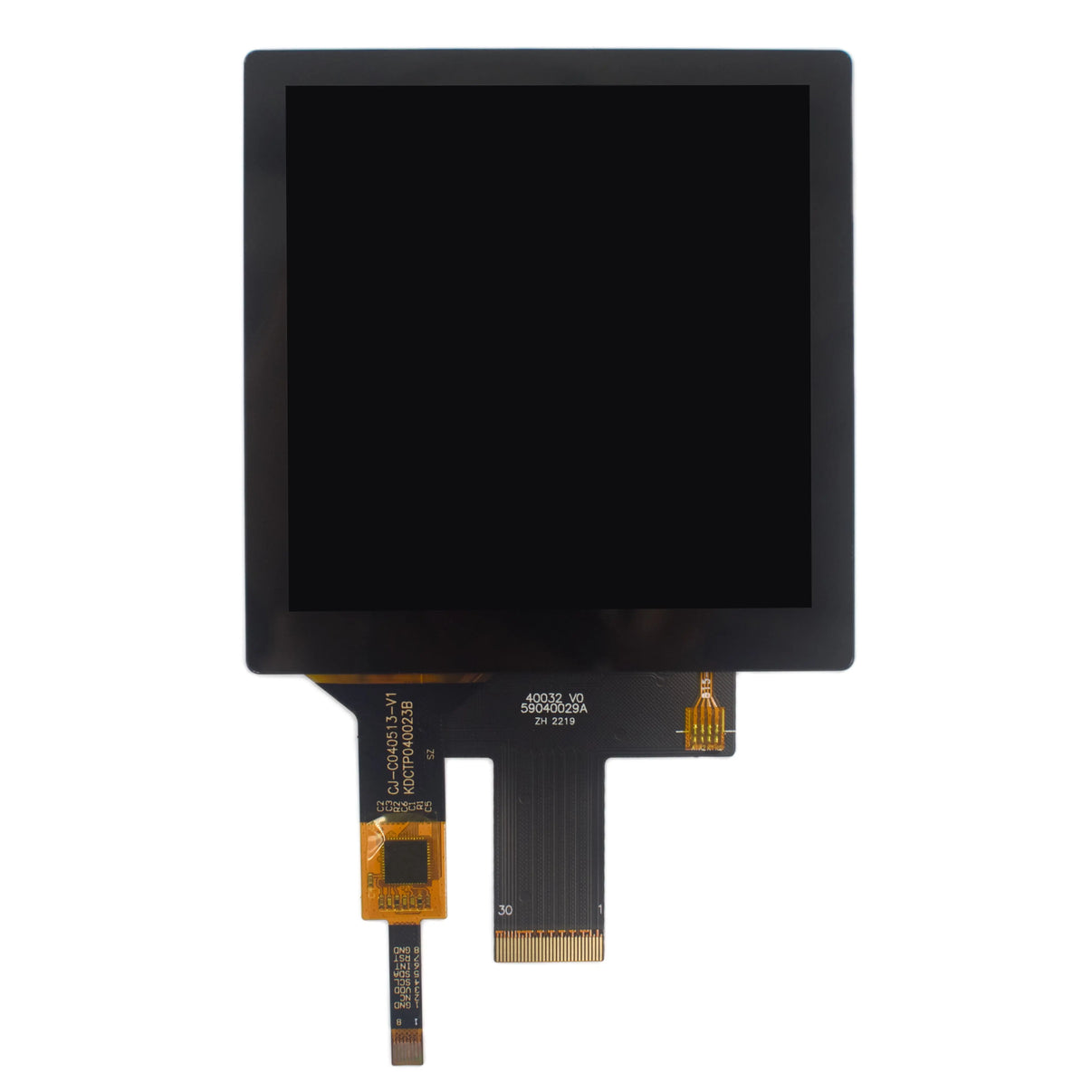

4.0" 720×720 Square TFT LCD Display | DMKDI0400S0CA
The DMKDI0400S0CA is a 4.0-inch square-format TFT LCD module offering 720×720 high resolution, normally black mode, and vivid 16.7M color support. Powered by the ST7703 driver IC and supporting 2/3/4-lane MIPI interface, this module is ideal for compact, high-clarity display applications including handhelds and control panels.
| Parameter | Specification | Unit |
|---|---|---|
| Screen Size | 4.0 | inch |
| Display Mode | Transmissive / Normally Black | - |
| Resolution | 720 × 720 | pixels |
| Pixel Pitch | 0.0999 × 0.0999 | mm |
| Active Area | 71.928 × 71.928 | mm |
| Module Size | 84 × 85.99 × 3.76 | mm |
| Interface | 2 / 3 / 4 Lane MIPI | - |
| Driver IC | ST7703 | - |
| Color Arrangement | RGB Vertical Stripe | - |
| Color Depth | 16.7M | colors |
| Weight | 50 | g |
Mechanical Dimensions
Technical Resources
- 📄 Datasheet: DMKDI0400S0CA
| Specification name | Specification Value |
|---|---|
| Device interface | MIPI |
