0.23" Micro OLEDoS Display 640x400 2400nits 60Hz
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Dimensions
0.23" Micro OLEDoS Display 640x400 2400nits 60Hz

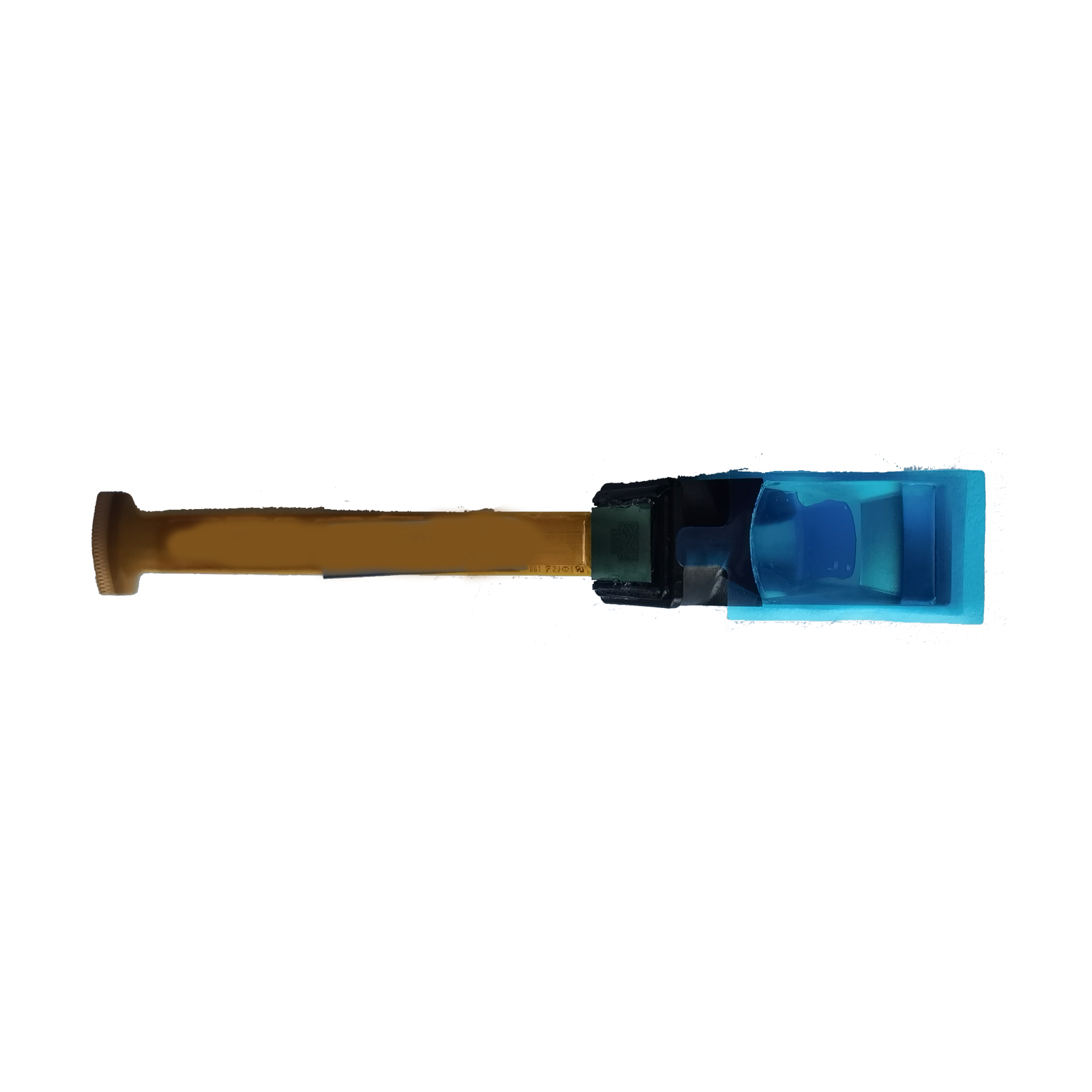

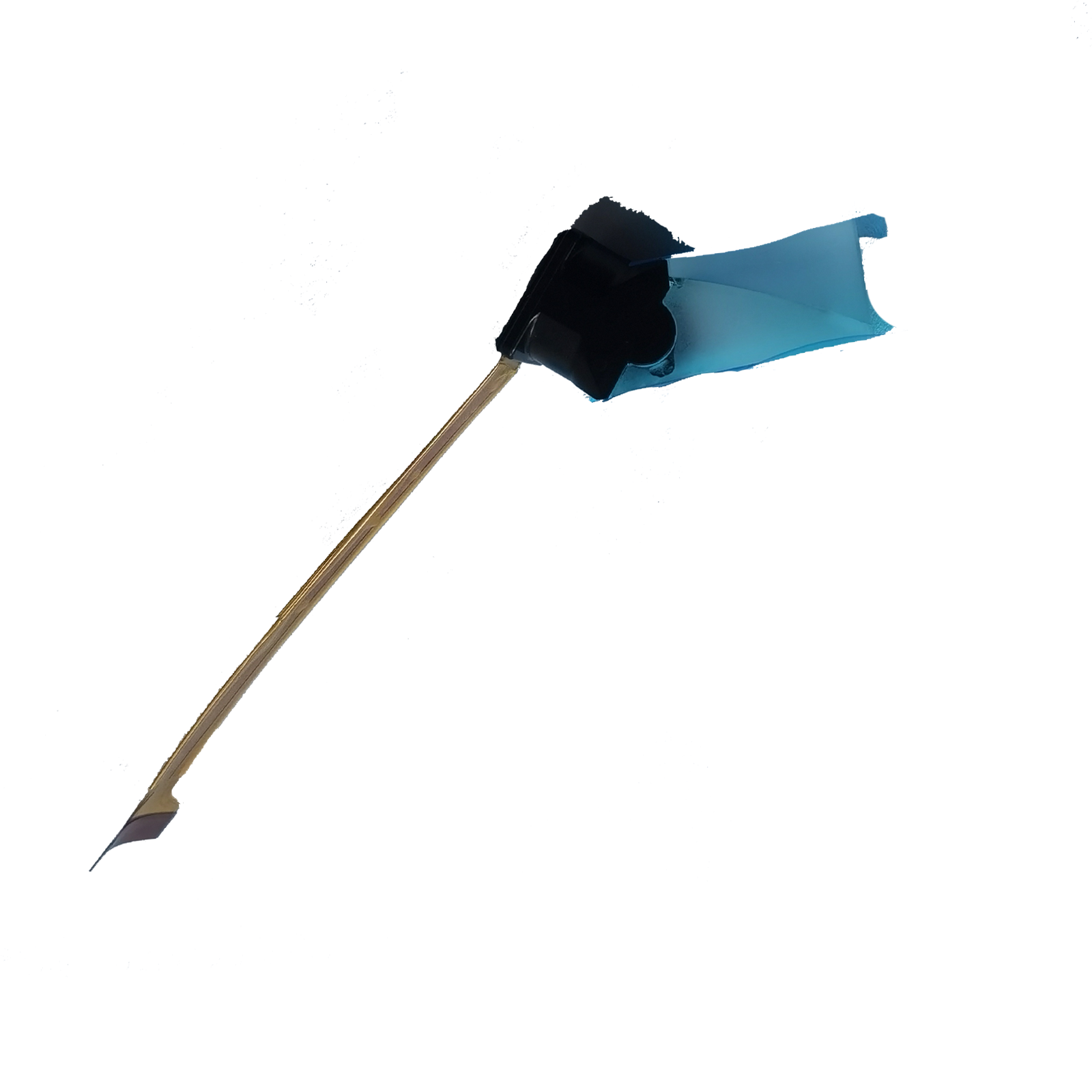

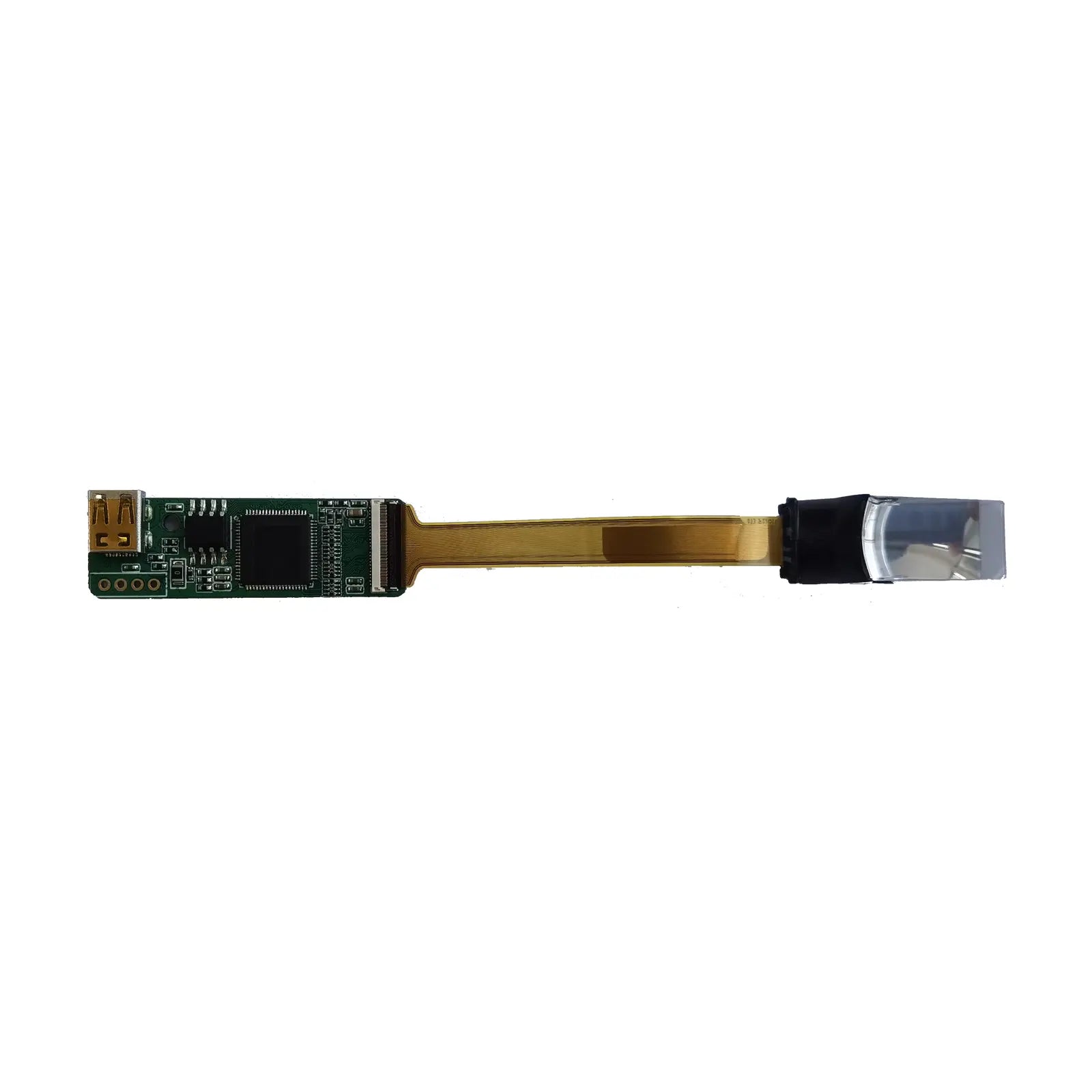

The Micro OLED is a 0.6 cm (0.23inch) diagonal, 640(RGB) × 400 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, achieving smaller size, lightweight design and high resolution.
This high-performance display module offers exceptional image quality with ultra-high contrast and wide color gamut, making it ideal for applications requiring premium visual performance in compact form factors.
- Ultra High Contrast: Exceptional 10,000:1 contrast ratio for deep blacks and bright whites
- Wide Color Gamut: Rich, vibrant colors with excellent color reproduction
- Fast Response: Quick pixel response time for smooth motion rendering
- Thin & Lightweight: Compact design perfect for portable and wearable applications
- Power-Saving Mode: Energy-efficient operation for extended battery life
- Flexible Scanning: Scan direction selection, up or down and right or left
| Parameter | Specification |
|---|---|
| Display Technology | Active Matrix Color OLED (Micro OLED) |
| Resolution | 640(RGB) × 400 dots |
| Number of Dots | 0.77M dots |
| Useable Display Area | 0.23" diagonal |
| Luminance (Max) | 2400 cd/m² |
| Contrast Ratio | 10,000:1 |
| Input Interface | Parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit |
| Frame Rate | 60Hz |
| Power Supply | 1.8V, 10V (VCCP), EL cathode power supply |
| Operating Temperature | Standard industrial range (specifics in datasheet) |
We offer comprehensive enterprise solutions for businesses looking to integrate Micro OLED technology into their products.
- Customization Services: Tailored display solutions to meet specific application requirements
- Bulk Procurement: Competitive pricing for volume orders with dedicated account management
- Technical Support: Expert engineering assistance for integration and optimization
- Supply Chain Stability: Long-term stable supply from reliable manufacturers
For enterprise inquiries, please contact our business development team to discuss your specific requirements and volume needs.
Ideal for AR/VR devices, providing high-resolution imagery in an ultra-compact form factor with exceptional brightness and contrast.
Perfect for professional and consumer camera systems requiring high-quality electronic viewfinders with accurate color reproduction.
Suitable for medical imaging equipment, endoscopes, and surgical displays where high resolution and reliability are critical.
Applications in measurement devices, control systems, and portable instruments requiring high-visibility displays.
Technical Notes: This display module integrates panel driver and logic driver based on single crystal silicon transistors. It supports multiple input formats including parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit with appropriate register settings.
Resources: Download complete technical documentation
