Dimension

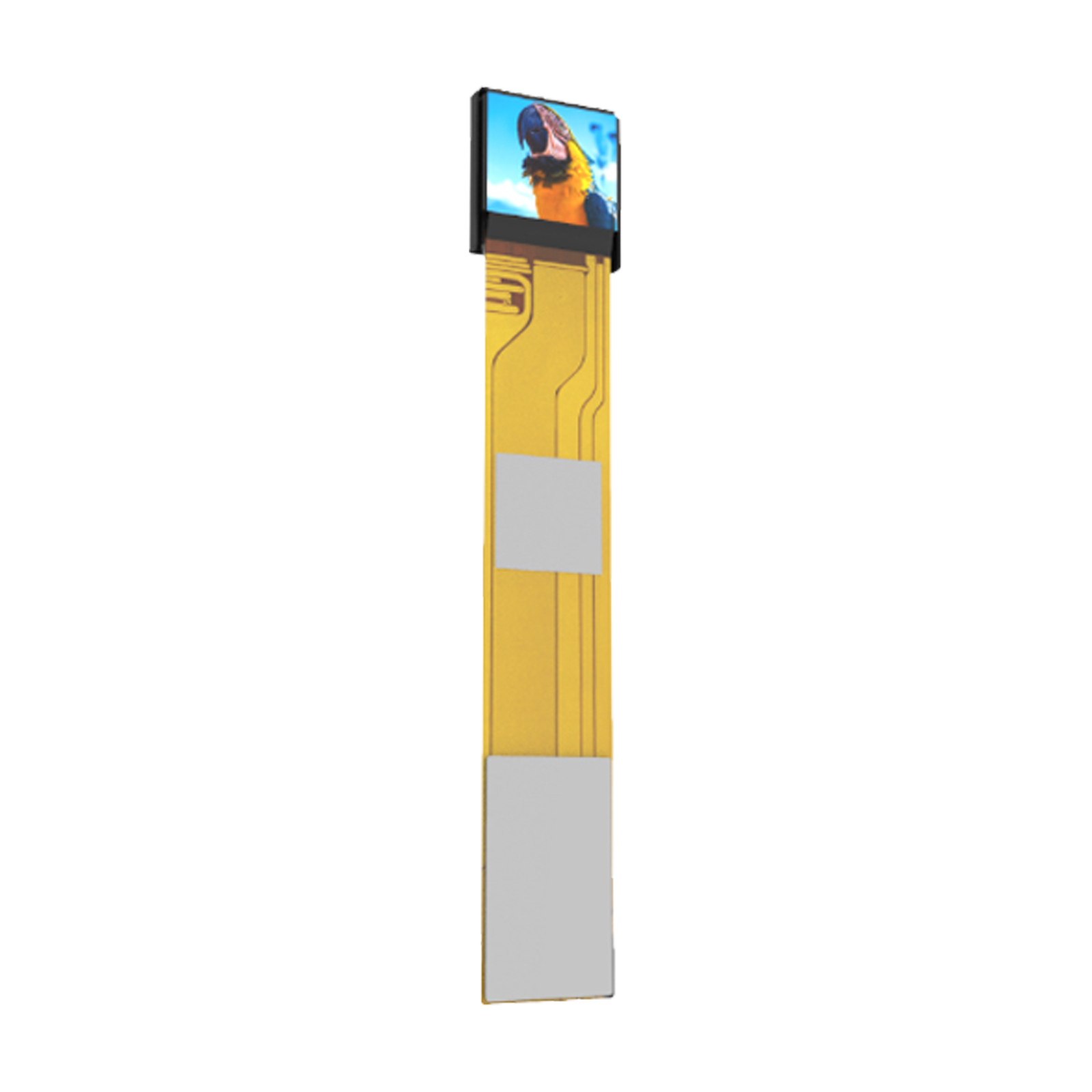

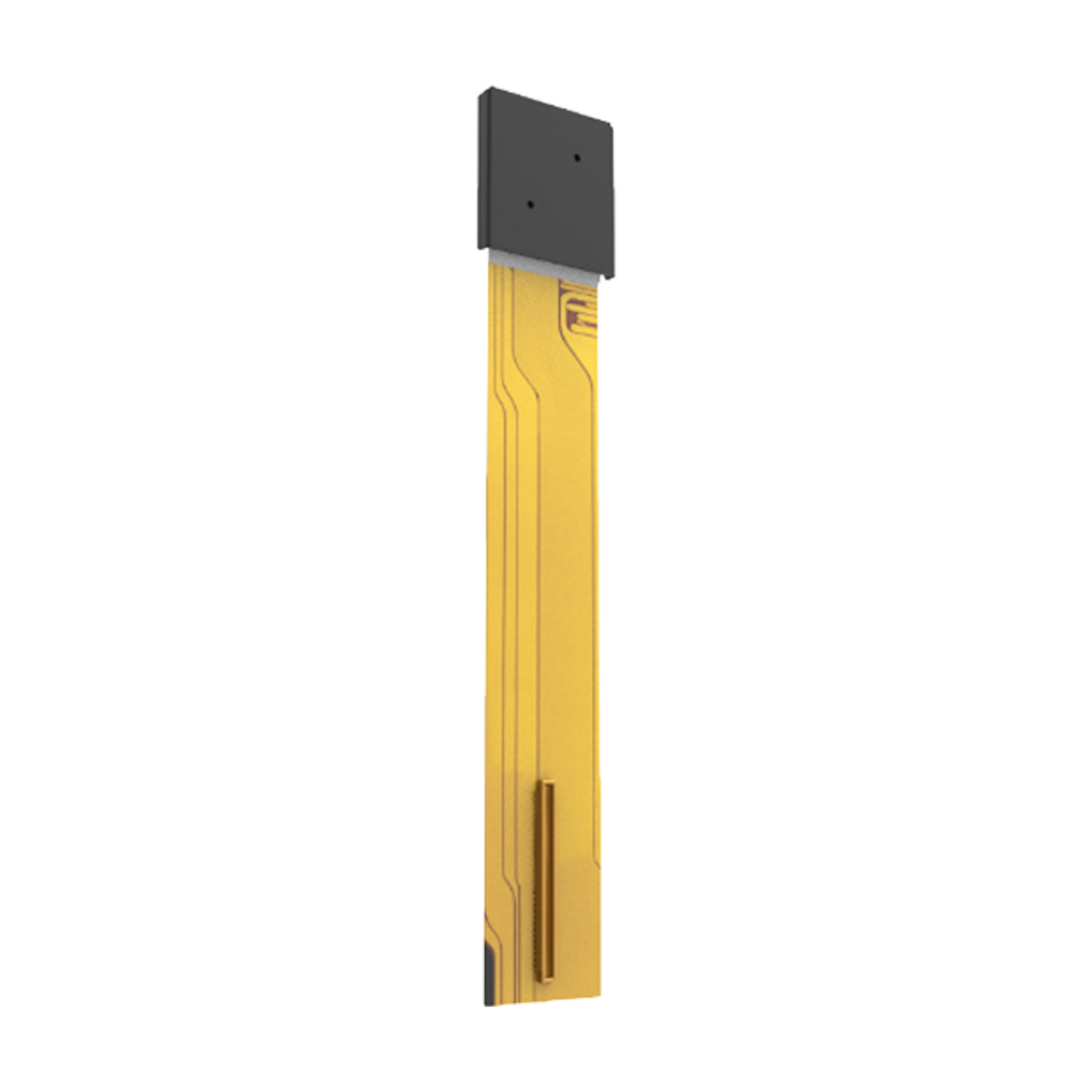

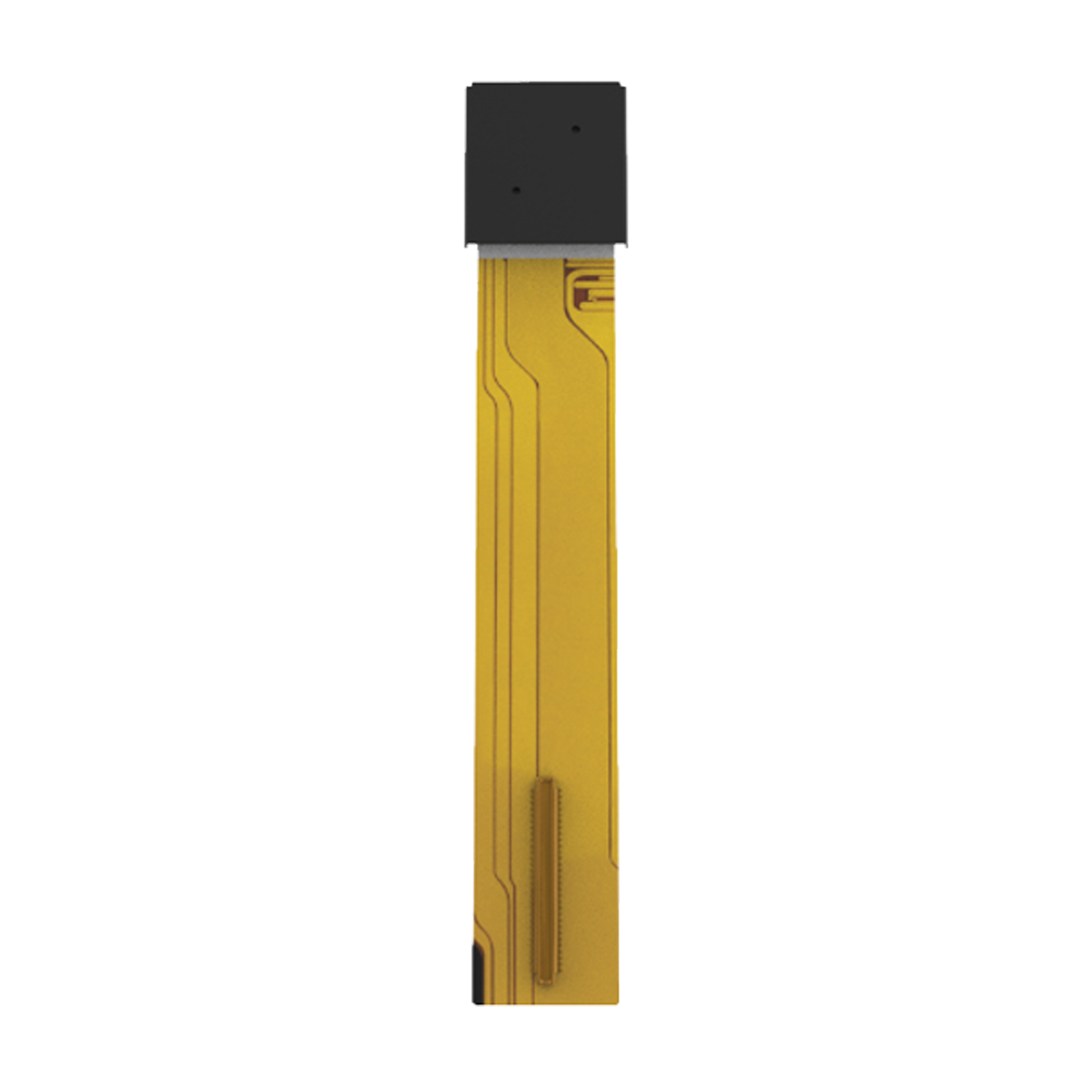

0.32" Micro OLEDoS Display 800x600 2000nits 120Hz - I2C, RGB, MIPI
This advanced 0.32-inch Micro-OLED display delivers exceptional image quality with 800×600 resolution and 2000 nits brightness. Featuring multiple interface options including I2C, RGB and MIPI, this display module is engineered for high-performance applications requiring ultra-compact form factors and low power consumption.
Based on single-crystal silicon transistor technology, this active-matrix color OLED panel integrates both panel driver and logic driver, achieving remarkable miniaturization while maintaining high resolution and excellent optical performance.
- High Pixel Density: With 1.44 million dots (800×600×3) arranged in a hexagon delta pattern, delivering sharp and vibrant images.
- Wide Color Gamut: Supporting 16.7M colors (24-bit depth) for rich, accurate color reproduction.
- Multiple Interfaces: Compatible with I2C, RGB parallel interface, and MIPI D-PHY with 2 lanes for flexible system integration.
- Low Power Operation: Optimized power consumption of just 220mW at typical operating conditions.
| Parameter | Specification |
|---|---|
| Resolution | 800(H) × 600(V) |
| Number of Dots | 1.44M (800×600×3) |
| Pixel Size | 8.1μm × 8.1μm |
| Pixel Arrangement | Hexagon, delta arrangement |
| Active Area | 6.48mm × 4.86mm (0.32" diagonal) |
| Luminance | 2000 cd/m² |
| Contrast Ratio | 100,000:1 |
| Power Consumption | 220mW |
| Gray Levels | 256 |
| Interface | I2C, RGB, MIPI D-PHY (2 lanes) |
| Frame Rate | 15-120Hz |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -40℃ to +80℃ |
We offer customized display solutions for OEM and ODM clients seeking to integrate high-performance micro-displays into their products. Our engineering team can work with you to develop tailored solutions that meet your specific requirements.
- Custom Configurations: Modified interface options, specialized firmware, and custom mechanical designs available.
- Volume Pricing: Competitive pricing for high-volume orders with flexible minimum order quantities.
- Technical Support: Comprehensive engineering support throughout your product development cycle.
- White Label Options: Private labeling available for qualified partners and resellers.
Ideal for augmented and virtual reality applications where high brightness, fast response time, and compact size are critical for immersive experiences.
Perfect for medical viewfinders, endoscopes, and surgical displays requiring high resolution and accurate color reproduction.
Suited for industrial scopes, measurement devices, and portable instrumentation where space constraints and reliability are paramount.
Documentation: Complete technical documentation including datasheets, application notes, and interface specifications available for download.
Design Resources: Reference designs, driver IC documentation, and mechanical drawings to accelerate your product development.
