0.39" Micro OLED Display 1024×768 - RGB,SPI
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Interested in customizing this product? Get in touch with us.
Order samples, immediate delivery.
Factory bulk lead time: 3 weeks.
0.39" Micro OLED Display 1024×768 - RGB,SPI
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Dimensions

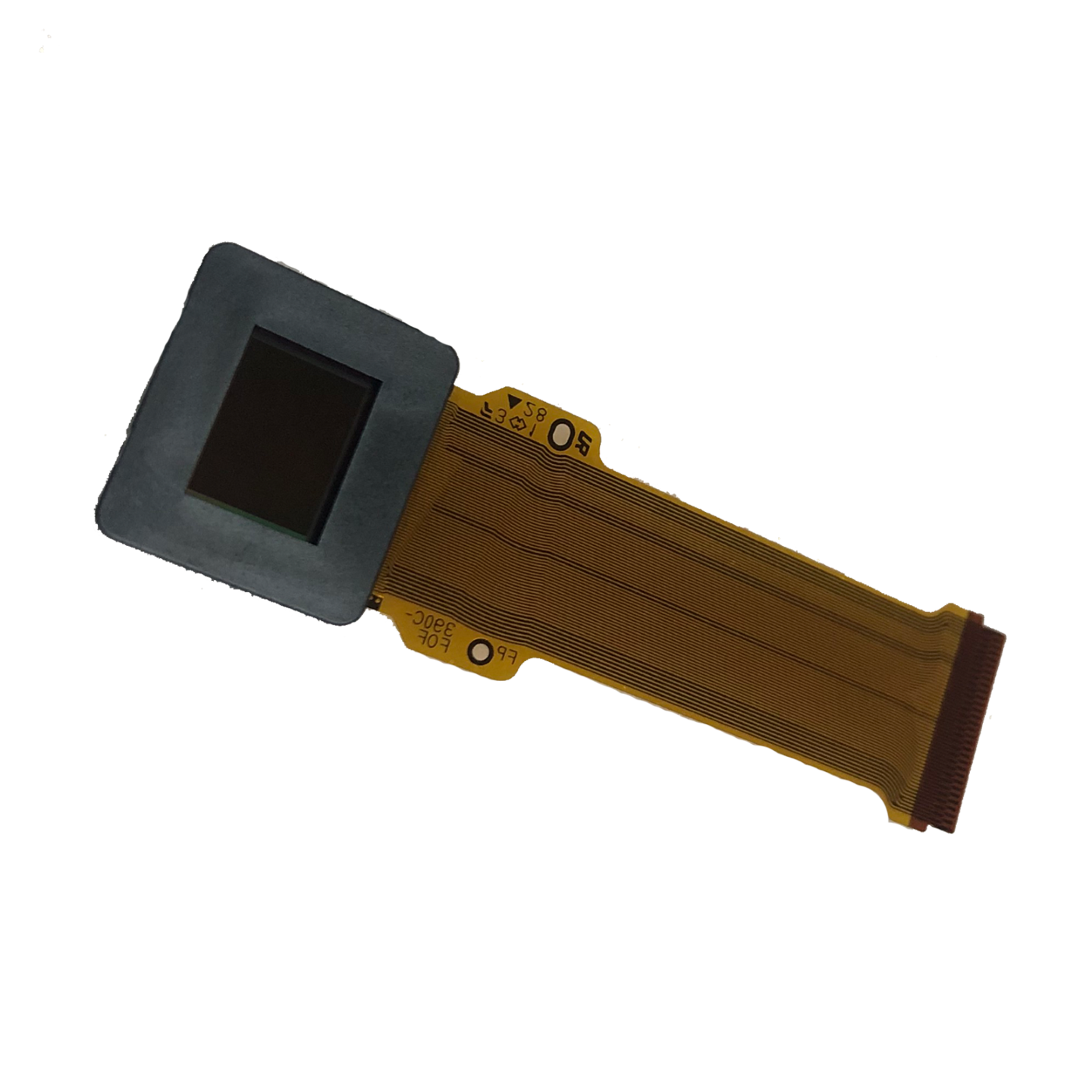

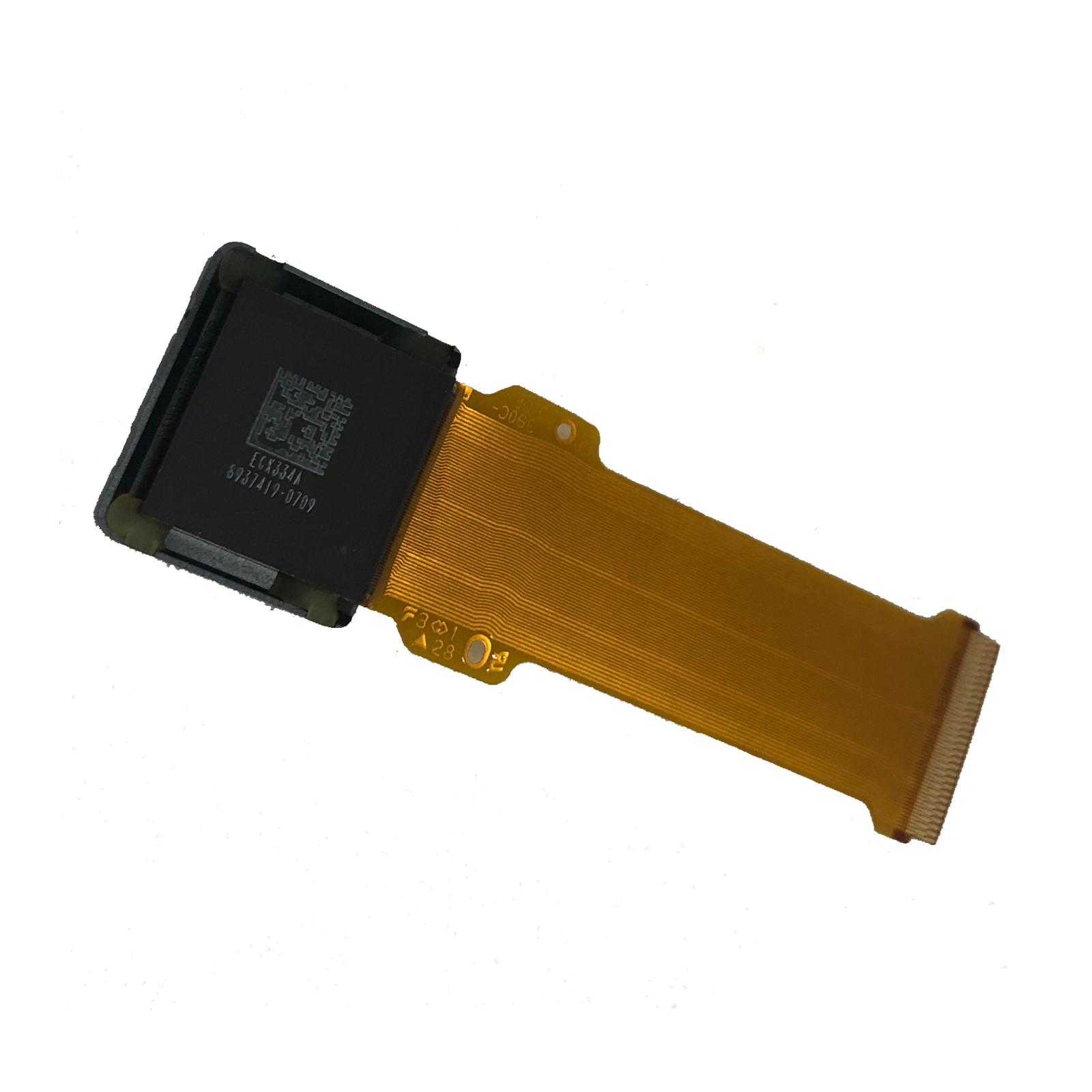

0.39" Micro OLED Display 1024×768 - RGB,SPI
Experience cutting-edge visual performance with our 0.39-inch Micro OLED display, featuring a high-resolution 1024×768 RGB matrix with 2.38 million dots. This compact display module utilizes single-crystal silicon transistors for superior image quality and power efficiency.
Designed for applications where space and power efficiency are critical, this Micro OLED panel delivers exceptional color reproduction and wide viewing angles in an ultra-compact form factor. The integrated driver circuitry enables seamless integration into various electronic devices.
- High Pixel Density: Delivers sharp, detailed images with 2.38 million dots in a compact 0.39-inch diagonal area.
- Wide Color Gamut: Exceptional color reproduction capabilities for vibrant, true-to-life imagery.
- Fast Response Time: Ideal for dynamic content with minimal motion blur.
- Dual Interface Support: Compatible with both parallel RGB 24-bit and YCbCr 16-bit input formats.
- Power Saving Features: Advanced power management for extended battery life in portable applications.
| Parameter | Specification |
|---|---|
| Display Technology | Active Matrix Color OLED |
| Diagonal Size | 0.39 inch |
| Resolution | 1024(RGB)×768 |
| Number of Dots | 2.38 million |
| Luminance (Max) | 345 cd/m² |
| Contrast Ratio | 10,000:1 |
| Power Consumption | 0-246 mW |
| Input Interface | Parallel RGB 24-bit, YCbCr 16-bit |
| Frame Rate | 60Hz or 120Hz |
| Operating Temperature | -10℃ to 70℃ |
| Storage Temperature | -30℃ to 80℃ |
We offer customized display solutions for businesses seeking to integrate high-performance Micro OLED technology into their products. Our enterprise services include:
- Custom Configuration: Tailored display solutions to meet specific application requirements and form factors.
- Volume Pricing: Competitive wholesale pricing for bulk orders and OEM partnerships.
- Technical Support: Dedicated engineering support for integration and optimization challenges.
- Long-term Supply Agreements: Stable supply chain solutions for production planning and inventory management.
Ideal for VR headsets and goggles, providing immersive visual experiences with high resolution and fast response times.
Perfect for AR glasses and helmets where compact size, high brightness, and power efficiency are critical.
Used in surgical displays, endoscopes, and medical viewers requiring high contrast and accurate color reproduction.
Integrated into measurement devices, portable instruments, and control systems where space is limited but visual clarity is essential.
Compatibility: This display module supports multiple input formats including parallel RGB 24-bit and YCbCr 16-bit. It features up/down and right/left inversion functions for flexible installation options.
Technical Documentation: Download complete datasheet for detailed electrical characteristics, pin descriptions, and interface specifications.
Integration Support: Our technical team provides comprehensive support for display driver implementation, power management optimization, and mechanical integration guidance.
