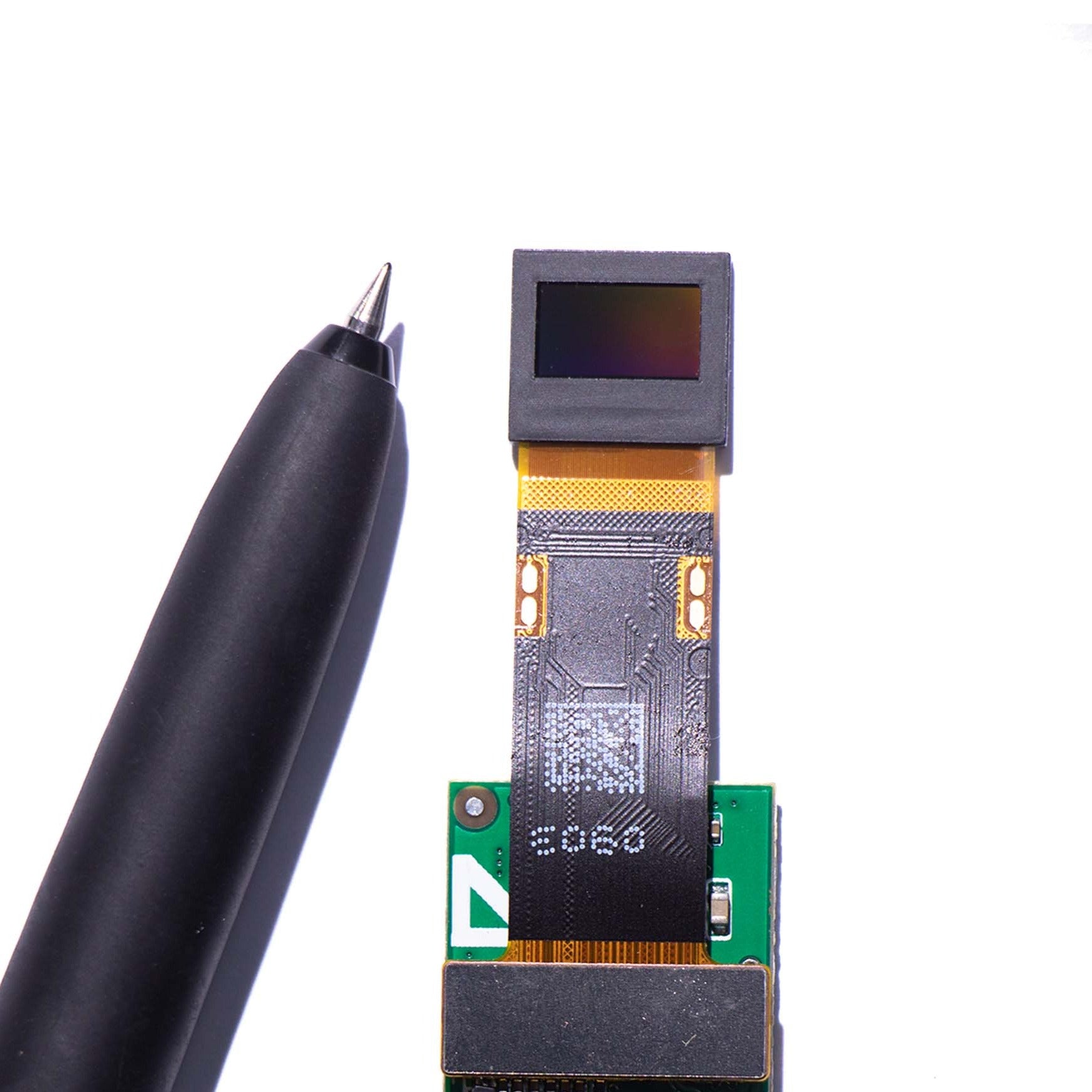

Micro OLED display screen compared in size to a water-based pen

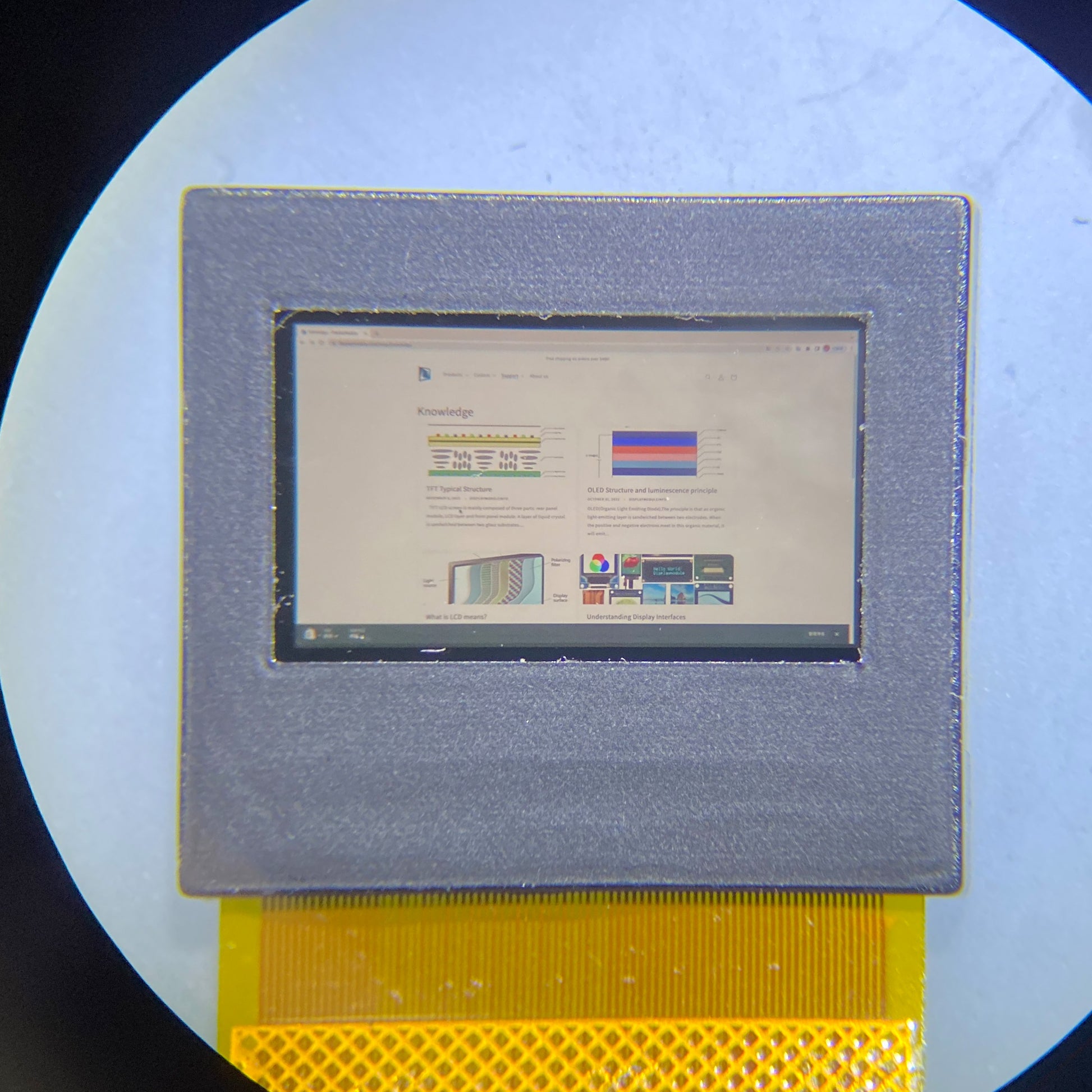

A Micro OLED display under a microscope, displaying a webpage on it

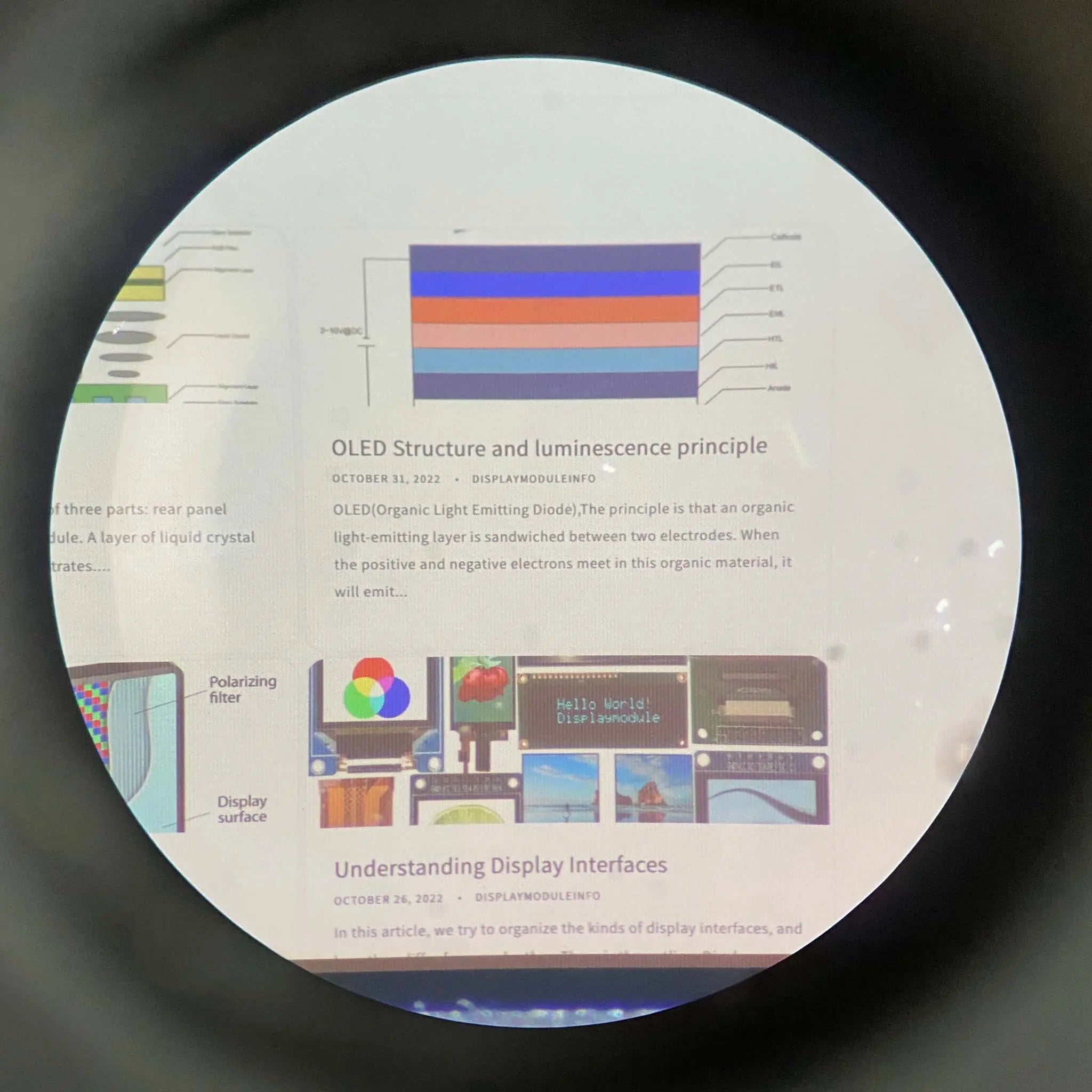

Micro OLED display under high magnification of a microscope

0.39" Micro OLED Display 1920×1080 - MIPI, I2C

SKU: DM-OLED039-694

$139.00

💹 Enjoy a 20% discount for orders over 500
📉 A 15% discount is available for orders ranging from 200 to 499
🎁 A 10% discount is available for orders ranging from 50 to 199
🎁 A 5% discount is available when ordering 10-49

Interested in customizing this product? Get in touch with us.

Order samples, immediate delivery.

Factory bulk lead time: 3 weeks.

Share

0.39" Micro OLED Display 1920×1080 - MIPI, I2C

$139.00

0.39" Micro OLED Display Module 1920x1080

Active Matrix Color OLED utilizing single-crystal silicon backplane technology. Integrates pixel circuits and driving ICs directly on the silicon substrate, yielding a 5644 PPI density for ultra-high-resolution imaging in constrained optical environments.

5644 PPI

Pixel Density

1500 cd/m²

Typical Luminance

>10,000:1

Contrast Ratio

Optical & Electrical Specifications

Parameter	Specification
Display Size	0.39 inch diagonal
Resolution	1920(RGB) × 1080 (FHD)
Color Depth	24-bit (16.7 Million Colors)
Color Gamut	>80% NTSC
Data Interface	MIPI DSI (Video Data)
Control Interface	I2C (Command/Register Configuration)
Operating Voltage	1.8V (Logic), 5.4V & -5.4V (OLED Power)
Operating Temperature	-10°C to 80°C
Reliability Rating	MTBF > 50,000 Hours (at room temperature & 50% luminance), RoHS Compliant

Architecture & Integration

MIPI & I2C Protocol

Supports purely MIPI video data streaming combined with standard I2C for register writing. Allows independent control of high-fluency mode and gamma calibration without interrupting video data lanes.

Flexible Resolution Mapping

Programmable resolution operation supporting (8*M, M=40~240) x RGB x (8*N, N=30~135) configurations. Hardware-level image scaling matches varied input sources.

Power Management

Integrated Deep Standby mode via I2C commands minimizes quiescent current. Thermal compensation algorithms dynamically adjust voltage to maintain chromaticity across the -10°C to 80°C range.

Validated Deployment Scenarios

Augmented Reality Glasses

High pixel density prevents the screen-door effect at close focusing distances. Low weight and minimal footprint fit micro-optical engine constraints.

Medical Imaging Endoscopy

10,000:1 contrast ratio and 16.7 million colors reproduce exact tissue differentiations. Reliable operation under continuous clinical usage.

Thermal & Night Vision

Wide operating temperature (-10°C to 80°C) guarantees ultra-low latency or artifacting in extreme tactical and outdoor environments.

Engineering & OEM Integration Support

We provide comprehensive PCB layout guidelines, initialization source code, FPC customization, and stable supply chain management for volume OEM/ODM manufacturing.

Review the technical documentation for exact dimensional tolerances, register mapping, and absolute maximum electrical ratings.
