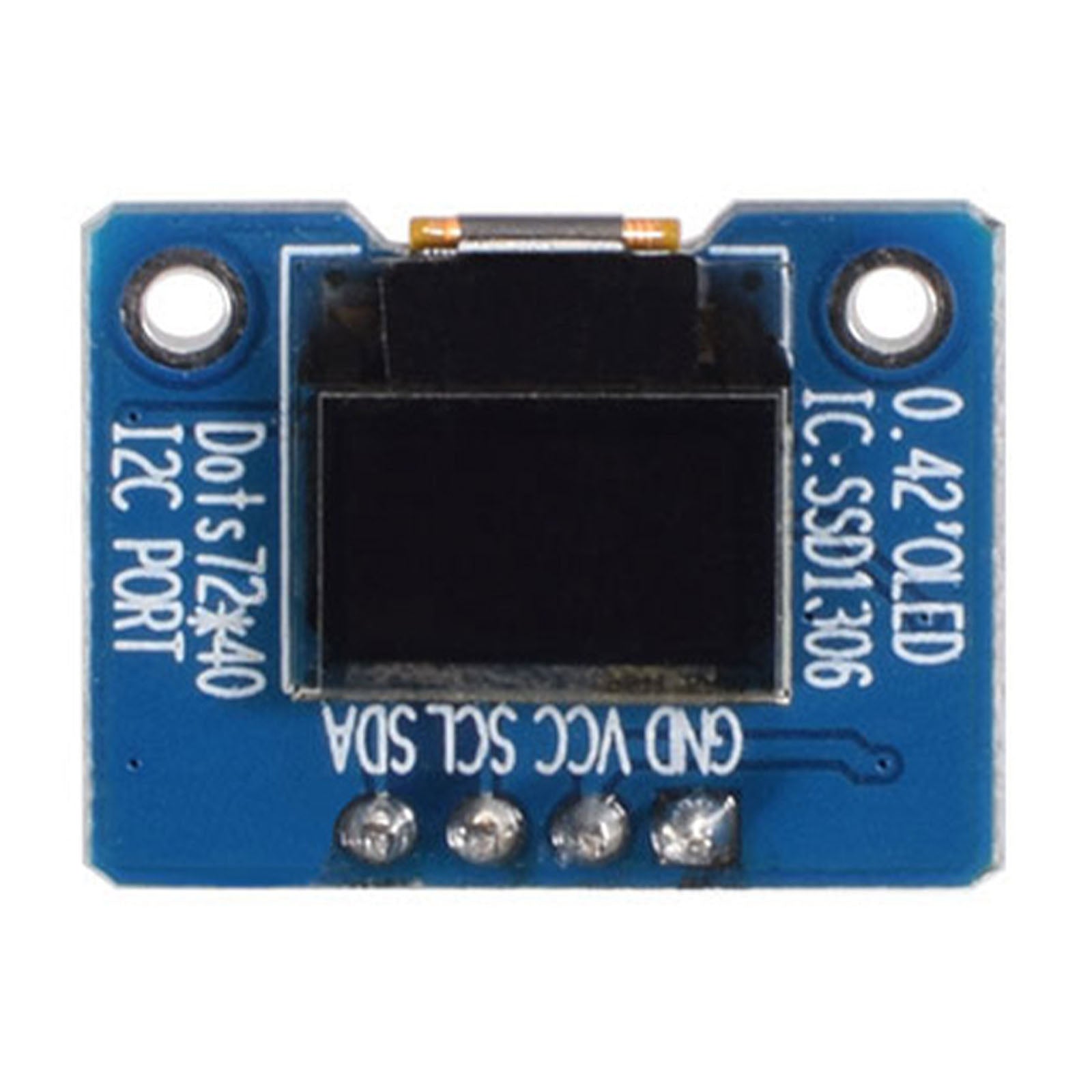

0.42-inch OLED graphic display module with 72x40 resolution and I2C interface

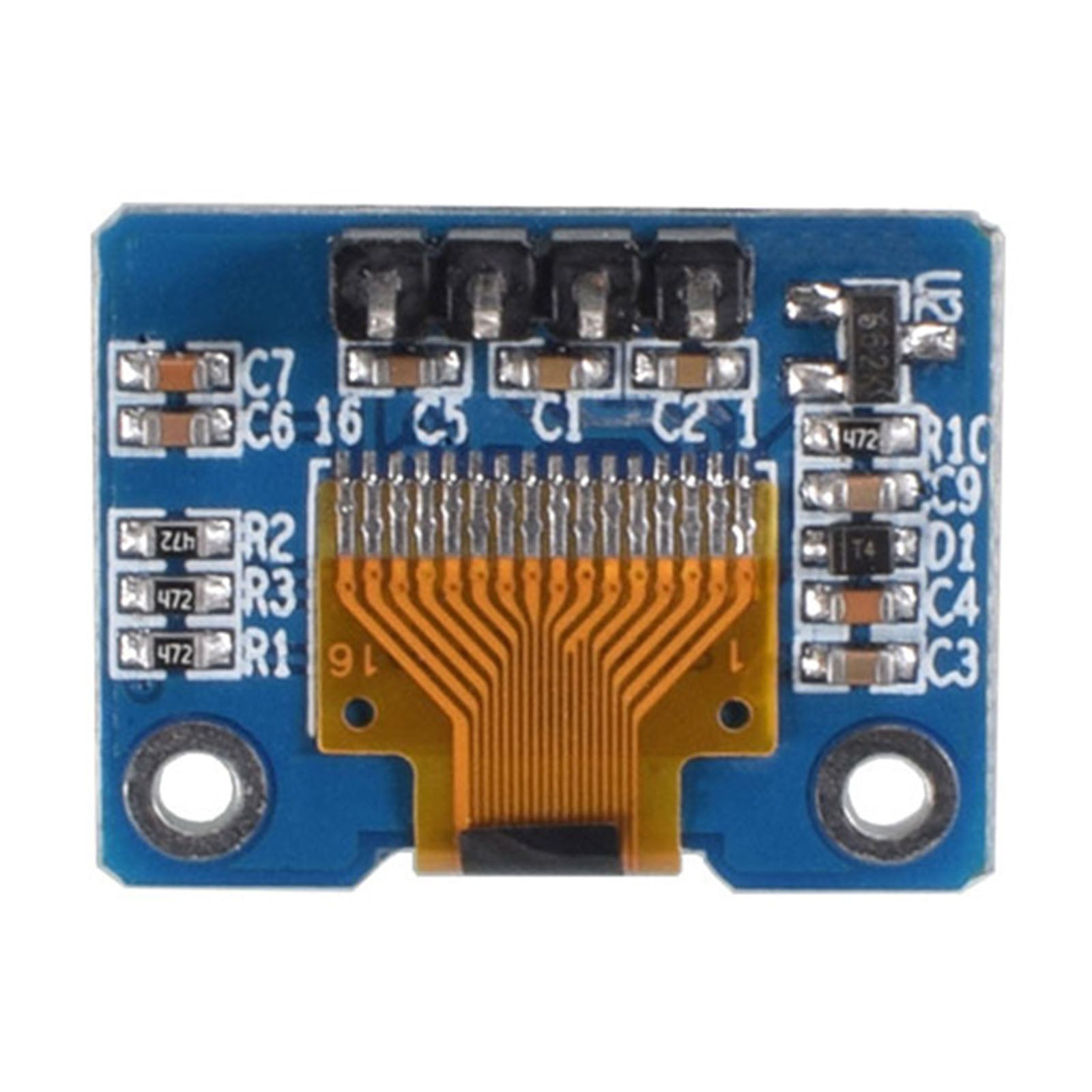

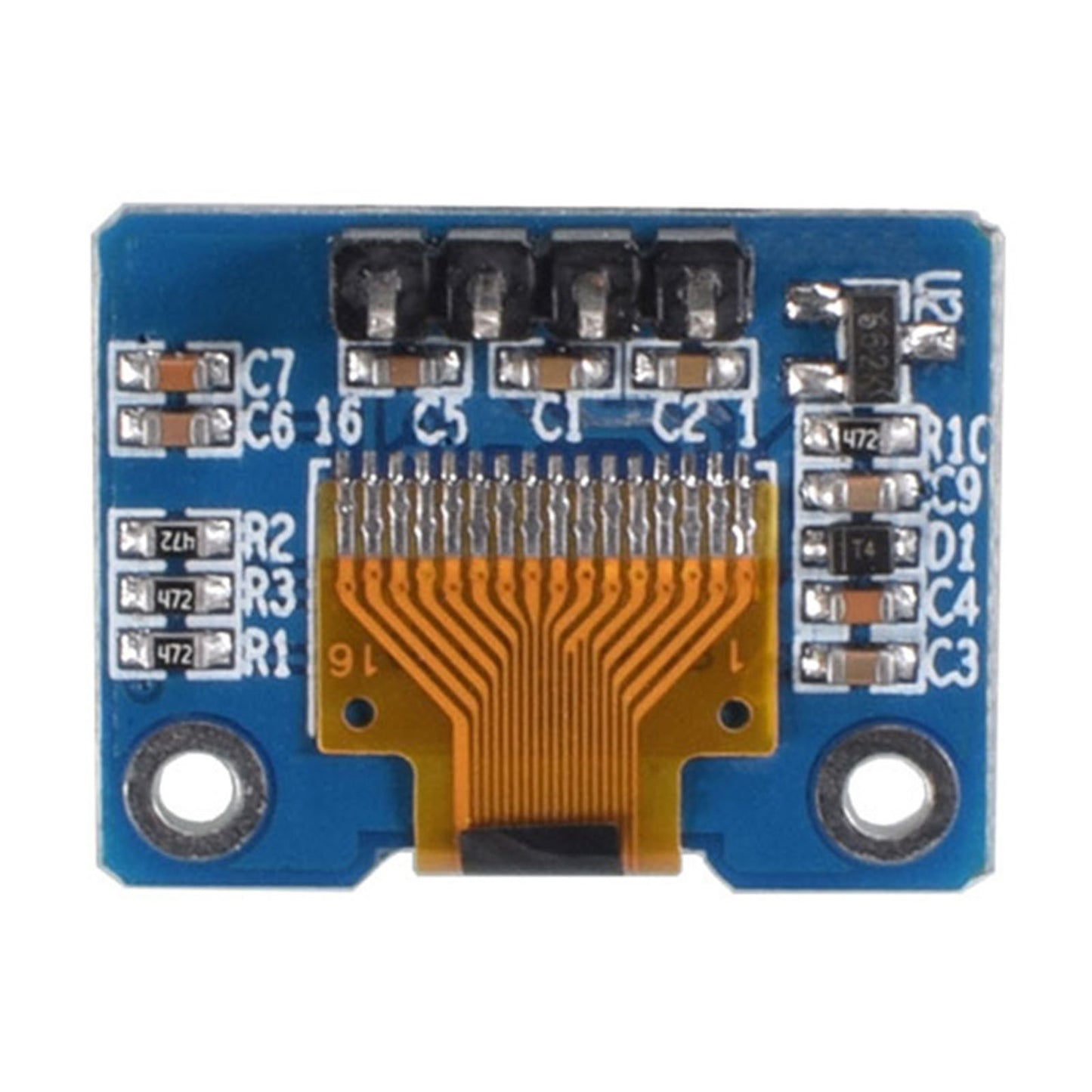

Back of 0.42-inch OLED Graphic display module

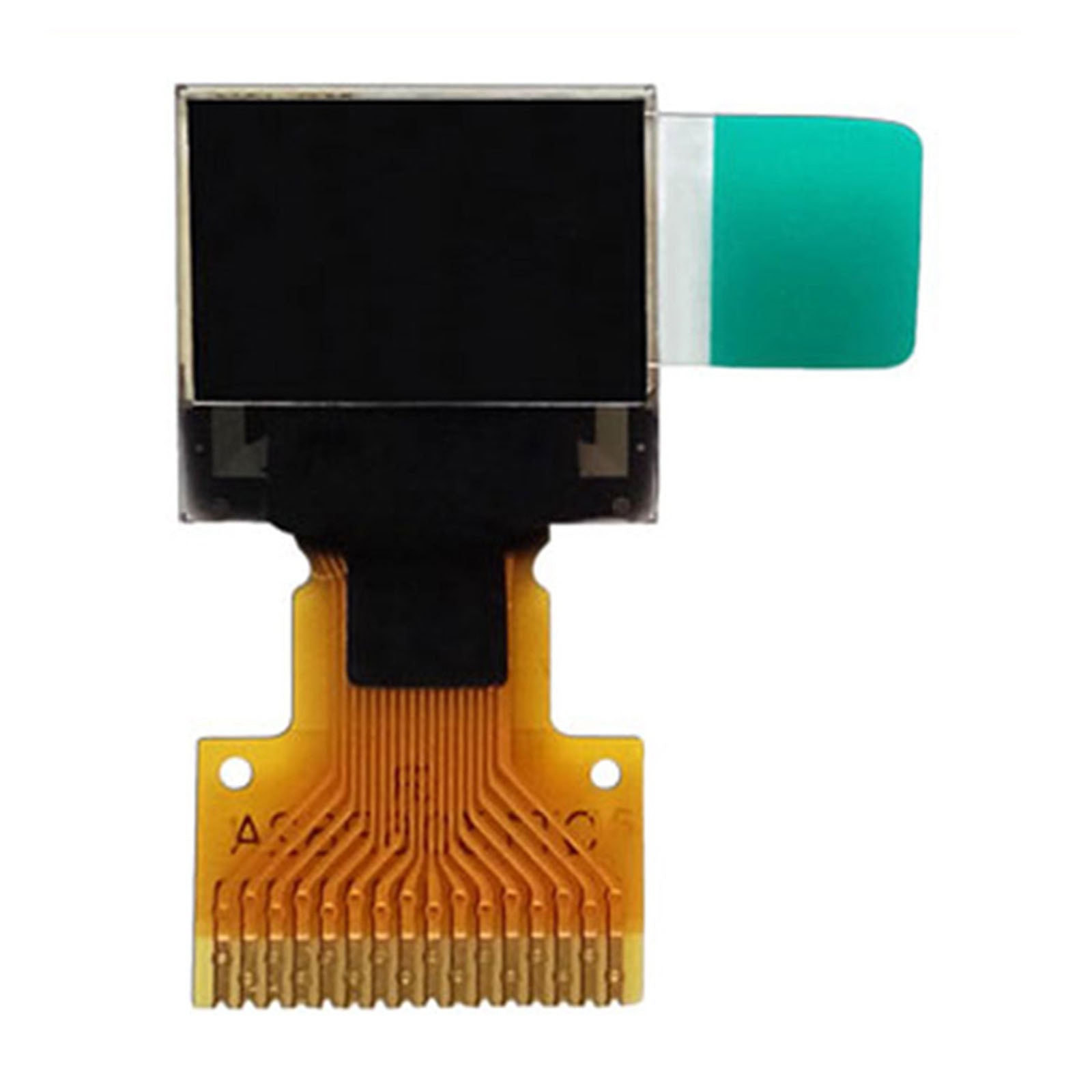

0.42-inch OLED graphic display panel

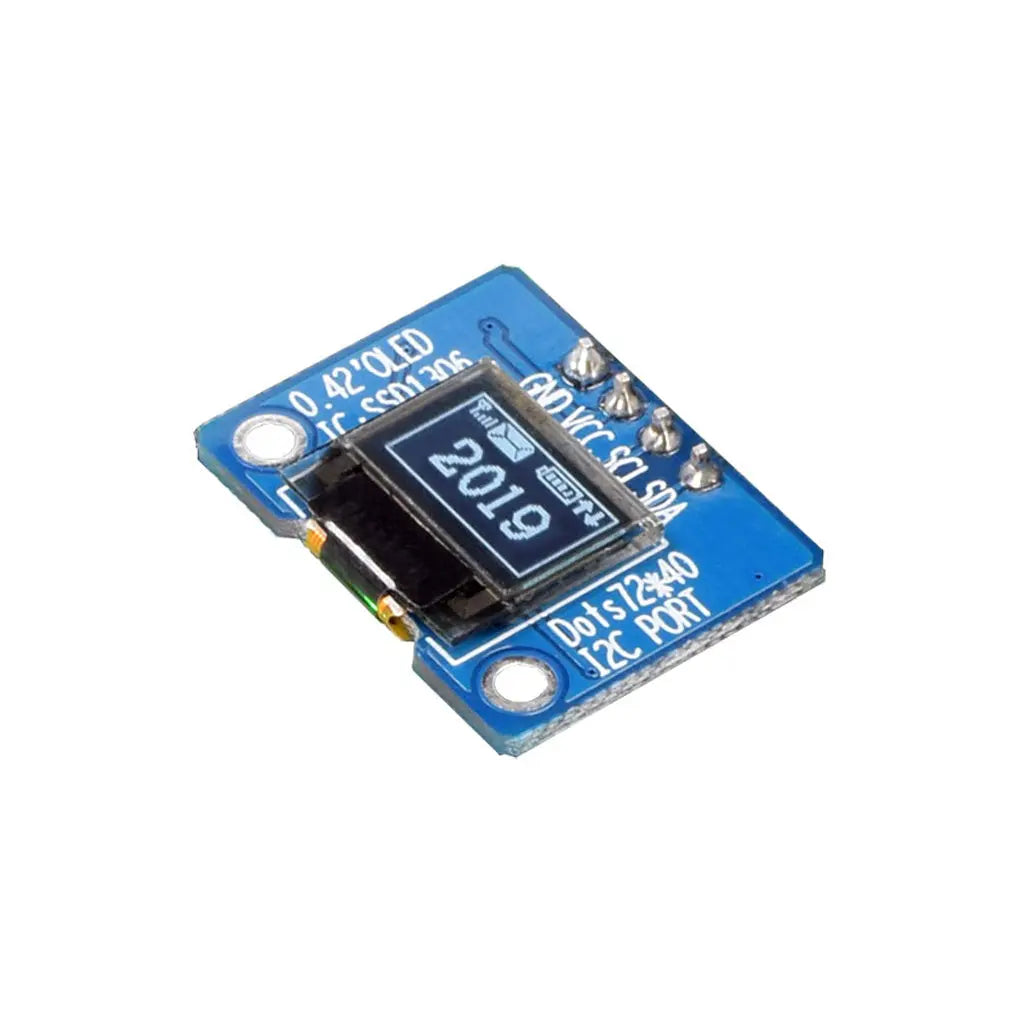

Top view of 0.42-inch OLED graphic display

0.42" OLED Graphic Display 72x40 - I2C

Regular price $2.90
Sale price $2.90 Regular price
Datesheet:
DM-OLED042-647p
DM-OLED042-647
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Resolution : 72x40 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : White
  • Module Dimension : 12x11x1.2 mm
  • Viewing Area : 9.196x5.180 mm
  • Power Supply : 2.8 V
  • Interface : I2C
  • Controller IC : SSD1315
  • Operation Temperature : -40℃~85℃
  • Storage Temperature : -40℃~85℃

Dimension


Resources

Driver IC: SSD1315

Arduino SSD1306 library: u8g2  .Uncomment device U8G2_SSD1306_72 x40_ER_F_HW_I2C u8g2(U8G2_R0,/* reset=*/ U8X8_PIN_NONE);
