Dimension

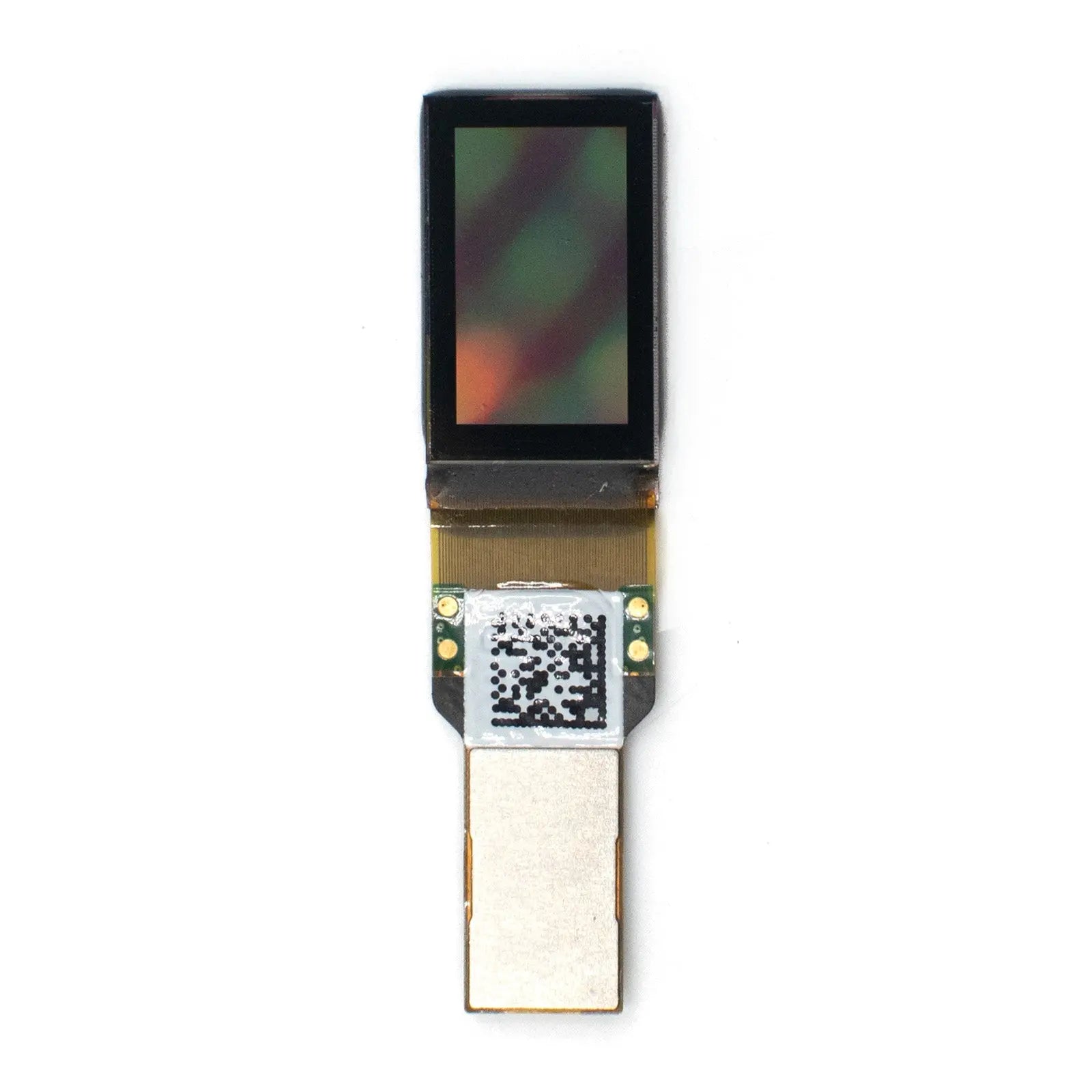

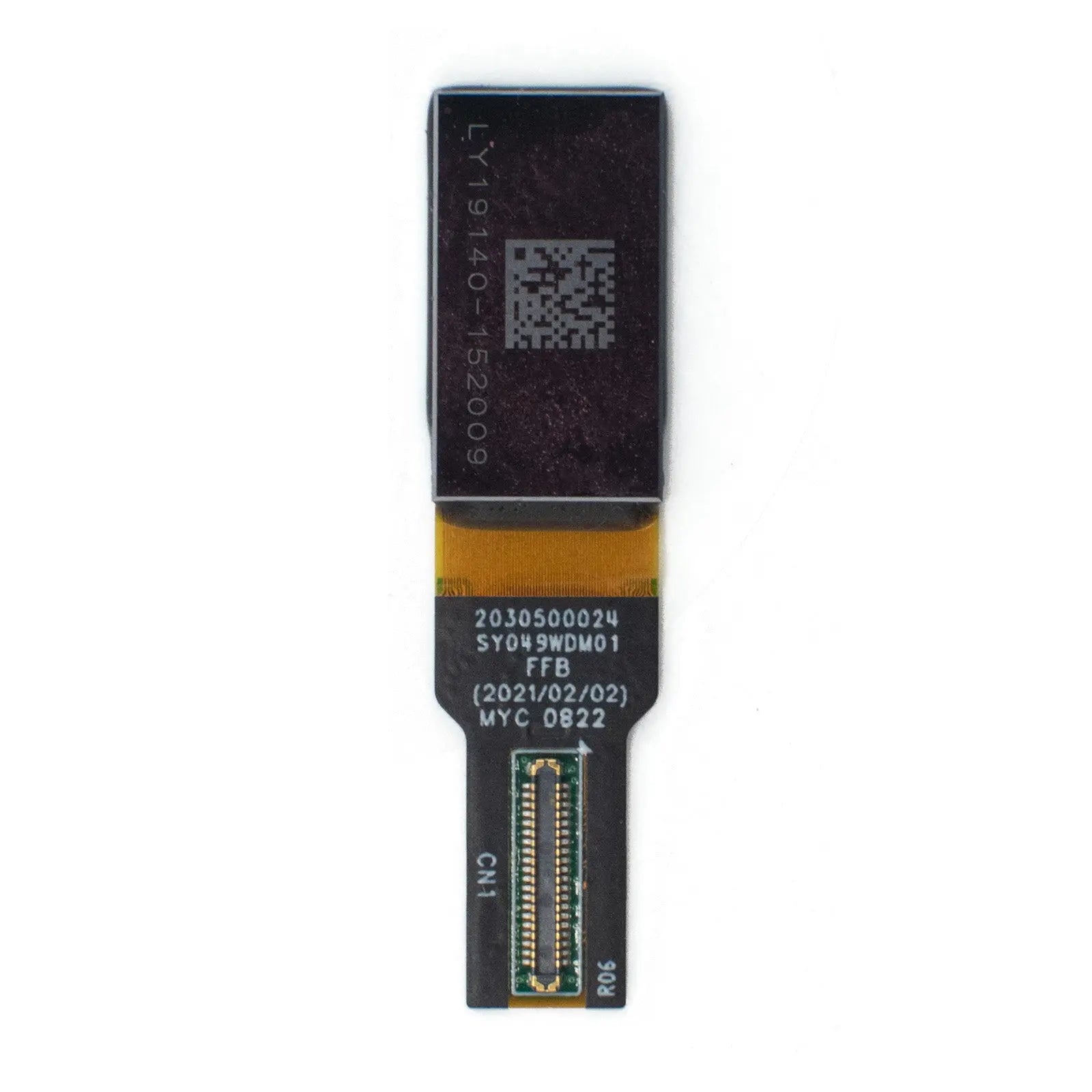

0.49" Micro OLEDoS Display 1920x1080 90Hz 1800nits - MIPI
This high-performance Micro-OLED display offers exceptional image quality with ultra-high resolution and brightness in a compact 0.49-inch form factor. Featuring 1920×1080 resolution, 1800 nits brightness, and 90Hz refresh rate, it delivers stunning visual experiences for professional and consumer applications.
Engineered with advanced single-crystal silicon transistor technology, this Micro-OLED display module integrates panel driver and logic driver, achieving small size, light weight, low power consumption and high resolution performance.
- High Pixel Density: Exceptional detail with 1920×1080 resolution on a 0.49-inch display.
- Wide Color Gamut: 90% DCI-P3 coverage for vibrant, accurate colors.
- Multiple Scaling Options: Support for 1.33x, 1.5x and 2x scaling ratios.
- Advanced Compression: Integrated VESA-DSC v1.1 decoder with 3X and 3.75X compression ratios.
- Flexible Interface: MIPI DPHY v1.2 with one port (4 lanes) at 1.0Gbps/Lane.
| Parameter | Specification |
|---|---|
| Display Type | Micro-OLED (Si-OLED) |
| Display Size | 0.49 inch diagonal |
| Resolution | 1920(H) × 1080(V) |
| Active Area | 10.783mm × 6.065mm |
| Pixel Size | 5.616μm × 5.616μm |
| Luminance | 1800 cd/m² typical |
| Contrast Ratio | 50,000:1 |
| Color Gamut | 90% DCI-P3 |
| Frame Rate | 60Hz-90Hz |
| Interface | MIPI DSI + I2C |
| Operating Voltage | AVDD: 5.3V-5.5V, AVEE: -4V to -5.5V, VDDI: 1.65V-1.95V |
| Power Consumption | 468mW typical (90Hz, 1800nits, full white) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -40℃ to +80℃ |
| Weight | ~1g |
We offer customized display solutions for OEM and ODM partners, providing tailored Micro-OLED displays for specialized applications and volume production requirements.
- Custom Configurations: Modified specifications and form factors to meet specific application needs.
- Volume Pricing: Competitive wholesale pricing for large quantity orders.
- Technical Support: Comprehensive engineering support for integration and optimization.
- Private Labeling: Brand customization options for enterprise customers.
High-brightness, high-resolution displays for AR glasses and headsets, providing immersive mixed reality experiences.
Compact, high-performance displays for VR headsets and immersive entertainment systems.
Precision displays for surgical goggles, endoscopes, and medical visualization equipment.
High-reliability displays for viewfinders, microscopes, telescopes and measurement instruments.
Compatibility: Supports MIPI DPHY v1.2 and MIPI DSI v1.01 R11 Video mode. Compatible with standard MIPI interfaces and controllers.
Technical Documentation: Download complete datasheet
Support: For technical inquiries and integration support, please contact our engineering team.
