0.6" Micro OLEDoS Display 1920x1080 120Hz 6000nits - MIPI
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Dimension

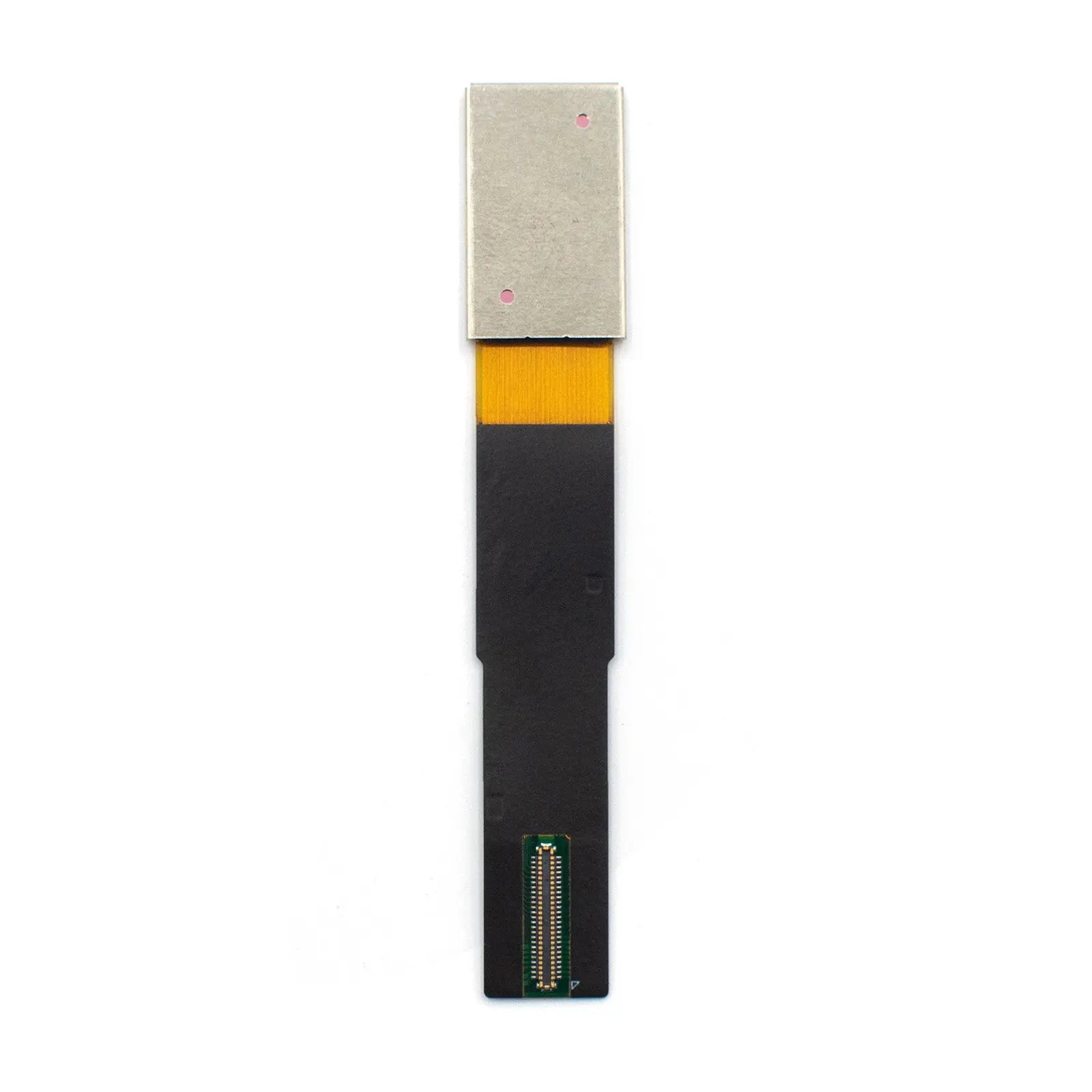

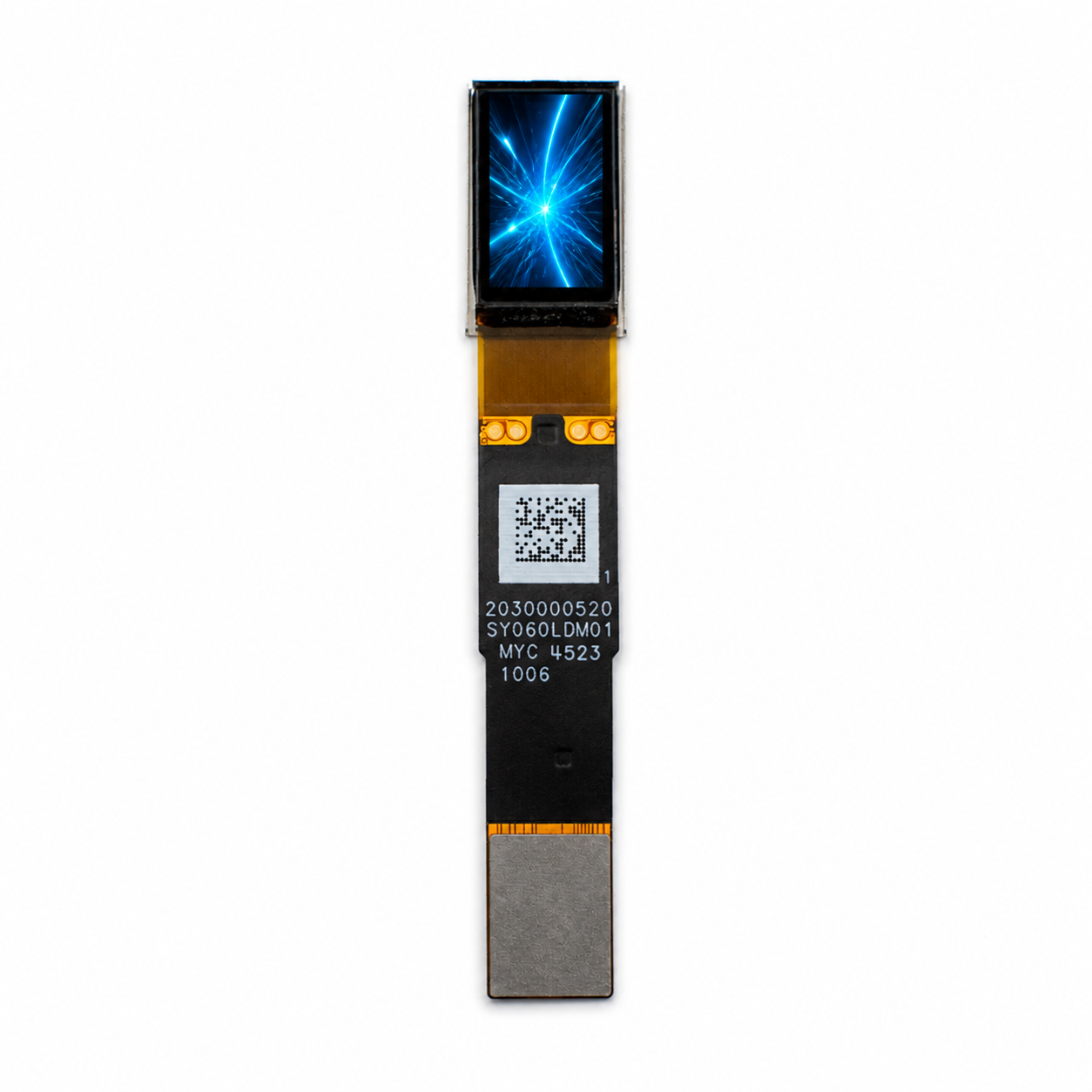

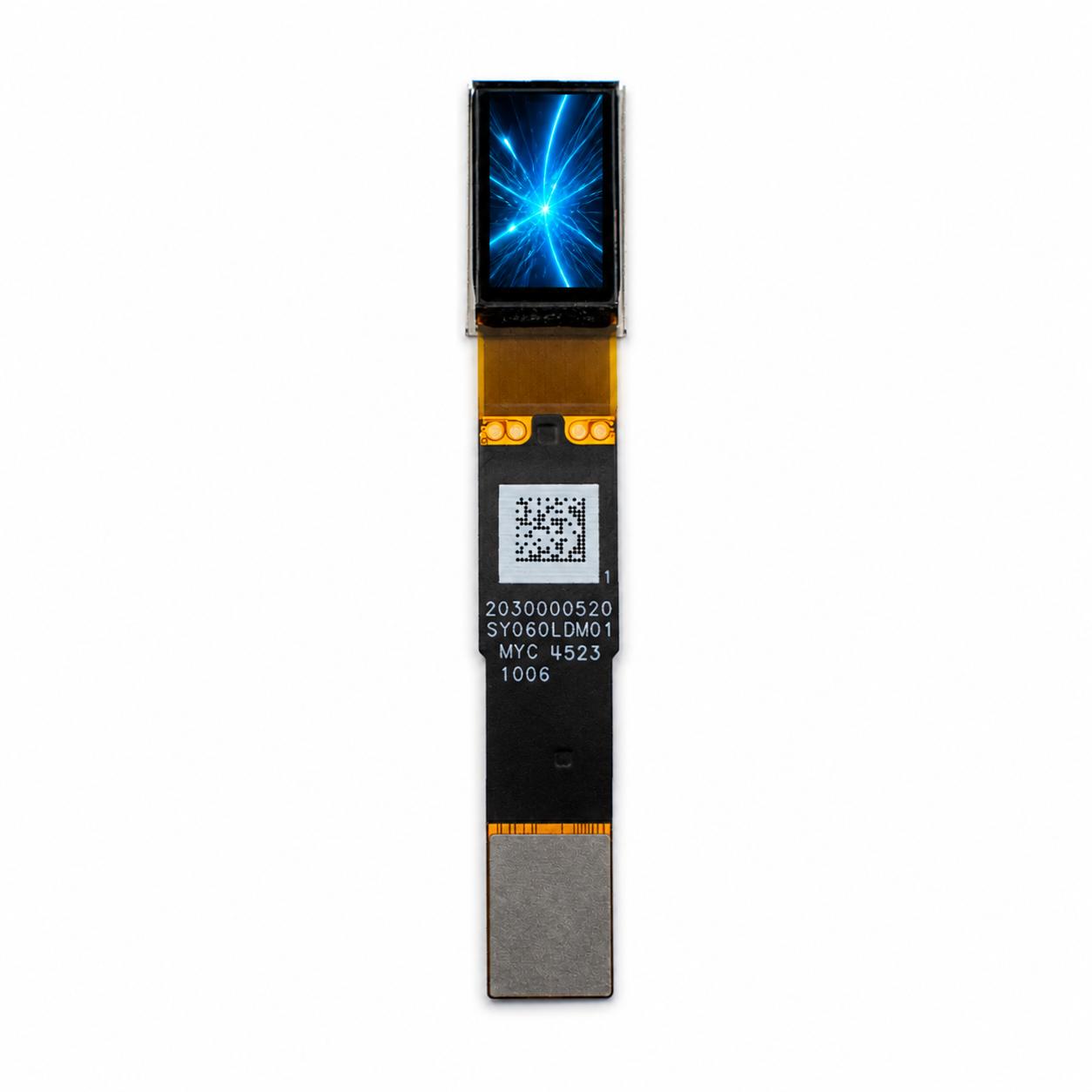

0.6" Micro OLEDoS Display 1920x1080 120Hz 6000nits - MIPI
Experience cutting-edge visual performance with our 0.6-inch Micro-OLED display, delivering exceptional image quality with FHD resolution and ultra-high brightness. This advanced display module features a compact design with true RGB pixel arrangement, making it ideal for high-performance near-eye applications.
Based on single-crystal silicon transistor technology, this Micro-OLED display integrates pixel circuits and display driving circuits for compact size and low power consumption. With support for up to 120Hz refresh rate and 16.7M colors, it delivers smooth, vibrant visuals for demanding applications.
- High Pixel Density: Hexagon delta arrangement with 6.885μm pixel size for exceptional detail
- Advanced Interface: MIPI DPHY v1.2 with one port (4 lanes) at 1.2Gbps/Lane plus I2C control
- Compression Support: Integrated VESA-DSC decoder with 3x and 3.75x compression ratios
- Scaling Capabilities: Supports 1.33x, 1.5x and 2x scaling for different input resolutions
- Temperature Compensation: Built-in compensation ensures consistent performance across operating conditions
| Parameter | Specification |
|---|---|
| Resolution | 1920(H) × 1080(V) |
| Active Area | 13.22mm × 7.43mm / 0.6" diagonal |
| Bezel Size | 11.27mm × 18.58mm × 1.775mm |
| Luminance | 6000cd/m² typical |
| Contrast Ratio | 100,000:1 |
| Frame Rate | Max. 120Hz |
| Color | Full-color (16.7M colors) |
| Interface | I2C and MIPI |
| Pixel Size | 6.885μm × 6.885μm |
| Pixel Arrangement | Hexagon, delta arrangement |
| Power Consumption | 550mW (6000nits, full white, 60Hz) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -40℃ to +80℃ |
We provide customized display solutions for businesses seeking to integrate high-performance Micro-OLED technology into their products. Our enterprise services include:
- Custom Configuration: Tailored display parameters and specifications to meet specific application requirements
- Volume Pricing: Competitive wholesale pricing for large quantity orders
- Technical Support: Dedicated engineering assistance for integration and optimization
- Long-term Supply Agreements: Guaranteed availability for production planning
High-resolution, high-brightness displays for immersive augmented and virtual reality experiences with minimal motion blur.
Precision displays for surgical goggles, endoscopes, and medical visualization equipment requiring exceptional clarity.
Rugged, high-performance displays for measurement devices, inspection systems, and professional instrumentation.
High-reliability displays for targeting systems, night vision equipment, and tactical head-mounted displays.
Compatibility: This display supports standard MIPI DSI v1.01 interfaces and can be integrated with most modern processors and graphics controllers. The I2C interface provides additional control for brightness adjustment, power management, and display configuration.
Technical Documentation: Download complete datasheet
