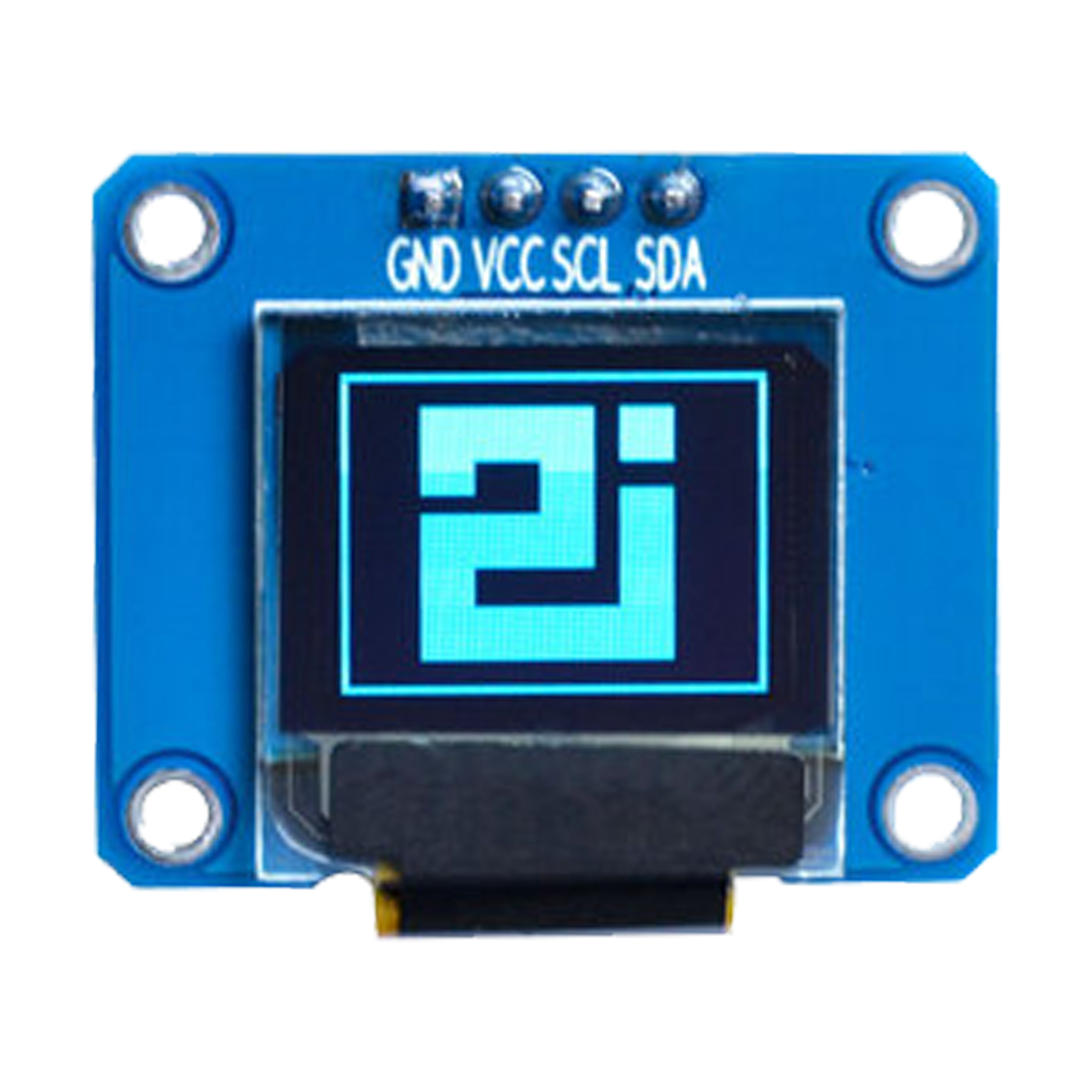

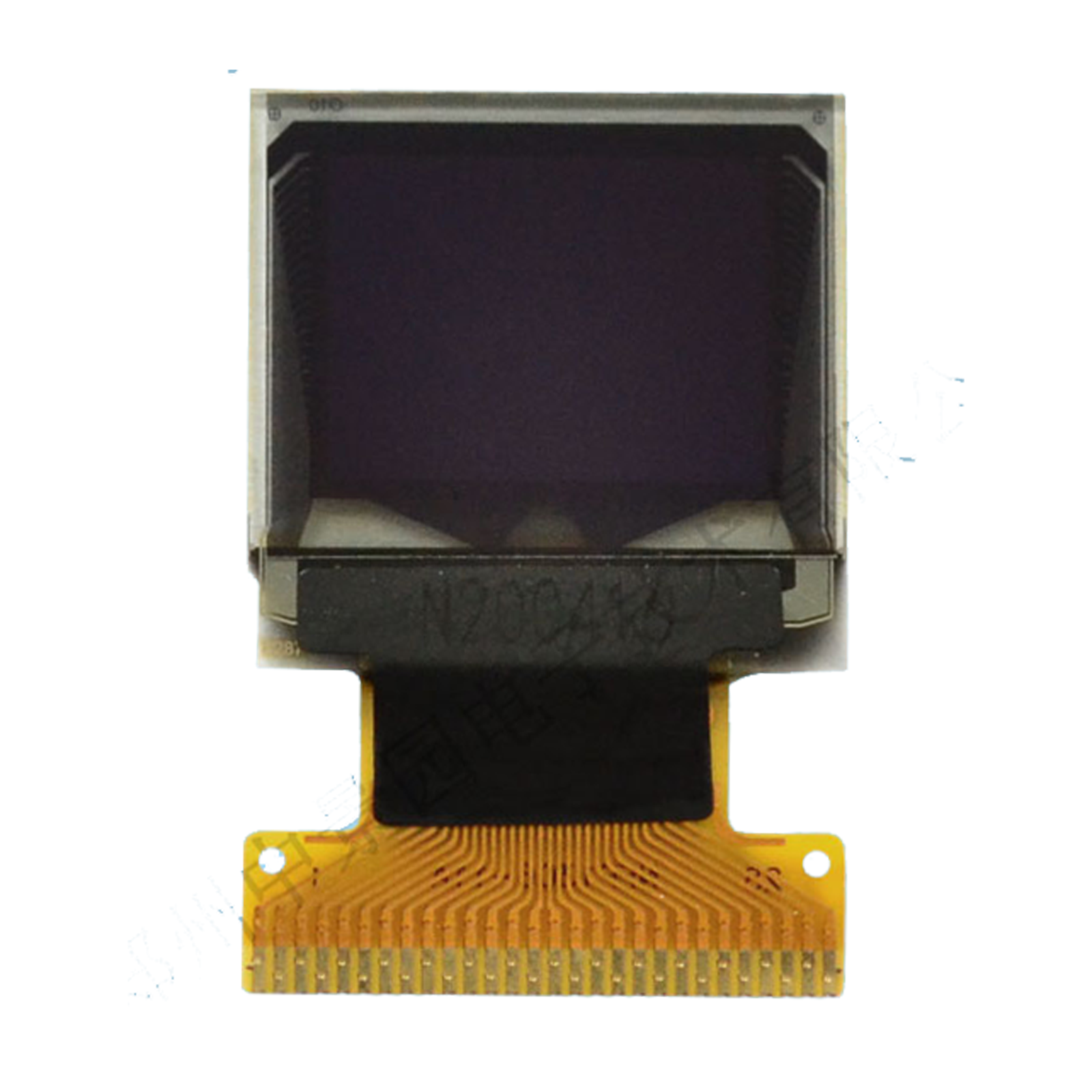

0.66-inch OLED Graphic Display Panel with 64x48 resolution and All View feature

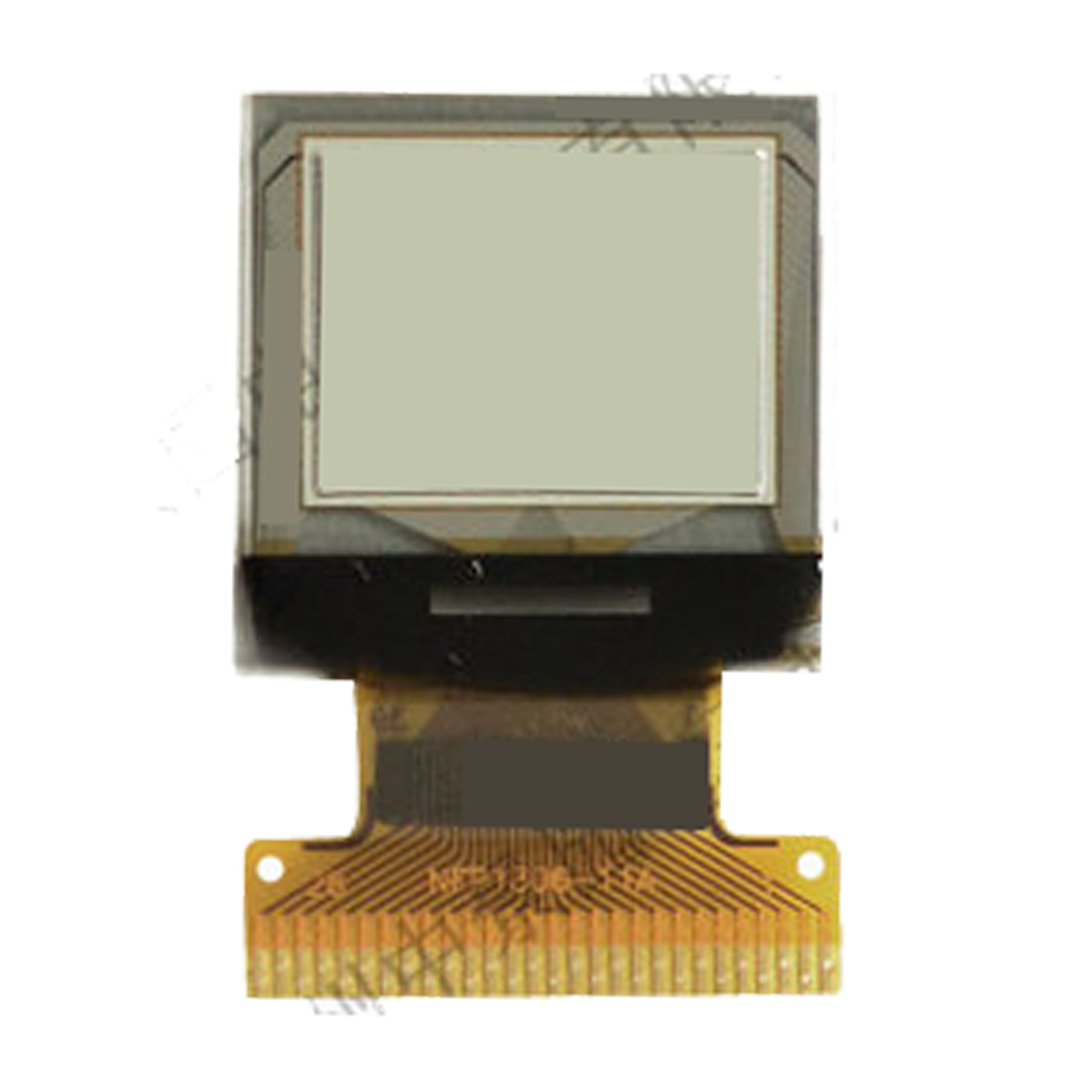

Back of 0.66-inch OLED Graphic Display Panel
0.66-inch OLED Blue Graphic Display Module

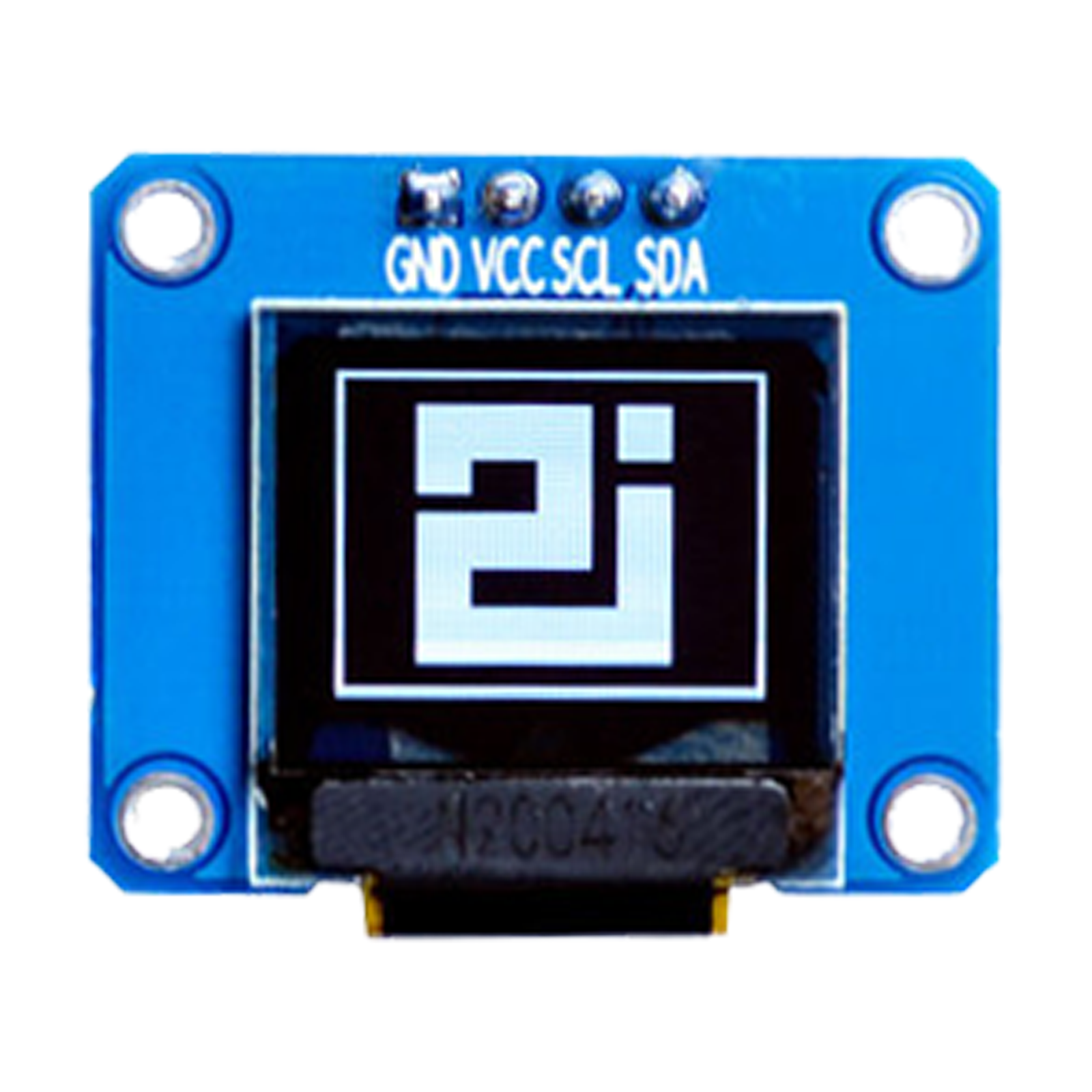

0.66-inch OLED White Graphic Display Module

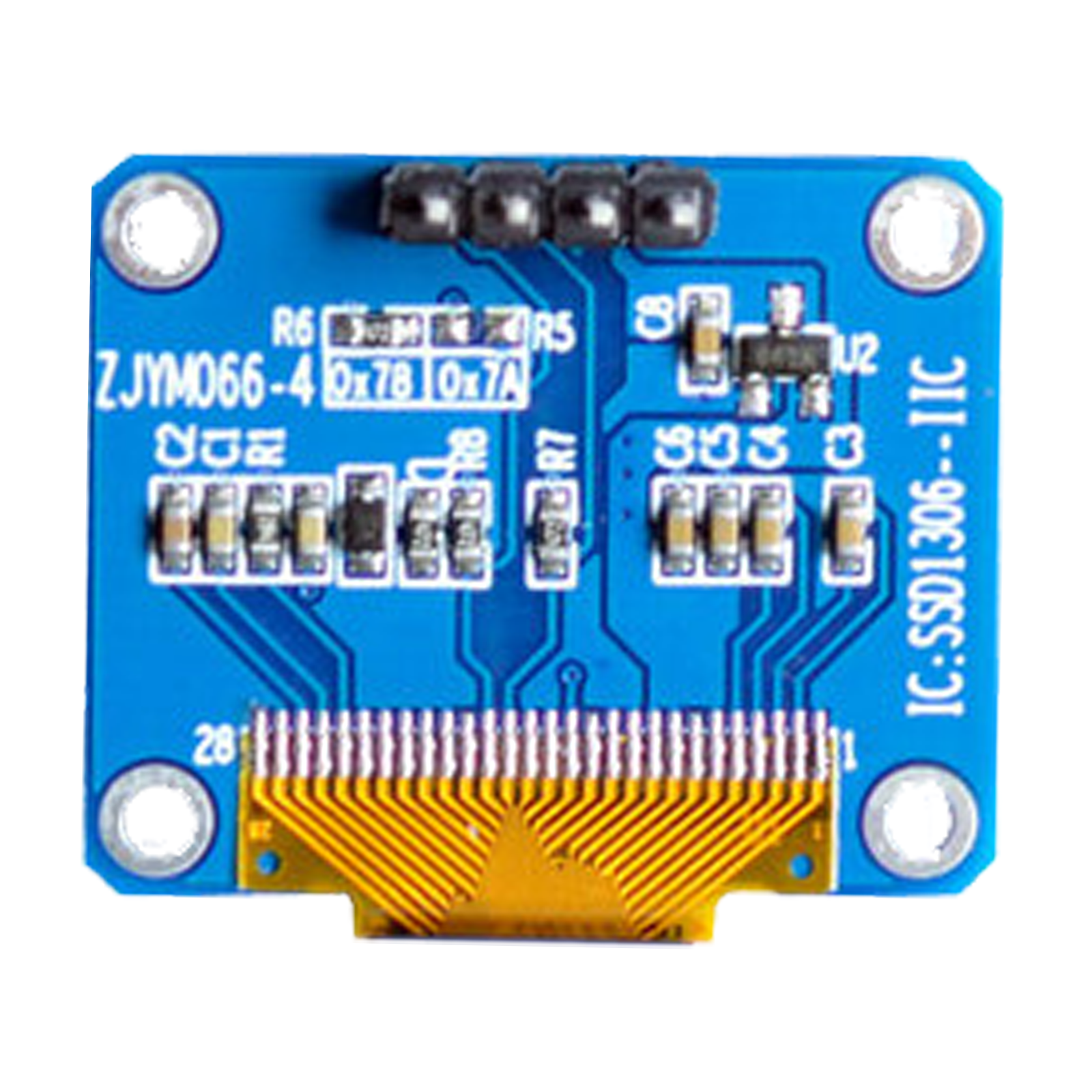

Back of 0.66-inch OLED Graphic Display Module

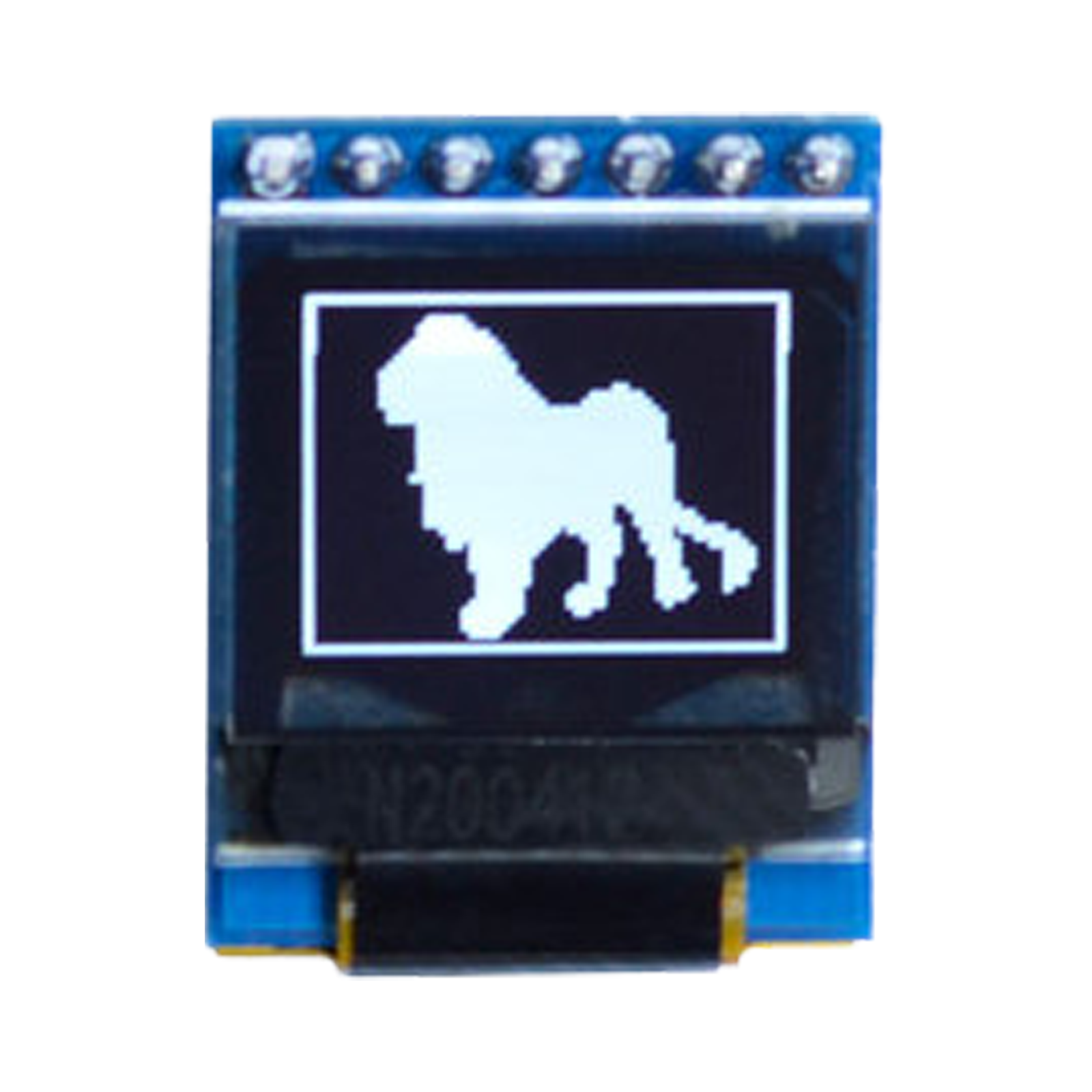

64x48 graphic OLED display module showing a lion pattern

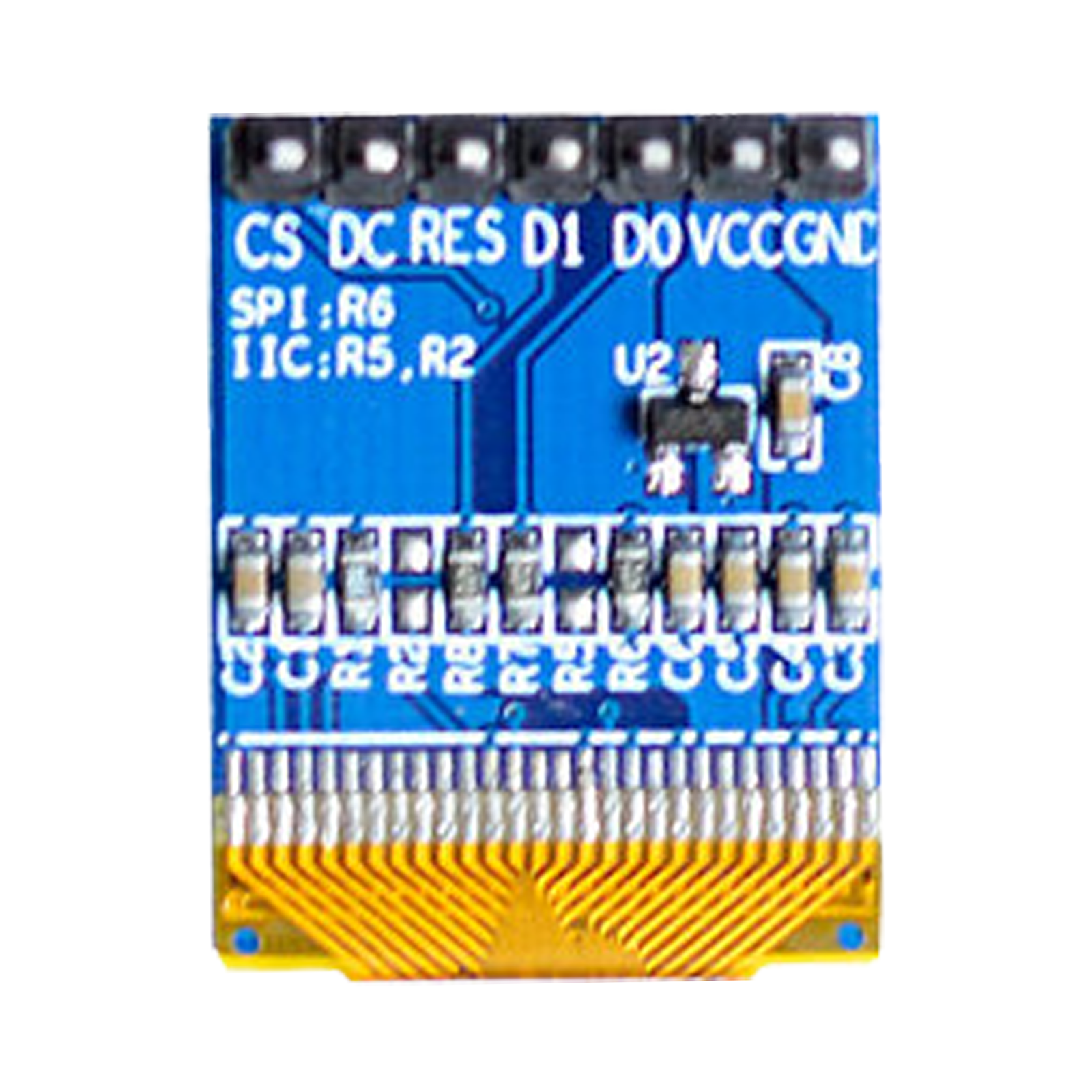

Back of 64x48 graphic OLED display module

0.66" OLED Graphic Display 64x48 All Viewing - SPI, IIC

Regular price $2.90
Sale price $2.90 Regular price
Datesheet:
White Panel
Blue Panel
SPI Module
IIC Module
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Resolution : 0.66 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : Monochrome (White/Blue)
  • Module Dimension : 18.46 x 18.1 x 1.25 (mm)
  • Viewing Area : 13.42 x 10.06 (mm)
  • Power Supply : 3.3 V
  • Panel Interface : 8-bit 68XX/80XX Parallel,4-wire SPI,I2C
  • Module Interface : SPI/IIC
  • Controller IC : SSD1306
  • Operation Temperature : -40℃~85℃
  • Storage Temperature : -40℃~85℃

Dimensions
