0.7" Micro OLED 3000nits Display 1920x1080
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Dimensions

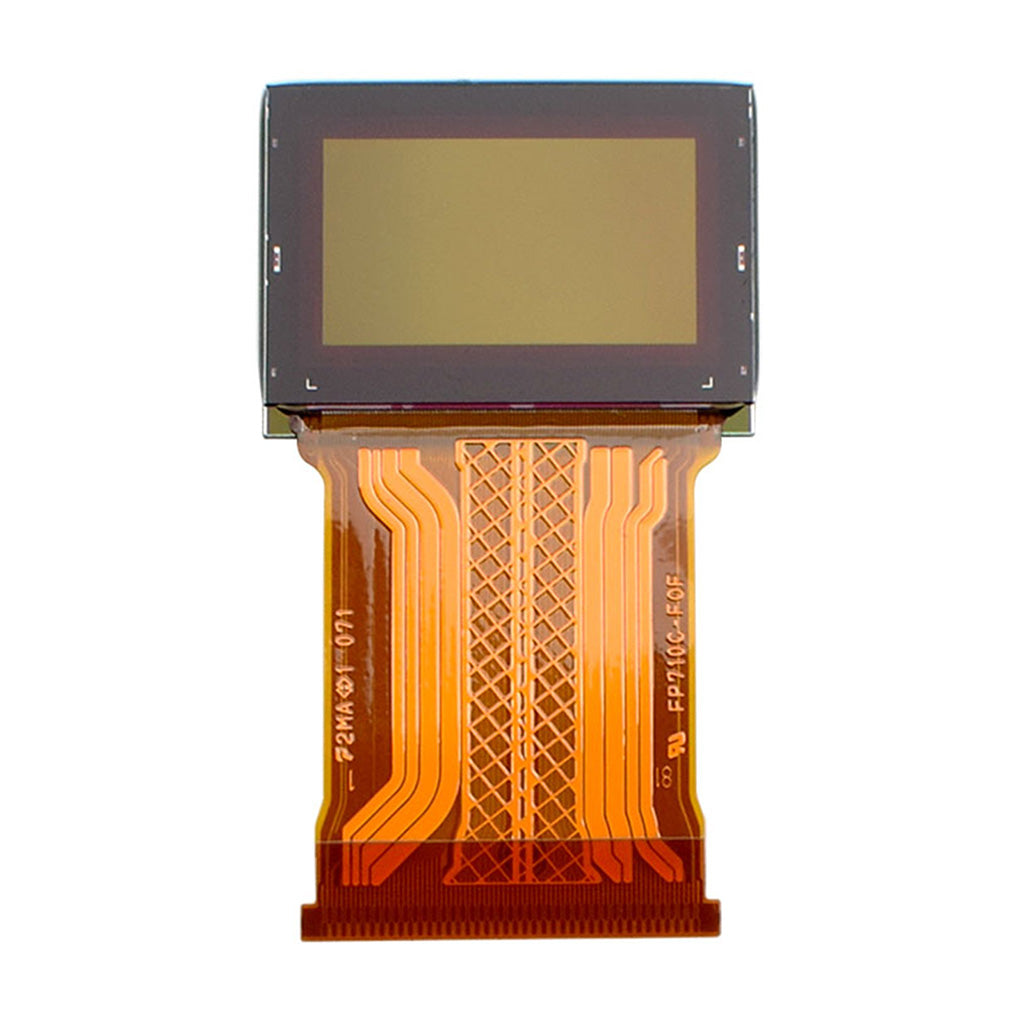

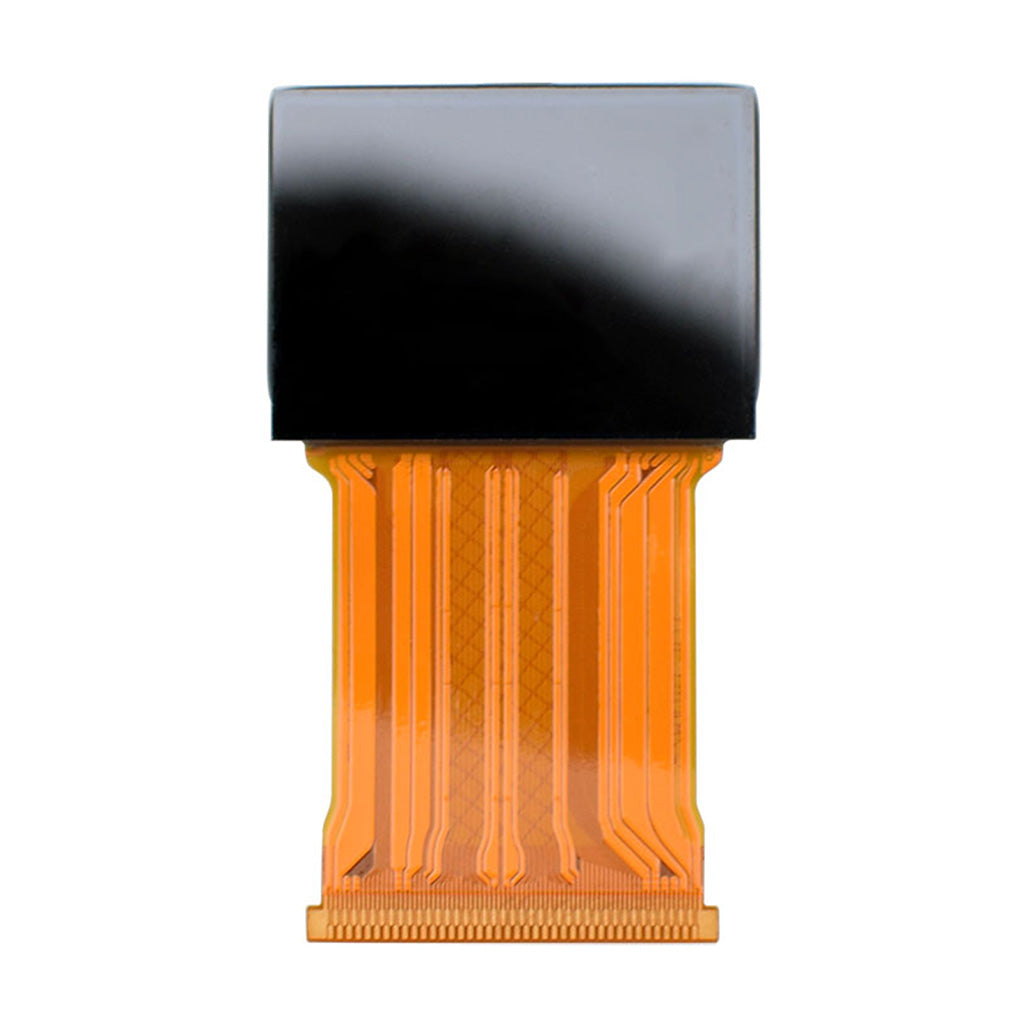

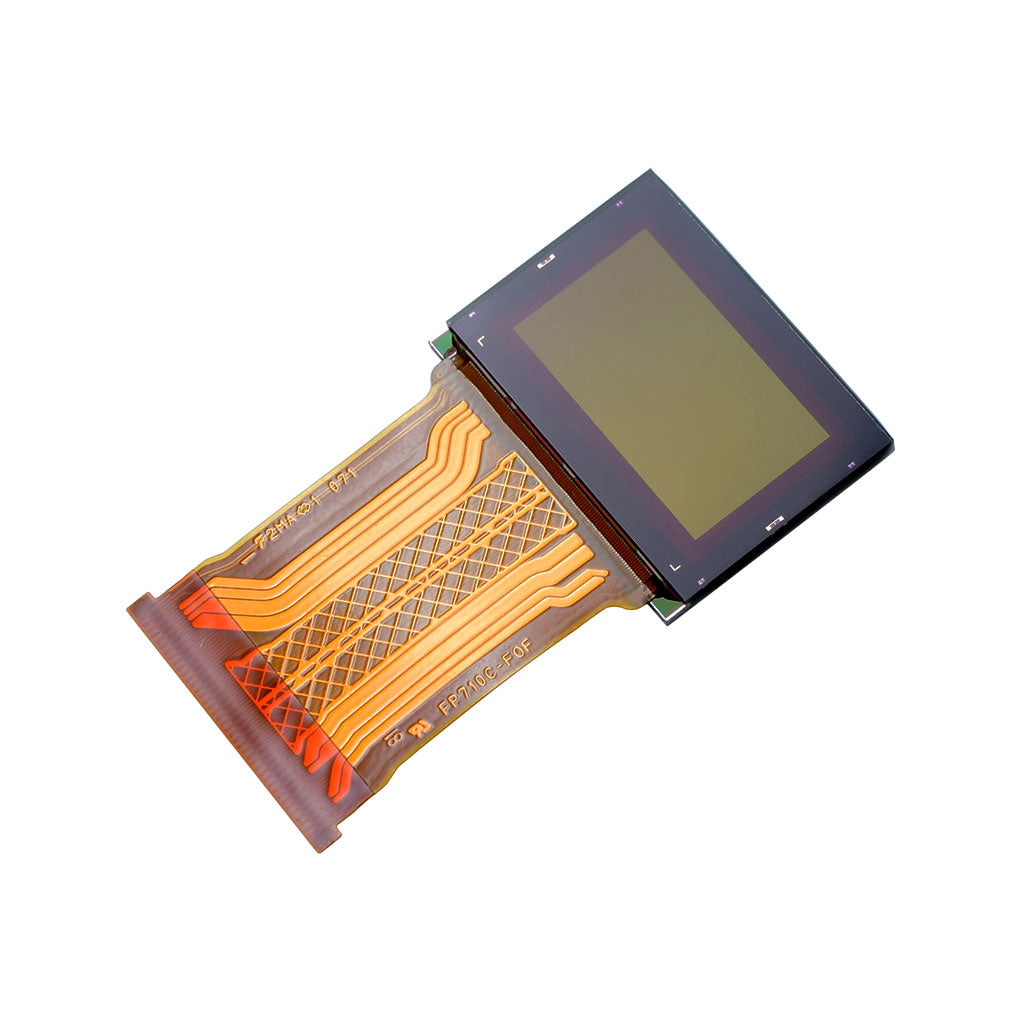

0.7" Micro OLED 3000nits Display 1920x1080
Experience exceptional visual clarity with our high-performance 0.7-inch Micro OLED display featuring ultra-high brightness of 3000 nits and Full HD resolution. This compact display module integrates advanced OLED technology with single crystal silicon transistors for superior image quality in a miniature form factor.
Engineered for professional applications, this Micro OLED display delivers outstanding color reproduction with 24-bit depth (16.7 million colors) and wide color gamut. The integrated panel driver and logic driver ensure compact dimensions while maintaining high resolution performance.
- Ultra-High Contrast: Exceptional black levels and contrast ratio for superior image quality
- Fast Response Speed: Minimal motion blur for dynamic content
- Power Saving Function: Efficient operation with PS function for extended battery life
- Flexible Scan Direction: Configurable up/down and right/left scan direction selection
- Compact Design: Lightweight and thin form factor ideal for space-constrained applications
| Parameter | Specification |
|---|---|
| Display Technology | Active Matrix Color OLED |
| Effective Display Area | 15.8mm × 8.99mm |
| Resolution | 1920(RGB) × 1080 (6.22 million dots) |
| Color Depth | 24-bit (16.7 million colors) |
| Interface | LVDS |
| Frame Rate | 60Hz |
| Power Supply | 1.8V, 10V, VCCP |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Module Mass | 1.3g |
We offer customized display solutions for businesses and organizations requiring specialized configurations or volume deployments.
- Custom Configuration: Tailored display settings for specific application requirements
- Bulk Procurement: Competitive pricing for volume orders with flexible delivery options
- Technical Support: Dedicated engineering support for integration and implementation
- White Label Options: Custom branding solutions for OEM partners
Ideal for AR headsets and smart glasses requiring high brightness and compact size with exceptional image quality.
Perfect for VR devices where high pixel density and fast response time are critical for immersive experiences.
Suited for medical visualization equipment, microscopes, and surgical displays requiring precise color reproduction.
Excellent for viewfinders, measurement devices, and industrial monitors where reliability and clarity are essential.
Technical Documentation: Complete datasheets, pin descriptions, electrical characteristics, and register maps available for engineering development.

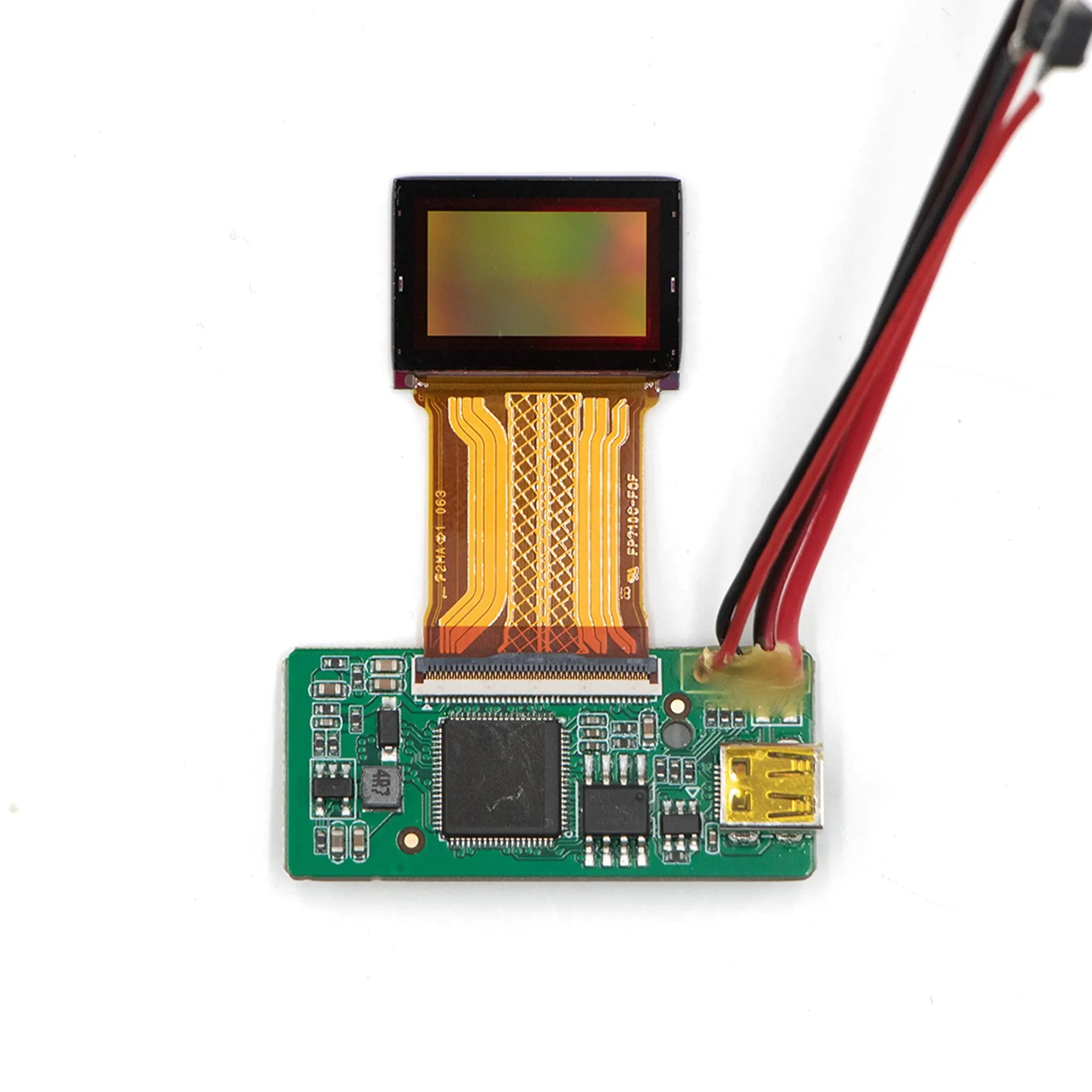

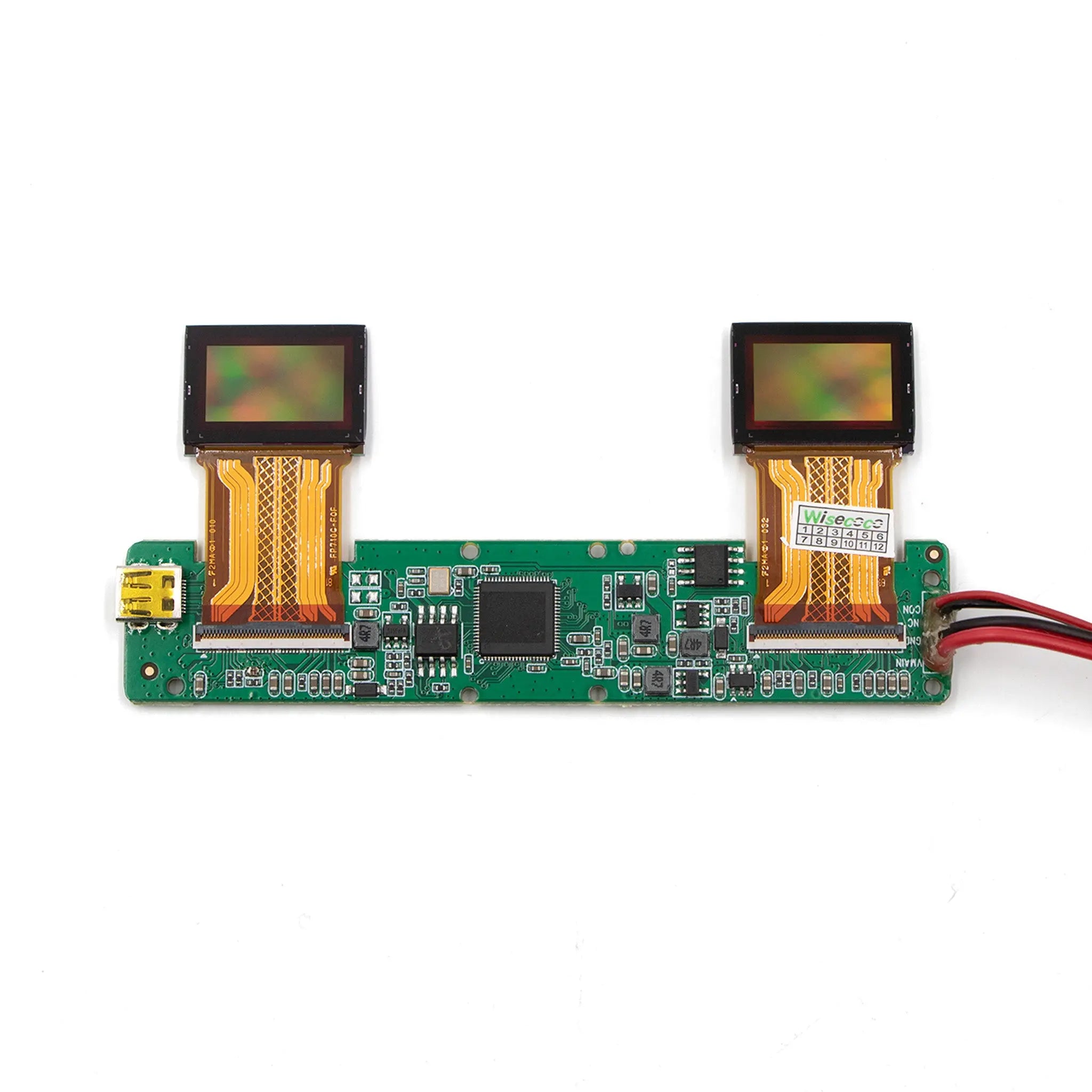

Interface Support: LVDS interface with detailed timing specifications and power sequence requirements.
Development Tools: Reference designs and application notes for seamless integration.
Resources: Download complete technical documentation
This Micro OLED display supports various input formats and offers flexible configuration options:
- Input Format Support: RGB and YCbCr/YPbPr formats with selectable conversion standards
- Scan Direction: Configurable up/down and right/left scan direction selection
- Power Management: Advanced power saving functions with flexible control options
- Temperature Compensation: Built-in luminance temperature compensation for consistent performance
Our displays are carefully packaged to ensure safe delivery and optimal storage conditions:
- Tray Capacity: 15 pieces per tray
- Carton Configuration: 14 trays per carton (210 pieces total)
- Protective Packaging: Anti-static materials and moisture protection
- Storage Recommendations: Store in original packaging at controlled temperature and humidity
