0.7" Micro OLED Display 1920×1080 - LVDS
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Dimension

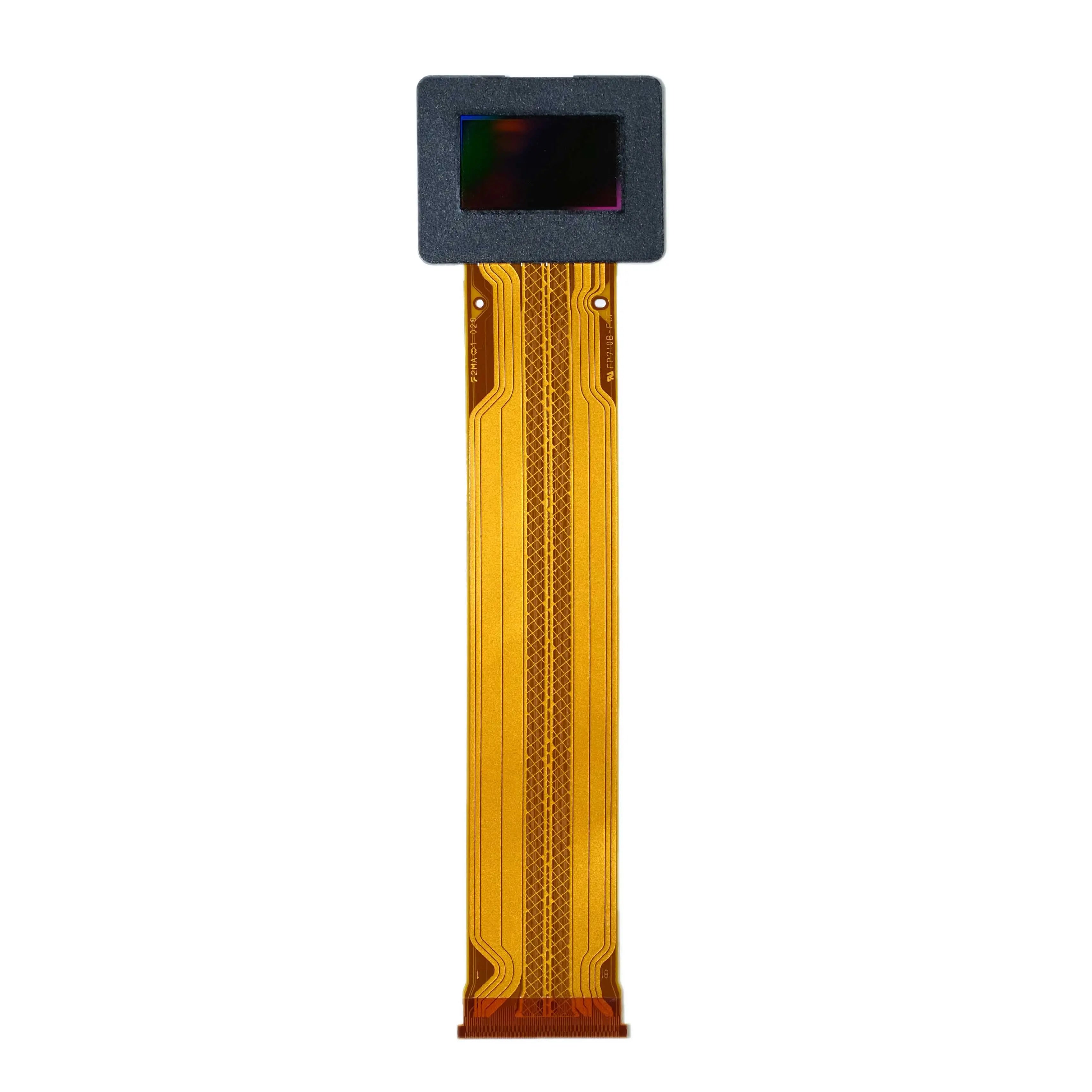

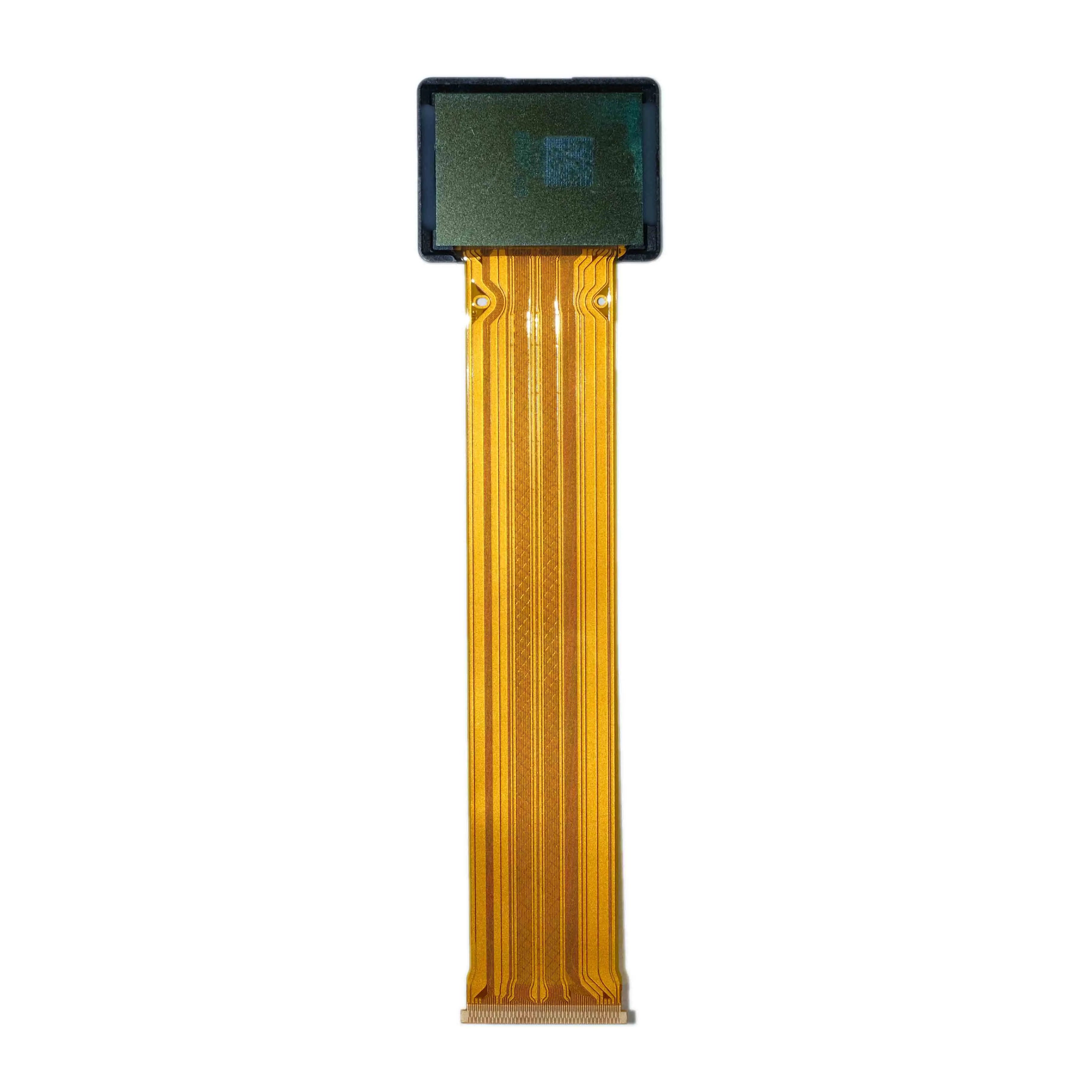

0.7" Micro OLED Display 1920×1080 - LVDS
A high-performance 0.7-inch diagonal Micro OLED display with Full HD resolution, designed for cutting-edge near-eye applications. This active matrix color OLED panel utilizes single crystal silicon transistors for exceptional image quality in a compact form factor.
This advanced display module incorporates both panel driver and logic driver, achieving remarkable small size, light weight, and high definition performance. With its wide color reproduction range and high-speed response, it delivers exceptional visual experiences in demanding applications.
- High Contrast: Exceptional 10,000:1 contrast ratio for deep blacks and vivid imagery
- Power Efficiency: Advanced power saving function with consumption ranging from 0.4mW to 550mW
- Flexible Orientation: Up/down and right/left inverse display function for versatile mounting
- Orbit Support: Integrated orbit function for optimized image positioning
- Wide Temperature Range: Operating from 0°C to 70°C with storage capability from -30°C to 80°C
| Parameter | Specification |
|---|---|
| Display Type | Active Matrix Color OLED |
| Resolution | 1920(RGB) × 1080 |
| Diagonal Size | 0.7 inch (1.8 cm) |
| Number of Dots | 6.22 million |
| Luminance (Max) | 200 cd/m² |
| Contrast Ratio | 10,000:1 |
| Power Consumption | 0.4mW (Standby) to 550mW (Active) |
| Interface | LVDS, 81-pin FPC connector |
| Frame Rate | 60Hz |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Gradation | 8-bit |
| Power Supply | 1.8V, 10V, VCCP |
We offer comprehensive enterprise-grade solutions for businesses seeking to integrate high-performance micro displays into their products and systems.
- Custom Integration: Tailored solutions for specialized applications with modified firmware and mechanical configurations
- Volume Pricing: Competitive wholesale pricing for OEMs and resellers with quantity discounts
- Technical Support: Dedicated engineering support for integration challenges and optimization
- Supply Chain Assurance: Reliable inventory management and supply chain solutions for production planning
Ideal for AR glasses and headsets requiring high pixel density and compact form factor for immersive digital overlays.
Perfect for VR headsets and systems where high resolution and fast response time are critical for realistic experiences.
Essential for surgical scopes, endoscopes, and medical viewers where precision and clarity are paramount.
Used in measurement devices, inspection systems, and portable instruments where space is limited but high resolution is required.
Documentation: Comprehensive datasheets, application notes, and integration guides available for engineering teams.
Design Support: Reference designs and schematic examples for faster implementation.
Compatibility: Designed to work with standard LVDS interfaces and common display controllers.
Resources: Download complete technical documentation
