0.72" Micro OLEDoS Display 1920x1200 2000nits 70Hz - MIPI
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Dimension
0.72" Micro OLEDoS Display 1920x1200 2000nits 70Hz - MIPI
This cutting-edge 0.72-inch Micro OLED display delivers exceptional image quality with 1920×1200 resolution and 2000 nits brightness. Built on single-crystal silicon transistor technology, it offers high pixel density, ultra-low power consumption, and compact form factor ideal for advanced optical applications.
Featuring advanced RGB π-type pixel arrangement and 256 gray levels, this display module produces vibrant colors with exceptional clarity. The integrated panel driver and logic circuitry enable slim design while maintaining outstanding performance characteristics.
- High Pixel Density: 6.912 million pixels (1920×1200×3) for exceptional detail
- Wide Color Gamut: 90% DCI-P3 coverage for accurate color reproduction
- Low Power Consumption: 900mW typical power usage for extended operation
- MIPI Interface: Single-port D-PHY interface with 4 lanes at 1.2Gbps/lane
| Parameter | Specification |
|---|---|
| Display Type | Micro OLED (OLEDoS) |
| Display Size | 0.72 inch diagonal |
| Resolution | 1920 (H) × 1200 (V) |
| Pixel Arrangement | RGB π-type |
| Pixel Size | 8.1μm × 8.1μm |
| Active Area | 15.552mm × 9.72mm |
| Brightness | 2000 cd/m² (Typical) |
| Contrast Ratio | 100,000:1 (Typical) |
| Color Depth | 16.7M colors (24-bit) |
| Interface | MIPI DSI (4 data lanes) |
| Frame Rate | 50-70Hz |
| Power Consumption | 900mW (Typical) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -40℃ to +80℃ |
We offer customized display solutions for businesses seeking to integrate high-performance Micro OLED technology into their products. Our enterprise services include:
- Custom Configurations: Tailored display solutions with modified specifications to meet specific application requirements
- Volume Pricing: Competitive wholesale pricing for large quantity orders with flexible payment terms
- Technical Support: Comprehensive engineering support throughout integration and production phases
- OEM/ODM Services: Complete private labeling and custom design services for branded products
High-resolution displays for immersive VR experiences with minimal screen door effect and exceptional clarity.
Compact, high-brightness displays for see-through AR applications requiring bright imagery in various lighting conditions.
Professional-grade viewfinders for digital cameras and camcorders requiring accurate color reproduction and high resolution.
High-precision displays for medical diagnostic equipment where detail accuracy and reliability are critical.
Compatibility: This display supports multiple resolution formats including 1920×1200 (16:10), 1920×1080 (16:9), 1600×1200 (4:3), 1280×1024 (5:4), 1280×720 (16:9), and 1024×768 (4:3).
Interface Options: Supports both MIPI DSI and I2C interfaces with configurable lane swapping and device addressing.

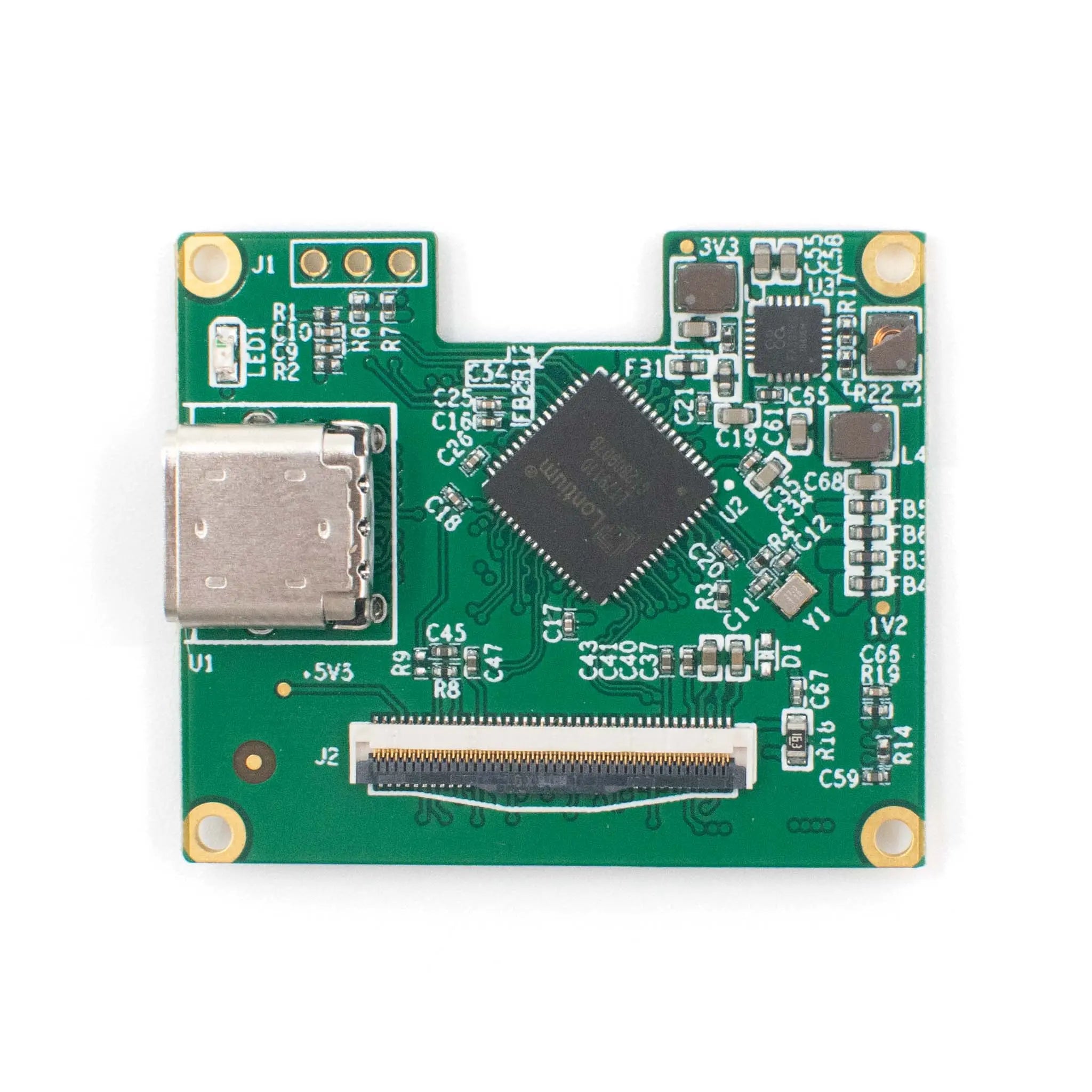

Documentation: DM-OLED072-687，DM-ADTTR-047
