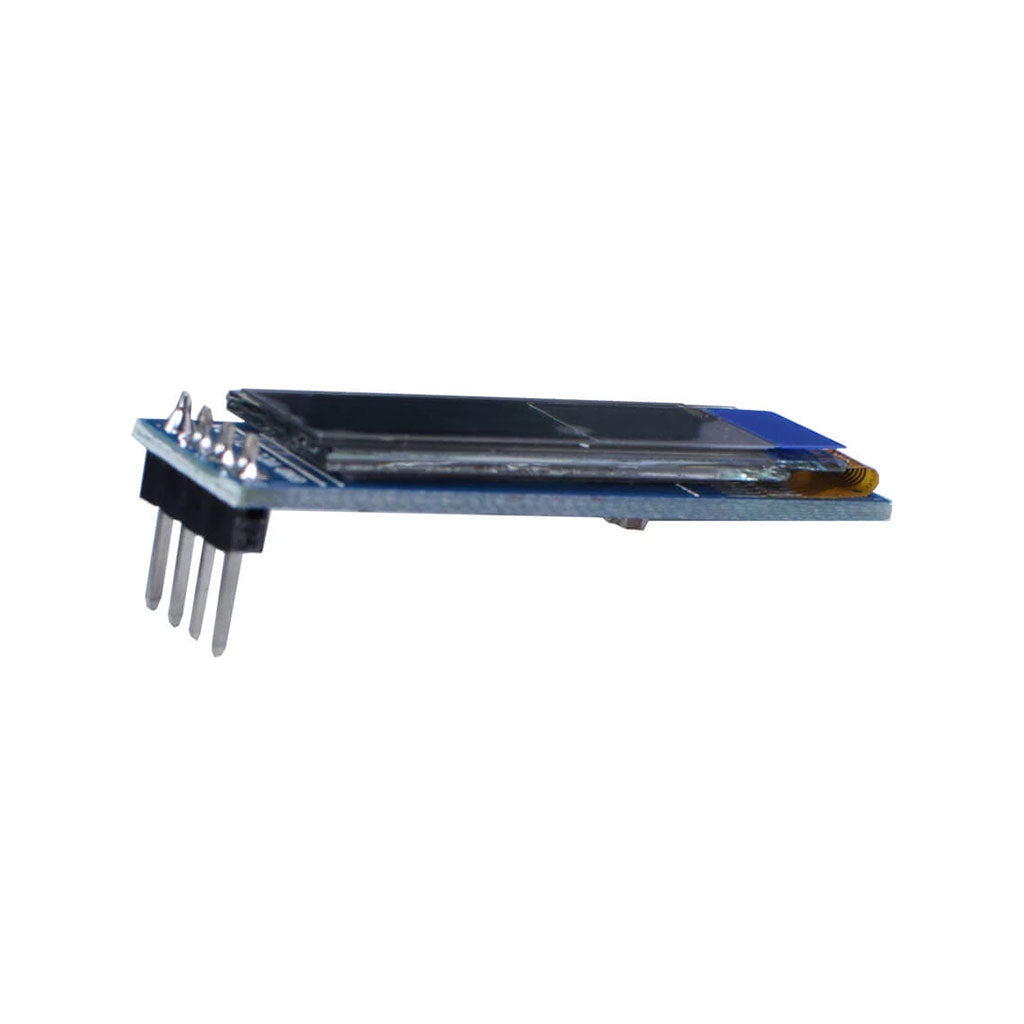

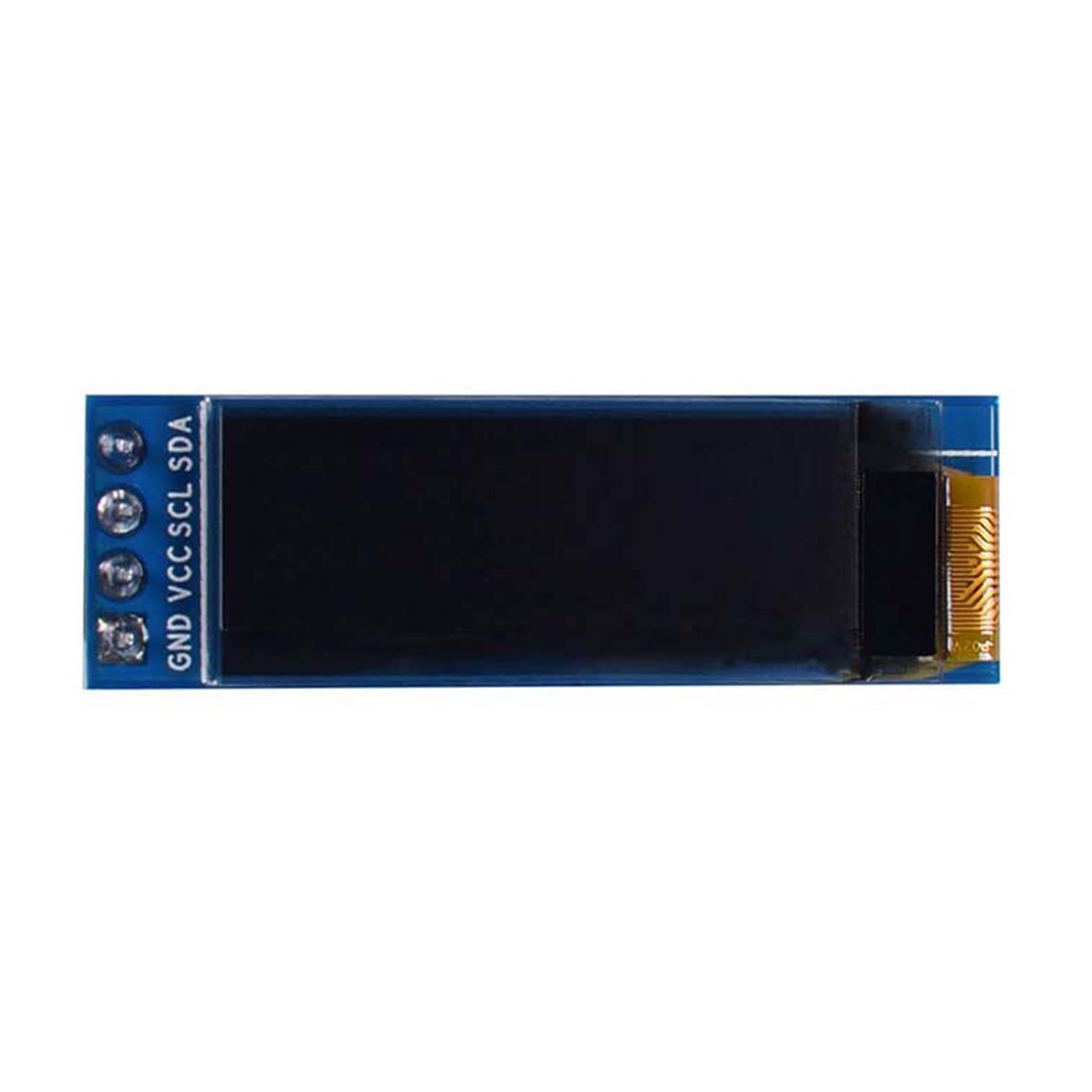

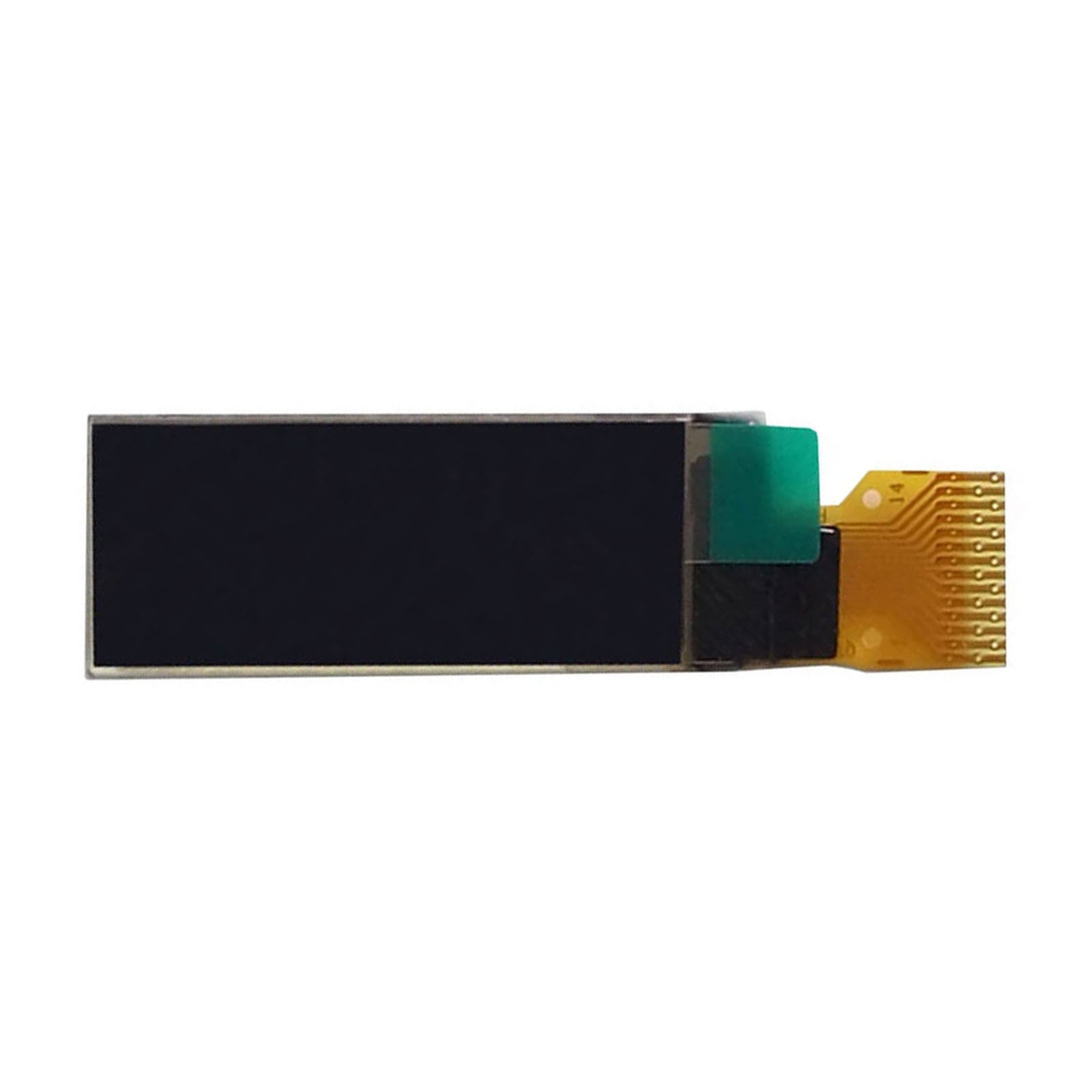

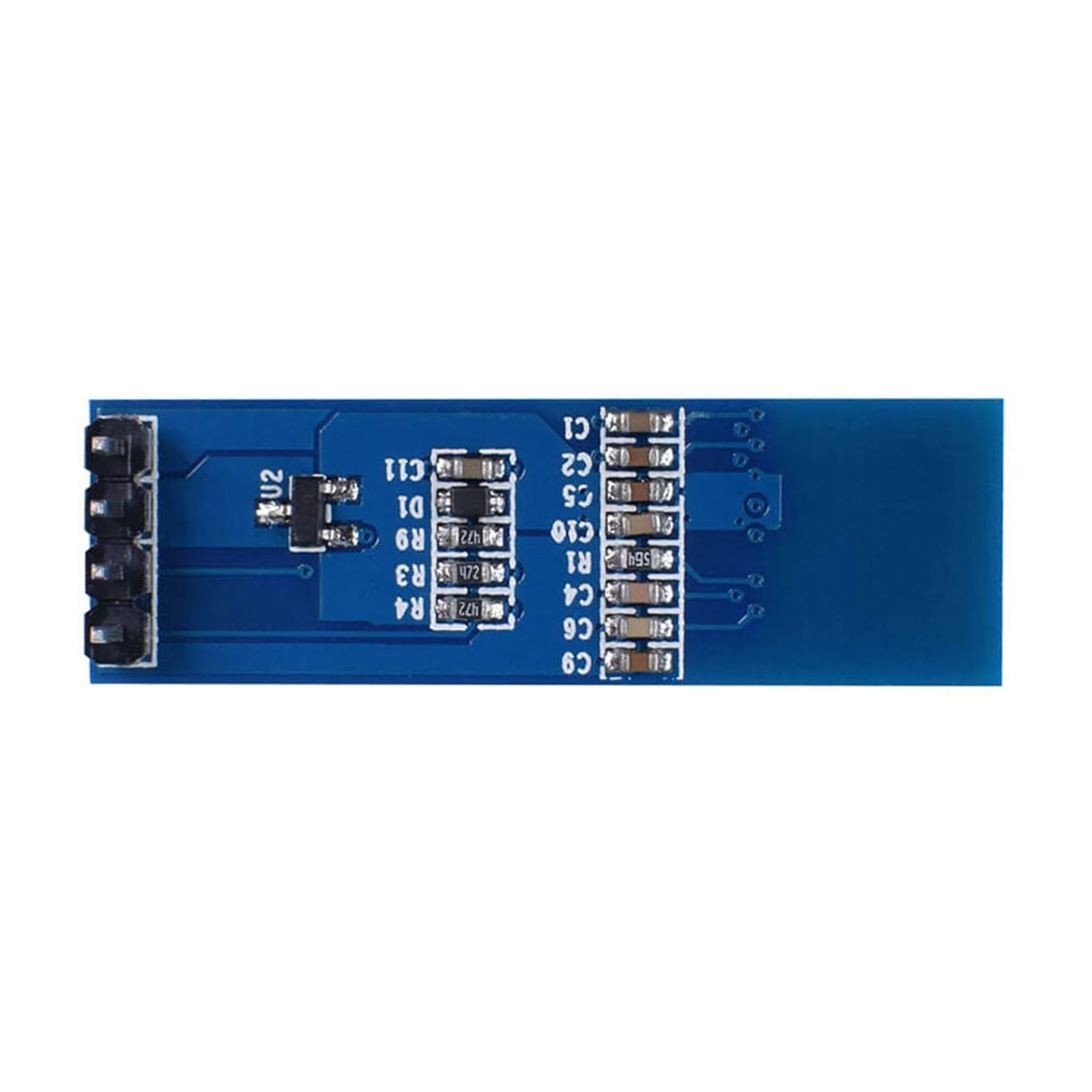

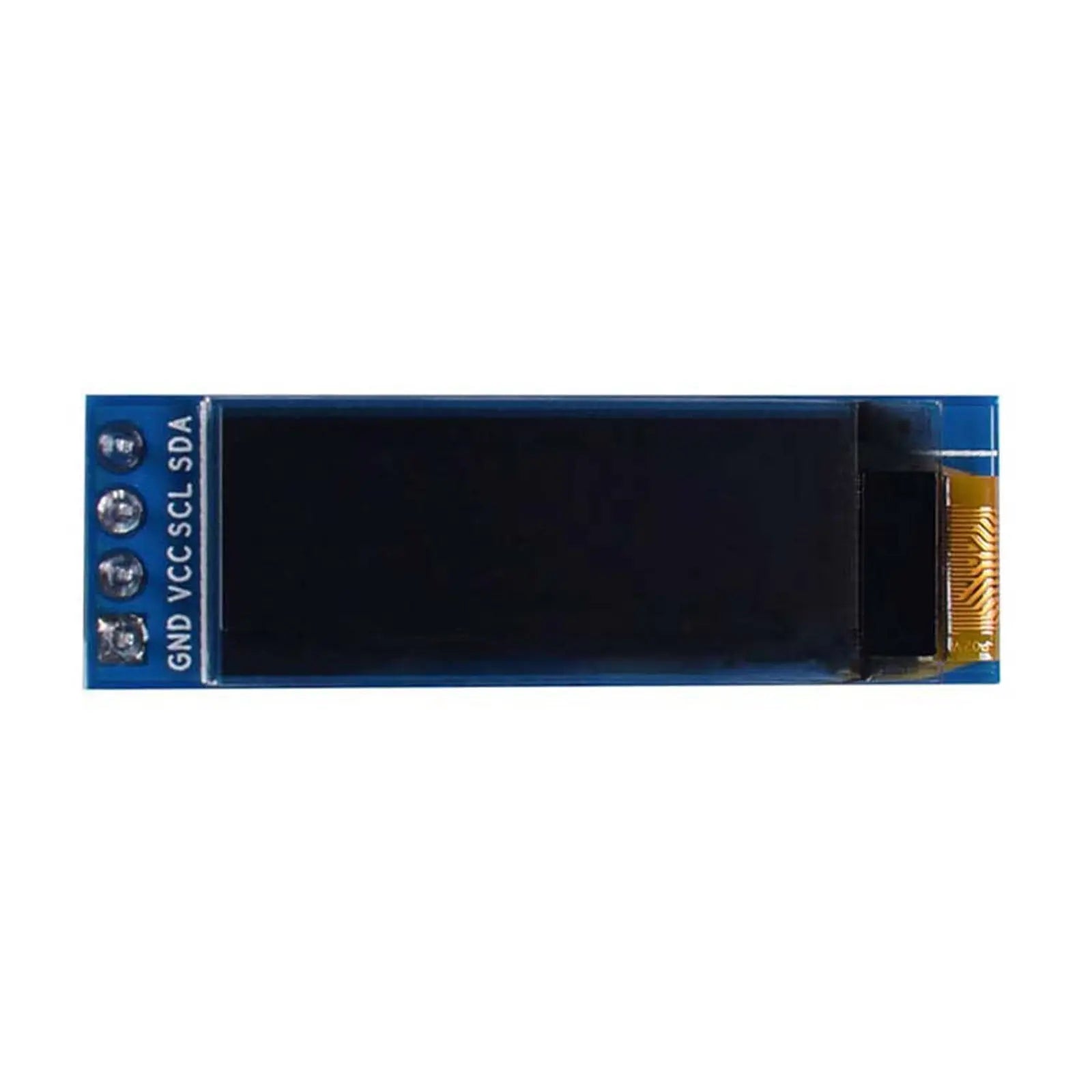

0.91" OLED Graphic 128x32 - I2C
0.91" OLED Graphic 128x32 - I2C
SKU:DM-OLED091-641
Regular price
$3.90 USD
Regular price
$12.95 USD
Sale price
$3.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| 1 pcs | original price |
| 5 pcs | 8% off |
| 10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share
Display Specifications
- Resolution : 128x32 pixel
- Display Mode : Passive Matrix OLED
- Display Color : Monochrome
- Module Dimension : 38.0x12.0x2.7 mm
- Viewing Area : 22.384x5.584 mm
- Power Supply : 2.8 V
- Interface : I2C
- Controller IC : SSD1306
- Operation Temperature : -40℃~85℃
- Storage Temperature : -40℃~85℃
Dimension
Resources
Driver IC: SSD1306
Arduino SSD1306 Library: u8g2 .Uncomment device U8G2_SSD1306_128X32_UNIVISION_F_SW_I2C u8g2 and modify pin,such as（U8G2_R0、13、11、8)
