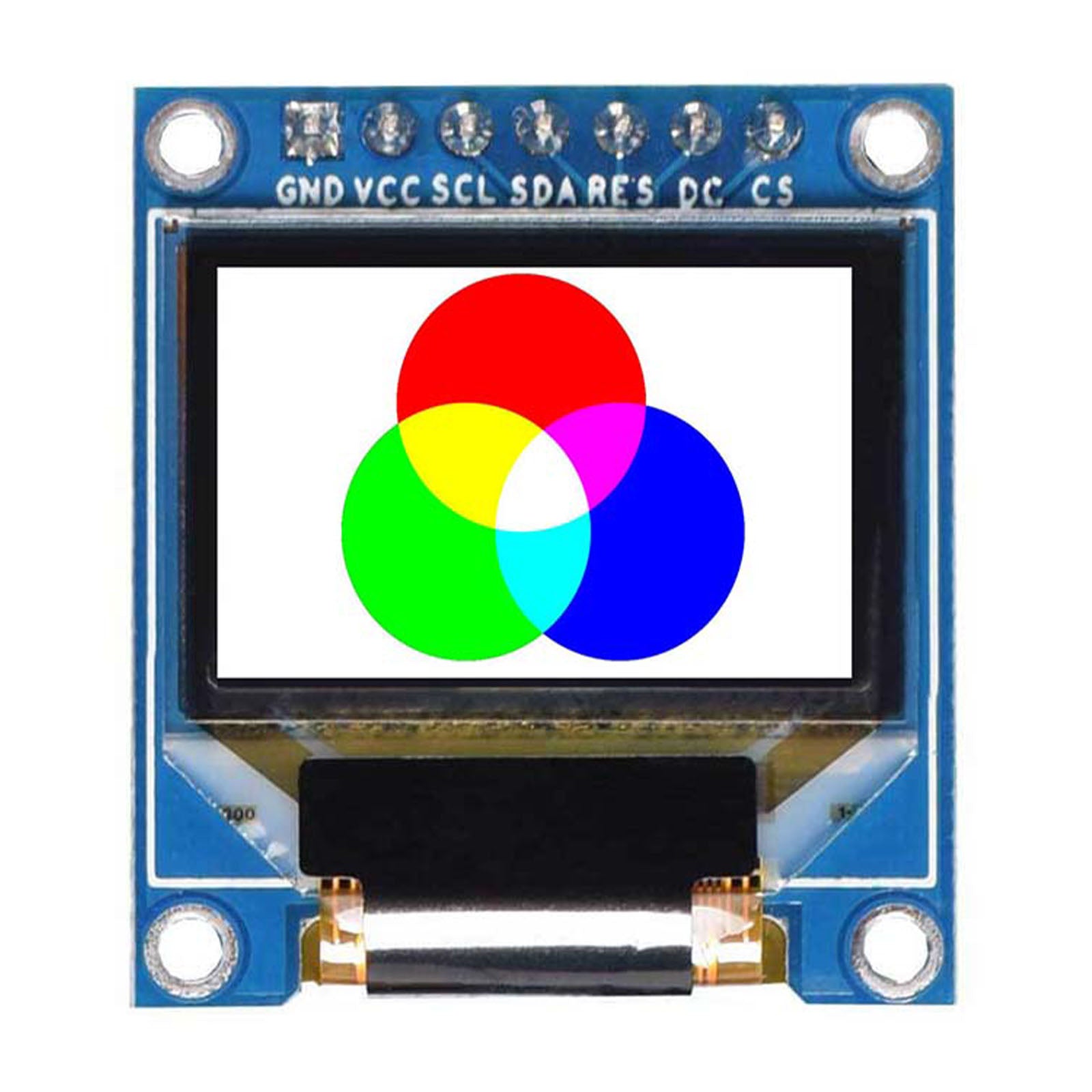

0.95-inch OLED Graphic Display Module with 96x64 resolution in full color

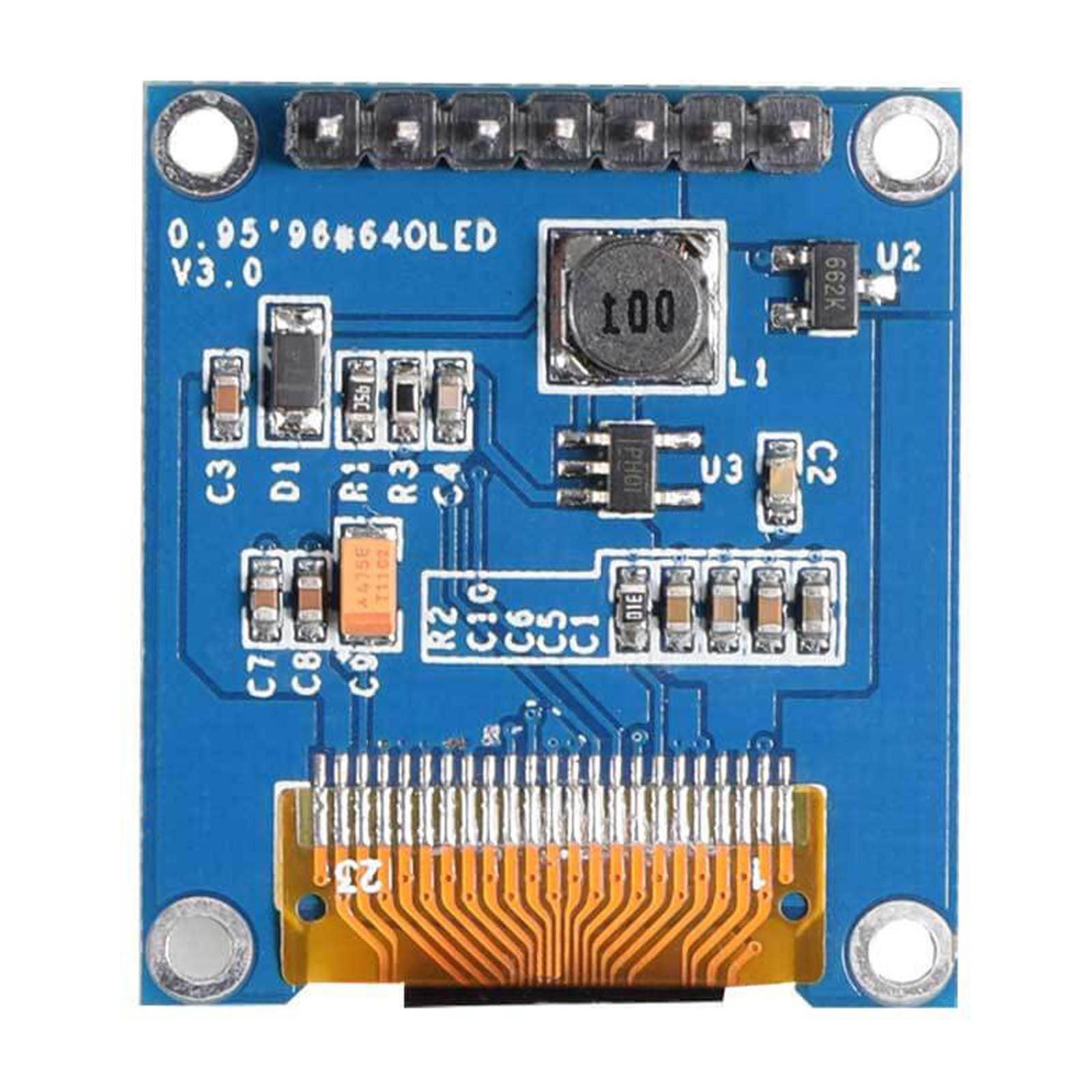

Back of 0.95-inch OLED Graphic Display Module

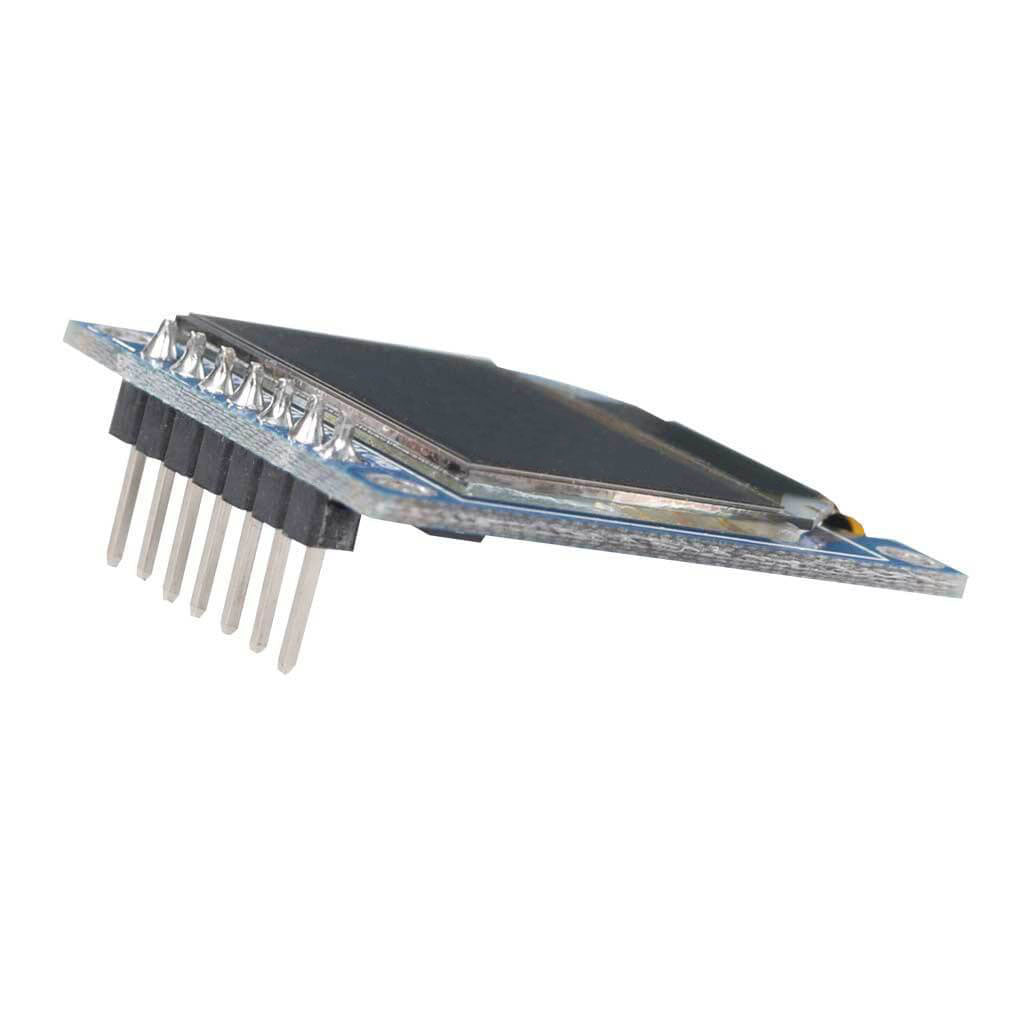

Side View of 0.95-inch OLED Graphic Display Module

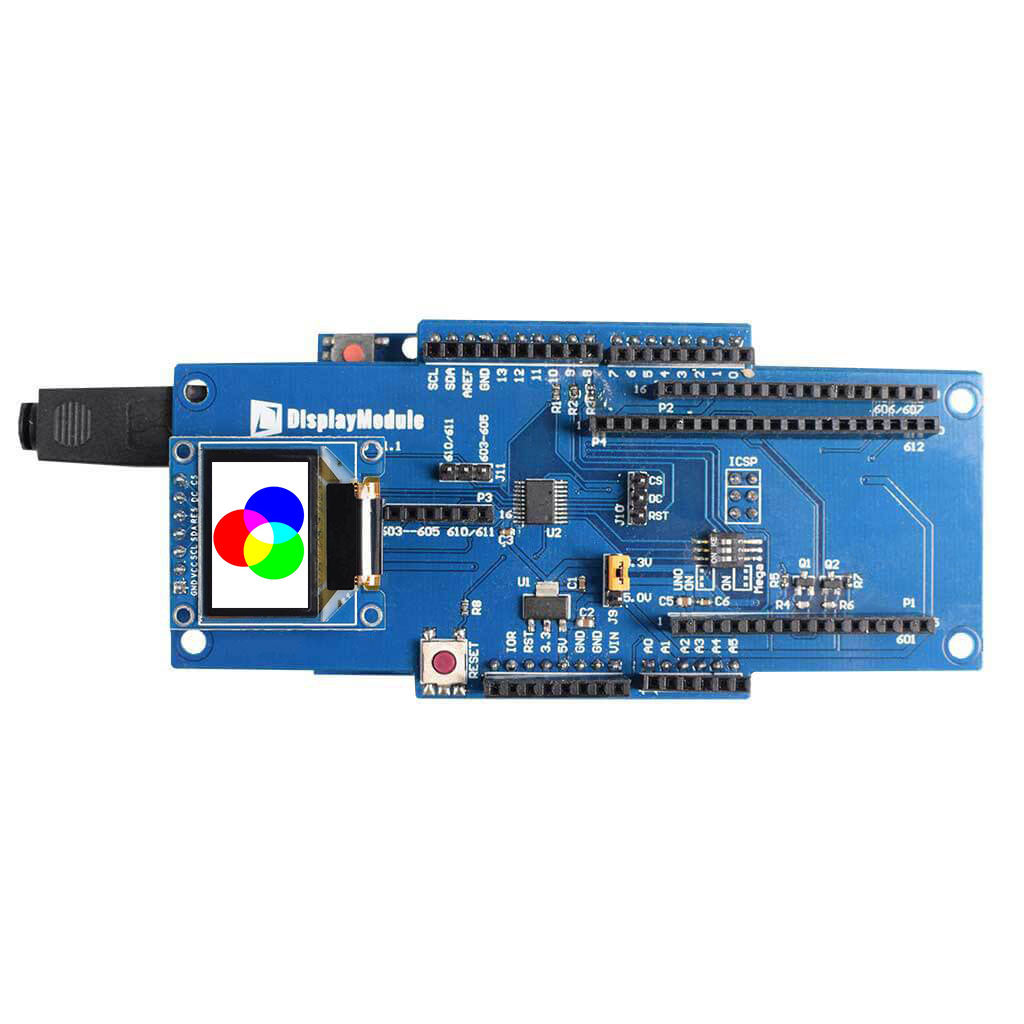

0.85 inch OLED graphics display module integrated on the circuit board

0.95" OLED Graphic Display 96x64 Full Color - SPI

Regular price $9.90
Sale price $9.90 Regular price
Datesheet:
  • Availability:
    In Stock
  • SKU:
    DM-OLEDC095-626
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Resolution : 96x64 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : 65,536(Maximum)
  • Module Dimension : 25.70x22.20x1.50 mm
  • Viewing Area : 20.14x13.42 mm
  • Power Supply : 2.8 V
  • Interface : SPI
  • Controller IC : SSD1331
  • Operation Temperature : -30℃~70℃
  • Storage Temperature : -40℃~80℃

Dimension

Resources

Driver IC: SSD1331

Arduino SSD1331 Library, thanks to Adafruit!, Modify pins: rst:8,  dc 9.
