0.96" 128×64 TFT LCD Display Specifications

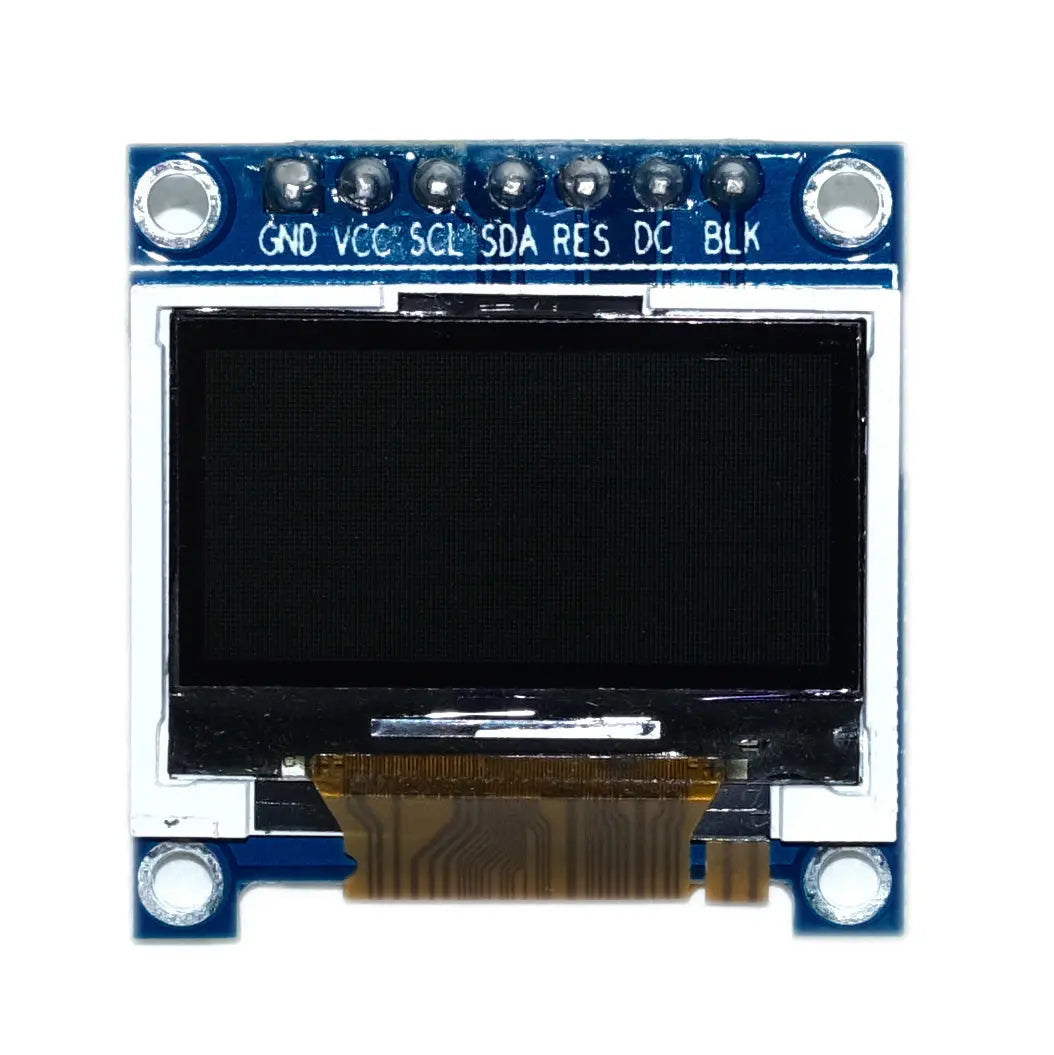

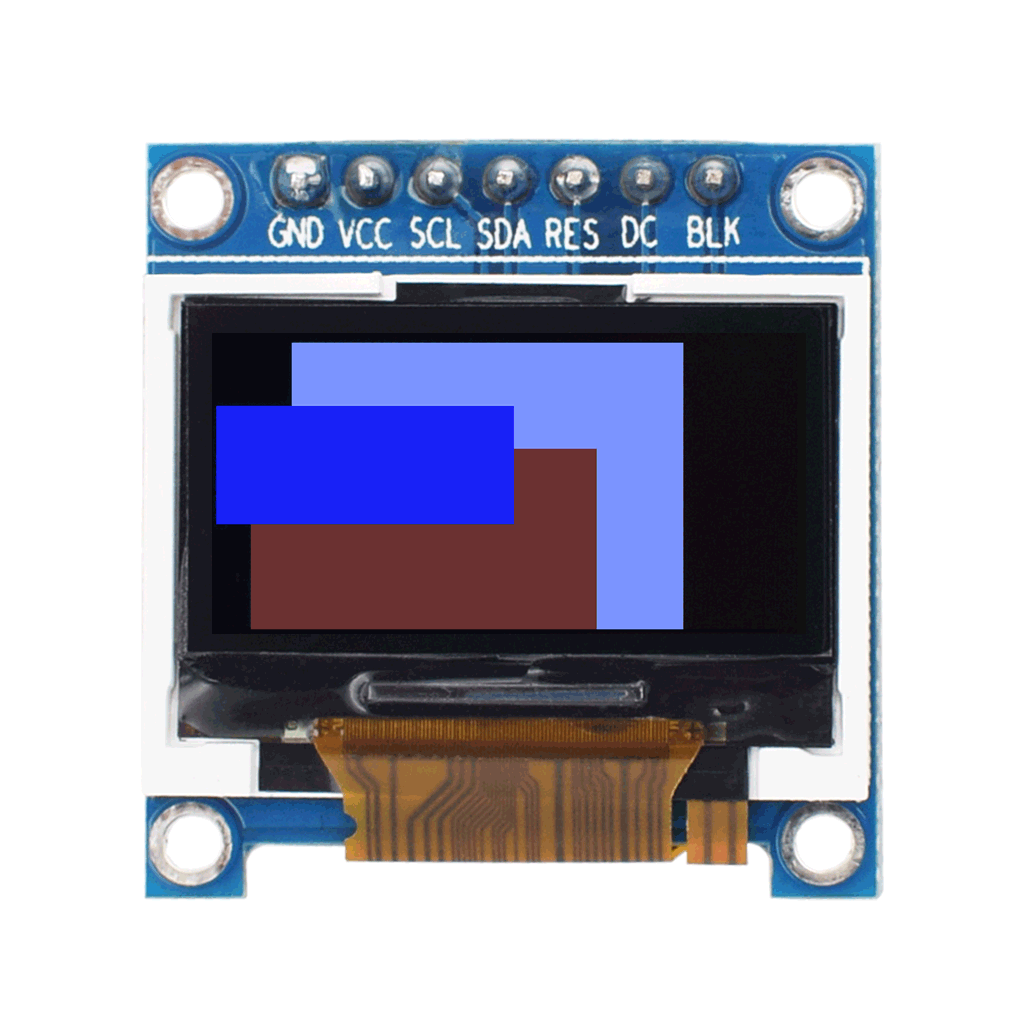

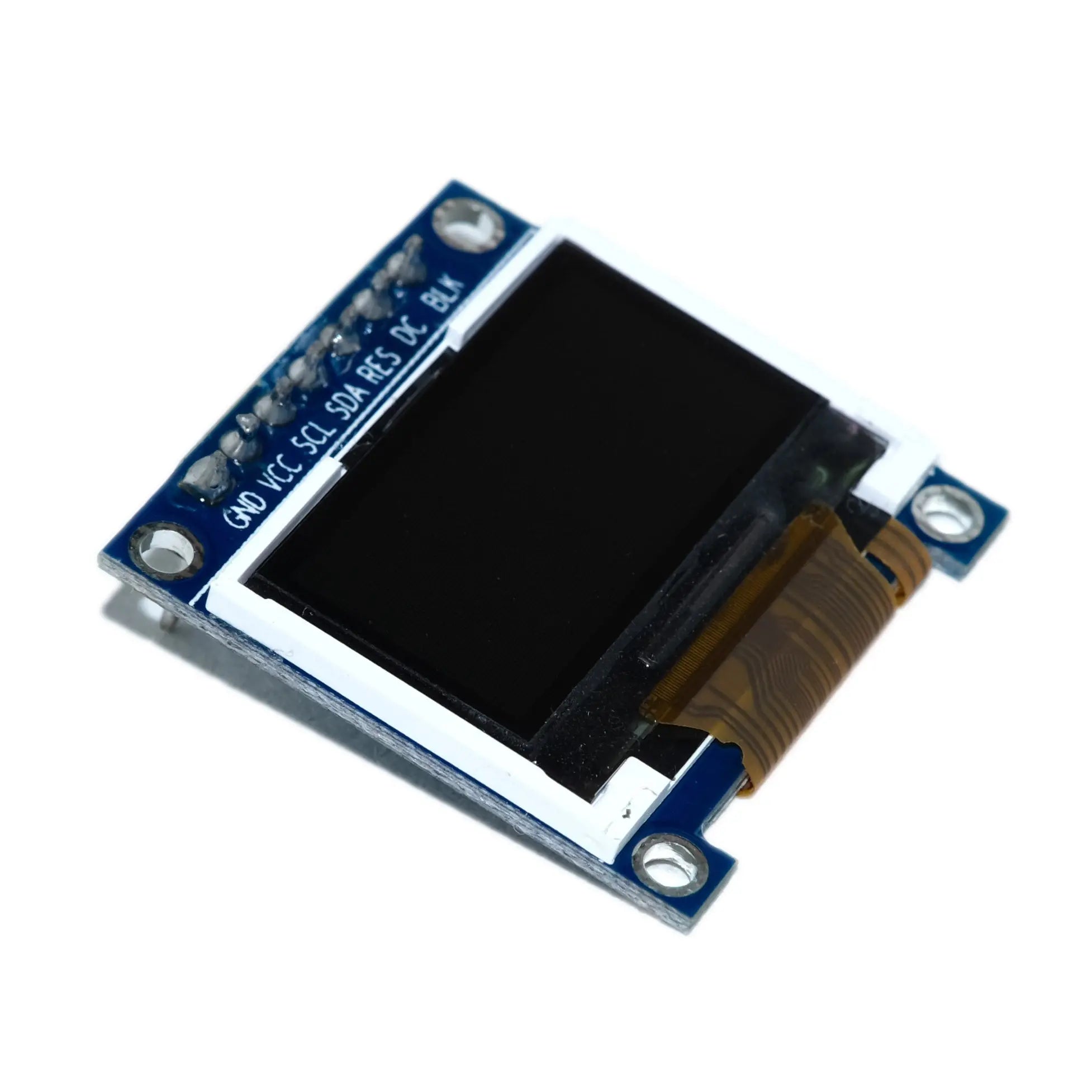

This 0.96-inch compact TFT LCD module features 128 × 64 resolution, ST7735S driver IC, and 4-wire SPI interface. Its low-power design and 12 o'clock viewing angle make it a great fit for small embedded systems, data displays, and battery-powered devices.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 0.96 | inch |
| Resolution | 128 × 64 | pixels |
| Viewing Direction | 12 o'clock | - |
| Touch Mode | None | - |
| Module Dimensions | 26.7 × 19.3 × 1.6 | mm |
| Viewing Area | 21.744 × 10.864 | mm |
| Supply Voltage | 2.8 | V |
| Interface | 4-wire SPI | - |
| Luminance | 180 | cd/m² |
| Driver IC | ST7735S | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
Mechanical Dimensions
Technical Resources
0.96" TFT Display 128x64 - SPI
