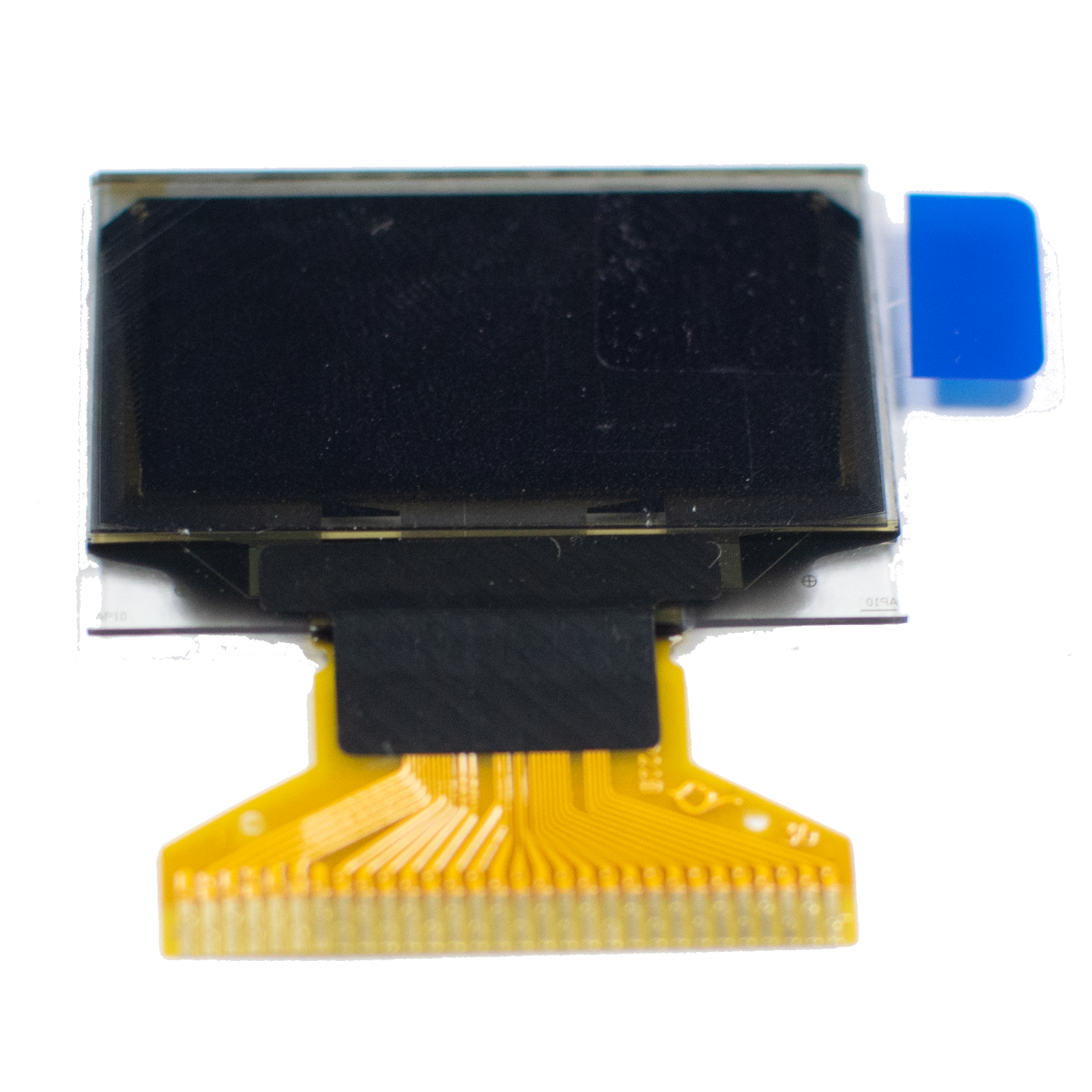

0.96-inch OLED Graphic Display Panel with 128x64 resolution, supporting MCU, I2C, and SPI interfaces

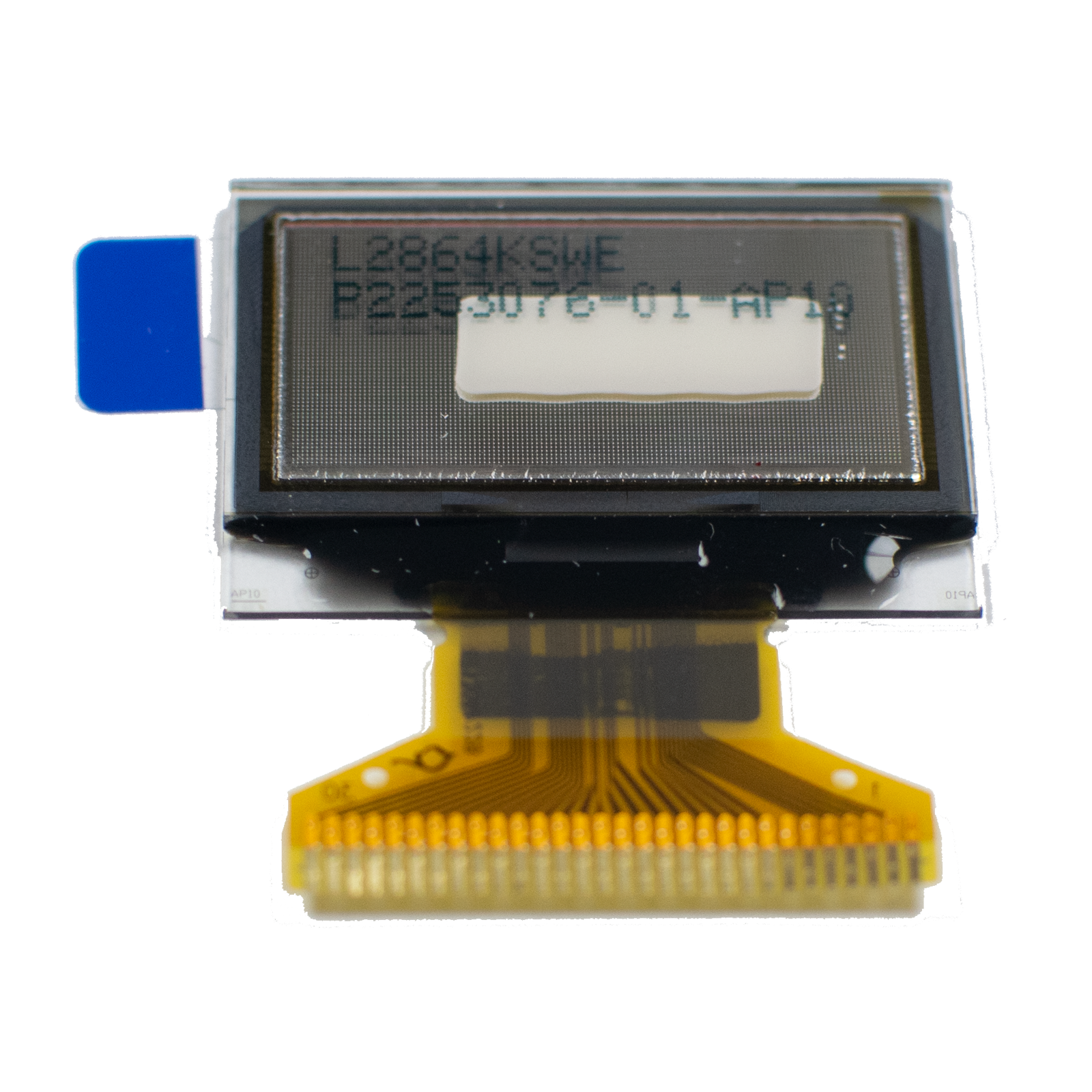

Back of 0.96-inch OLED Graphic Display Panel

0.96" OLED Graphic Display 128x64 - MCU, I2C, SPI

Regular price $3.90
Sale price $3.90 Regular price
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Resolution : 128x64 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : Monochrome (White)
  • Module Dimension : 26.70x19.26x1.45 mm
  • Viewing Area : 21.744x10.864 mm
  • Power Supply : 2.8 V
  • Interface : 8-bit 68XX/80XX Parallel,3/4-wire SPI,I2C
  • Controller IC : SSD1306
  • Operation Temperature : -40℃~70℃
  • Storage Temperature : -40℃~85℃

Dimension



Resourcs

Driver IC: SSD1306
