Dimension

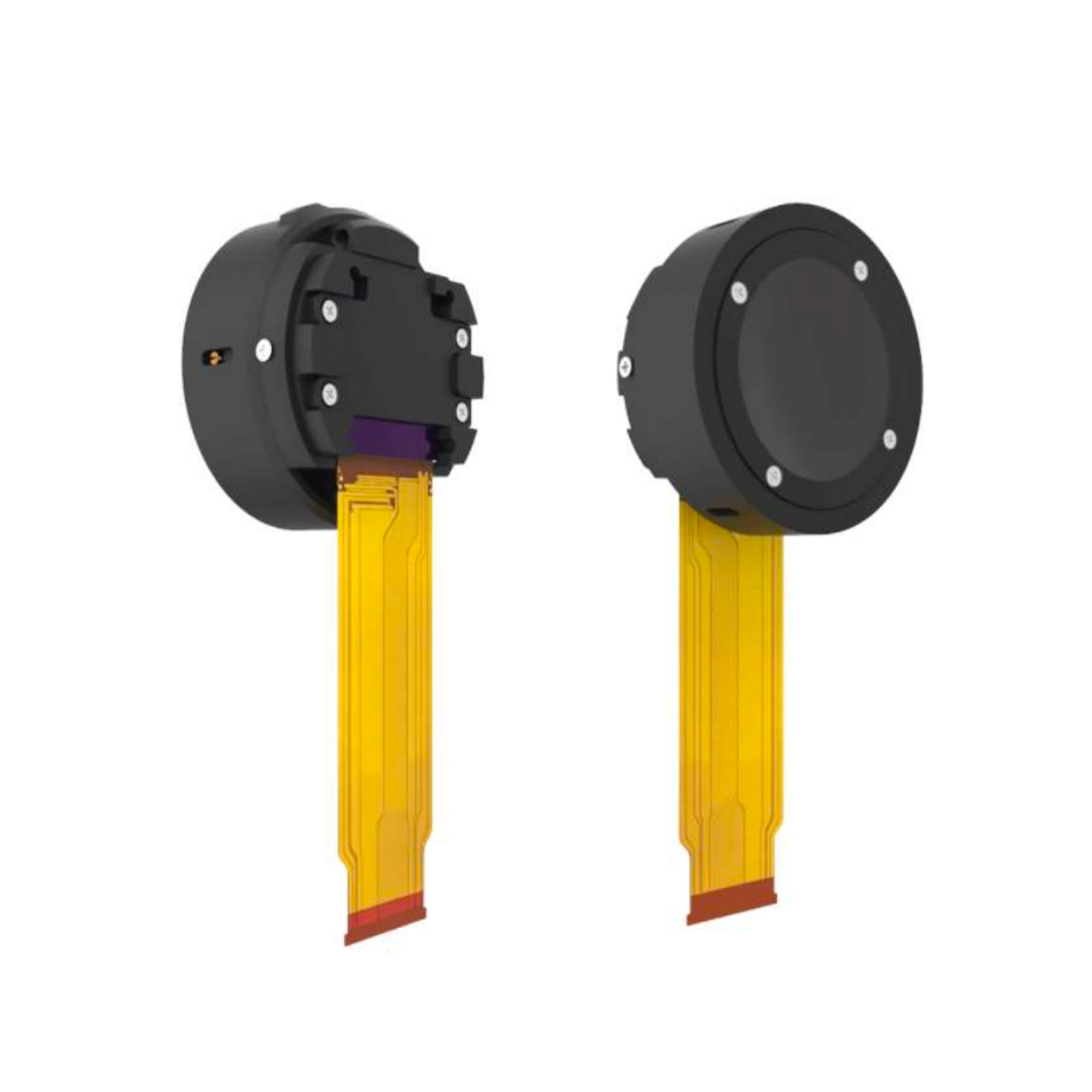

1.03" Micro OLED Display Module 2560×2560
This advanced 1.03-inch Micro OLED display delivers exceptional 2560×2560 resolution with true RGB pixel arrangement, offering unparalleled image clarity and color fidelity in a compact form factor. Built on single-crystal silicon transistor technology, this display integrates both panel driver and logic driver for reduced size, weight, and power consumption.
Designed for next-generation visual experiences, this Micro OLED display features ultra-fast response times, wide viewing angles, and exceptional color gamut coverage. The advanced silicon backplane enables precise pixel control and high refresh rates up to 90Hz.
- High Resolution: 2560×2560 true RGB resolution with 19.66 million subpixels for incredibly sharp imagery.
- Wide Color Gamut: 90% DCI-P3 coverage for vibrant, accurate colors.
- Low Power Consumption: Optimized power efficiency with typical consumption of 1600mW at full brightness.
- Advanced Interface: MIPI D-PHY interface with support for 1 or 2-port configuration.
- Temperature Compensation: Built-in temperature compensation for consistent performance across operating conditions.
| Parameter | Specification |
|---|---|
| Display Type | Micro OLED (Silicon-based) |
| Diagonal Size | 1.03 inches |
| Resolution | 2560(H) × 2560(V) |
| Number of Dots | 19.66M (2560×2560×3) |
| Pixel Size | 7.2μm × 7.2μm |
| Pixel Arrangement | RGB π type |
| Active Area | 18.432mm × 18.432mm |
| Luminance | 1800 cd/m² (typical) |
| Contrast Ratio | 500,000:1 (typical) |
| Color Gamut | 90% DCI-P3 |
| Gray Levels | 256 |
| Interface | MIPI (1 or 2-port D-PHY) |
| Frame Rate | 60Hz to 90Hz |
| Power Consumption | 1600mW (typical at 1800 nits, 100% duty) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -40℃ to +80℃ |
| Weight | Approximately 2g |
We offer comprehensive enterprise solutions for businesses looking to integrate high-performance Micro OLED displays into their products. Our team provides expert support throughout the integration process.
- Custom Configurations: Tailored display solutions to meet specific application requirements.
- Volume Pricing: Competitive pricing for bulk orders with flexible minimum order quantities.
- Technical Support: Dedicated engineering support for seamless integration and optimization.
- Long-term Availability: Commitment to product longevity and stable supply chains for enterprise customers.
This high-resolution Micro OLED display is ideal for applications requiring exceptional image quality in compact form factors:
High-resolution near-eye displays for immersive VR experiences with minimal screen-door effect.
Compact, high-brightness displays for AR glasses and heads-up displays with transparent optics.
High-precision displays for medical goggles, endoscopes, and surgical visualization systems.
Compact displays for portable measurement devices, inspection equipment, and professional tools.
Access comprehensive technical documentation and support resources for integrating this display into your products.
- Datasheet: Complete technical specifications and performance characteristics.
- Interface Guide: Detailed MIPI interface implementation guidelines.
- Integration Manual: Step-by-step instructions for hardware integration.
- Driver IC Documentation: Command set and register configuration details.
Compatibility Notes: This display supports MIPI D-PHY v1.2 with one or two port configurations (4 or 8 lanes) at 1.0Gbps per lane. It is compatible with MIPI DSI v1.01 R11 Video mode and includes in-chip VESA-DSC v1.1 decoder with 3X compression ratio.
Support:DM-ADTTR-030
