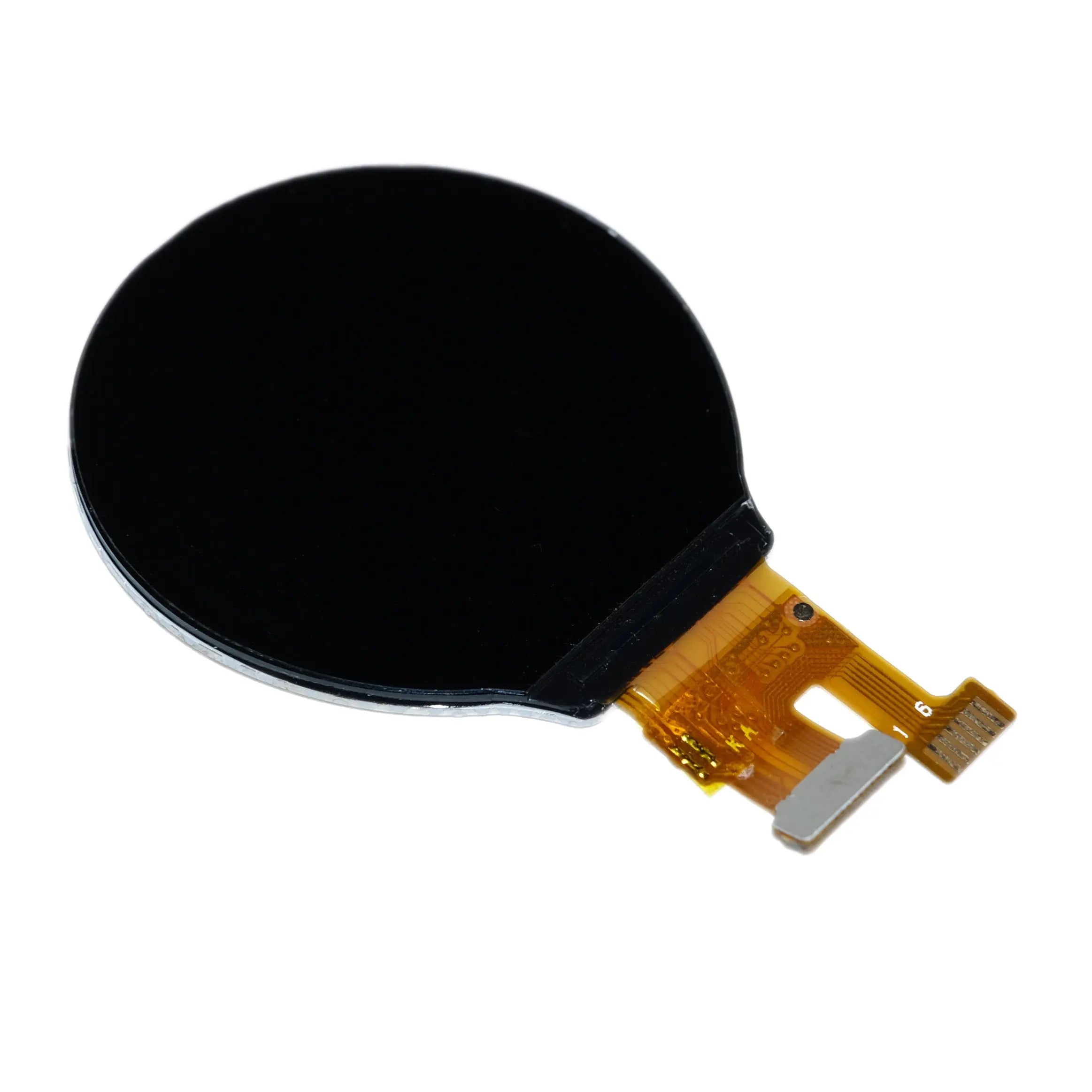

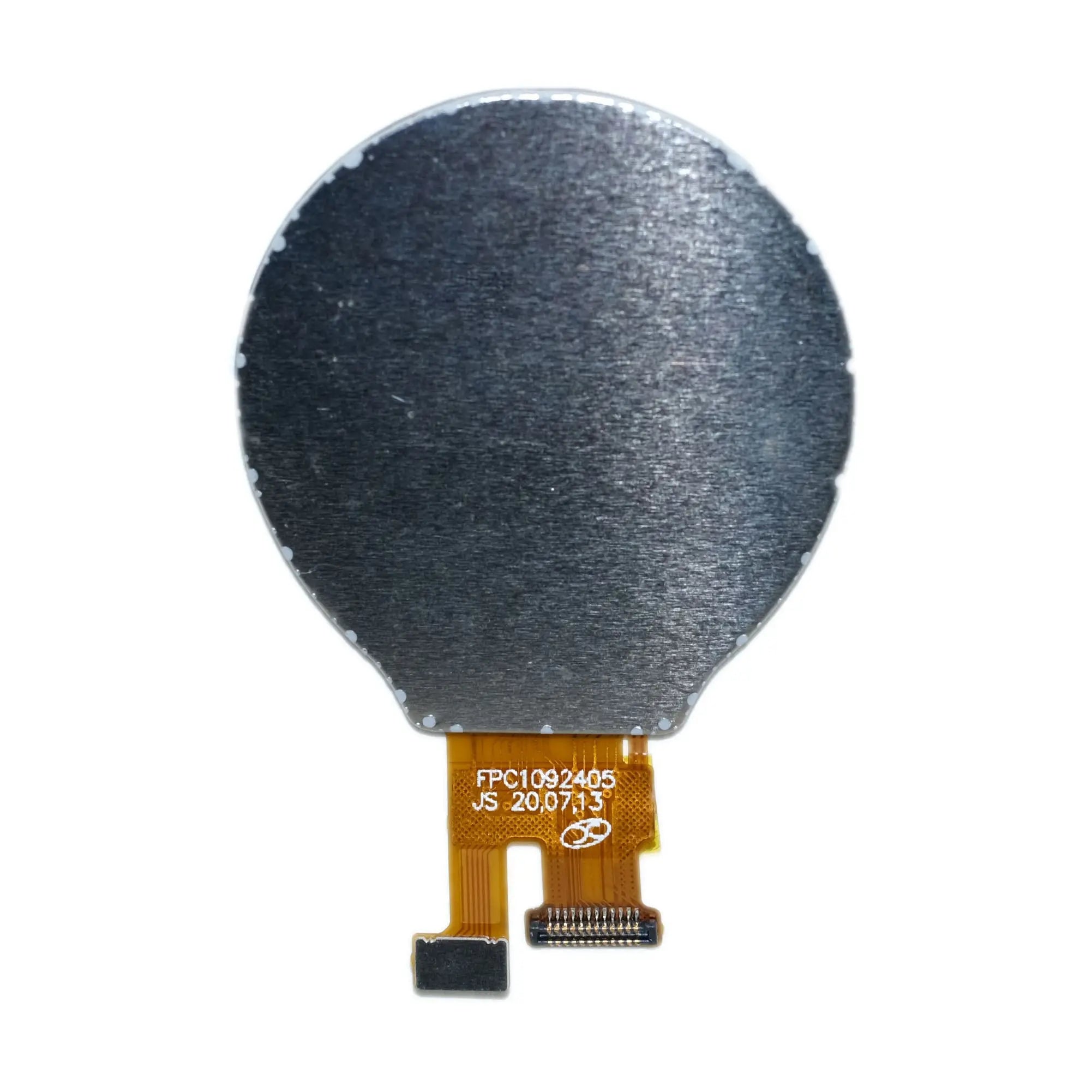

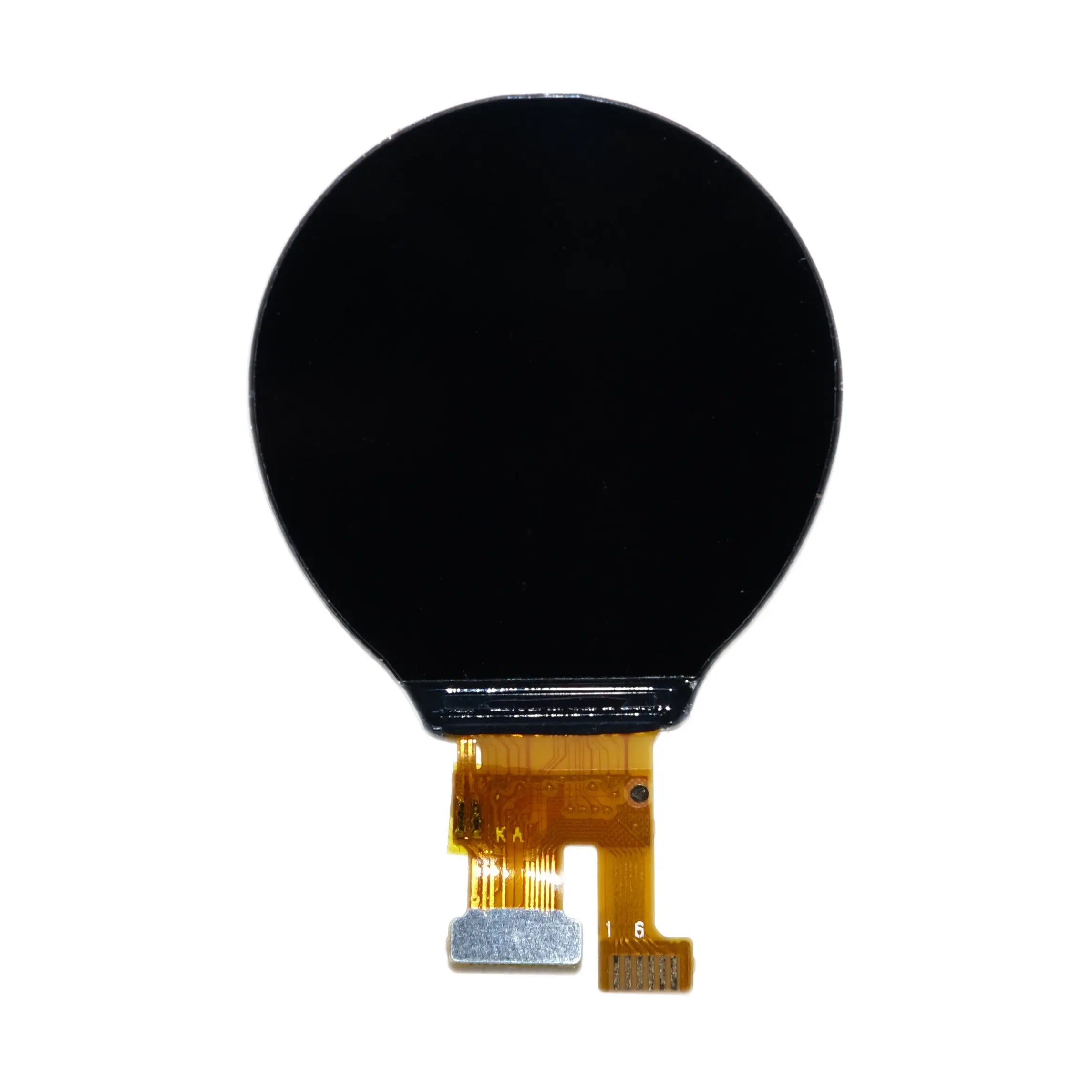

1.09" TFT Round Display 240x240 400nits All View Transmissive - SPI
Engineered for compact and circular UI applications, this 1.09-inch TFT display delivers 240x240 resolution with 400 nits brightness through a 4-wire SPI interface. Ideal for space-constrained designs requiring high visibility and wide viewing angles.
Featuring the GC9A01 driver IC, this transmissive display supports 262K colors and operates at 3.0V power supply. The circular form factor (27.79mm viewing area) makes it perfect for wearable devices and industrial dashboards.
- High Luminance: 400 nits brightness ensures clear visibility even in bright environments.
- Low Power Consumption: Optimized for battery-powered devices with sleep mode support.
- SPI Interface: 4-wire serial interface reduces pin count and simplifies integration.
- Robust Design: Operating temperature range of -10°C to 60°C for reliable performance.
| Parameter | Specification |
|---|---|
| Display Type | TFT LCD, Transmissive |
| Display Size | 1.09 inch (round) |
| Resolution | 240 × 240 pixels |
| Luminance | 400 cd/m² |
| Interface | 4-wire SPI |
| Driver IC | GC9A01 |
| Supply Voltage | 3.0V |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Module Dimensions | 30.59 × 33.00 × 1.60 mm |
| Viewing Area | 27.79 × 27.79 mm |
We offer customized solutions for bulk orders and specific application requirements. Our engineering team can provide tailored support for integration and optimization.
- Customization Options: Modify firmware, interface protocols, or mechanical dimensions to match your product design.
- Volume Discounts: Competitive pricing for OEM and ODM projects with large quantity orders.
- Technical Support: Dedicated assistance for prototyping and production phases.
Smartwatches, fitness trackers, and health monitors benefit from the circular form factor and low power consumption.
Control panels and instrumentation displays where round gauges and compact size are advantageous.
Home appliances, portable gadgets, and IoT devices requiring small, high-brightness displays.
Compatibility: Works with most microcontrollers supporting SPI interface, including Arduino, Raspberry Pi, and STM32 platforms.
Resources: Download Datasheet | Driver IC Documentation | 3D Model (STEP)
Example Code: Available on GitHub for quick integration and development.
Mechanical Dimensions
