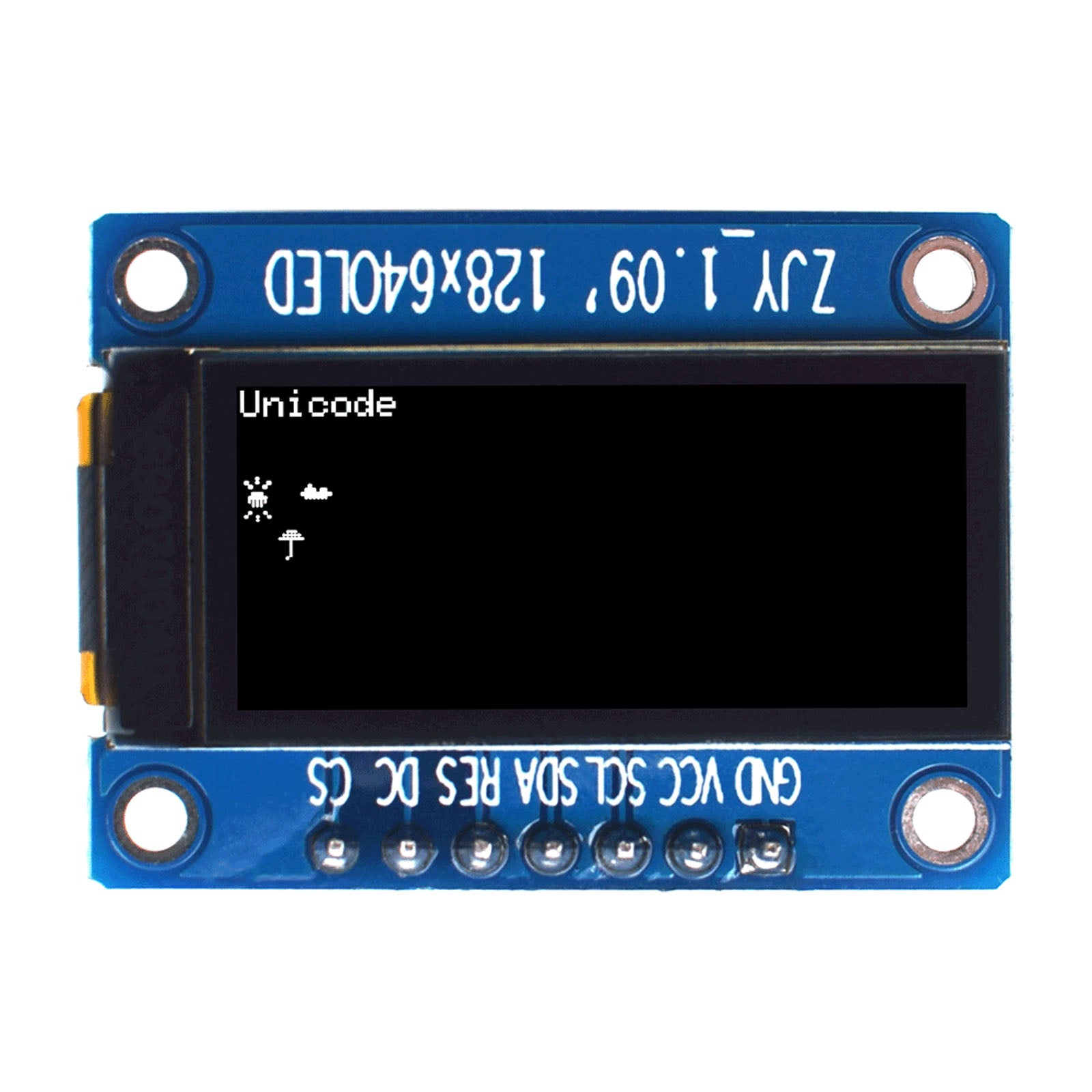

1.09-inch OLED Graphic Display Module with 128x64 resolution

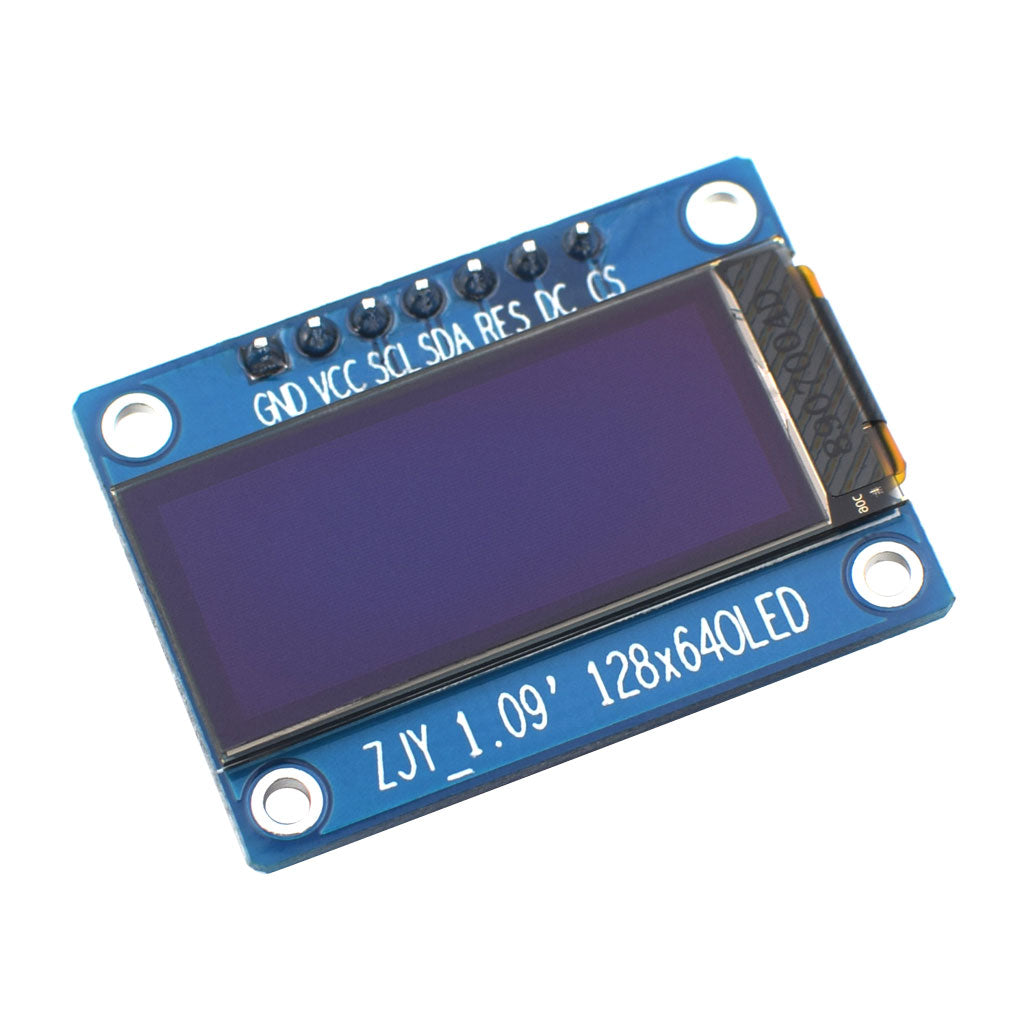

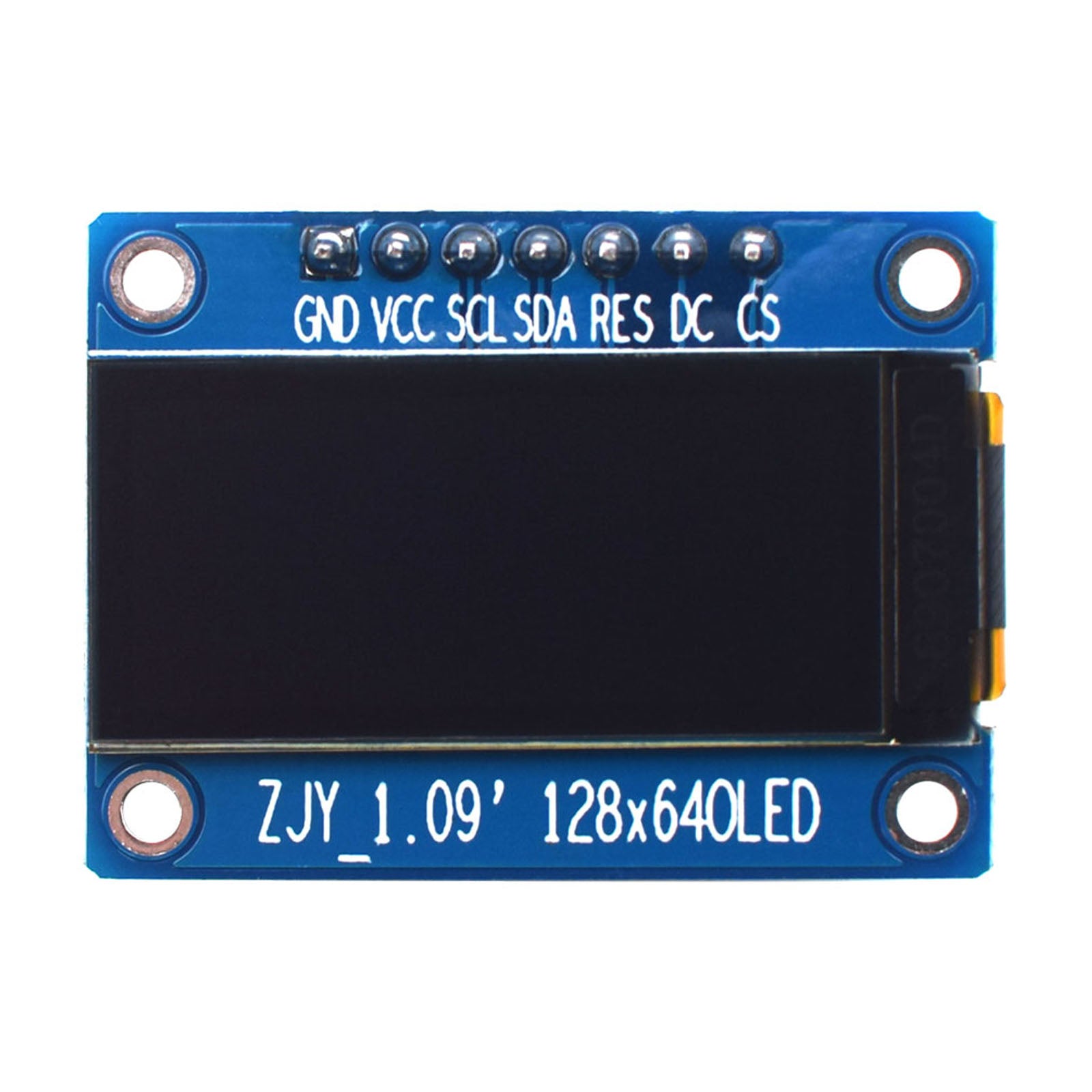

1.09 inch OLED graphic display module on white background

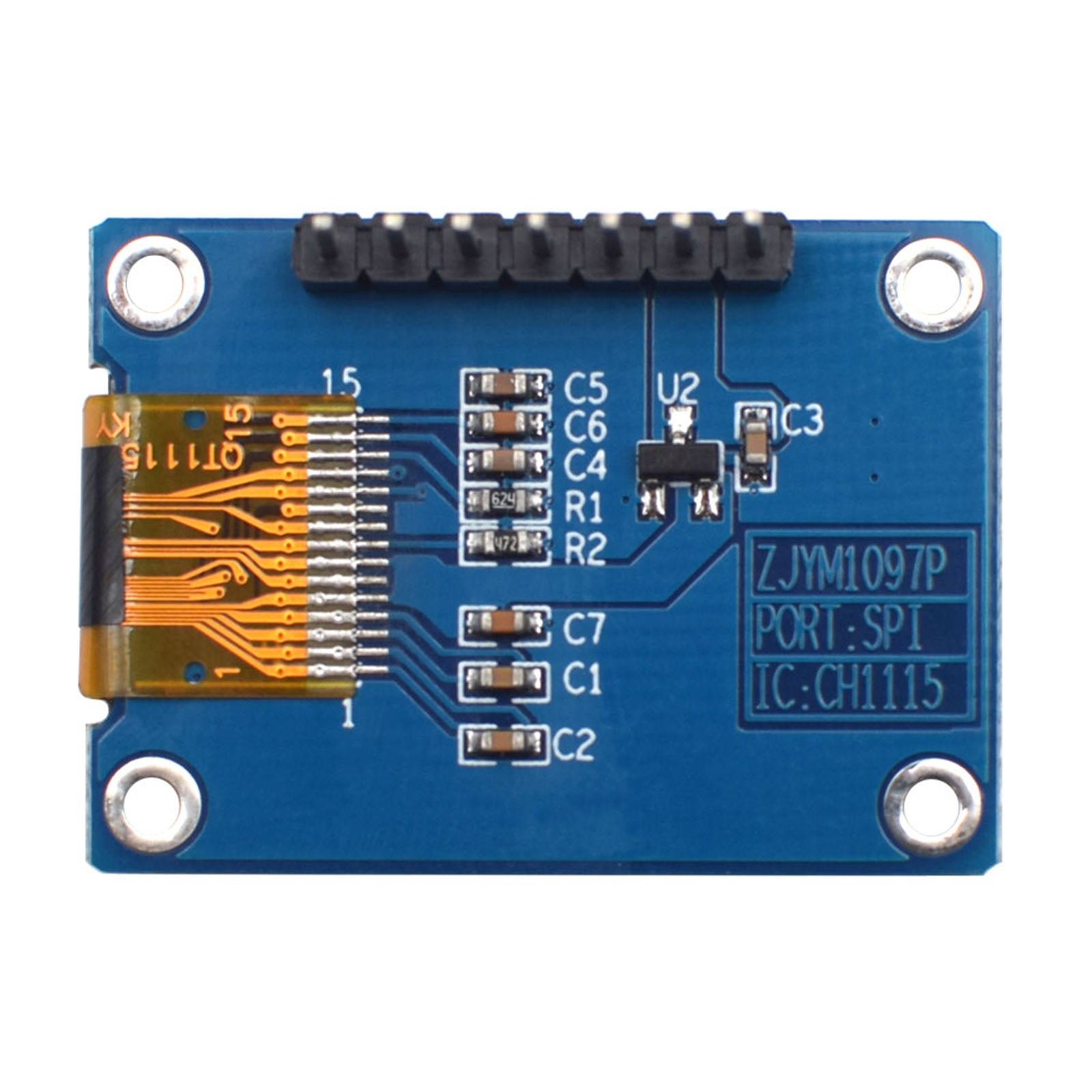

Back of 1.09-inch OLED Graphic display module

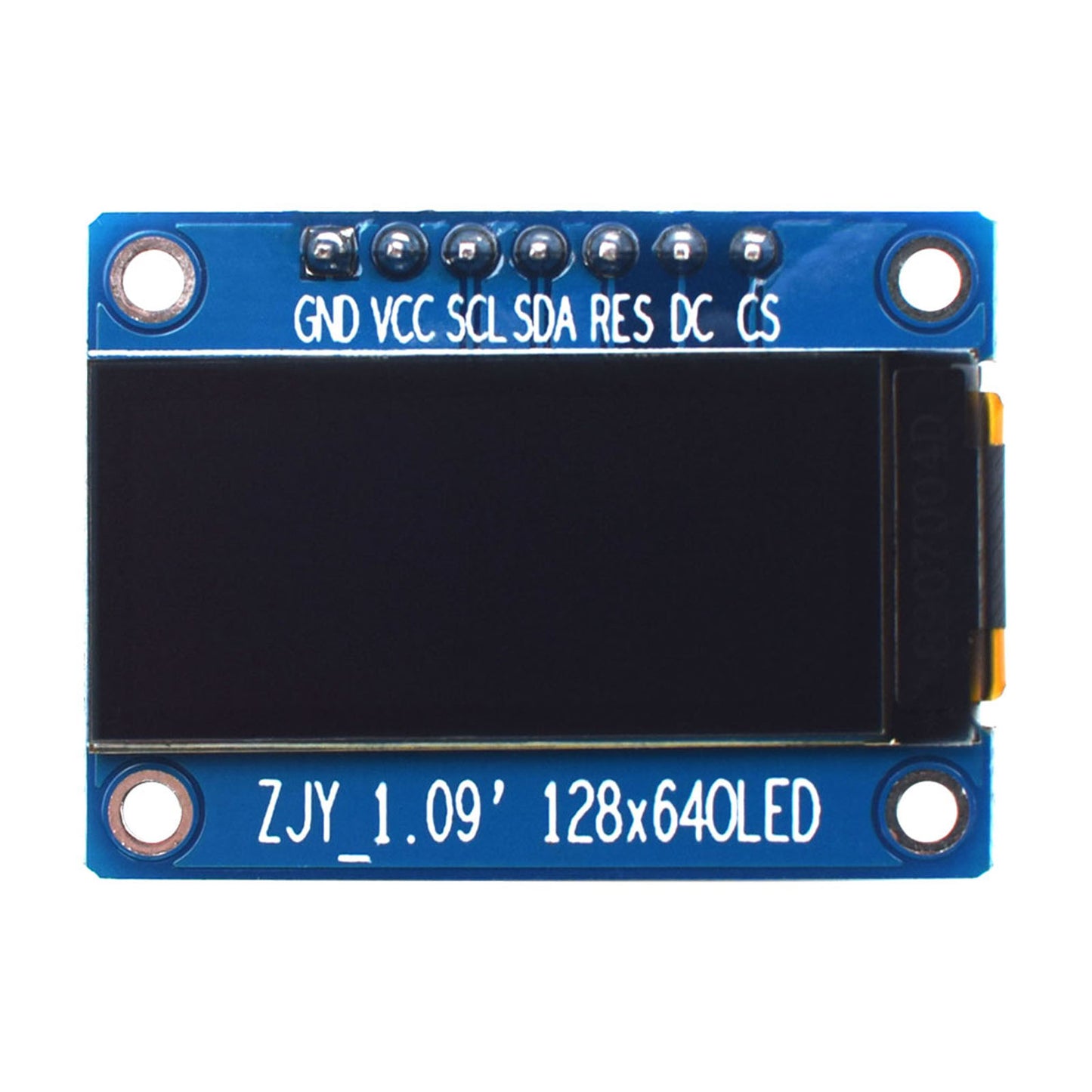

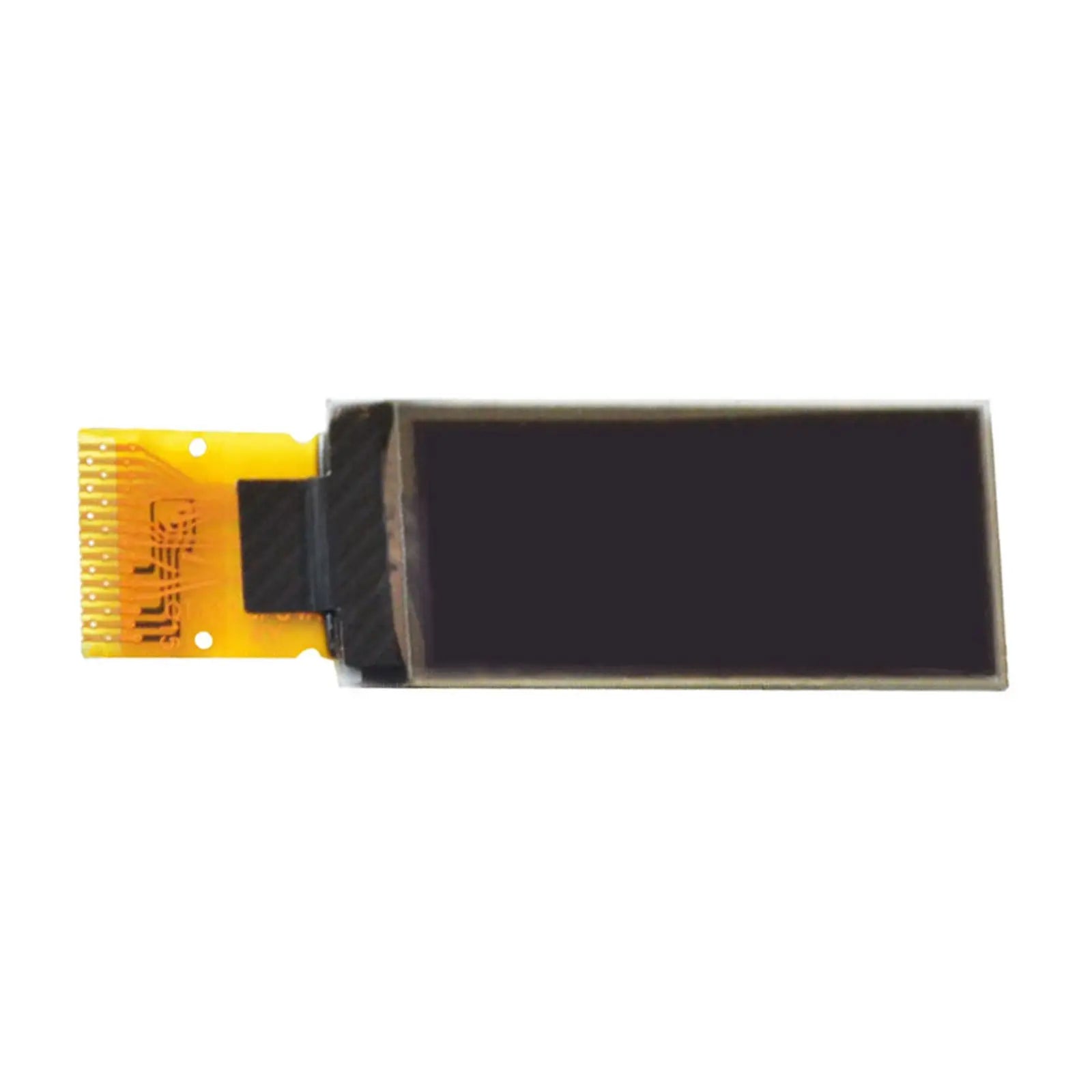

1.09-inch OLED Graphic Display Panel with 128x64 resolution
DisplayModule 1.09" Monochrome Graphic OLED

1.09" OLED Graphic Display 128x64 - SPI

Regular price $9.90
Sale price $9.90 Regular price
Datesheet:
module
panel
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Resolution : 128x64 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : Monochrome
  • Module Dimension : 24x33x2.42 mm
  • Viewing Area : 14.0x31.96x1.22 mm
  • Power Supply : 2.8 V
  • Interface : 4 wire SPI
  • Controller IC : CH1115 (Compatible SSD1306)
  • Operation Temperature : -40℃~85℃
  • Storage Temperature : -40℃~85℃

Dimensions

Resources

Arduino SSD1306 Library: u8g2. Uncomment device U8G2_SSD1306_128X64_NONAME_1_4W_SW_SPI u8g2(U8G2_R0, /* clock=*/ 13, /* data=*/ 11, /* cs=*/ 10, /* dc=*/ 9, /* reset=*/ 8);

You can refer to samples of the U8g2_Arduino/example/page_buffer;

Connect pins:13: SCL;11SDA;10: CS;9: DC;8: RES.
