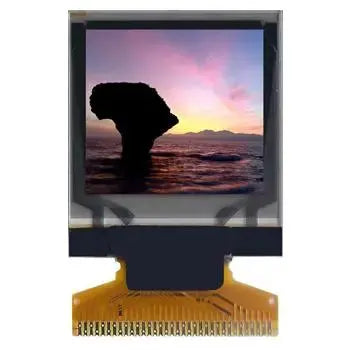

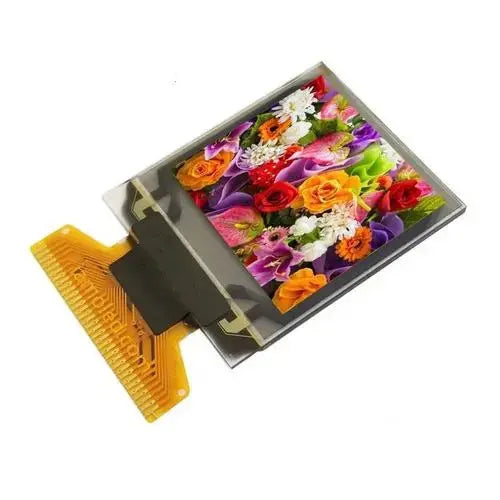

1.1" PMOLED Display - MCU
High-performance 1.1-inch Passive Matrix OLED display module designed for microcontroller integration, delivering crisp 65,536 color visualization in a compact form factor. Ideal for embedded systems requiring reliable display performance with low power consumption.
Engineered with the SEPS114A driver IC, this PMOLED module supports multiple MCU interfaces including 68XX-series and 80XX-series parallel interfaces, as well as serial interface for flexible system integration. The compact 25.90 × 30.10 × 1.30mm panel size makes it perfect for space-constrained applications.
- Multiple Interface Support: Compatible with 68XX/80XX parallel and serial MCU interfaces for versatile system integration.
- Optimized Power Management: Integrated power sequencing and reset circuitry ensures reliable operation and extends display lifespan.
- High Reliability: Comprehensive ESD protection and robust construction suitable for industrial environments.
- Easy Integration: Standard pin definition and block diagram provided for straightforward PCB design and system implementation.
| Technical Parameter | Specification |
|---|---|
| Display Mode | Passive Matrix OLED |
| Display Colors | 65,536 Colors (Maximum) |
| Drive Duty | 1/96 Duty |
| Number of Pixels | 96(RGB) × 96 |
| Panel Size | 25.90 × 30.10 × 1.30mm |
| Active Area | 19.852 × 19.852mm |
| Pixel Pitch | 0.069 × 0.207mm |
| Pixel Size | 0.049 × 0.187mm |
| Weight | 2.07g |
| Operating Voltage | VDD=2.8V, Vcc_c=12.0V |
For commercial and industrial customers, we offer customized PMOLED display solutions tailored to specific application requirements and volume production needs.
- Custom Configuration Services: Modified pin definitions, interface optimization, and mechanical adaptations for specialized applications.
- Volume Manufacturing Programs: Competitive pricing and dedicated production lines for high-volume orders with consistent quality assurance.
- Technical Support: Comprehensive engineering support including schematic review, layout guidance, and firmware optimization.
Compact display solution for portable medical equipment, patient monitors, and diagnostic instruments requiring high visibility and reliability.
Robust display for industrial HMIs, control panels, and instrumentation with wide operating temperature tolerance and long-term reliability.
High-contrast OLED display for wearable devices, smart home controls, and portable gadgets requiring excellent visual performance.
Secondary displays for automotive applications including aftermarket systems, diagnostic tools, and auxiliary information displays.
This PMOLED display module supports multiple microcontroller interfaces for maximum design flexibility:
- 68XX-Series MPU Parallel Interface: Optimized timing characteristics for legacy microcontroller systems
- 80XX-Series MPU Parallel Interface: Enhanced timing performance for modern microcontroller applications
- Serial Interface: Reduced pin count solution for space-constrained designs
- MCU Interface Selection: Configurable via PS and C80 pins for system optimization
Technical Documentation: Complete datasheet with detailed specifications, timing diagrams, and application circuits available for download.
Design Guidelines: Comprehensive handling precautions, storage recommendations, and design considerations for optimal performance.
Reliability Data: Full reliability test results including environmental testing, lifespan estimates, and quality control specifications.
Resources: Download complete technical documentation
