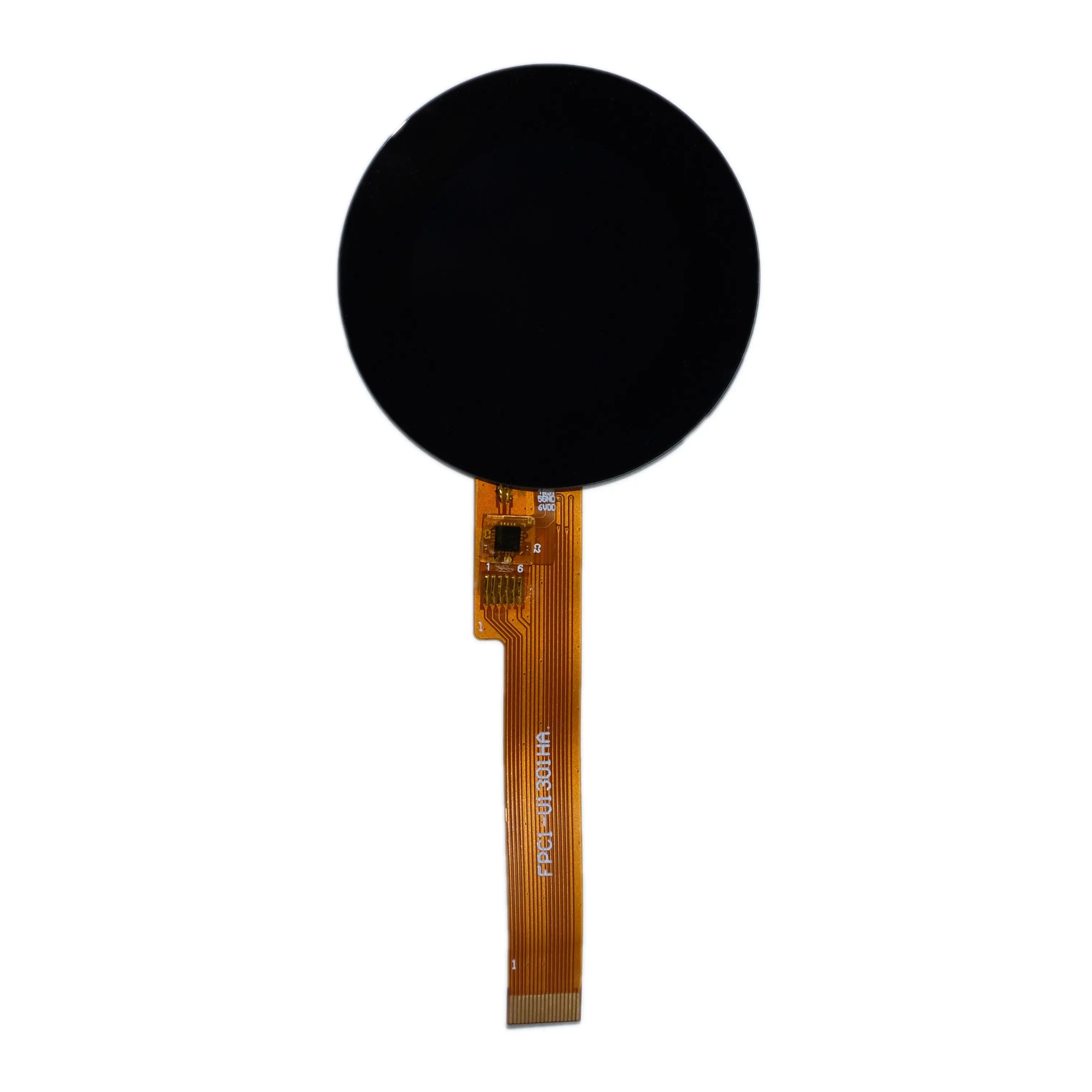

• 1.28-inch Round TFT Display Panel with 240x240 resolution, capacitive touch capabilities, and SPI interface

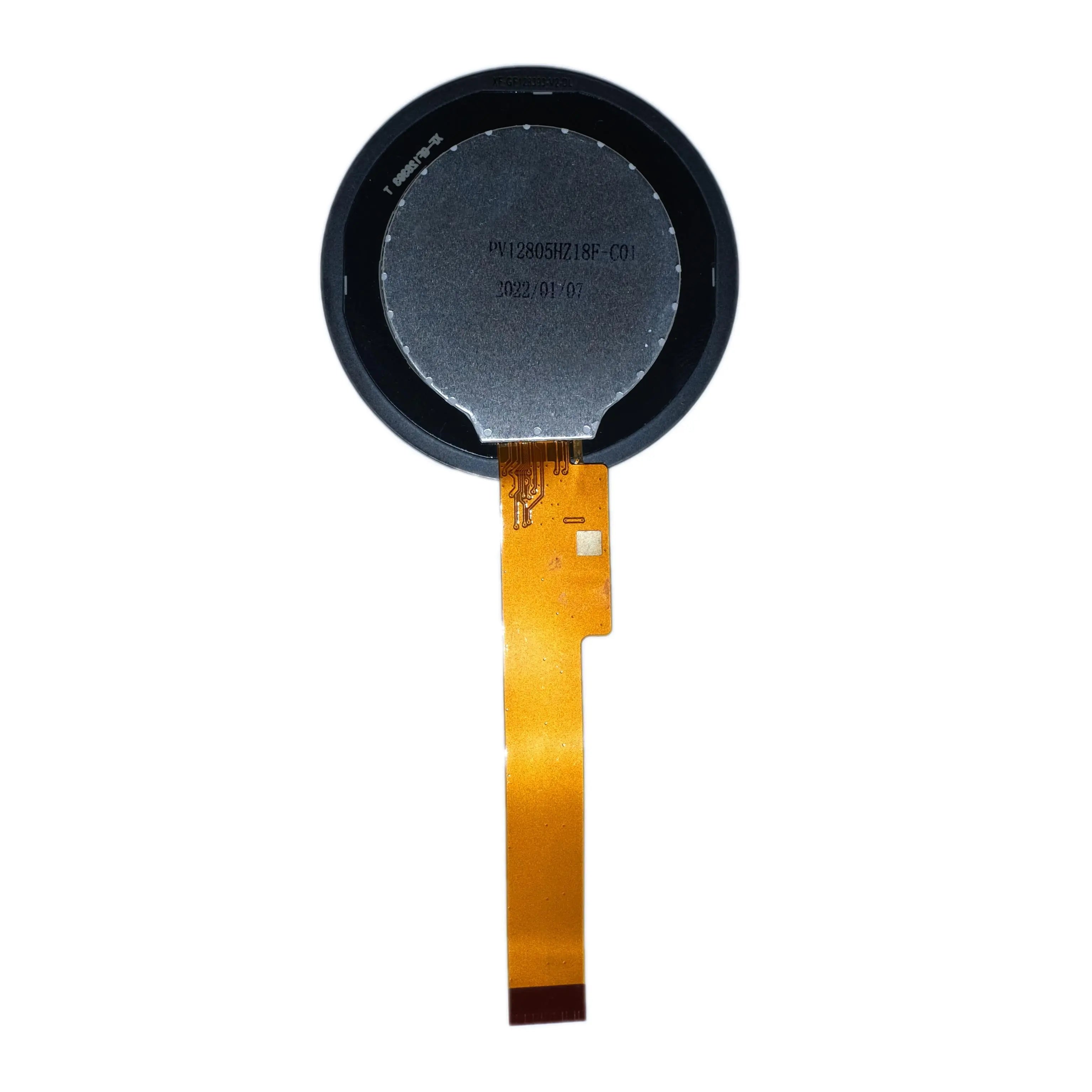

  • Back of 1.28-inch Round TFT Display Panel

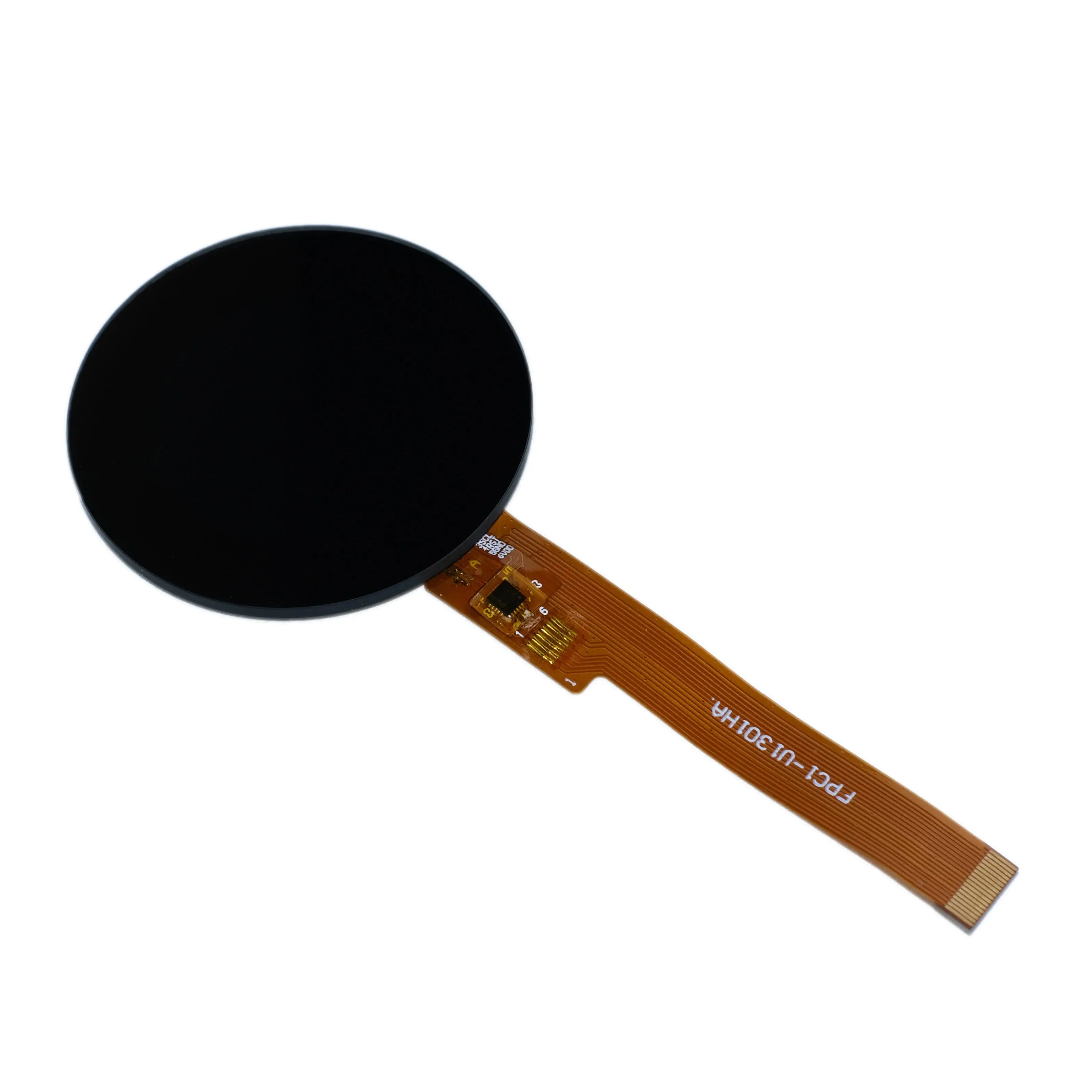

  • Side of 1.28-inch Round TFT Display Panel
1 / 1

1.28" Round TFT Display 240x240 Capacitive - SPI

$29.90
Shipping calculated at checkout.
SKU: DM-TFTR128-467
1.28-inch Round TFT Display Panel with 240x240 resolution, capacitive touch capabilities, and SPI interface
$29.90

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
View details

1.28" 240×240 Round TFT Display with Capacitive Touch

This 1.28-inch round TFT LCD display features 240 × 240 resolution, SPI interface, and capacitive touch support. With GC9A01 driver IC and 320 cd/m² luminance, it's ideal for wearables, round UIs, and embedded interactive displays.

Parameter Value Unit
Diagonal Dimension 1.28 inch
Resolution 240 × 240 pixels
Viewing Direction All -
Touch Mode Capacitive -
Module Dimensions 50.2 × 50.2 × 3.99 mm
Viewing Area 32.4 × 32.4 mm
Supply Voltage 2.8 V
Interface SPI -
Luminance 320 cd/m²
Driver IC GC9A01 -
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C

Mechanical Dimensions

1.28 inch TFT LCD mechanical drawing

Technical Resources
  • 1.28-inch Round TFT Display Panel with 240x240 resolution, capacitive touch capabilities, and SPI interface
  • Back of 1.28-inch Round TFT Display Panel
  • Side of 1.28-inch Round TFT Display Panel
1 / 1
Press & drag to view
