1.28" Round TFT Display 240x240 400nits All View - SPI

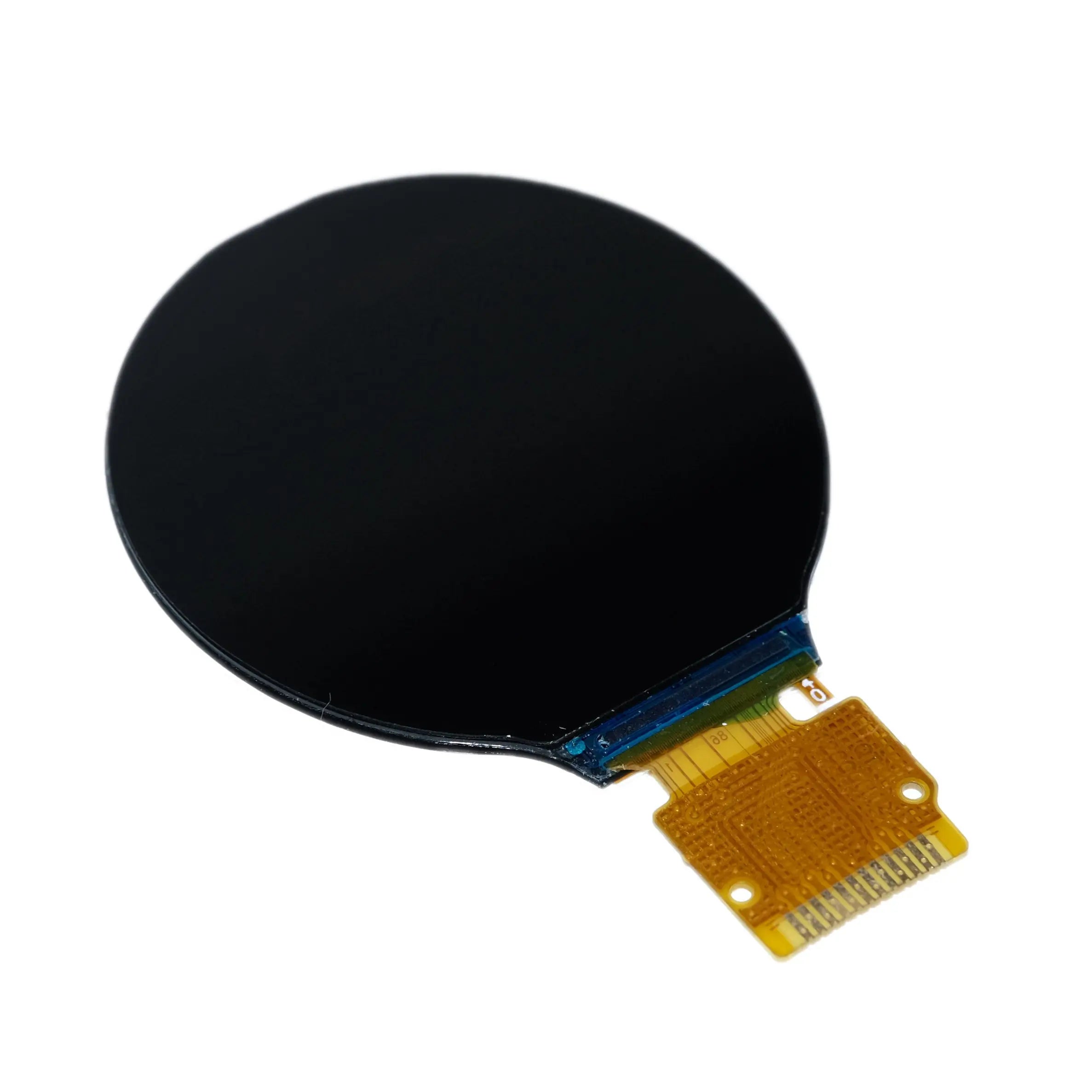

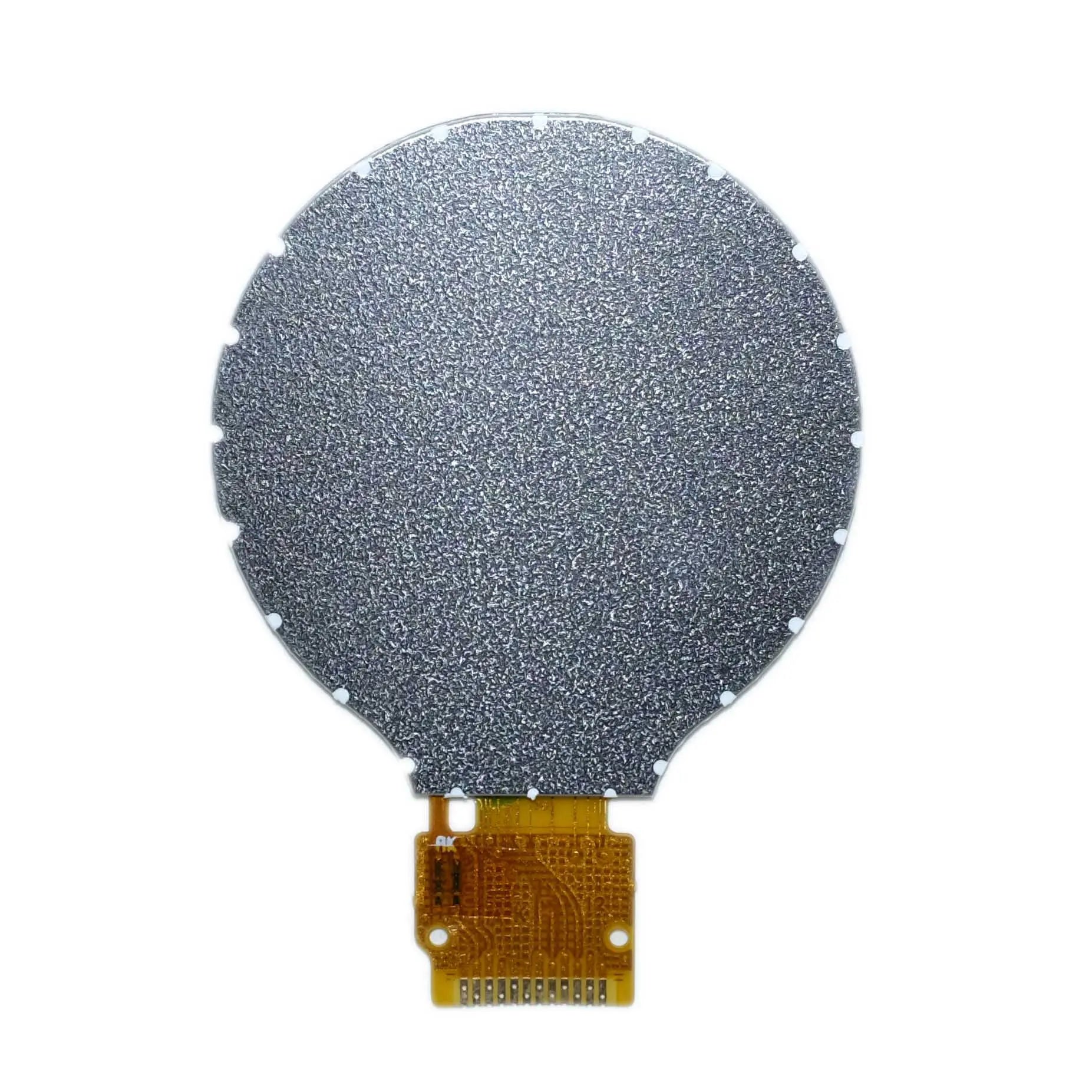

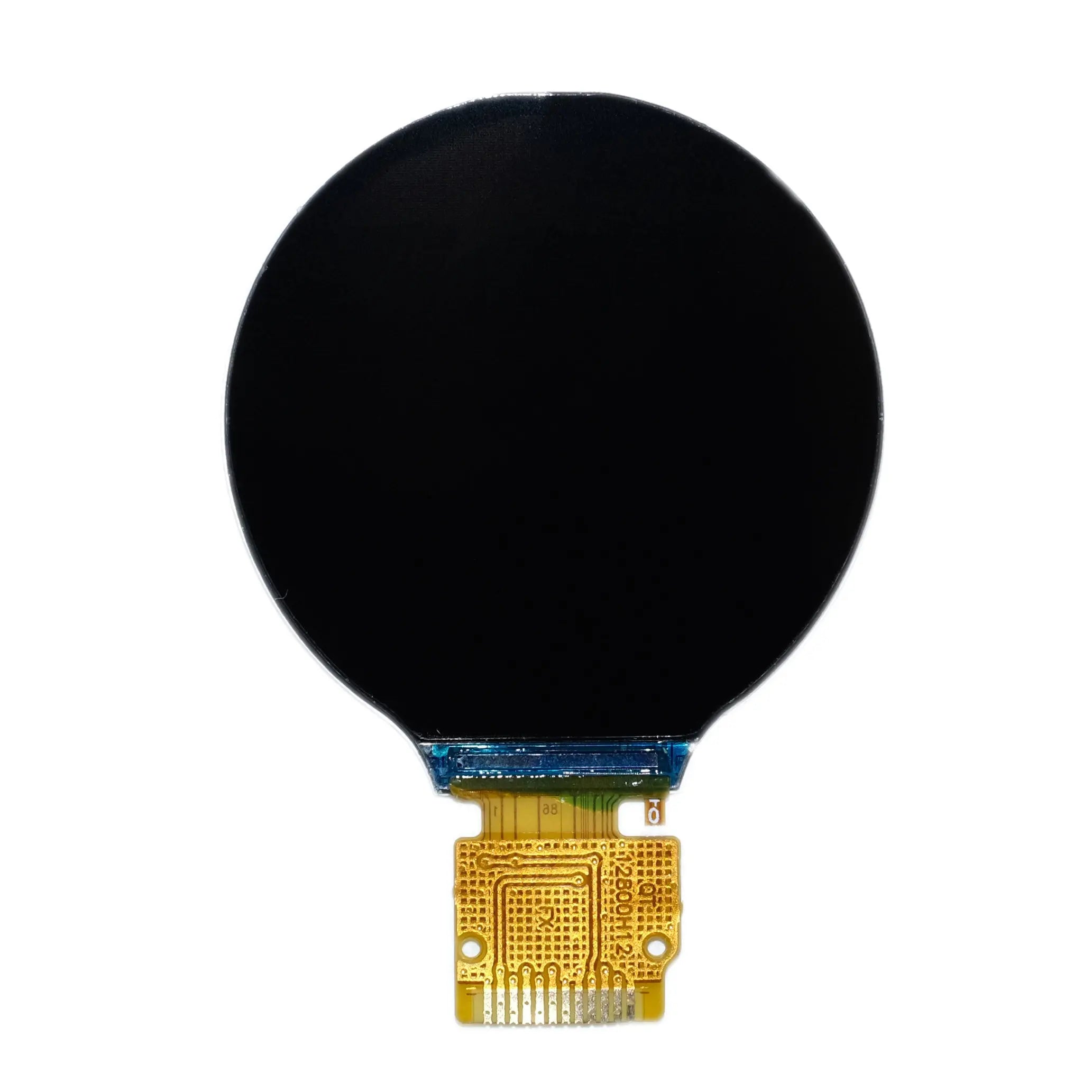

This 1.28-inch round TFT LCD module delivers crisp visuals with 240×240 resolution (57,600 pixels) and 400 cd/m² brightness—equivalent to a high-end smartphone screen—ensuring readability even in direct sunlight. Powered by the GC9A01 driver IC, it uses a 4-wire SPI interface, making it ideal for compact embedded systems like smartwatches, fitness trackers, and IoT dashboards where space and simplicity matter.
Engineered for reliability, the module features a slim profile (1.5mm thick) and operates from -20°C to 70°C—perfect for industrial environments or outdoor devices. Its 32.4×32.4mm active area maximizes display space within the 35.6×38.1mm footprint, ensuring no pixel goes to waste.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 1.28 | inch |
| Resolution | 240 × 240 | pixels |
| Viewing Direction | All | - |
| Touch Functionality | None | - |
| Module Dimensions | 35.6 × 38.1 × 1.5 | mm |
| Active Display Area | 32.4 × 32.4 | mm |
| Supply Voltage | 2.8 | V |
| Interface Type | 4-line SPI | - |
| Luminance | 400 | cd/m² |
| Driver IC | GC9A01 | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
We support businesses with tailored display solutions to accelerate your product development:
- Customization Services: Adjust module dimensions, interface protocols (e.g., SPI to I2C), or backlight brightness to match your device’s unique requirements.
- Bulk Ordering: Volume discounts available for orders over 10,000 units, with flexible lead times (4-6 weeks) and dedicated technical support.
- White-Label Partnerships: Private branding options for OEMs and system integrators, including custom packaging and documentation.

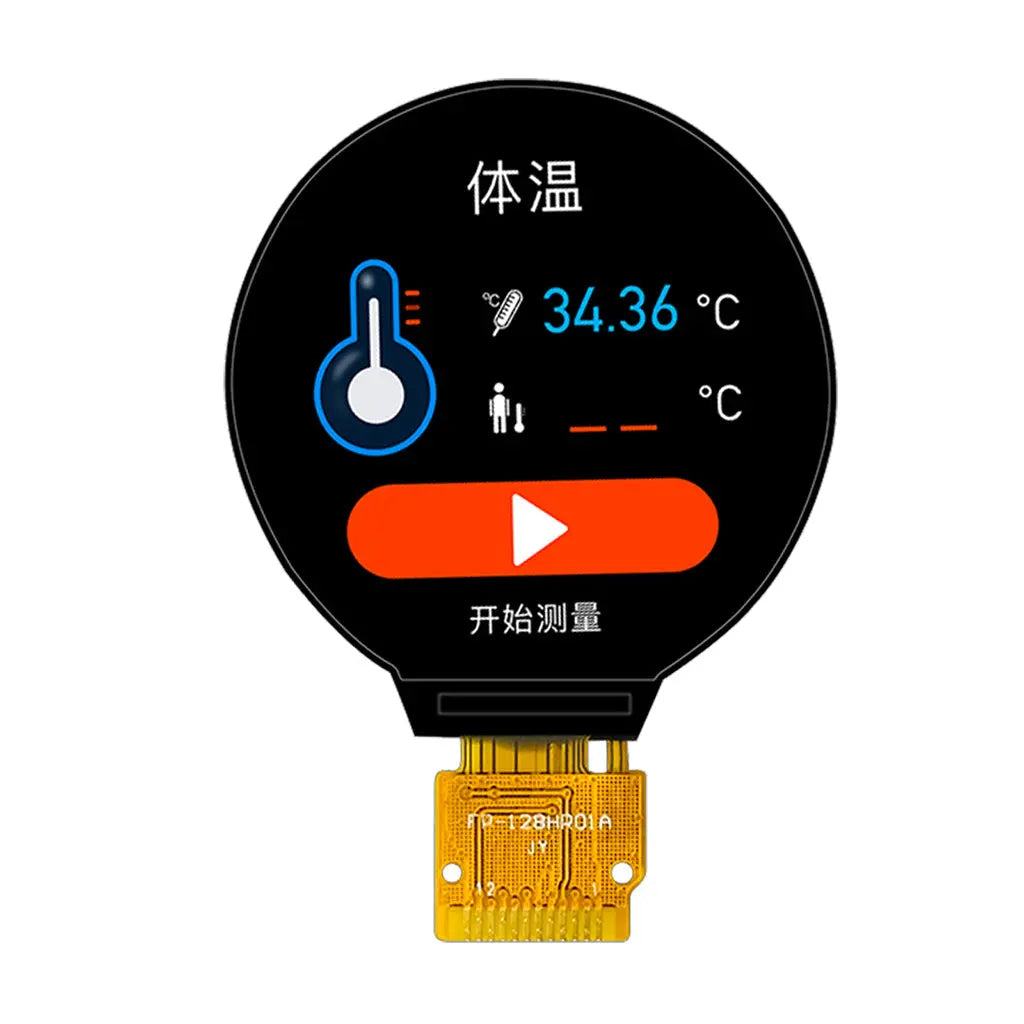

The 1.28-inch circular design fits seamlessly into smartwatches, displaying time, health metrics, and notifications with 240×240 clarity. 400 cd/m² brightness ensures visibility during outdoor workouts.
In factory equipment or machinery dashboards, the wide operating temperature (-20°C to 70°C) and SPI interface simplify integration into rugged control panels.
Compact size and low power consumption make it ideal for smart home sensors, weather stations, or energy monitors where space and battery life are critical.
Key Resources:
- Detailed Datasheet: Download the DM-TFTR128-446 Datasheet for pinouts, timing diagrams, and electrical specs.
- Driver IC Docs: Access the GC9A01 Driver IC Datasheet for register configurations and command sets.
- 3D Model: Use the 3D STEP File to integrate the module into your product design.
- Demo Video: Watch the DM-TFTR128-446 Demo Video to see real-world performance.
Support: For custom projects or bulk orders, contact our technical team at [support@email.com] for sample requests and integration guidance.
