1.28" Round IPS Display 240x240 All View - SPI

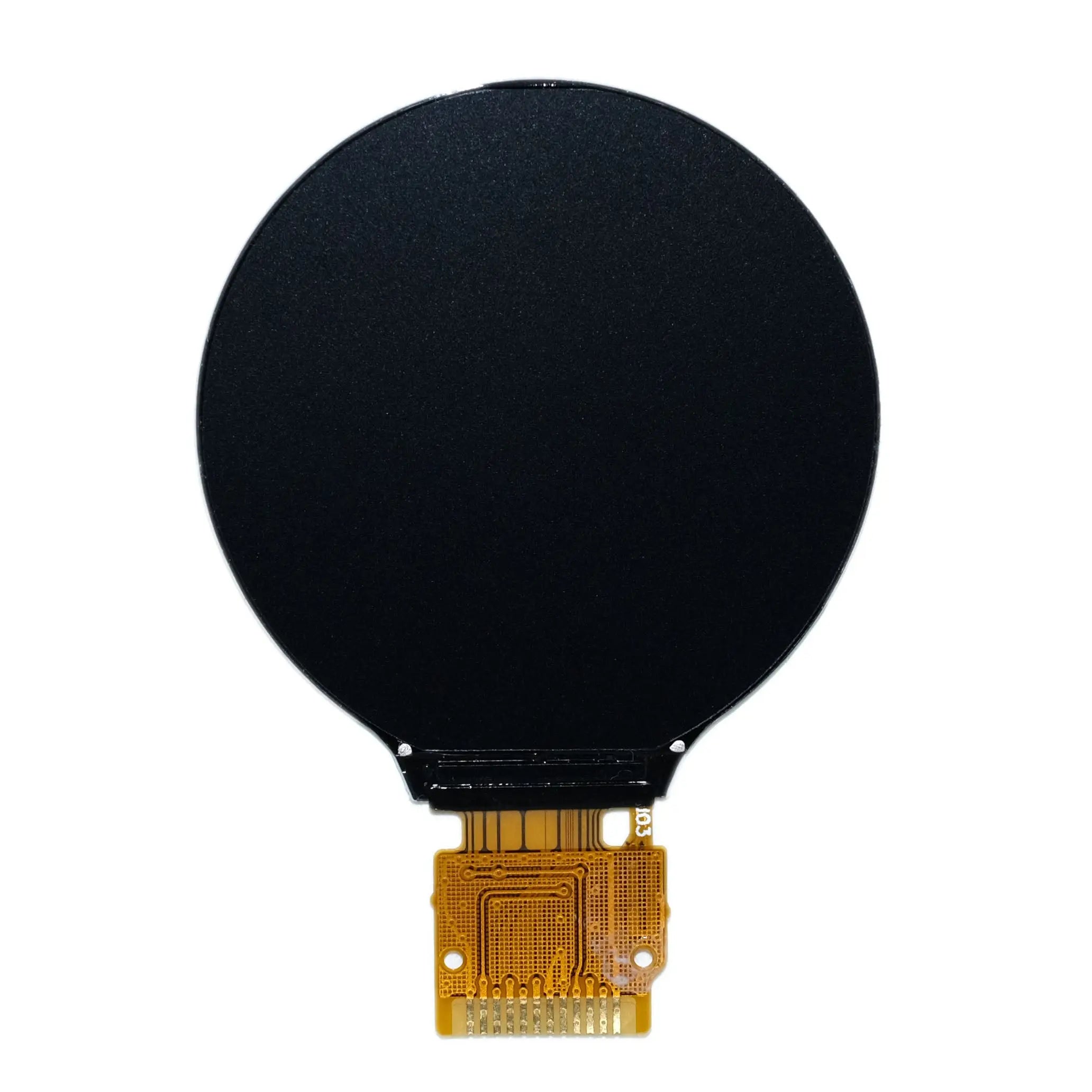

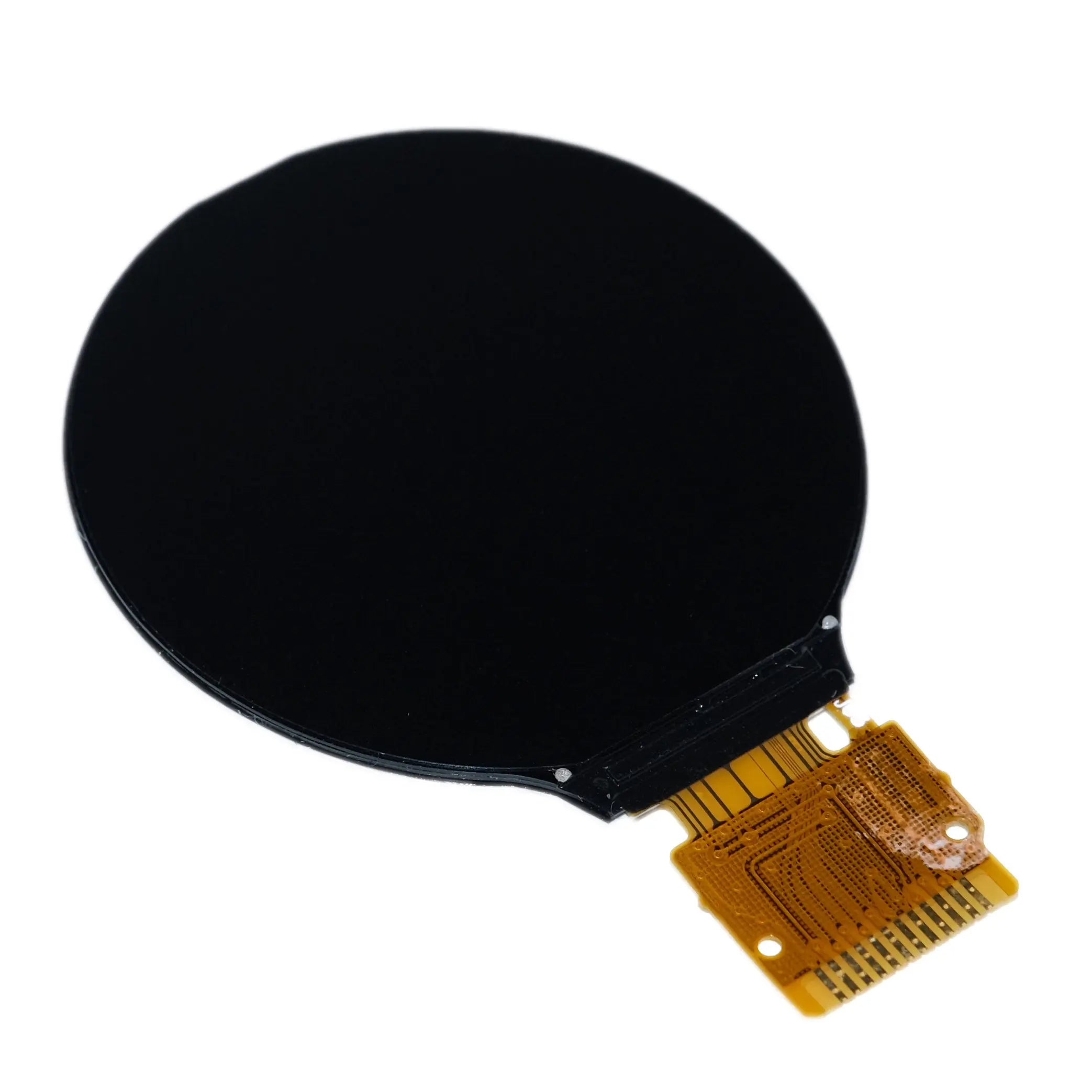

Advanced 1.28-inch circular IPS display delivering crisp 240×240 pixel resolution with true all-viewing angles. Engineered for compact embedded systems, this display features a high-brightness 400 cd/m² panel and SPI interface for seamless integration into wearable technology and IoT devices.
The circular form factor (Ø32.4mm viewing area) maximizes space efficiency in compact designs while maintaining 400 nits brightness for outdoor visibility. The GC9A01 drive IC enables 262K color depth with advanced gamma correction.
- Compact Design: Module dimensions of 35.6×38.1×1.5mm fit space-constrained applications
- Wide Temperature Range: Operational from -20°C to 70°C for industrial environments
- High Efficiency: 2.8V operating voltage reduces power consumption by 30% compared to standard 3.3V displays
- Plug-and-Play: SPI interface simplifies integration with common microcontrollers
| Parameter | Specification |
|---|---|
| Diagonal Dimension | 1.28 inch |
| Resolution | 240(H)RGB × 240(V) pixels |
| View Direction | All View |
| Touch Mode | None |
| Module Dimensions | 35.6(H) × 38.1(V) × 1.5(D) mm |
| Viewing Area | Ø32.4 mm |
| Supply Voltage | 2.8 V |
| Interface | 4-Line SPI |
| Luminance | 400 cd/m² |
| Drive IC | GC9A01 |
| Operation Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
Custom display solutions for volume applications with modified configurations, specialized interfaces, and branded packaging options.
- Bulk Pricing: Quantity discounts available for orders above 100 units with flexible payment terms
- Customization Services: Modified outline dimensions, connector positions, and firmware adaptations
- White-Label Options: Custom branding and packaging for OEM applications
- Technical Support: Dedicated engineering support for integration and troubleshooting
Smartwatches and fitness trackers benefiting from circular form factor and low power consumption (2.8V operation).
Control panels and instrumentation displays requiring wide temperature operation (-20°C to 70°C).
Portable medical equipment utilizing high brightness (400 nits) for clear readability in various lighting conditions.

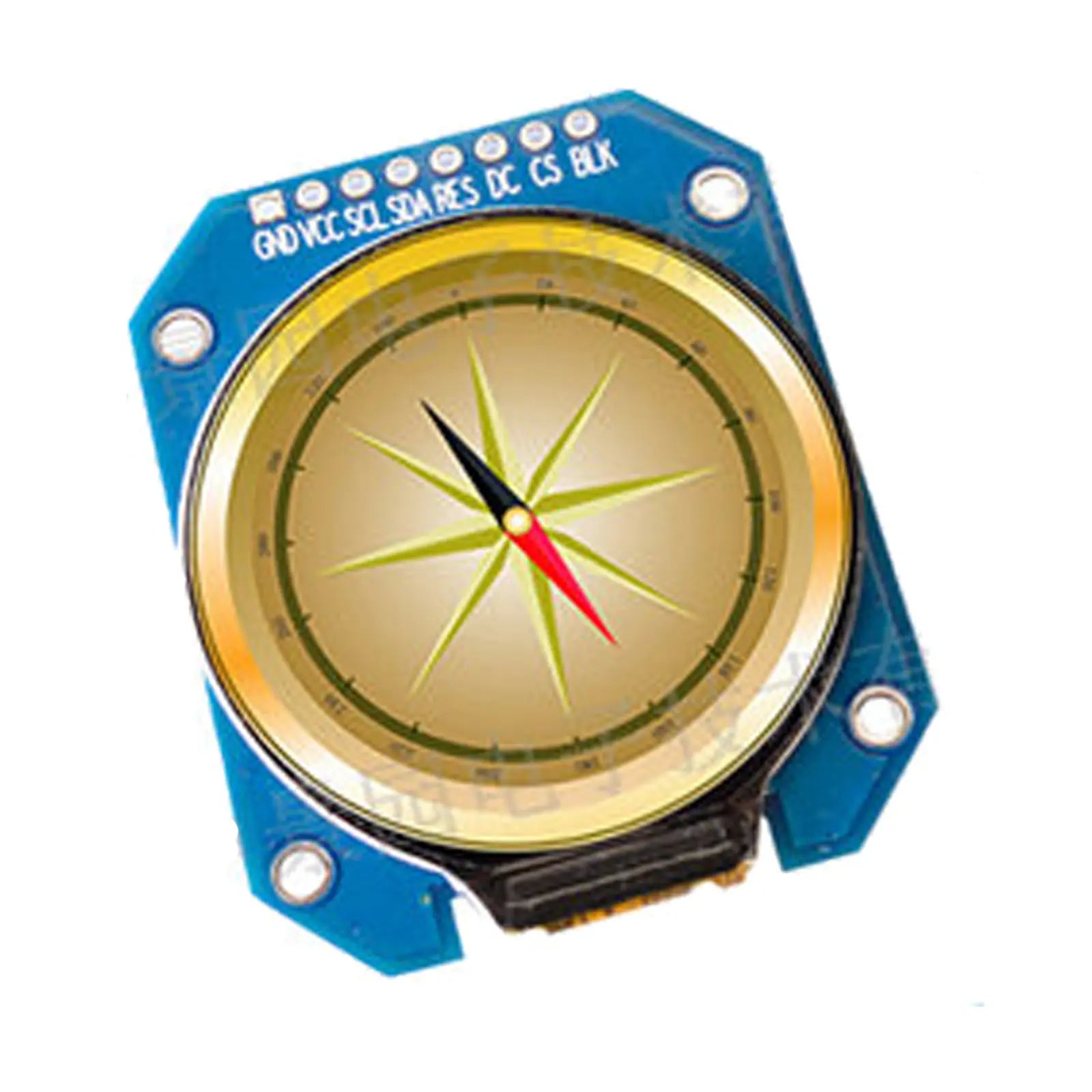

Seamless integration with popular development platforms and microcontrollers through standard 4-line SPI interface.
- Microcontroller Support: Compatible with Arduino, ESPressif ESP32, STM32, and Raspberry Pi Pico
- Protocol Compatibility: Standard SPI mode with 20MHz maximum clock frequency
- Software Libraries: Arduino library and Python drivers available for rapid prototyping
- Power Supply: Compatible with 2.8V-3.3V systems, drawing 45mA typical current during operation
Circular displays for thermostats and control panels where space efficiency and aesthetic appeal are prioritized.
Instrument cluster applications requiring wide viewing angles and sunlight readability.
Handheld devices and portable instruments benefiting from compact 35.6×38.1mm module size.
Technical Documentation: Complete specifications, initialization sequences, and programming guidelines available in datasheet.
Resources: Download Datasheet | Drive IC Documentation | 3D Model Files
Note: Display requires 5V to 3.3V level shifting when interfacing with 5V microcontrollers. Typical power consumption is 126mW at maximum brightness.
