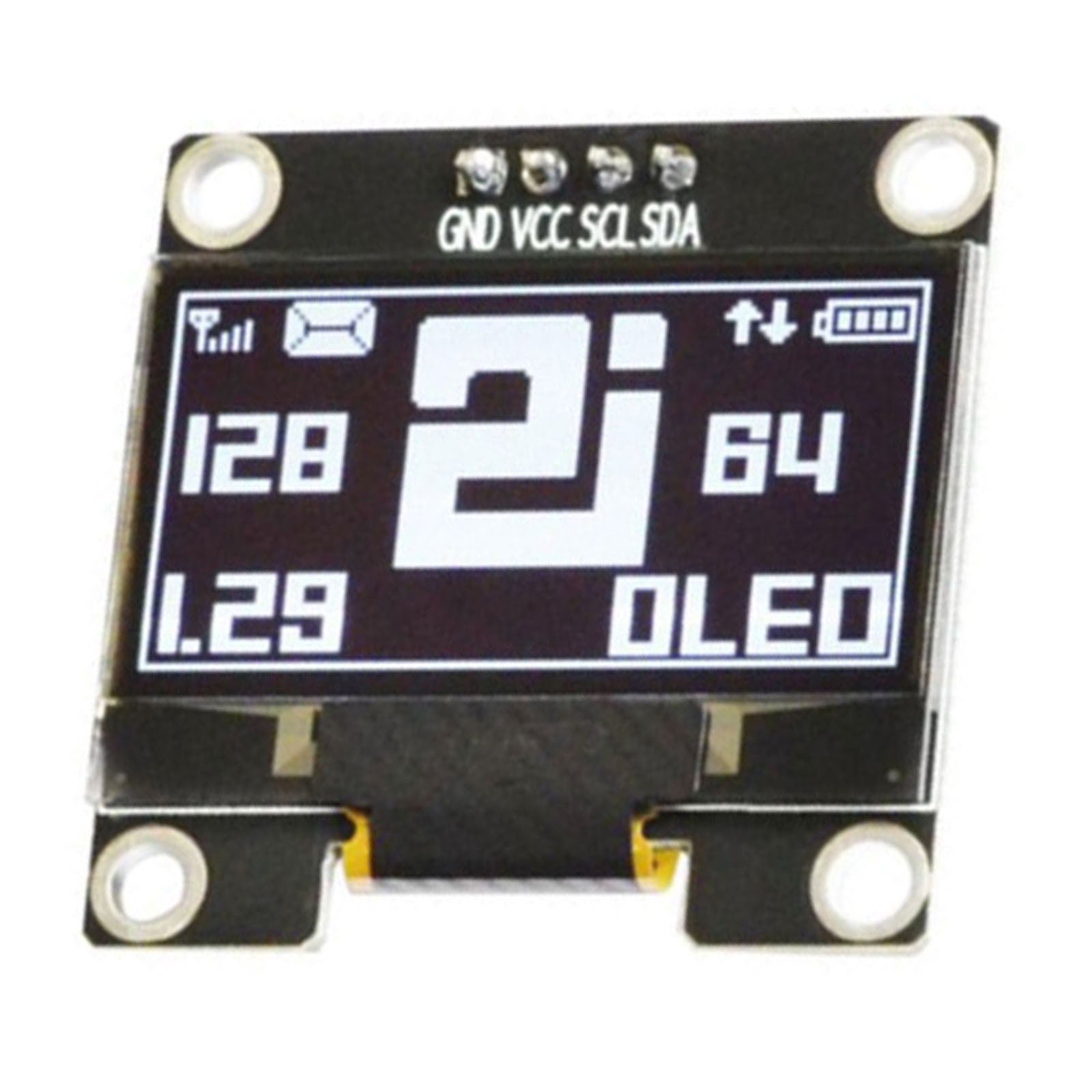

1.29-inch OLED Graphic Display Module with 128x64 resolution

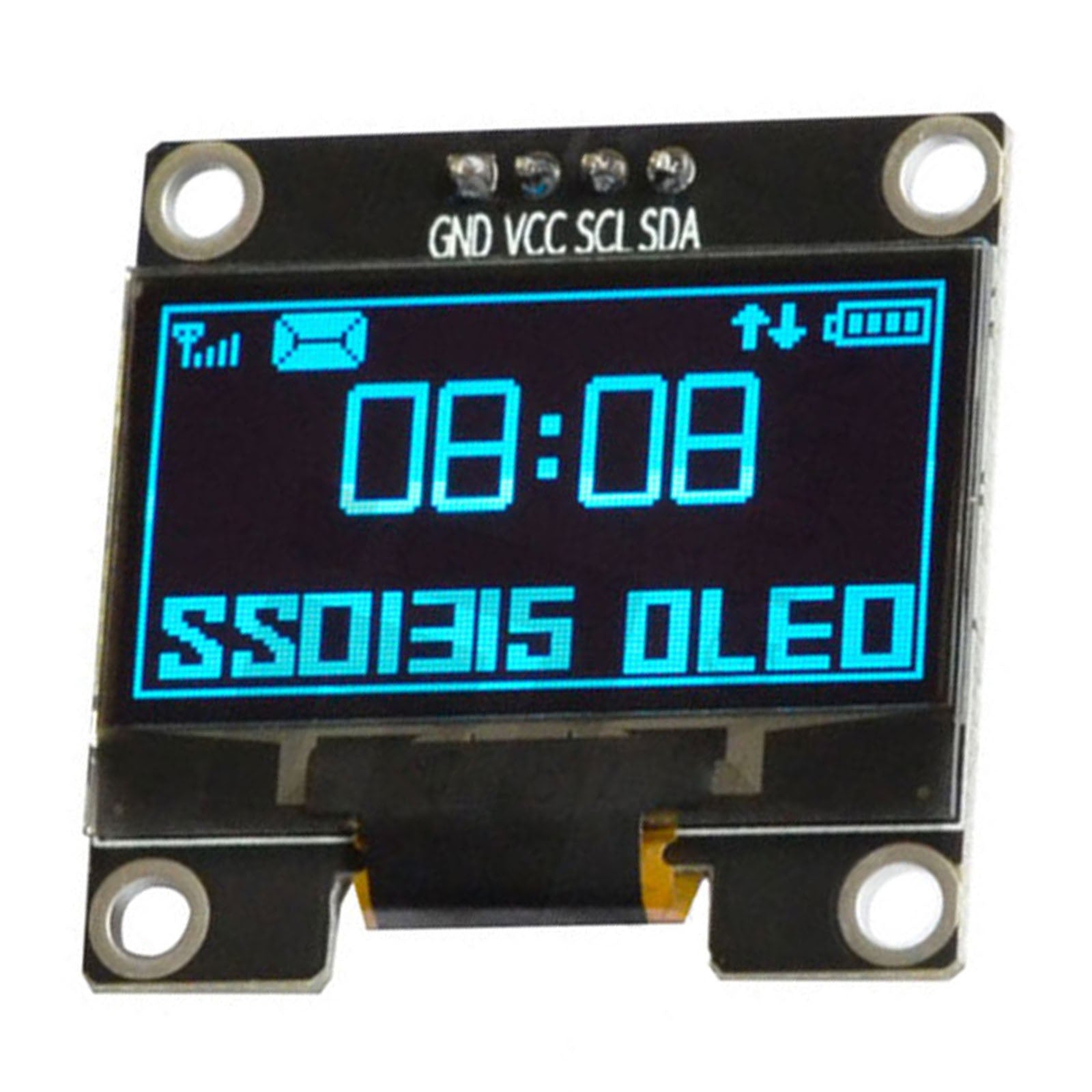

1.29-inch OLED Blue Graphic Display Module with 128x64 resolution

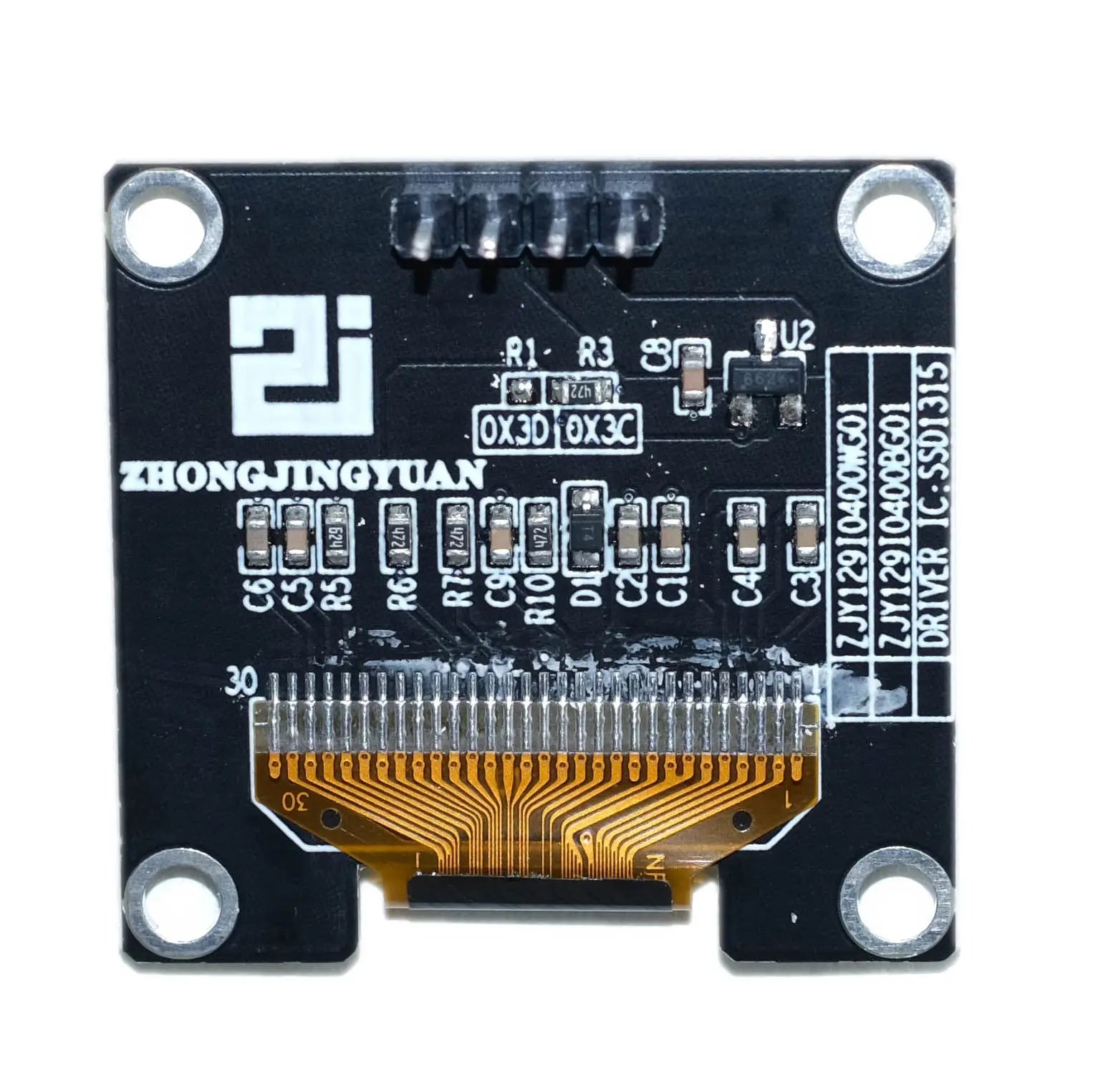

Back of 1.29-inch OLED Graphic Display Module

1.29" OLED Graphic Display 128x64 - I2C

Regular price $9.90
Sale price $9.90 Regular price $14.95
Datesheet:
  • Availability:
    In Stock
  • SKU:
    DM-OLED13-663
White
Bule
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Resolution : 128x64 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : Monochrome
  • Module Dimension : 32.42x21.36x1.427 mm
  • Viewing Area : 29.42x14.7 mm
  • Power Supply : 2.8 V
  • Interface : I2C
  • Controller IC : SSD1315
  • Operation Temperature : -40℃~85℃
  • Storage Temperature : -40℃~85℃

Dimension


Resources

Driver IC: SSD1315-Rev1.0

Because the SSD1315 RAM is 132*64 pager-buffer and SSD1306 is 128*64, So there is display problem if you use SSD1306 dirver. You'd better modify the start address from 0x02
