1.3" IPS Display 240x240 - SPI
1.3" IPS Display 240x240 - SPI
SKU:DM-TFT13-377
Regular price
$9.90 USD
Regular price
Sale price
$9.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1 pcs | original price |
5 pcs | 8% off |
10 pcs | 10% off |
Shipping
Shipping
Standard and expedited shipping available, free expedited shipping over $600. Lenrn more
Easy Returns
Easy Returns
No need to worry about buying products that don't fit your design, we offer a 30-day no-questions-asked return service.
More Order, More Save
More Order, More Save
The higher the quantity ordered, the greater the discount, so contact us for the discount price! Contact us
Share

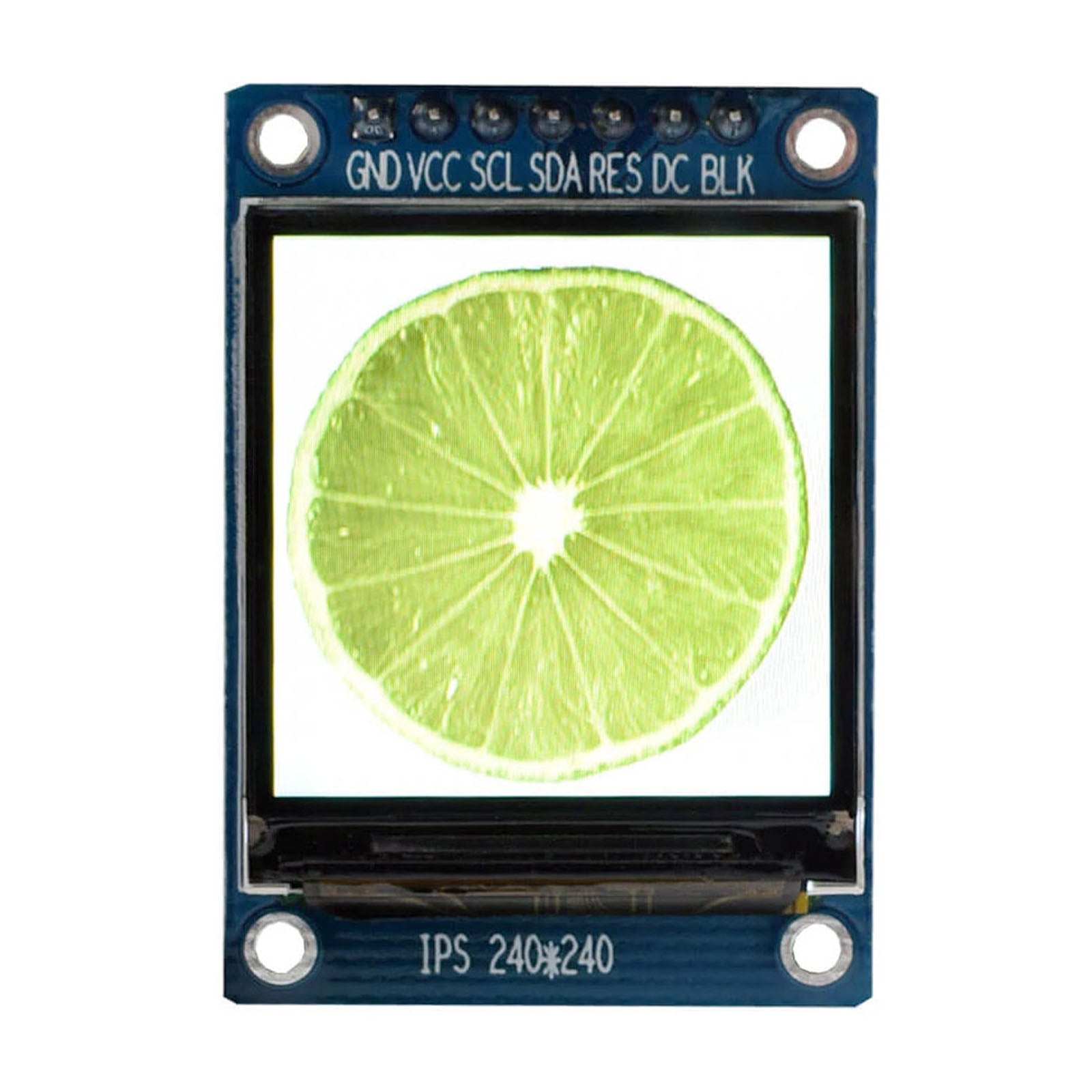

![1.3-inch IPS Display Module with 240x240 resolution and SPI interface](http://www.displaymodule.com/cdn/shop/products/DM-TFT13-377show.jpg?v=1659143692&width=1445)

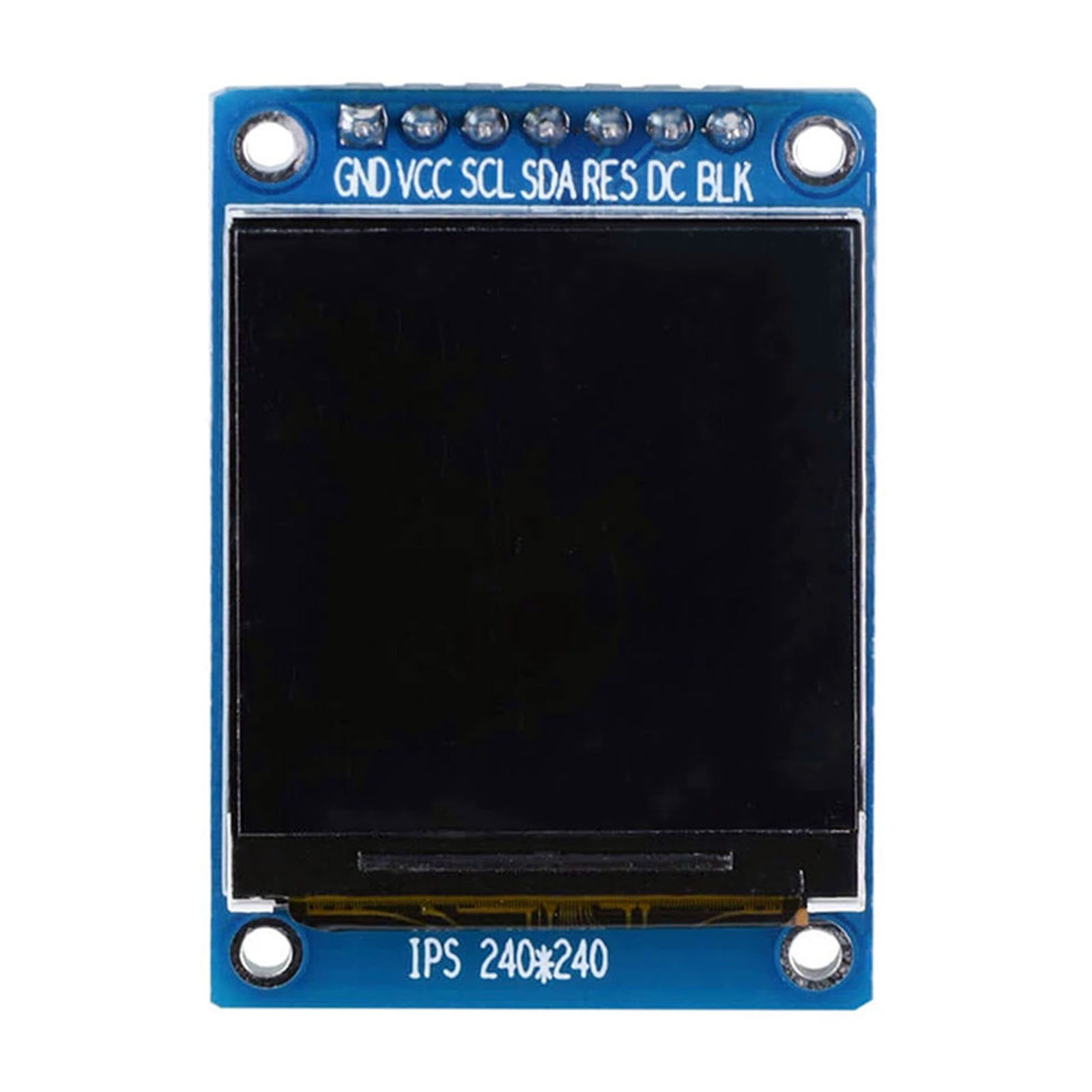

![Front of 1.3-inch IPS Display Module](http://www.displaymodule.com/cdn/shop/products/DM-TFT13-377face.jpg?v=1659143692&width=1445)

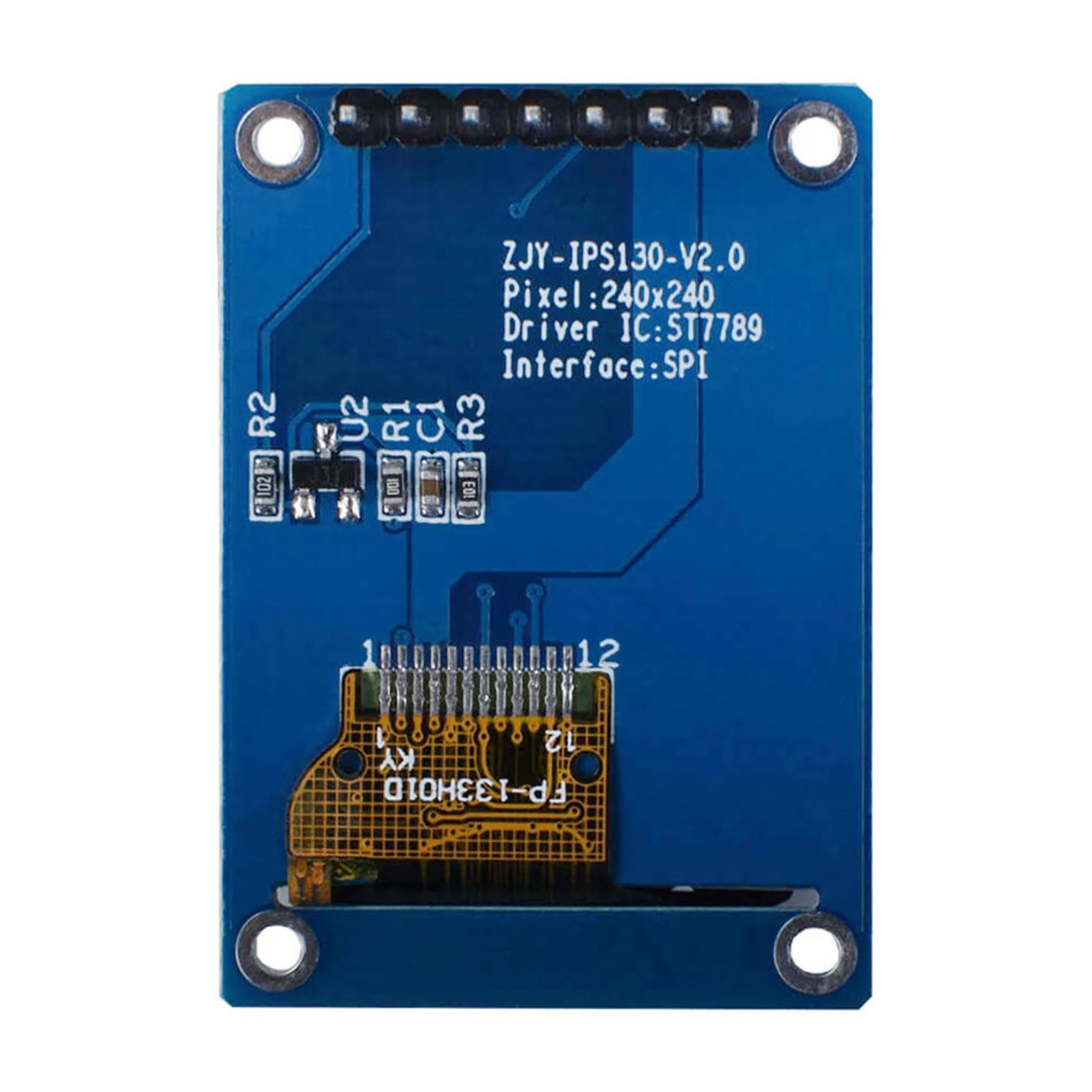

![Back of 1.3-inch IPS Display Module](http://www.displaymodule.com/cdn/shop/products/DM-TFT13-377back.jpg?v=1659143692&width=1445)

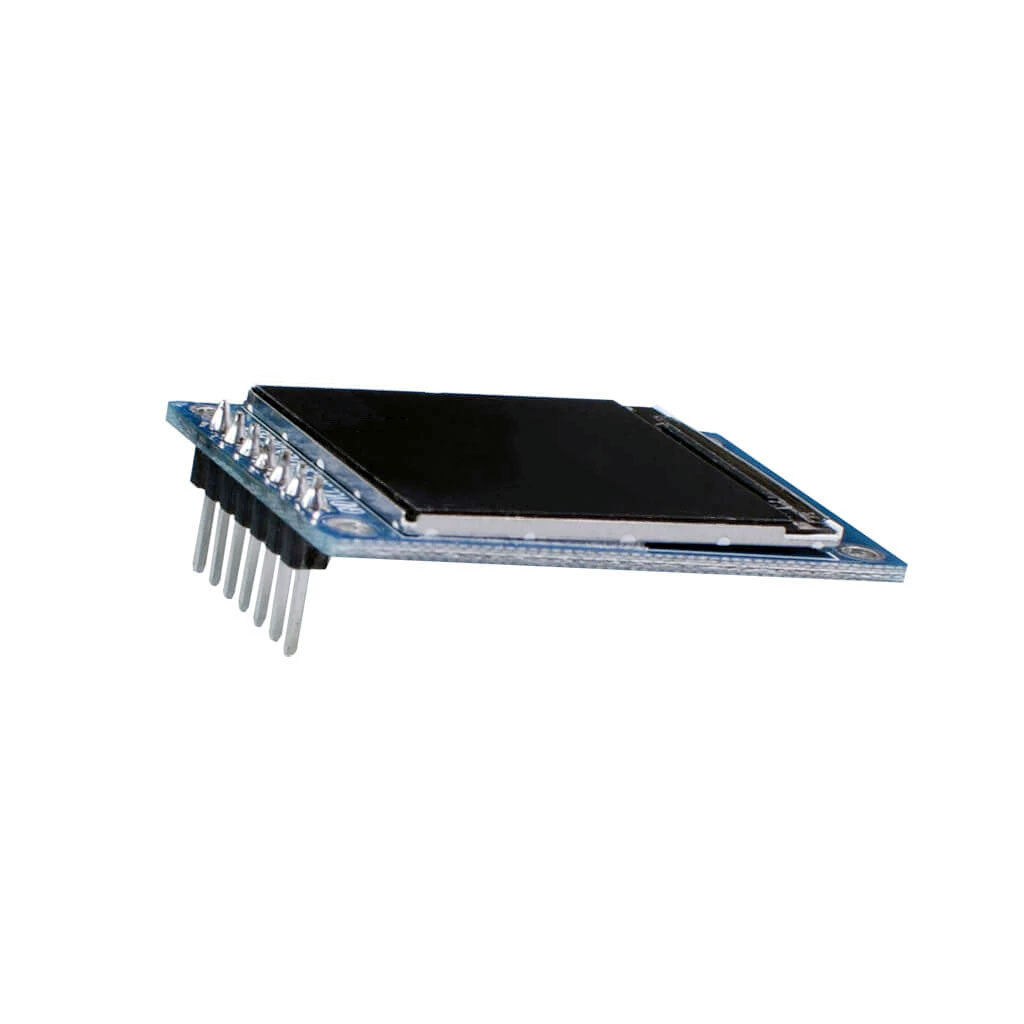

![Side of 1.3-inch IPS Display Module](http://www.displaymodule.com/cdn/shop/products/side_01df98de-689d-4dcc-bd8e-c579d4993d78.jpg?v=1712131037&width=1445)

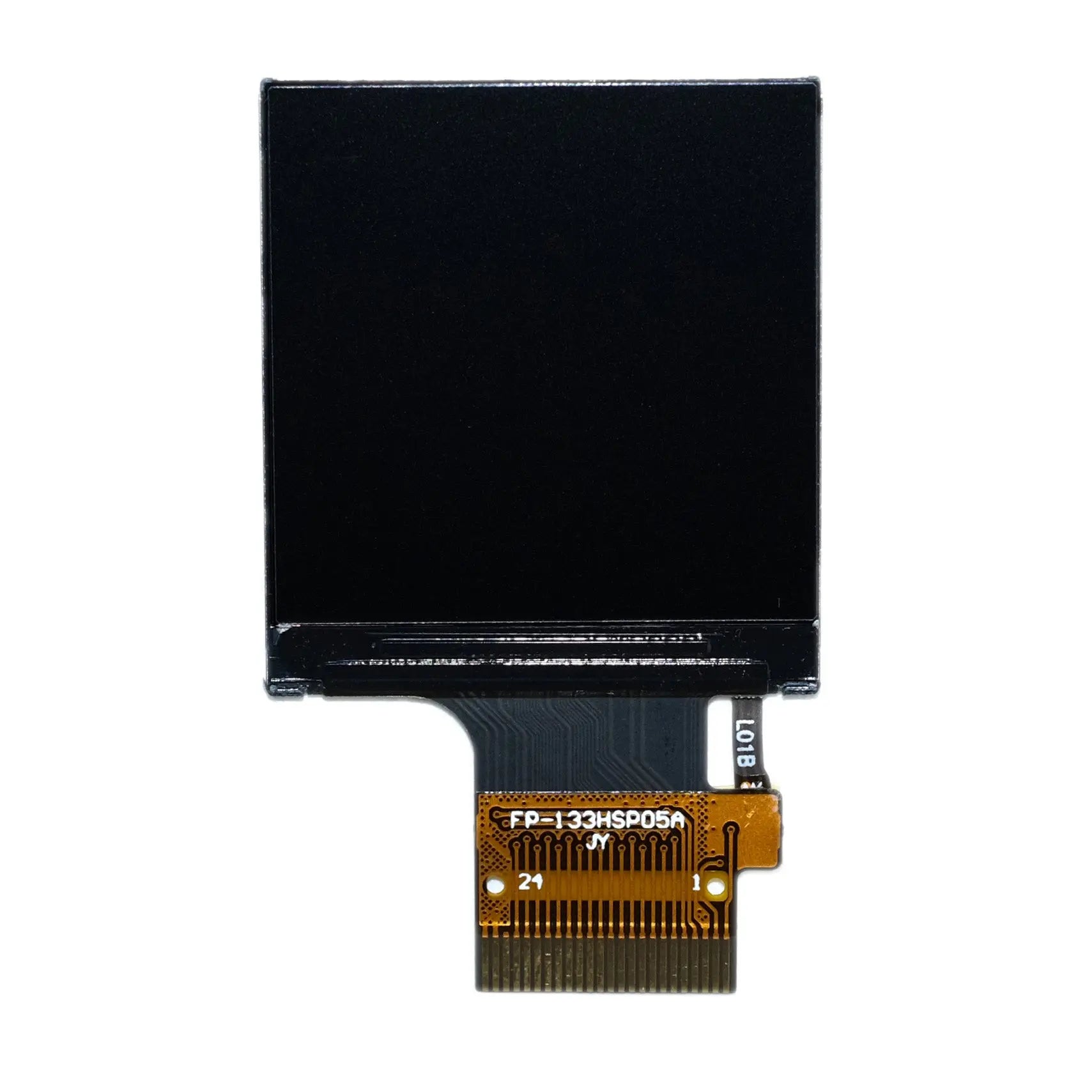

![Front of 1.3-inch IPS Display Panel](http://www.displaymodule.com/cdn/shop/files/377p.jpg?v=1712131037&width=1445)

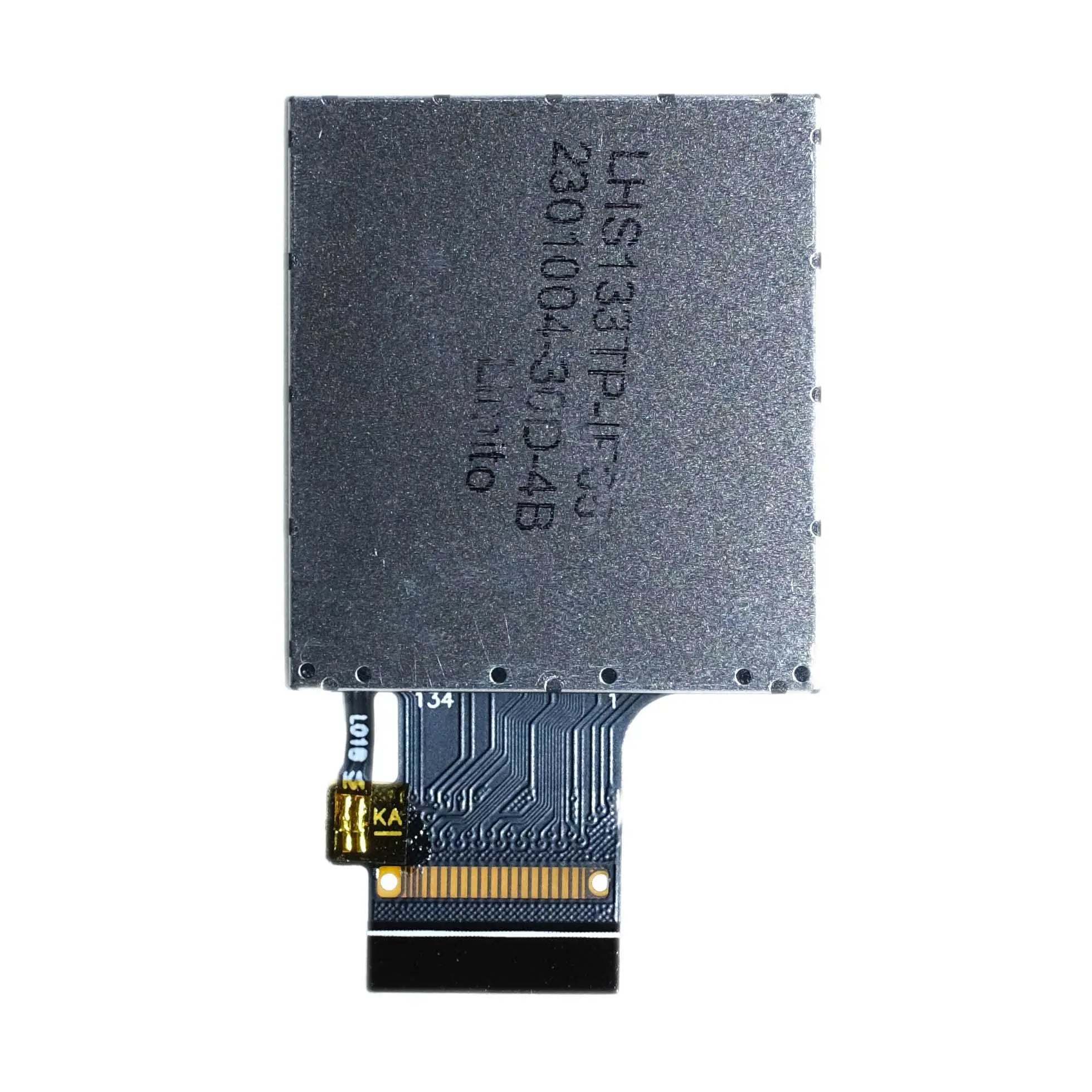

![back of 1.3-inch IPS Display Panel](http://www.displaymodule.com/cdn/shop/files/377p_3.jpg?v=1712131037&width=1445)

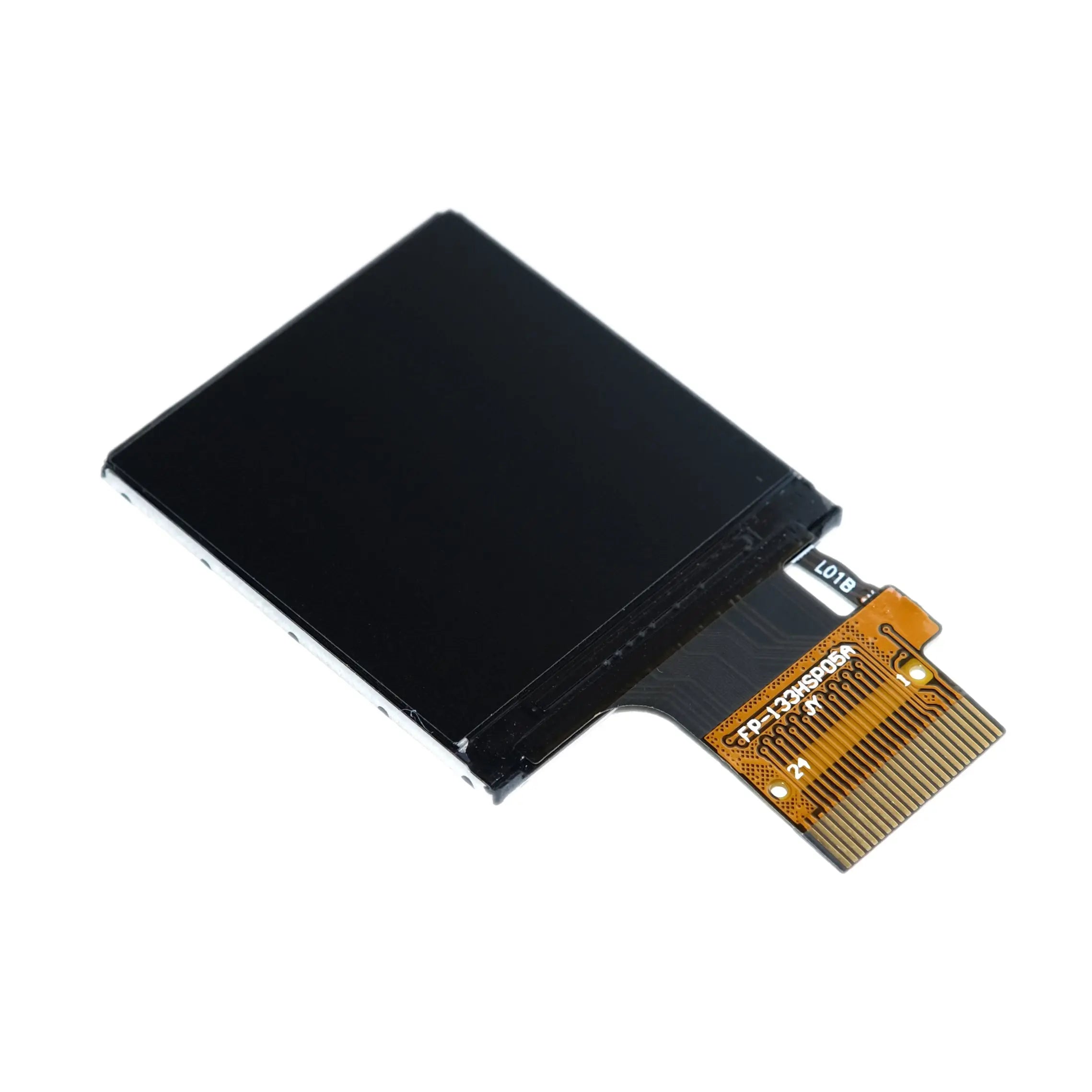

![side of 1.3-inch IPS Display Panel](http://www.displaymodule.com/cdn/shop/files/377p_2.jpg?v=1712131037&width=1445)
Display Specifications
- Diagonal Dimension : 1.3 inch
- Resolution : 240 x 240 pixel
- View Direction : All
- Touch Mode : None
- Module Dimension : 26.16(H) x 29.22(V) x1.5Max(D) mm
- Viewing Area : 23.4(H) x 23.4(V) mm
- Supply Voltage : 3.8 V
- Interface : 8Bit 8080 MCU & 4 Line SPI
- Luminance : 250 cd/m2
- Drive IC : ST7789
- Operation Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
Dimension
![](https://cdn.shopify.com/s/files/1/0264/7629/files/DM-TFT13-377-size_1024x1024.jpg?v=1583908272)
Resources
- Datasheet:DM-TFT13-377 Module、DM-TFT13-377 Panel-12pin、DM-TFT13-377 Panel-24pin
- Driver IC: ST7789VW-V1.0
- DM-TFT13-377 code
