1.33" Sharp Color Memory TFT Display 128x128
Sale price$14.90
1.33" Sharp Color Memory TFT Display 128x128
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
1.33" 128×128 TFT Display Specifications

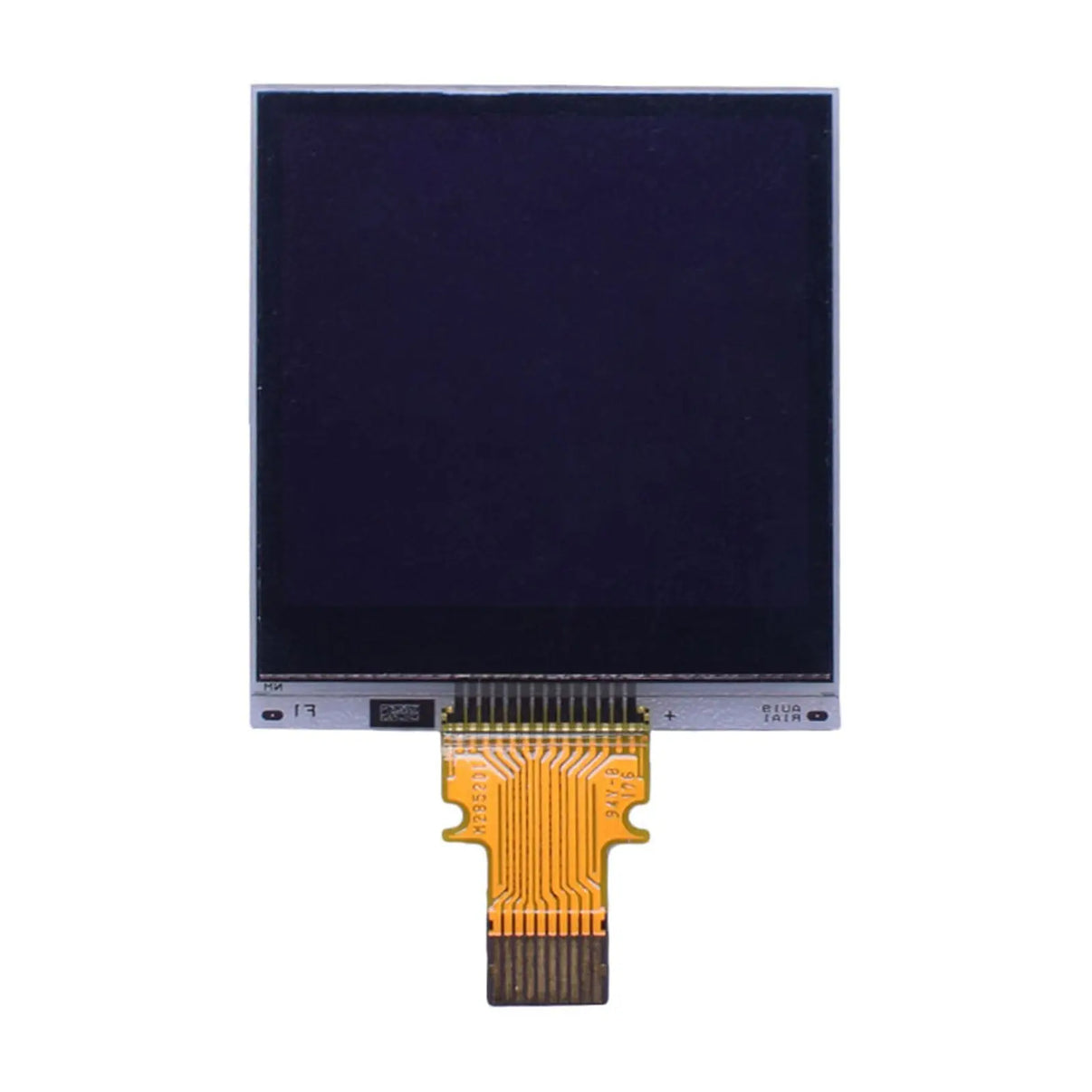

The DM-TFT13-330 is a compact 1.33-inch TFT LCD with a resolution of 128 × 128 pixels, ideal for small embedded systems, wearable displays, and compact GUIs. Operating at 5.0 V, the module offers a balanced footprint for minimal display integration needs.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 1.33 | inch |
| Resolution | 128 × 128 | pixels |
| Viewing Direction | - | - |
| Touch Mode | None | - |
| Module Dimensions | 26.82 × 31.3 × 0.745 | mm |
| Viewing Area | 23.808 × 23.808 | mm |
| Supply Voltage | 5.0 | V |
| Interface | - | - |
| Luminance | - | cd/m² |
| Driver IC | - | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
Mechanical Dimensions
