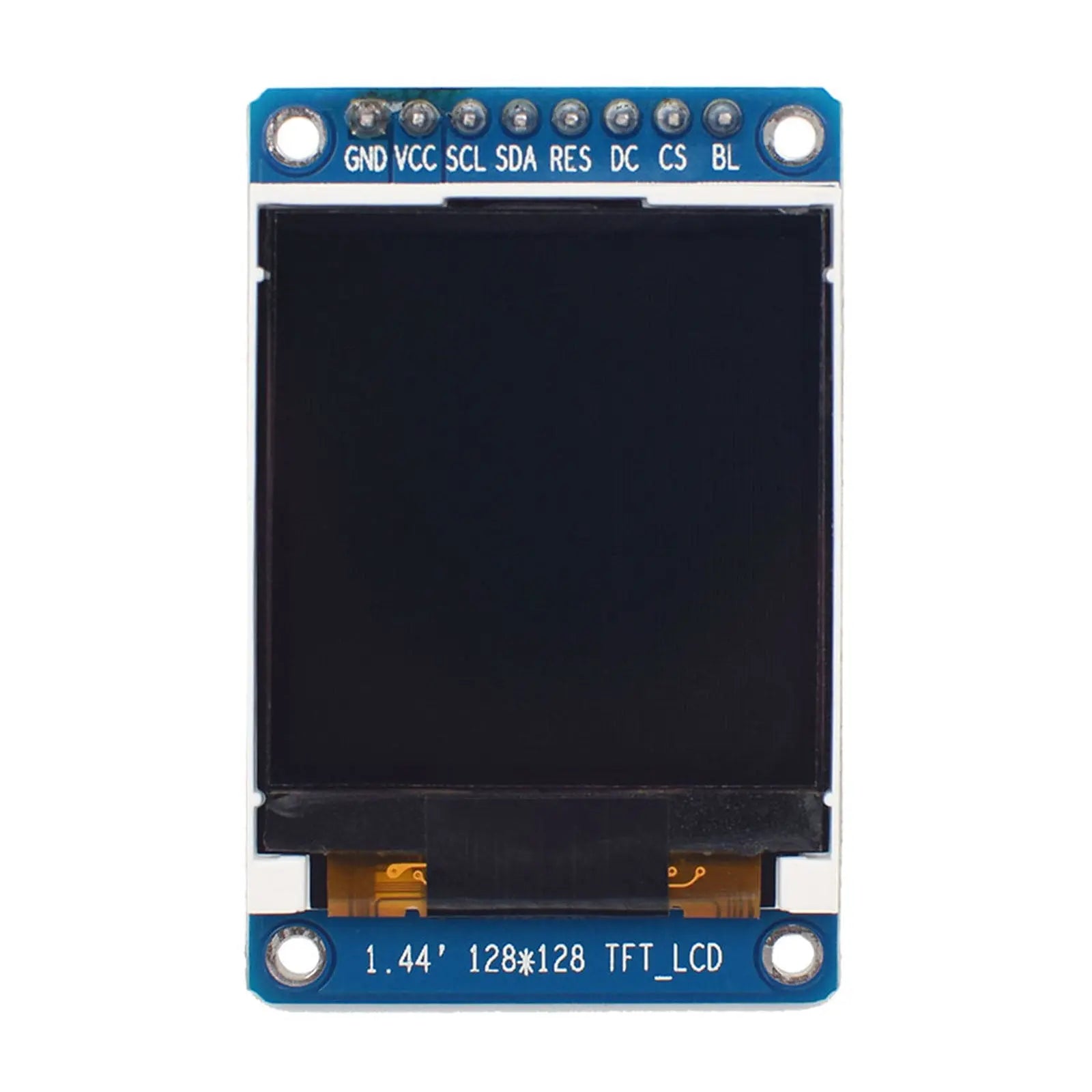

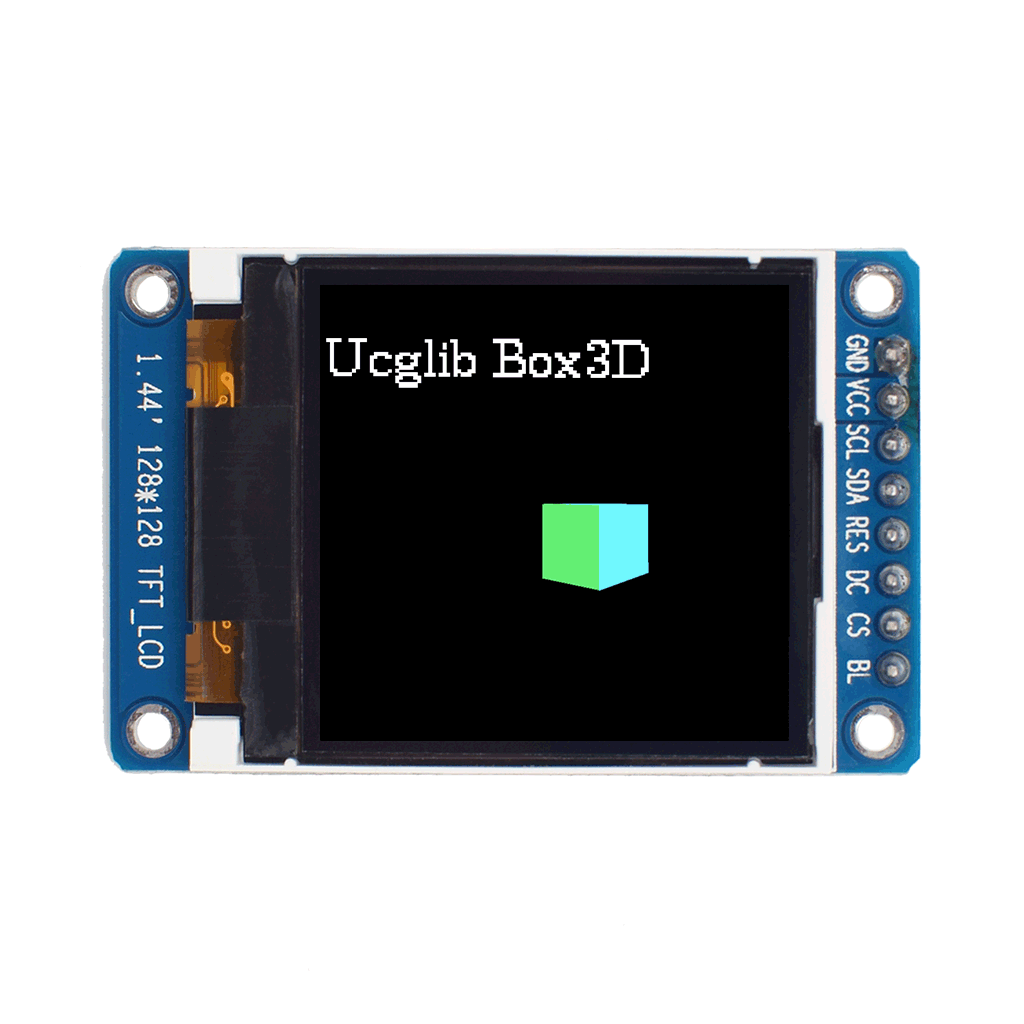

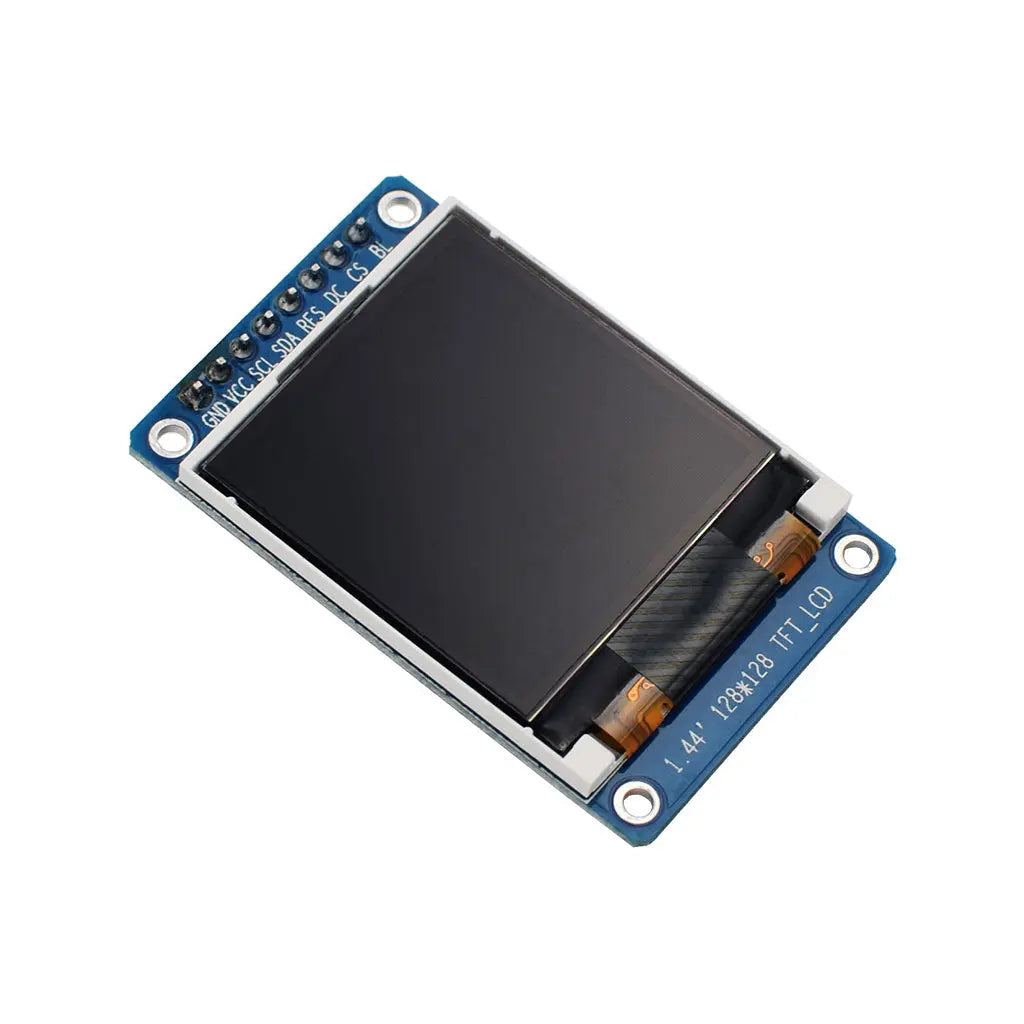

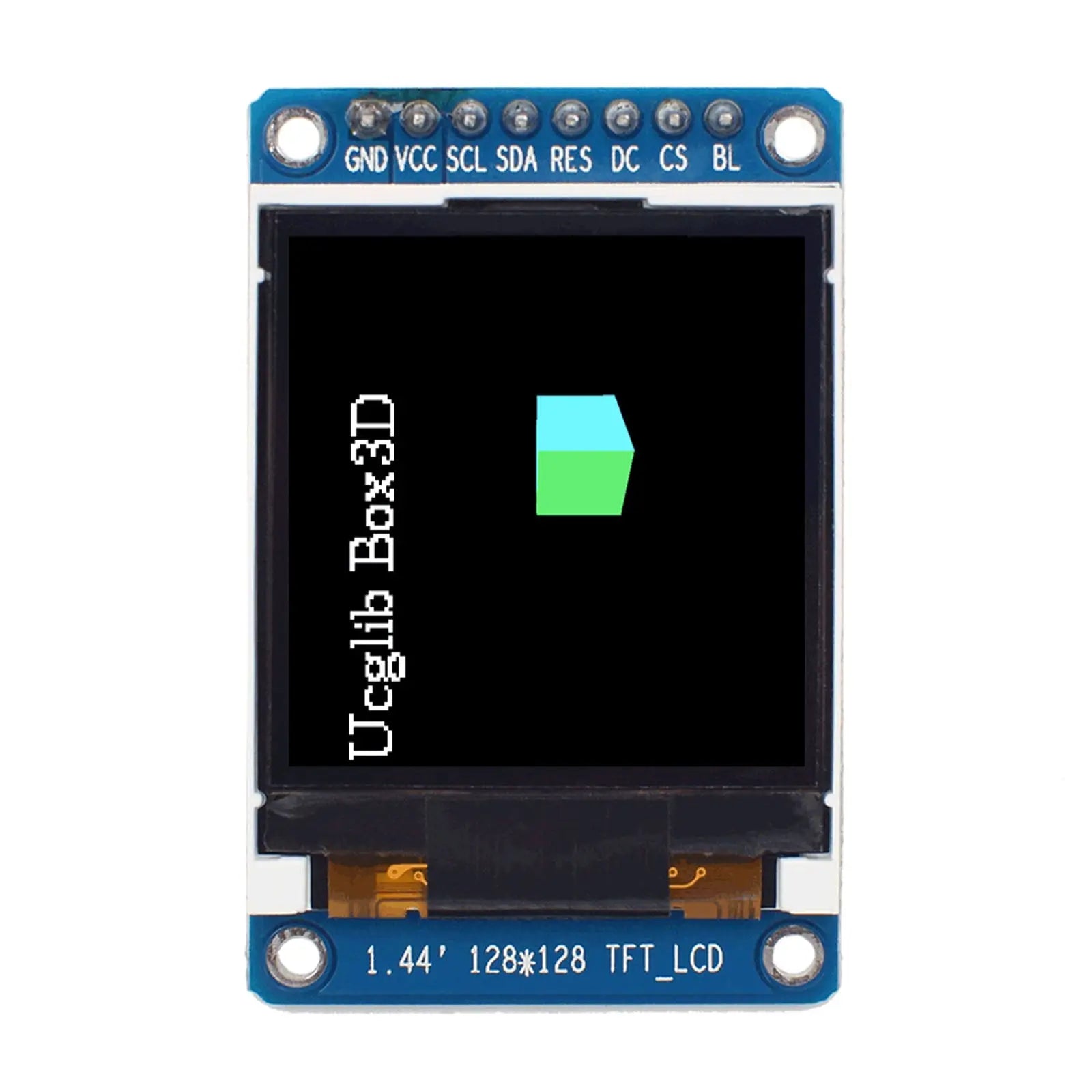

1.44" TFT High Brightness Display 128x128 300nits - SPI
High-performance 1.44-inch TFT LCD module featuring 128×128 resolution and 300 nits brightness, powered by ST7735S driver IC. Ideal for space-constrained applications requiring crisp visuals and low power consumption.
Engineered with ST7735S controller supporting 262K color depth (18-bit RGB), this display delivers vibrant images while consuming only 2.8V power. The compact 29.5×36.5mm module size makes it perfect for portable devices.
- High-Efficiency Driver: ST7735S IC enables low-power operation with full display memory integration.
- Wide Temperature Range: Operates reliably from -20°C to 70°C for industrial applications.
- SPI Interface: 4-wire serial interface reduces pin count and simplifies MCU integration.
- Optimized Viewing: 12 o'clock viewing direction ensures optimal readability in vertical orientation.
| Parameter | Specification |
|---|---|
| Diagonal Dimension | 1.44 inch |
| Resolution | 128 × 128 pixels |
| Viewing Direction | 12 o'clock |
| Touch Mode | None |
| Module Dimensions | 29.50 × 36.50 × 2.25 mm |
| Viewing Area | 25.50 × 26.50 mm |
| Supply Voltage | 2.8 V |
| Interface | 4-wire SPI |
| Luminance | 300 cd/m² |

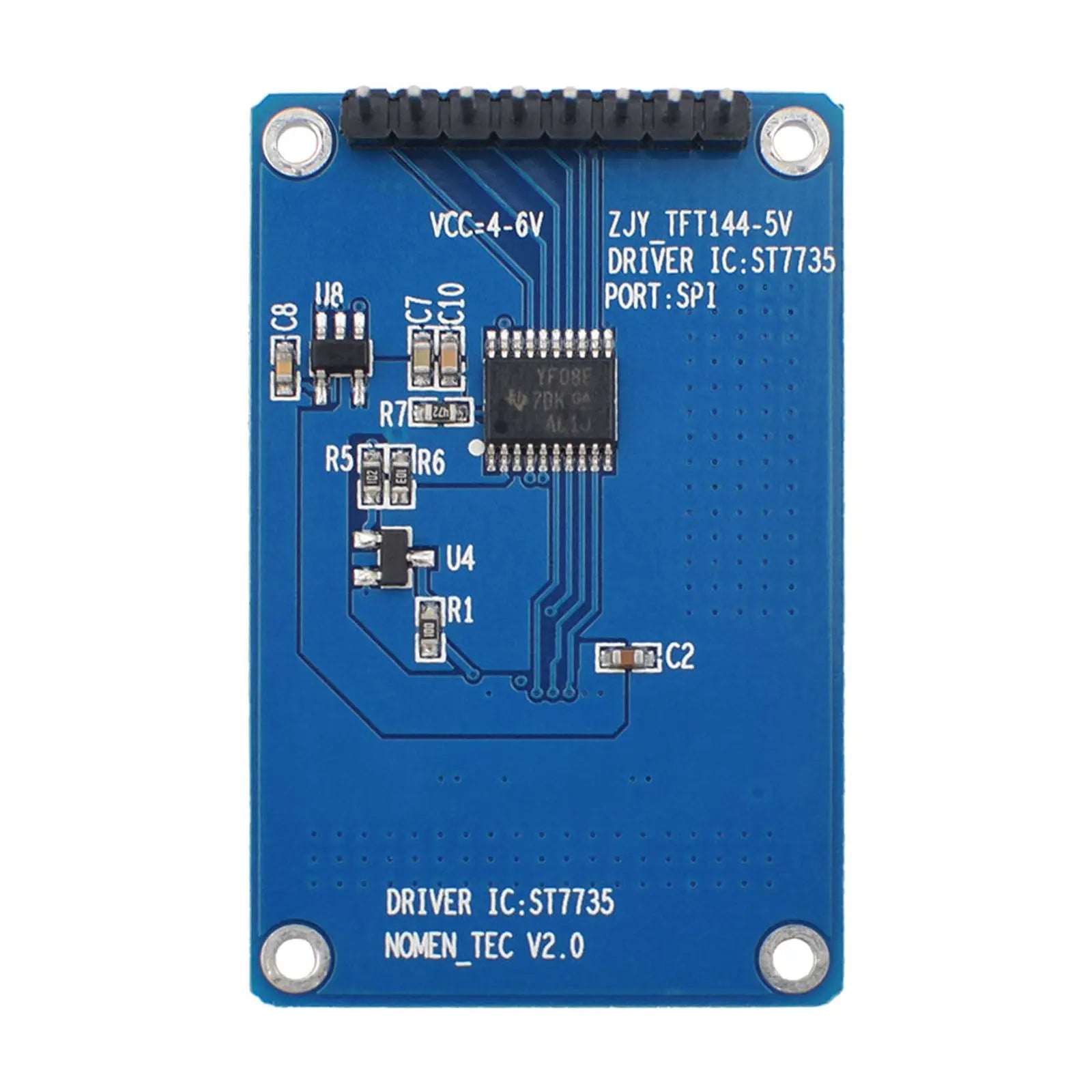

| Driver IC | ST7735S |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Customized display solutions for OEMs and system integrators requiring reliable TFT modules in volume production.
- Bulk Procurement: Volume discounts available for orders exceeding 1,000 units with flexible payment terms.
- Custom Configurations: Modified viewing angles, connector types, and backlight intensity to match specific application requirements.
- Technical Support: Dedicated engineering support for display integration and driver optimization.
Smartwatches and fitness trackers benefiting from the compact size and low power consumption of 2.8V operation.
Control panels and monitoring systems leveraging the wide temperature range and SPI interface simplicity.
Medical devices and test equipment utilizing the high brightness and sharp 128×128 resolution.
Compatibility: Directly compatible with Arduino, Raspberry Pi, and STM32 platforms through SPI interface. Supports 3.3V and 5V logic levels with proper level shifting.
Documentation: Download Product Datasheet | ST7735S Driver IC Datasheet | Example Code Repository
Mechanical Dimensions
