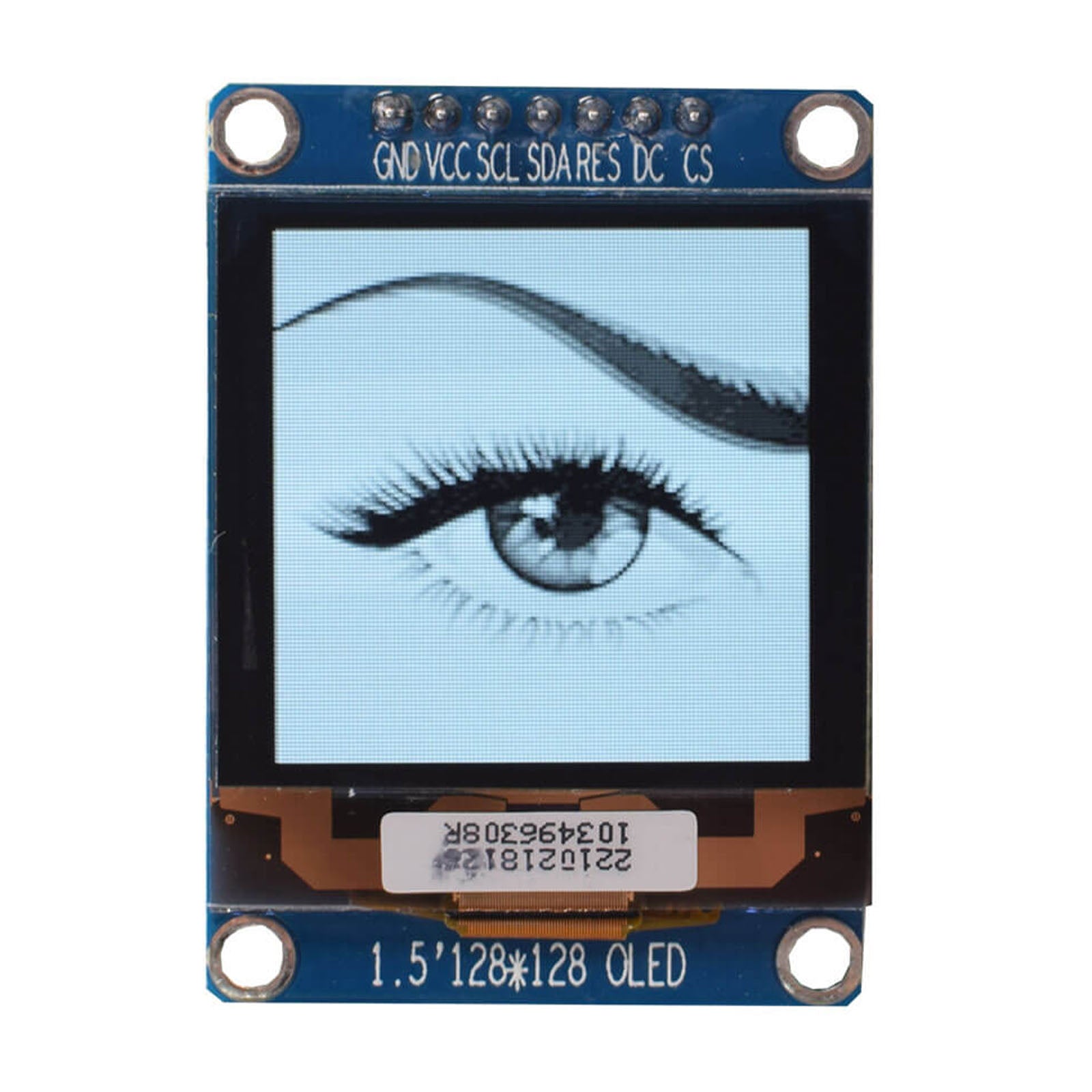

1.5-inch OLED graphic display module with a 128x128 resolution showing a woman's eyes

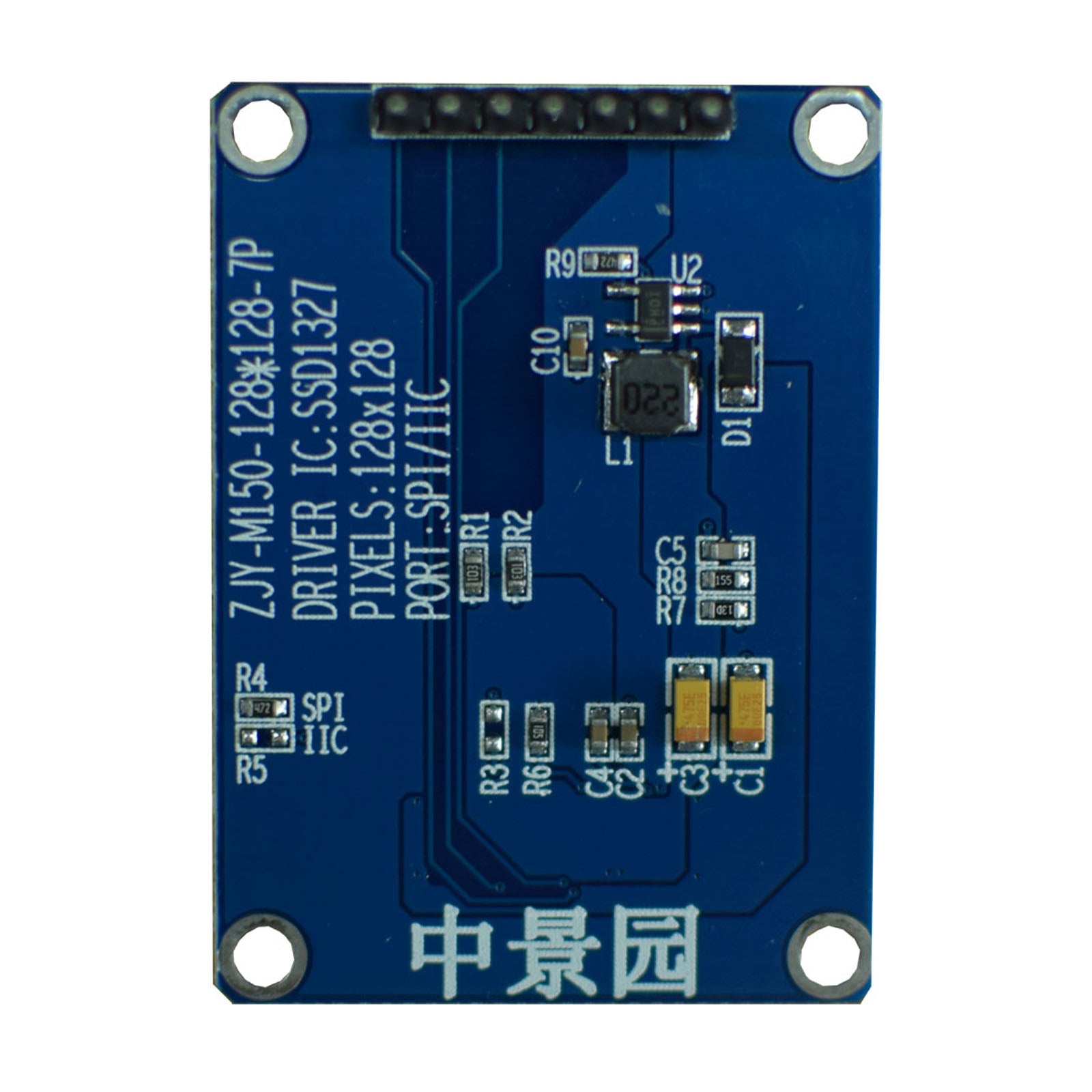

back of 1.5-inch OLED graphic display module

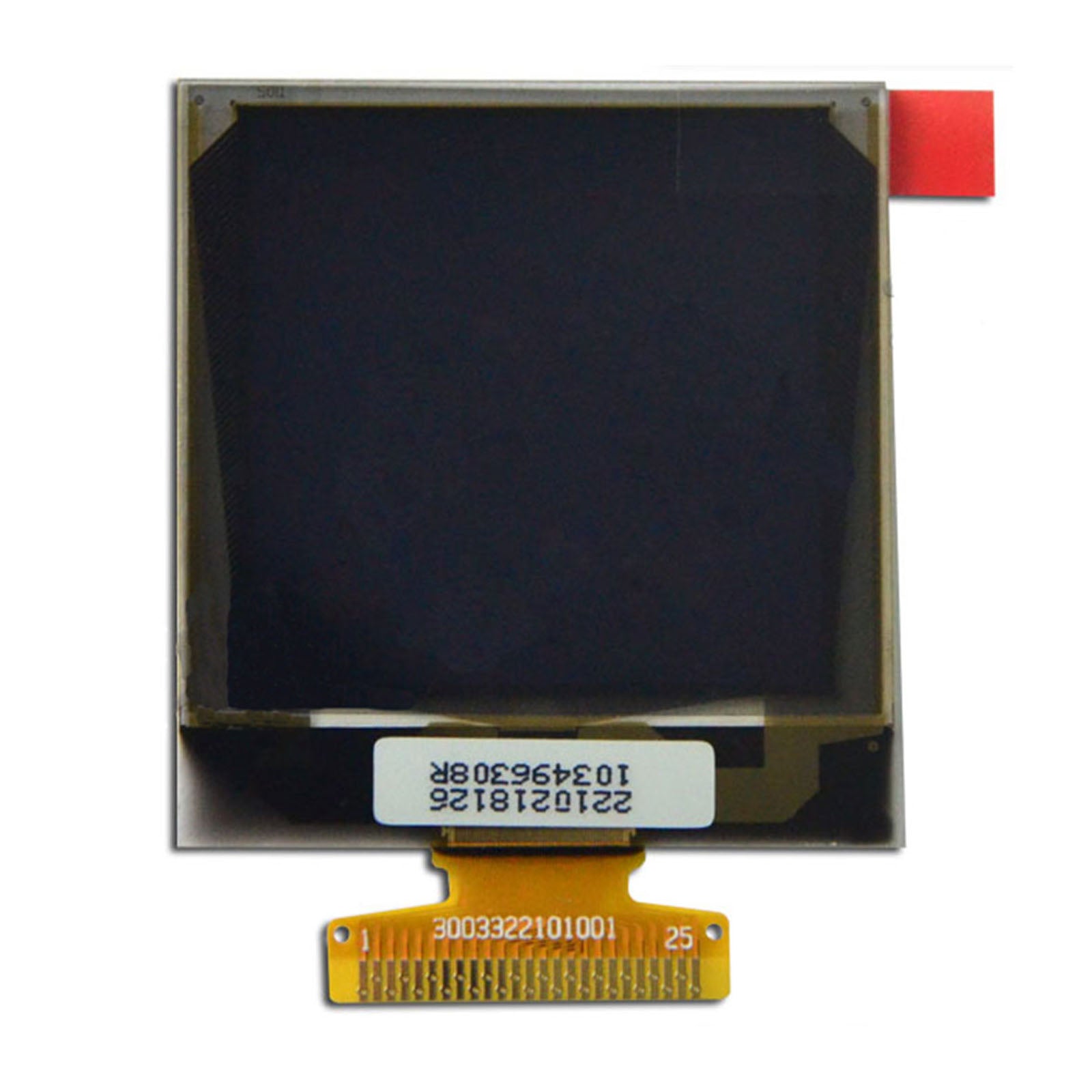

front of 1.5-inch OLED graphic display panel

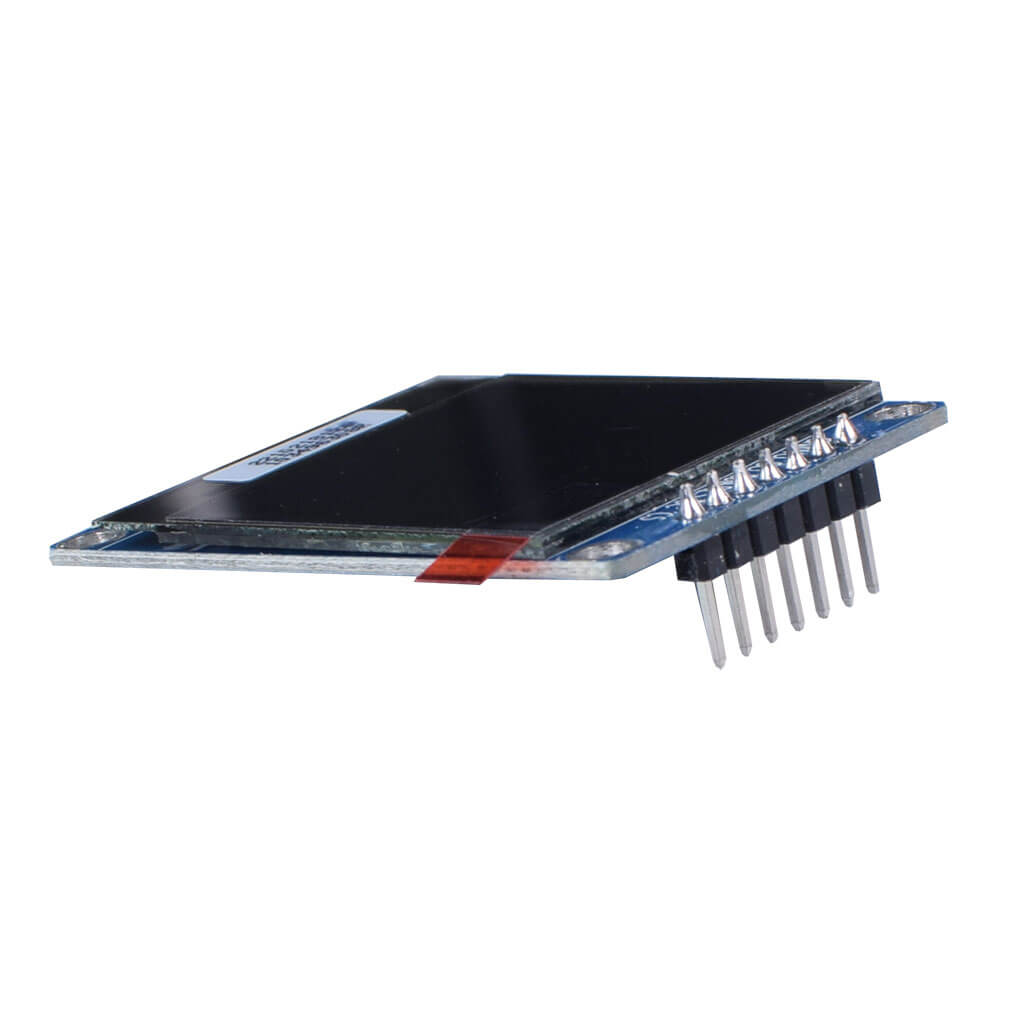

side of 1.5-inch OLED graphic display module with SPI interface

1.5" OLED Graphic Display 128x128 - SPI

Regular price $24.90
Sale price $24.90 Regular price $17.95
Datesheet:
  • Availability:
    In Stock
  • SKU:
    DM-OLED15-635-W
White
Yellow
With board
Panel Only
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Resolution : 128 x 128 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : Monochrome (16 Gray Scale)
  • Module Dimension : 47.00 x 34.00 x 2.7 mm
  • Viewing Area : 26.86 x 26.86 mm
  • Power Supply : 3.3 V
  • Interface : 4line SPI
  • Controller IC : SSD1327
  • Operation Temperature : -40℃~70℃
  • Storage Temperature : -40℃~85℃

Dimension

Resources

Driver IC: SSD1327-Rev1.1

Please refer to Arduino SSD1327 Library: u8g2
