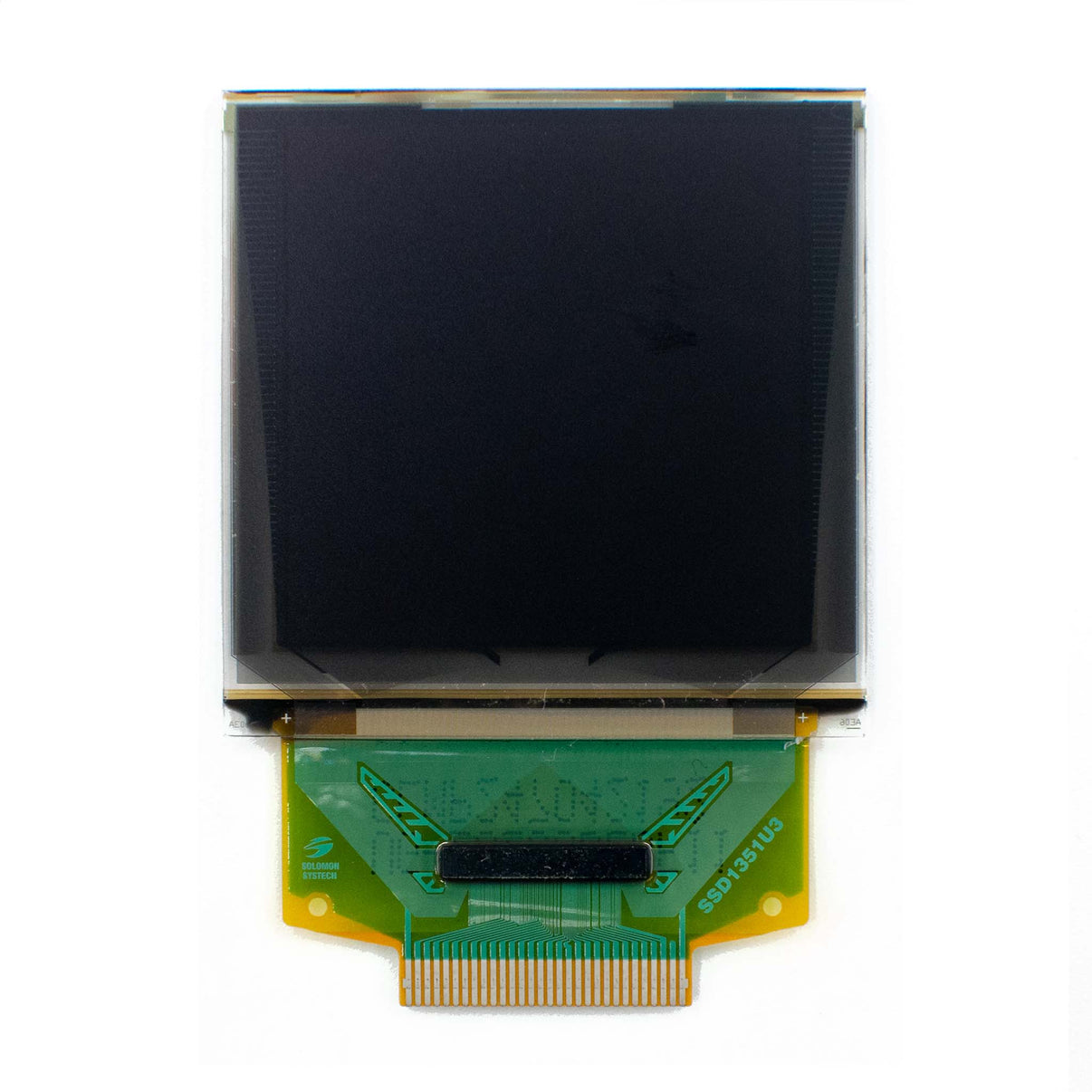

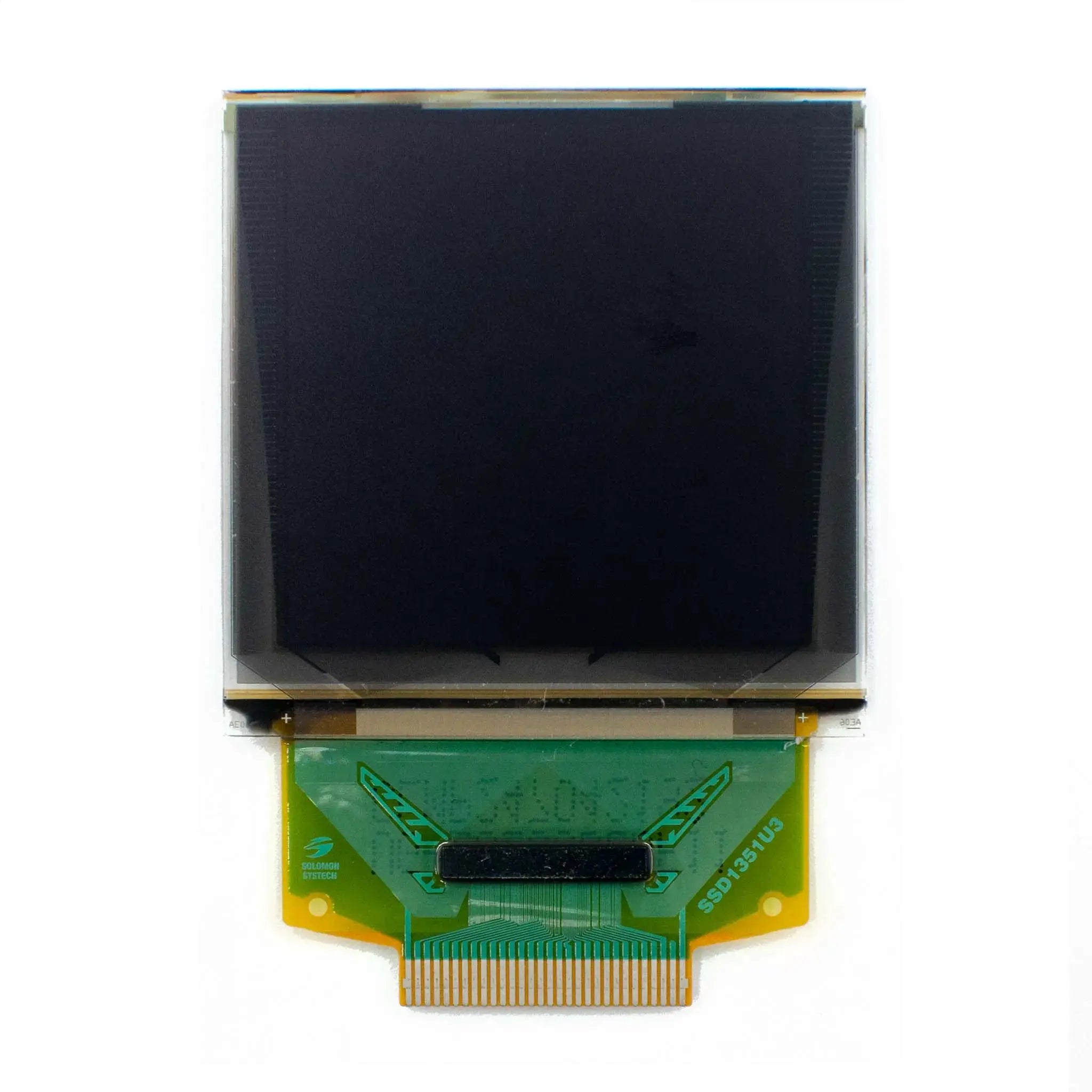

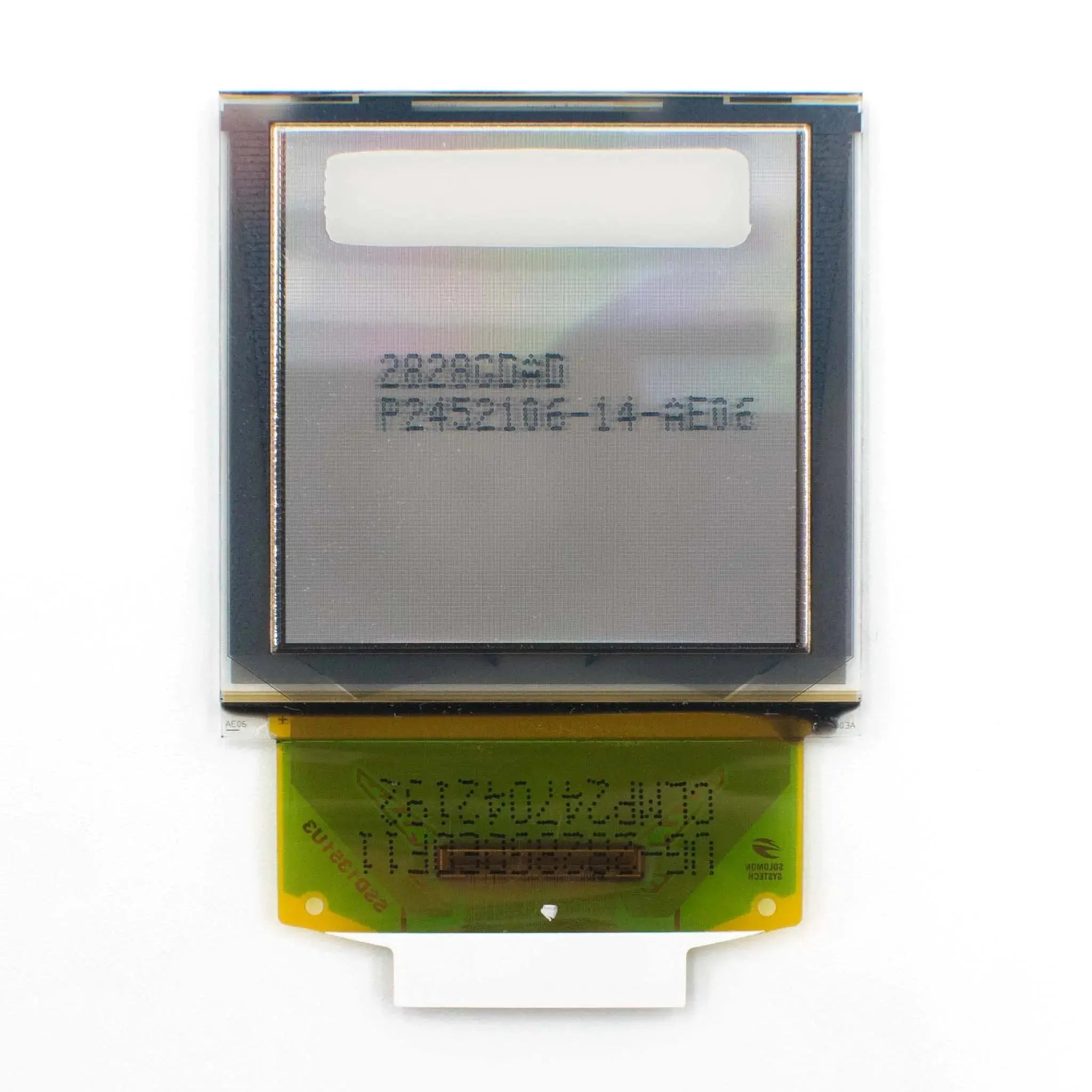

1.5" PMOLED Display - MCU
Sale price$29.00
1.5" PMOLED Display - MCU
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Display Specifications
- Display Mode: Passive Matrix
- Display Color: 262,144 Colors (Maximum)
- Drive Duty: 1/128 Duty
- Outline Drawing: According to the annexed outline drawing
- Number of Pixels: 128 (RGB) × 128
- Panel Size: 33.80 × 34.00 × 1.60 (mm)
- Active Area: 26.855 × 26.864 (mm)
- Pixel Pitch: 0.07 × 0.21 (mm)
- Pixel Size: 0.045 × 0.194 (mm)
- Weight: 3.75 (g)
Dimensions
Resources
- Datesheet: DM-PMOLED150-003
