1.6" 400×400 Round TFT LCD Display Touch Screen – MIPI Interface
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49
Interested in customizing this product? Get in touch with us.
Order samples, immediate delivery.
Factory bulk lead time: 3 weeks.
Share
1.6" 400×400 Round TFT LCD Display Touch Screen – MIPI Interface
Sale price$29.00
1.6" 400×400 Round TFT LCD Display Touch Screen – MIPI Interface
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49

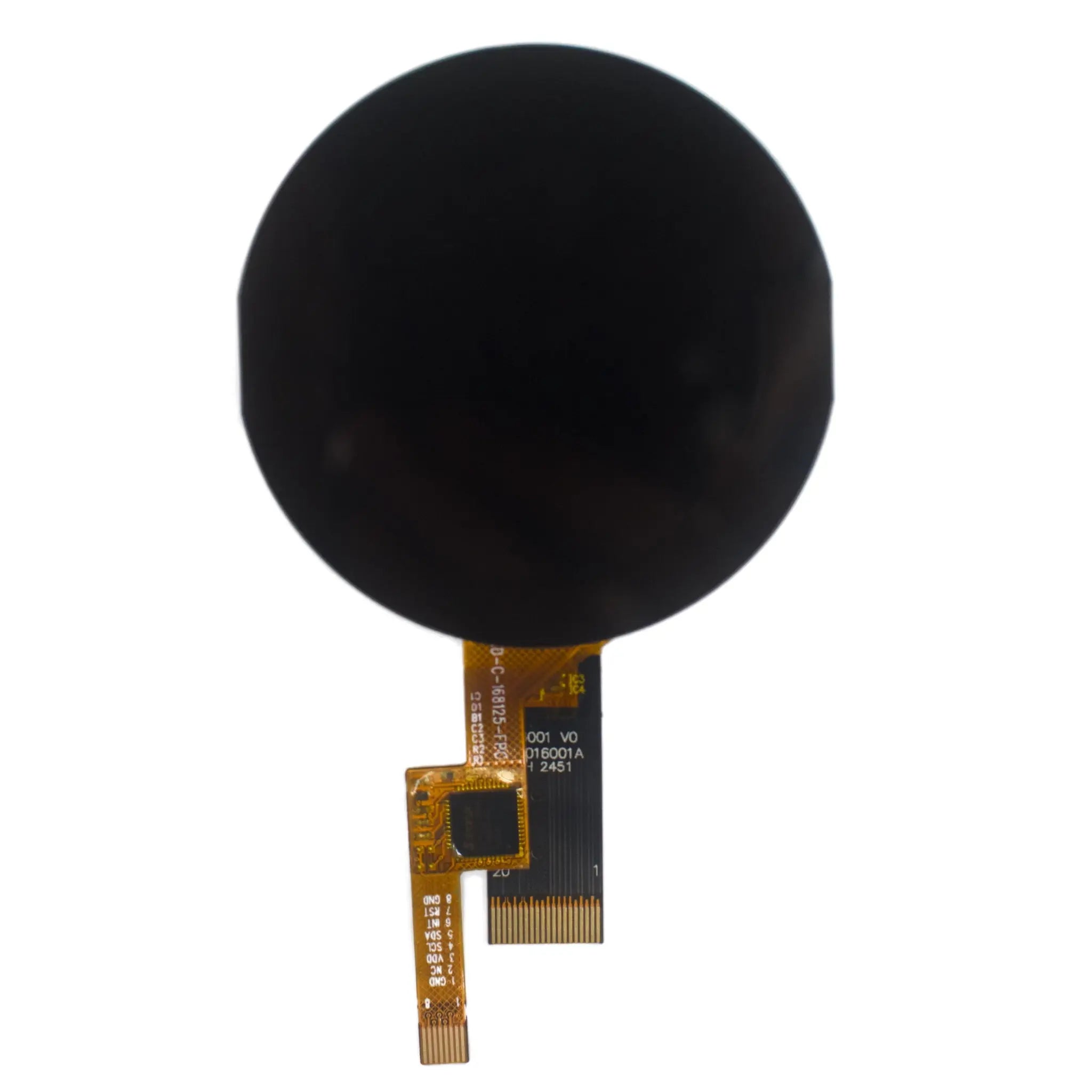

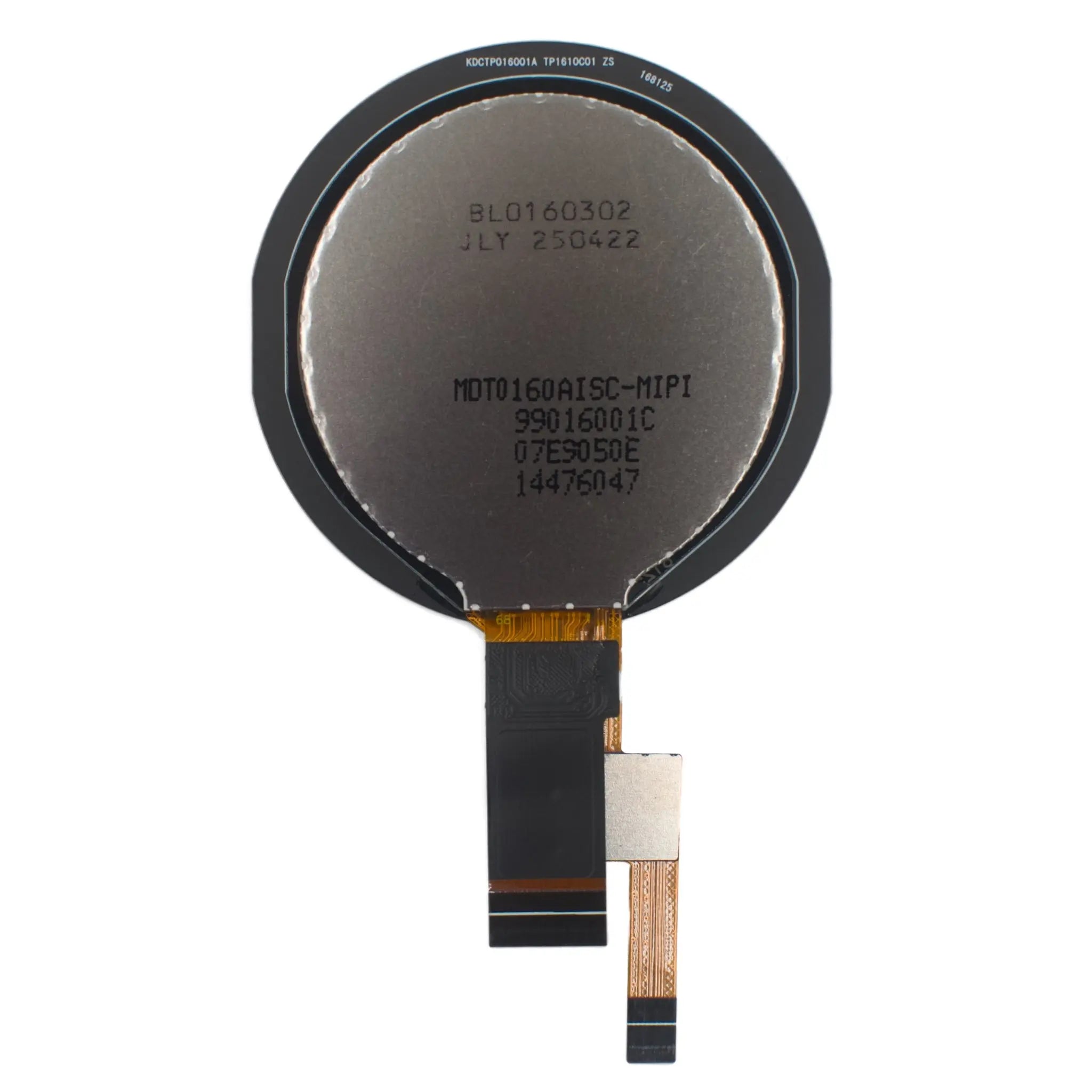

1.6" 400×400 TFT LCD Round Display | DMKDI0160S4CA
The DMKDI0160S4CA is a 1.6-inch round TFT LCD display featuring 400×400 resolution, RGB vertical stripe pixel layout, and excellent 350 cd/m² brightness. It adopts a normally black transmissive mode with 16.7M colors and multi-touch capability via ST633i touch IC. Ideal for smart wearables and circular user interfaces.
| Parameter | Specification | Unit |
|---|---|---|
| Screen Size | 1.6 | inch |
| Display Mode | Transmissive / Normally Black | - |
| Resolution | 400 × 400 | pixels |
| Pixel Pitch | 0.0996 × 0.0996 | mm |
| Color Arrangement | RGB Vertical Stripe | - |
| Color Depth | 16.7M | colors |
| Interface | 1-Lane MIPI / I²C | - |
| Driver IC | ST7797 | - |
| Touch Mode | Multi-Touch | - |
| Touch IC | ST633i | - |
| Active Area | 39.84 × 39.84 | mm |
| Module Dimensions | 51.94 × 52.94 × 3.09 | mm |
| Glass Thickness (LTPS/Encapsulation) | 0.2 / 0.3 | mm |
| Luminance | 350 (Typ) | cd/m² |
| Weight | 11 | g |
Mechanical Dimensions
Technical Resources
- 📄 Datasheet: DMKDI0160S4CA
