1.75" TFT Display 296x220 Transflective - MCU
Sale price$22.90
1.75" TFT Display 296x220 Transflective - MCU
- 💹 Enjoy a 20% discount for orders over 500
- 📉 A 15% discount is available for orders ranging from 200 to 499
- 🎁 A 10% discount is available for orders ranging from 50 to 199
- 🎁 A 5% discount is available when ordering 10-49

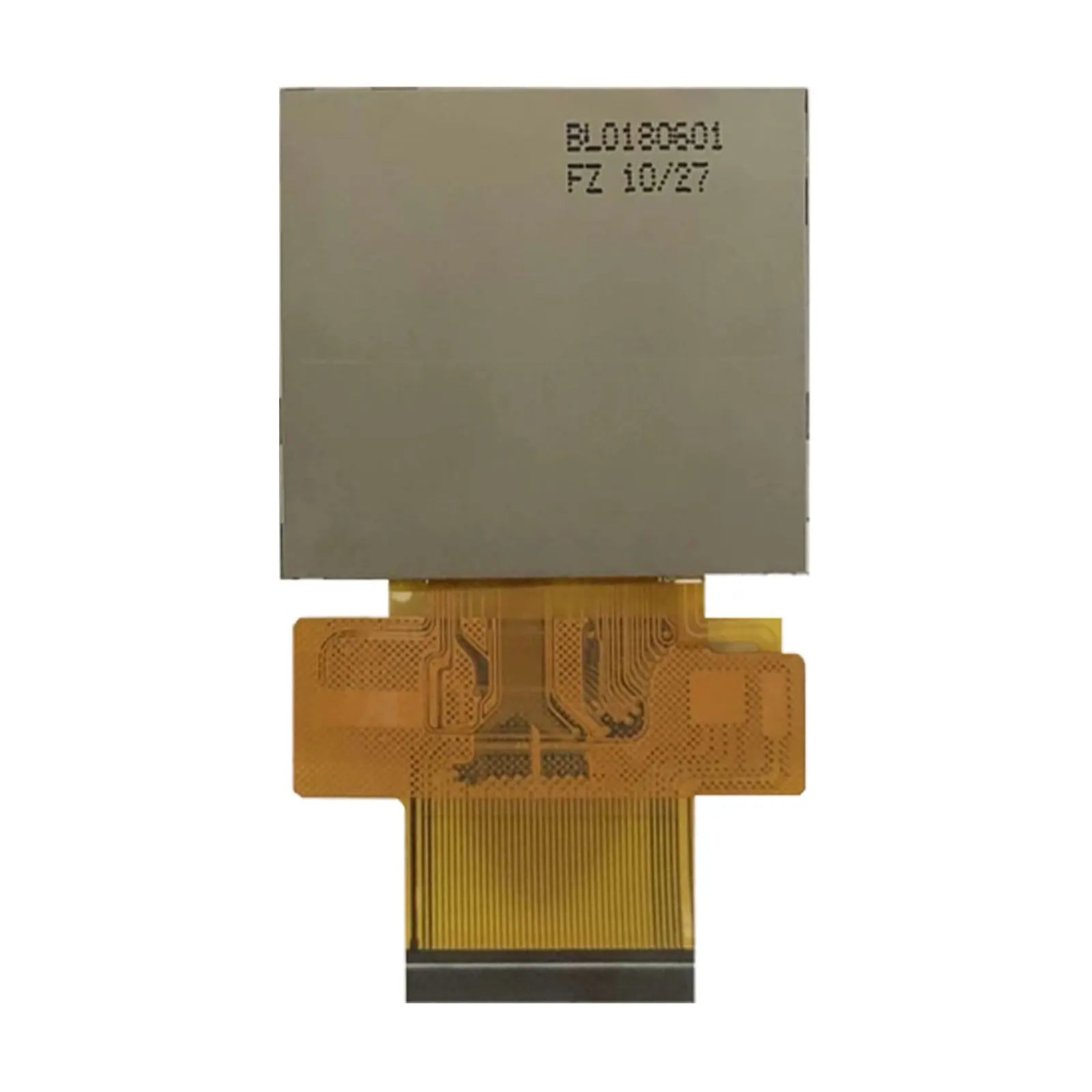

1.75" 290×222 TFT Display | ILI9342 | DM-TFT18-428
The DM-TFT18-428 is a 1.75-inch TFT LCD module with 290 × 222 resolution, 350 cd/m² brightness, and 16-bit MCU interface. Powered by the ILI9342 driver IC, it is ideal for compact embedded UI applications and control systems requiring small-format color display.
| Parameter | Value | Unit |
|---|---|---|
| Diagonal Dimension | 1.75 | inch |
| Resolution | 290 × 222 | pixels |
| Viewing Direction | - | - |
| Touch Mode | None | - |
| Module Dimensions | 42.07 × 39.71 × 2.5 | mm |
| Viewing Area | 35.52 × 26.64 | mm |
| Supply Voltage | - | V |
| Interface | 16-bit MCU | - |
| Luminance | 350 | cd/m² |
| Driver IC | ILI9342 | - |
| Operating Temperature | -20 ~ 70 | °C |
| Storage Temperature | -30 ~ 80 | °C |
Mechanical Dimensions
