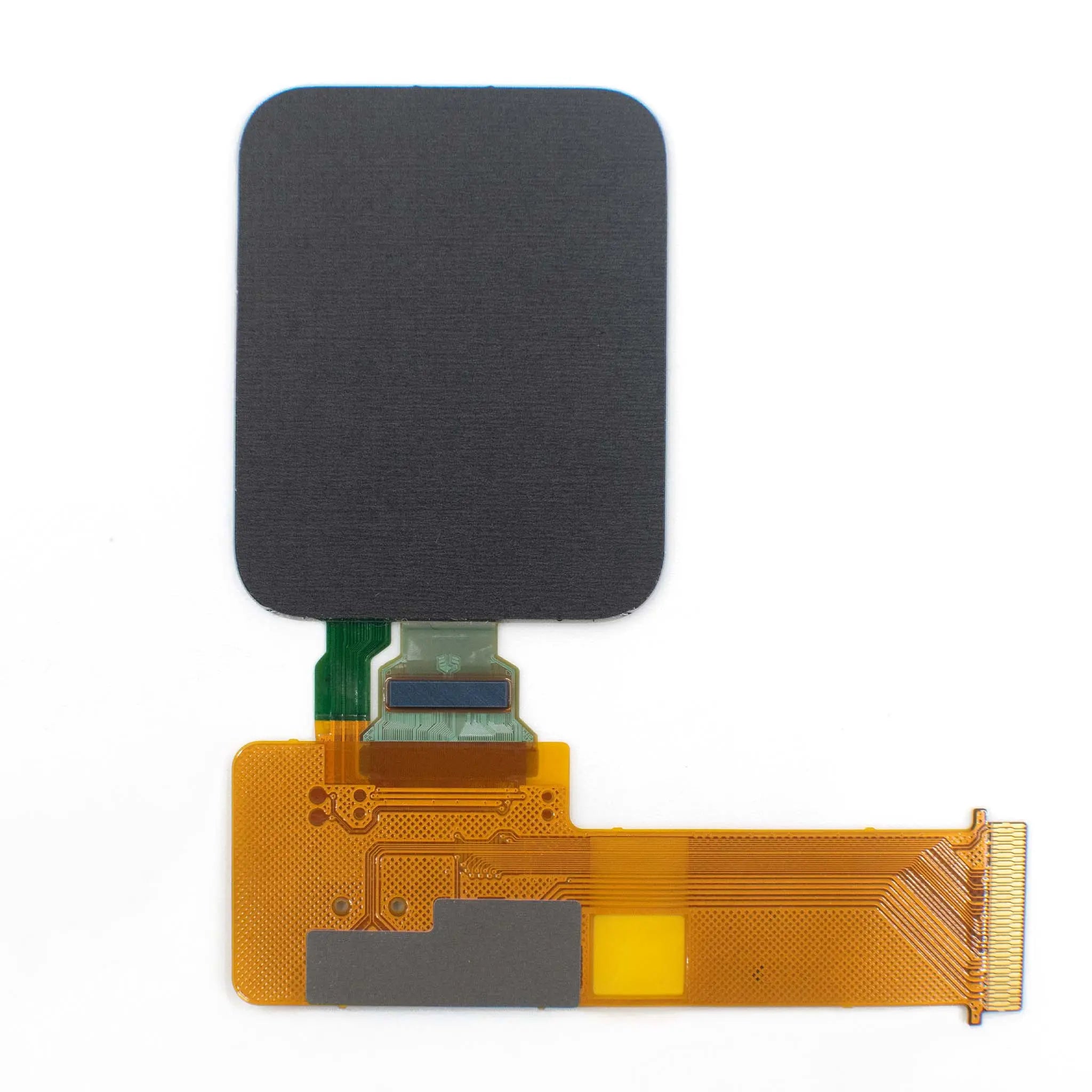

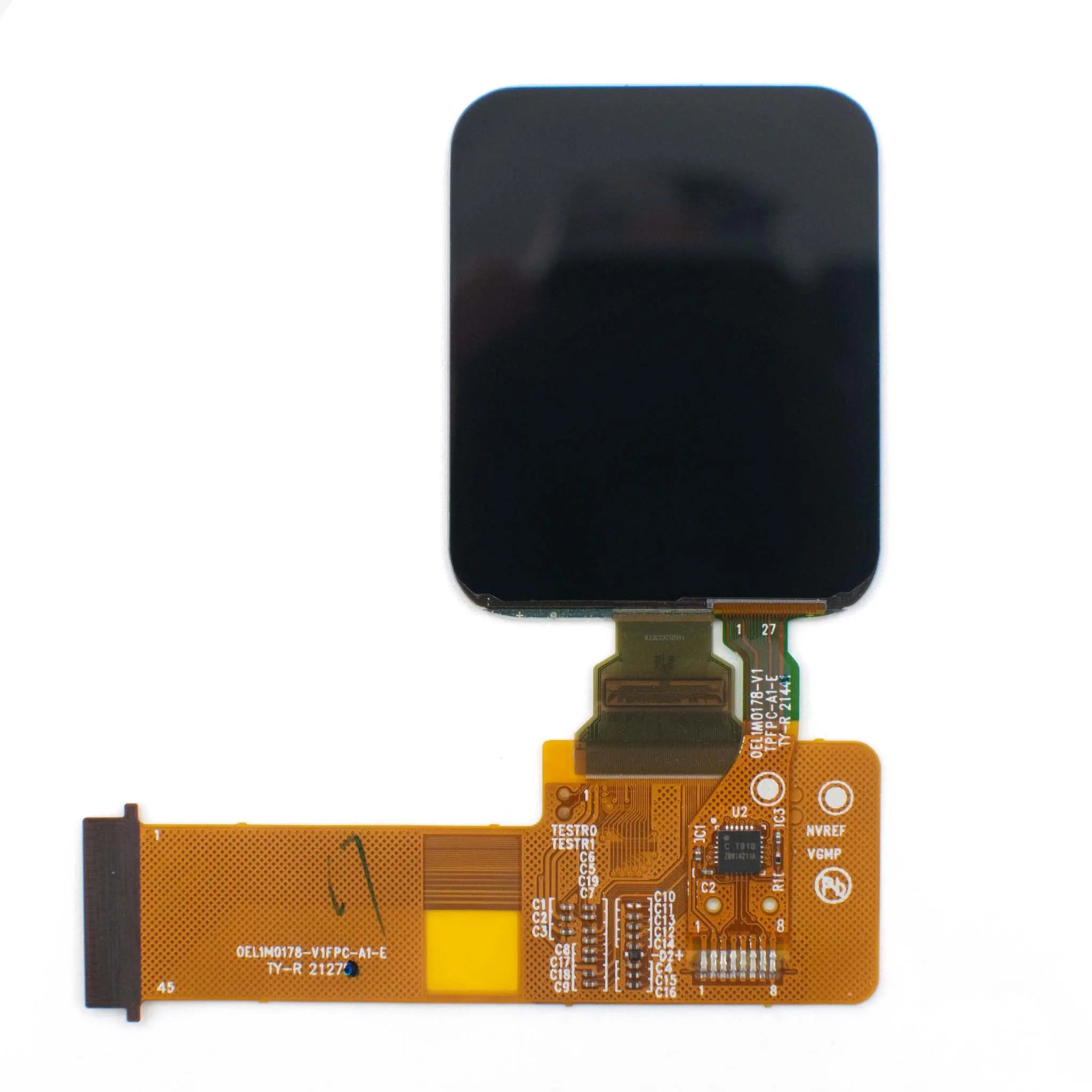

1.78" AMOLED 368x448

Parameter

Specification

Display Type

Active Matrix OLED

Resolution

368×448 pixels

Display Color

RGB

Module Dimensions

30.60×37.19 mm

Active Area

34.90×28.70 mm

Operating Temperature

-20℃ to +70℃

Storage Temperature

-30℃ to +80℃

Electrical Interface

Confirm the exact interface type, signal voltage level, timing requirements, pin definition, connector specification, and command sequence.

Status: confirm in datasheet

Mechanical Fit

Validate module outline, active area direction, viewing area, FPC direction, mounting clearance, and cover lens alignment before enclosure design.

Known data: 30.60×37.19 mm module size

Power Design

Confirm logic voltage, panel drive voltage, current consumption, power-on sequence, sleep mode behavior, and ESD protection requirements.

Status: confirm in datasheet

Thermal Range

The listed operating temperature is -20℃ to +70℃. Confirm test conditions, duration, humidity requirements, and storage handling before industrial use.

Known data: -20℃ to +70℃ operation

Self-Emissive Display Structure

AMOLED technology uses active matrix OLED pixels. This display type is commonly selected for compact electronic products that require high contrast, thin structure, and wide viewing performance.

RGB Color Output

The product information lists RGB display color. For color-critical projects, confirm color depth, color format, gamma settings, and controller configuration in the official datasheet.

Compact Resolution Density

A 368×448 pixel layout in a 1.78-inch class module supports dense visual information in a small display window for icons, menus, status values, and graphical UI elements.

Industrial HMIs

Suitable for compact control panels and operator interfaces where small size, color UI, and -20℃ to +70℃ operation are required. Confirm brightness, cover lens design, and interface compatibility before design-in.

Wearable Technology

The 1.78-inch size and 368×448 resolution are appropriate for wearable product screens that need compact UI presentation. Confirm power consumption, touch integration, cover glass, and sunlight readability.

Portable Medical Devices

Useful for portable monitoring or diagnostic equipment requiring compact color display output. Confirm regulatory requirements, optical readability, cleaning conditions, and long-term supply before medical product approval.

Portable Instruments

Can be evaluated for handheld meters, compact analyzers, and field devices. Confirm display lifetime, connector durability, operating current, and UI readability under target field conditions.

Mechanical

Confirm module outline, active area direction, viewing direction, FPC position, connector pitch, bending radius, tolerance, mounting method, and cover lens stack-up.

Electrical

Confirm interface, logic voltage, panel driving voltage, current profile, power sequence, reset timing, initialization code, and ESD protection design.

Optical

Confirm brightness, contrast, viewing angle, color depth, color uniformity, refresh behavior, polarizer option, and readability under target lighting conditions.

Reliability

Confirm operating test conditions, storage test conditions, humidity exposure, lifetime assumptions, burn-in considerations, packaging, handling, and inspection standards.

Sample Availability

Confirm sample stock, sample shipping time, test quantity, and whether the sample matches the final production version.

Volume Pricing

Confirm pricing by quantity, MOQ, packaging quantity, payment terms, tooling requirements, and long-term cost stability.

Production Lead Time

Confirm standard lead time, forecast requirement, production capacity, buffer stock option, and schedule risk for mass production.

Customization Scope

Confirm whether FPC adjustment, connector change, cover lens matching, touch panel integration, firmware support, or packaging customization is available.

Available Product Information

Display type: Active Matrix OLED.

Resolution: 368×448 pixels.

Display color: RGB.

Module dimensions: 30.60×37.19 mm.

Active area: 34.90×28.70 mm.

Operating temperature: -20℃ to +70℃.

Storage temperature: -30℃ to +80℃.

Not Specified in Current Product Information

Brightness value: confirm in datasheet.

Contrast ratio value: confirm in datasheet.

Driver IC model: confirm in datasheet.

Interface type and pinout: confirm in datasheet.

Power consumption: confirm in datasheet.

Lifetime and burn-in guidance: confirm in datasheet.

Touch panel option: confirm with engineering team.

What is the resolution of this 1.78-inch AMOLED display?

The listed resolution is 368×448 pixels.

What display technology does this module use?

The listed display type is Active Matrix OLED.

Can this display be used in industrial temperature environments?

The listed operating temperature range is -20℃ to +70℃. Confirm test conditions and reliability requirements in the datasheet before industrial approval.

Is the interface confirmed?

The final interface configuration, pin assignment, signal timing, and initialization sequence should be confirmed in the official datasheet.

What should be checked before PCB layout?

Check module outline, active area, FPC orientation, connector details, pinout, interface voltage, power sequence, initialization code, and mechanical clearance.

What information should purchasing confirm before volume order?

Confirm sample availability, MOQ, volume pricing, production lead time, packaging, inspection criteria, customization scope, and long-term supply plan.
