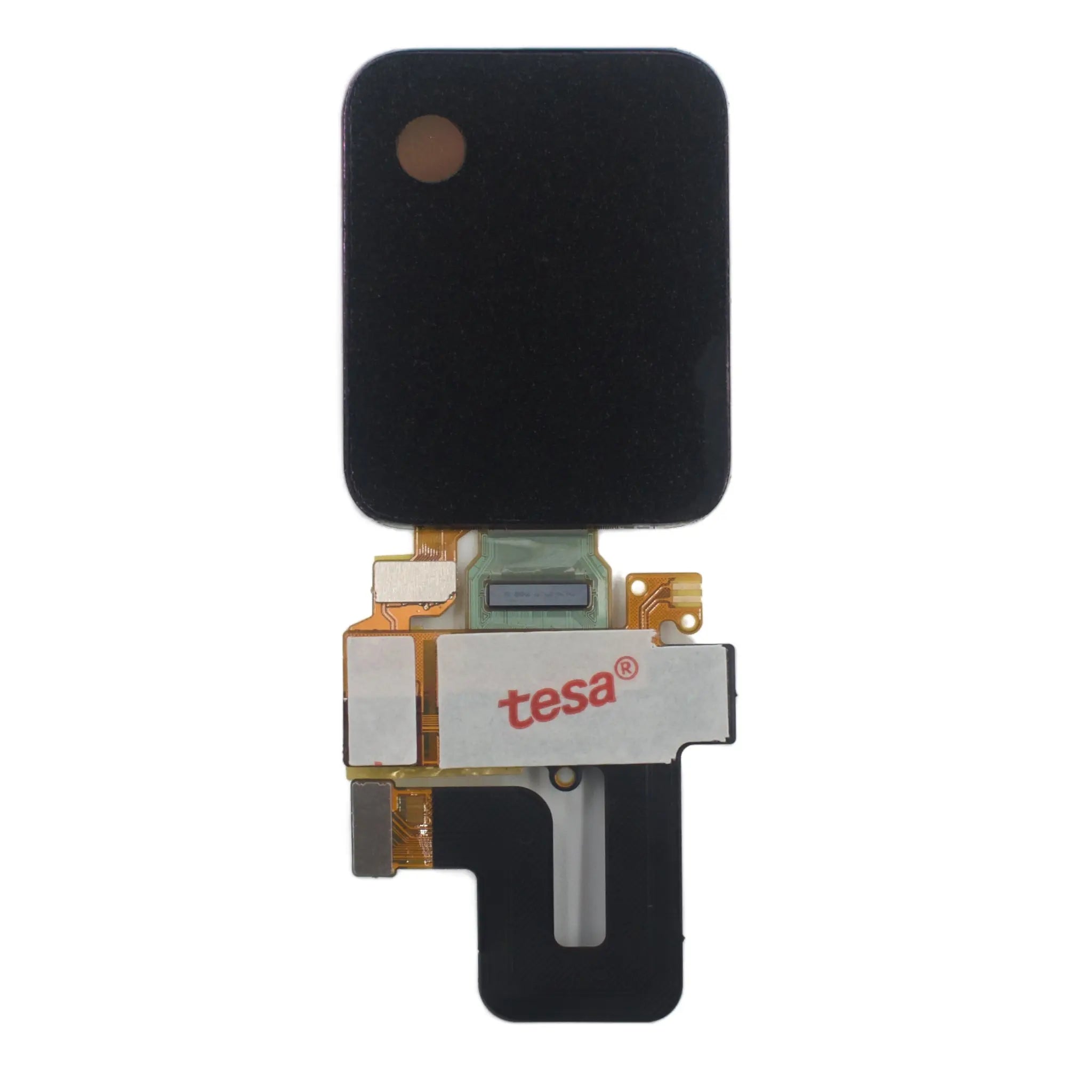

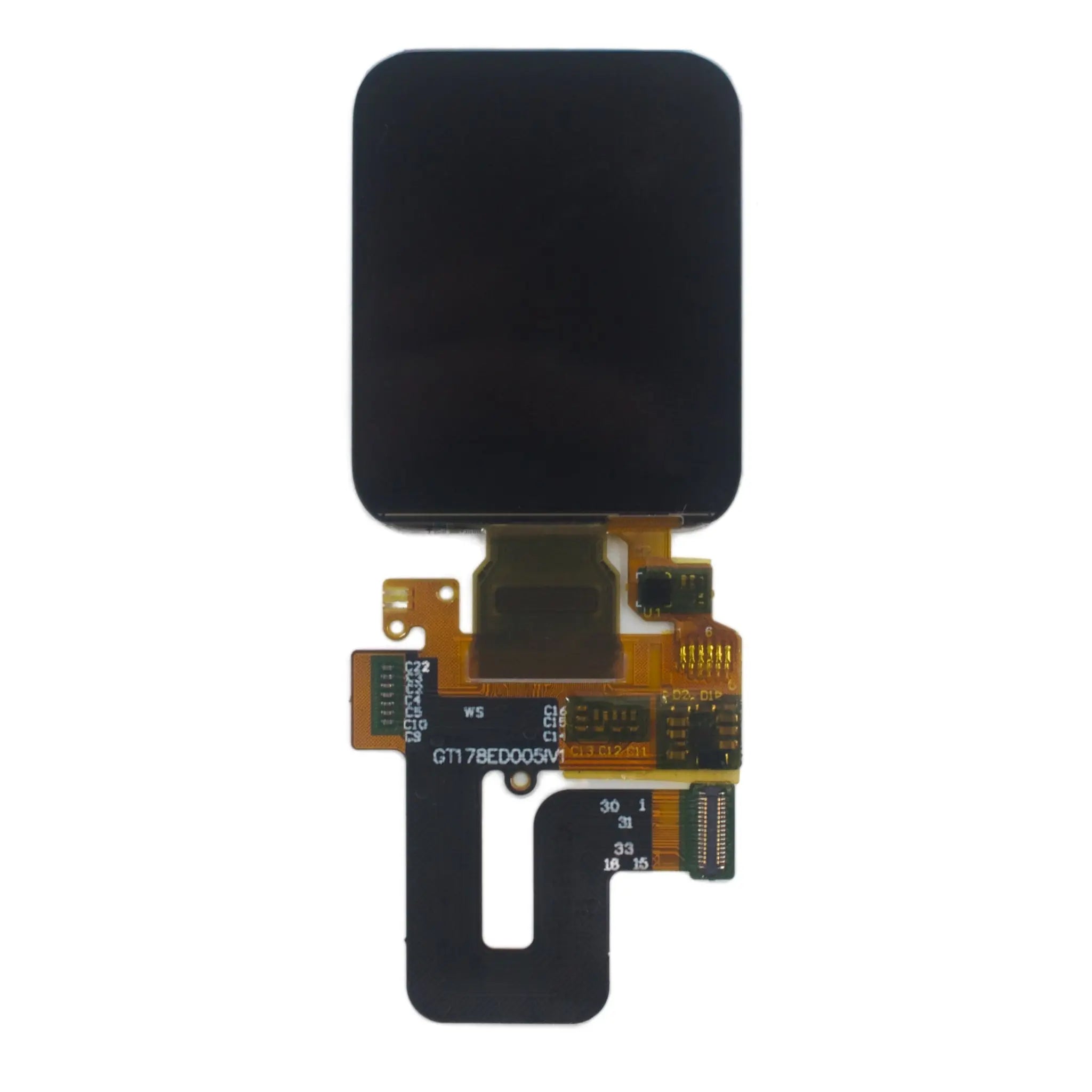

1.78" 368×448 AMOLED Display | MIPI/SPI, On-Cell Touch, ICNA3311
The 1.78-inch AMOLED display module features a high-resolution 368×448 pixel array with Real RGB arrangement, delivering vibrant 16.7M colors in a compact form factor. With its ultra-thin 0.804mm profile and dual MIPI/SPI interface support, this display is engineered for next-generation wearable devices.
Designed for power efficiency with just 165mW typical power consumption at 100% brightness, this display module integrates the ICNA3311 display driver and CHSC5816 touch controller for seamless on-cell touch functionality without requiring an additional cover lens.
- High Contrast Ratio: Exceptional 100,000:1 contrast ratio for deep blacks and vibrant colors.
- Wide Viewing Angles: 80°+ viewing angle from all directions without color distortion.
- Robust Reliability: Certified for -40℃ to 85℃ storage temperature range with ±4kV ESD protection.
- Dual Interface Flexibility: Supports both MIPI and SPI communication protocols for design versatility.
| Parameter | Specification |
|---|---|
| Screen Size | 1.78 inch |
| Resolution | 368 × 448 pixels |
| Pixel Pitch | 0.026 × 0.078 mm |
| Display Colors | 16.7M |
| Color Arrangement | Real RGB |
| Brightness | 350 nits (typical) |
| Contrast Ratio | 100,000:1 |
| Viewing Angle | 80°+ (all directions) |
| Interface | MIPI / SPI |
| Touch Technology | On-cell (Without Cover Lens) |
| Display Driver IC | ICNA3311 |
| Touch Driver IC | CHSC5816 |
| Active Area | 28.70 × 34.94 mm |
| Module Dimensions | 30.6 × 37.99 × 0.804 mm |
| Power Consumption | 165mW typical (100% brightness) |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -40℃ to 85℃ |
| ESD Protection | ±4kV |
We offer customized display solutions for OEMs and businesses requiring high-volume orders or specialized configurations for their wearable products.
- Customization Options: Tailored solutions including custom firmware, connector types, and mechanical modifications to fit specific product requirements.
- Volume Pricing: Competitive wholesale pricing for bulk orders with flexible MOQ options.
- Technical Support: Dedicated engineering support for integration and troubleshooting throughout your product development cycle.
- Supply Chain Reliability: Consistent inventory and reliable lead times for production-scale orders.
Ideal for smartwatches, fitness trackers, and health monitoring wearables requiring high-resolution displays with low power consumption.
Suitable for portable medical devices and health monitors where high contrast and wide viewing angles are critical.
Perfect for compact human-machine interfaces in industrial controls and instrumentation with robust environmental performance.
Technical Notes: This display module requires proper power sequencing as specified in the datasheet. Both MIPI and SPI interfaces are supported but require different initialization sequences.
