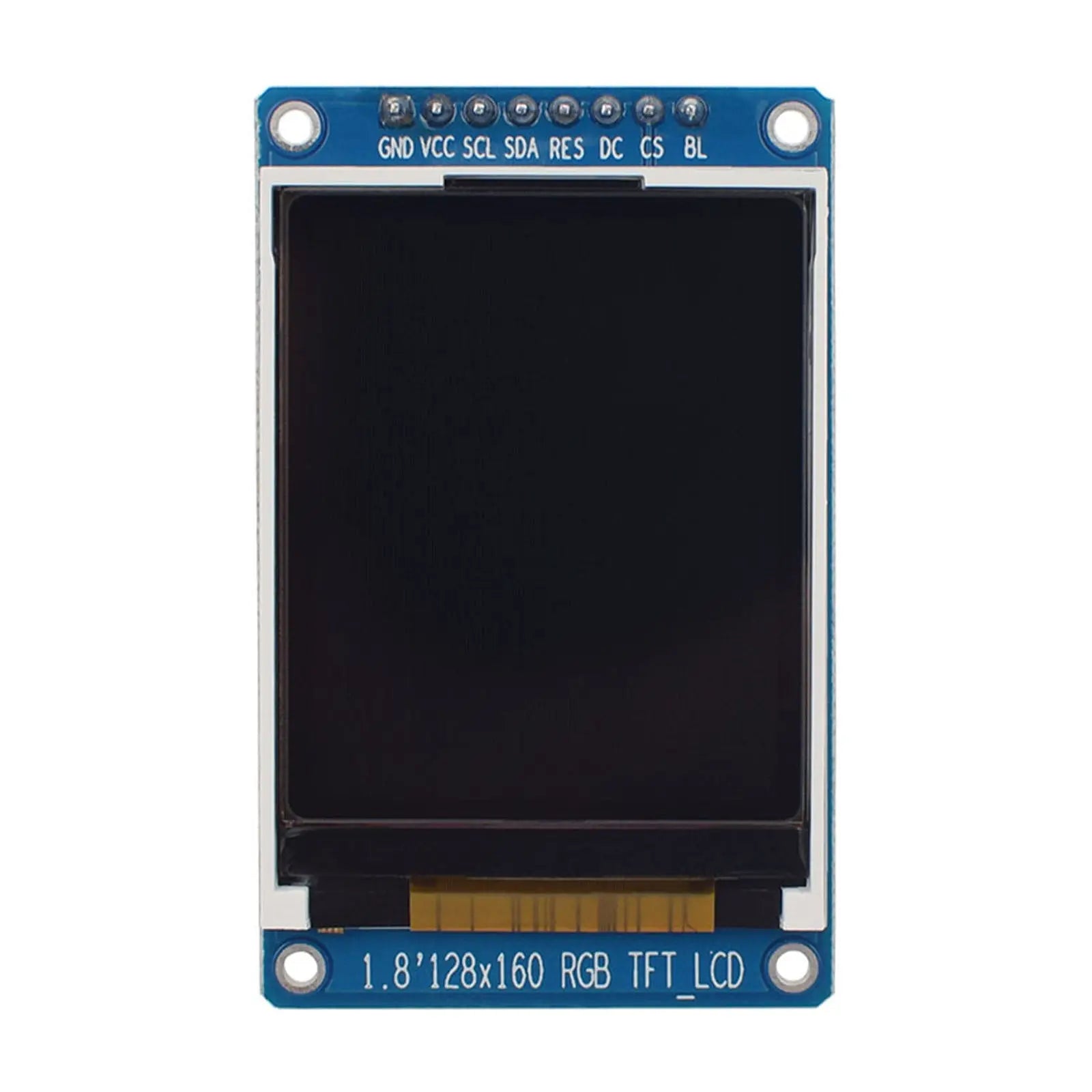

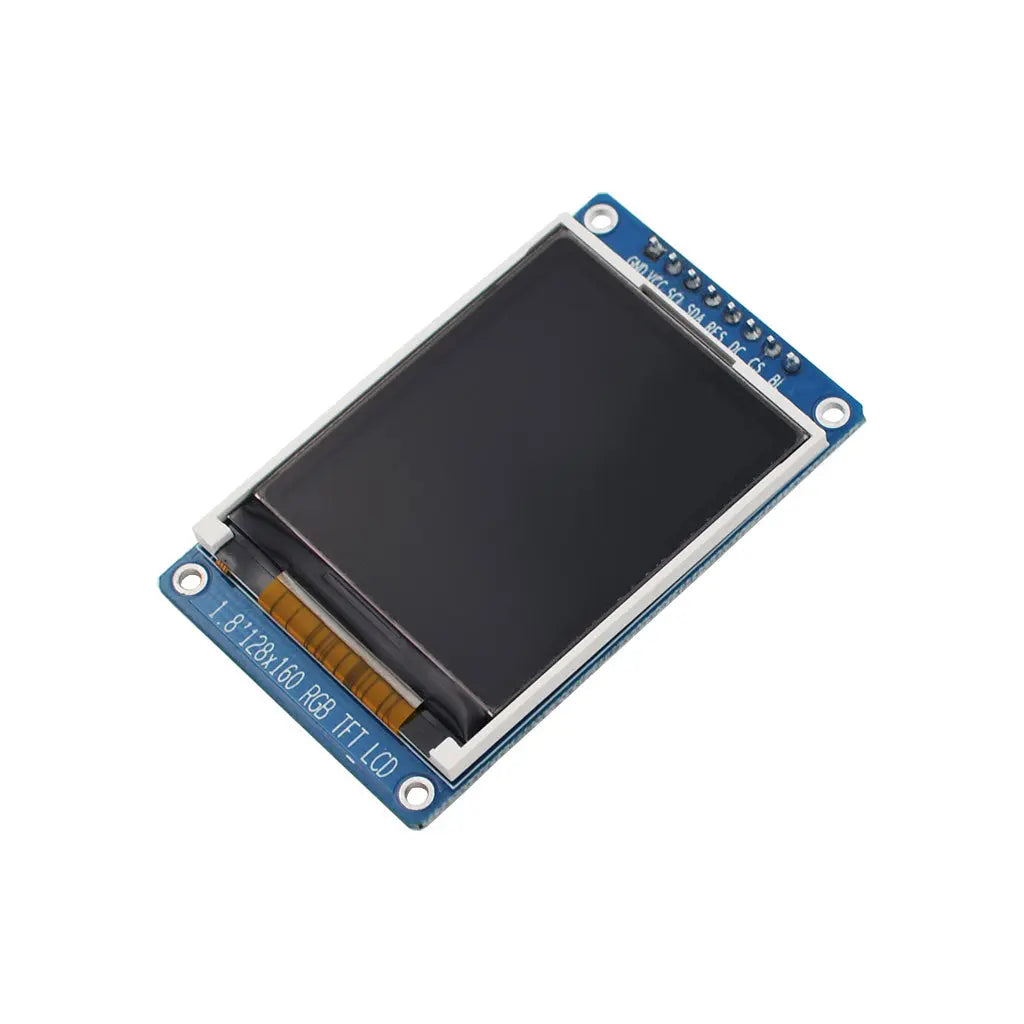

1.8" TFT High Brightness Display 128x160 300nits - SPI
This high-performance 1.8-inch TFT LCD display delivers crisp 128x160 resolution with 300 nits brightness, making it clearly visible even in direct sunlight. Featuring a 4-wire SPI interface and powered by the ST7735S controller, it's designed for embedded systems where space and power efficiency are critical.
Engineered for reliability in demanding environments, this display operates across a wide temperature range from -20°C to 70°C. The compact module measures just 34.00 × 45.83 × 2.25 mm with an active area of 28 × 35 mm, making it ideal for space-constrained applications.
- High Visibility: 300 nits brightness ensures clear viewing even in outdoor conditions
- Low Power Operation: 2.8V supply voltage minimizes energy consumption for battery-powered devices
- Simple Integration: 4-wire SPI interface reduces connection complexity and pin count requirements
- Robust Design: Operating temperature range of -20°C to 70°C suits industrial applications
| Parameter | Specification |
|---|---|
| Diagonal Size | 1.8 inch |
| Resolution | 128 × 160 pixels |
| Viewing Direction | 12 o'clock |
| Touch Capability | None |
| Module Dimensions | 34.00 × 45.83 × 2.25 mm |
| Active Area | 28 × 35 mm |
| Supply Voltage | 2.8V |
| Interface | 4-wire SPI |
| Luminance | 300 cd/m² |

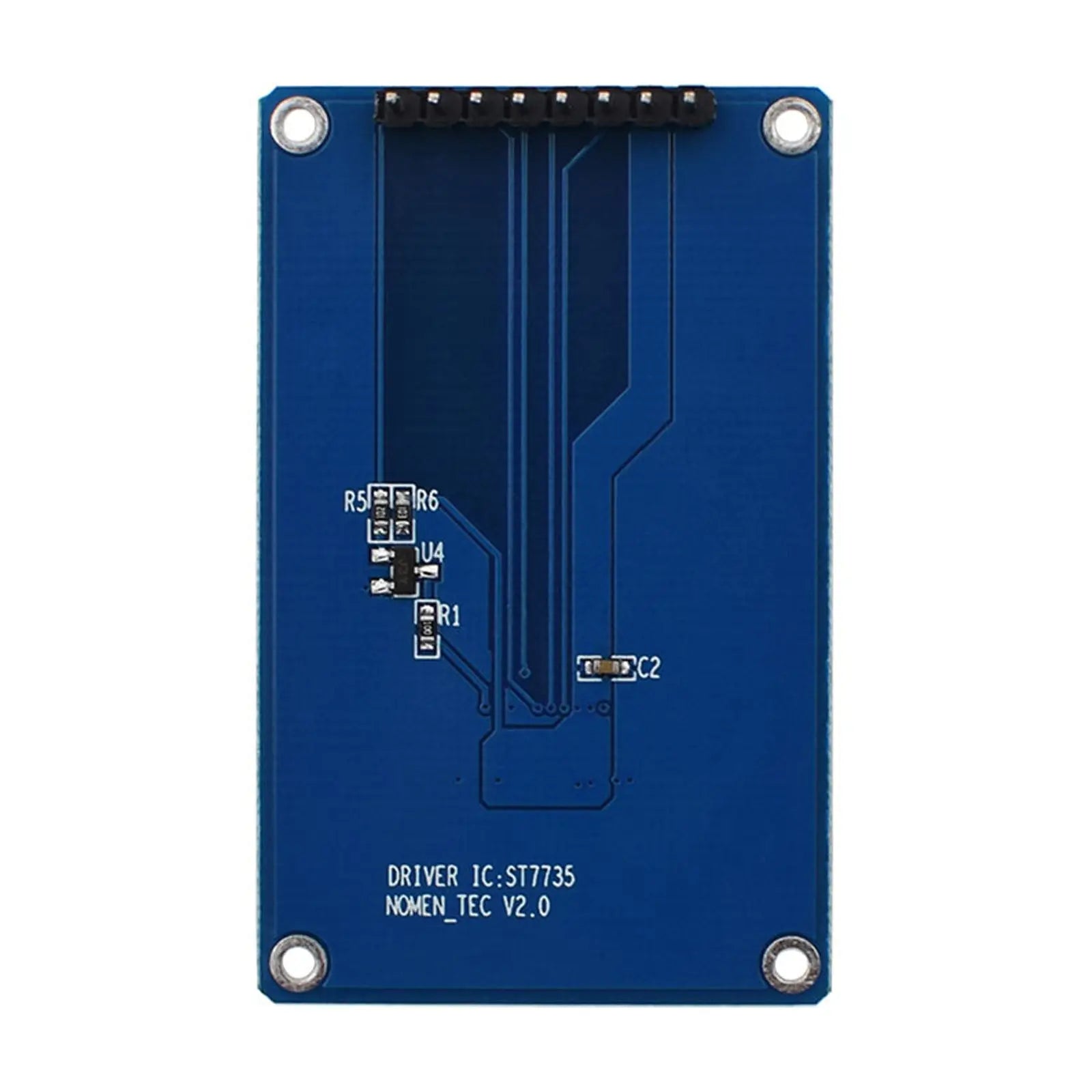

| Driver IC | ST7735S |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
We provide customized display solutions for OEMs and volume purchasers with specific requirements for integration, branding, or specialized applications.
- Bulk Ordering Programs: Volume discounts and dedicated support for large-scale deployments
- Customization Options: Modified viewing angles, connector types, or mechanical dimensions to fit specific product designs
- White-Label Solutions: Private labeling and branding options for system integrators and resellers
- Technical Collaboration: Engineering support for display integration and optimization in your product ecosystem
Wearable technology, handheld instruments, and portable medical devices where compact size and low power consumption are essential.
Human-machine interfaces (HMIs), control panels, and instrumentation displays for manufacturing and process control systems.
Smart home controllers, IoT devices, and portable entertainment systems requiring clear visibility in various lighting conditions.
This display is compatible with popular development platforms and microcontrollers, including Arduino, ESP32, Raspberry Pi (with SPI interface), and other embedded systems with 4-wire SPI capability.

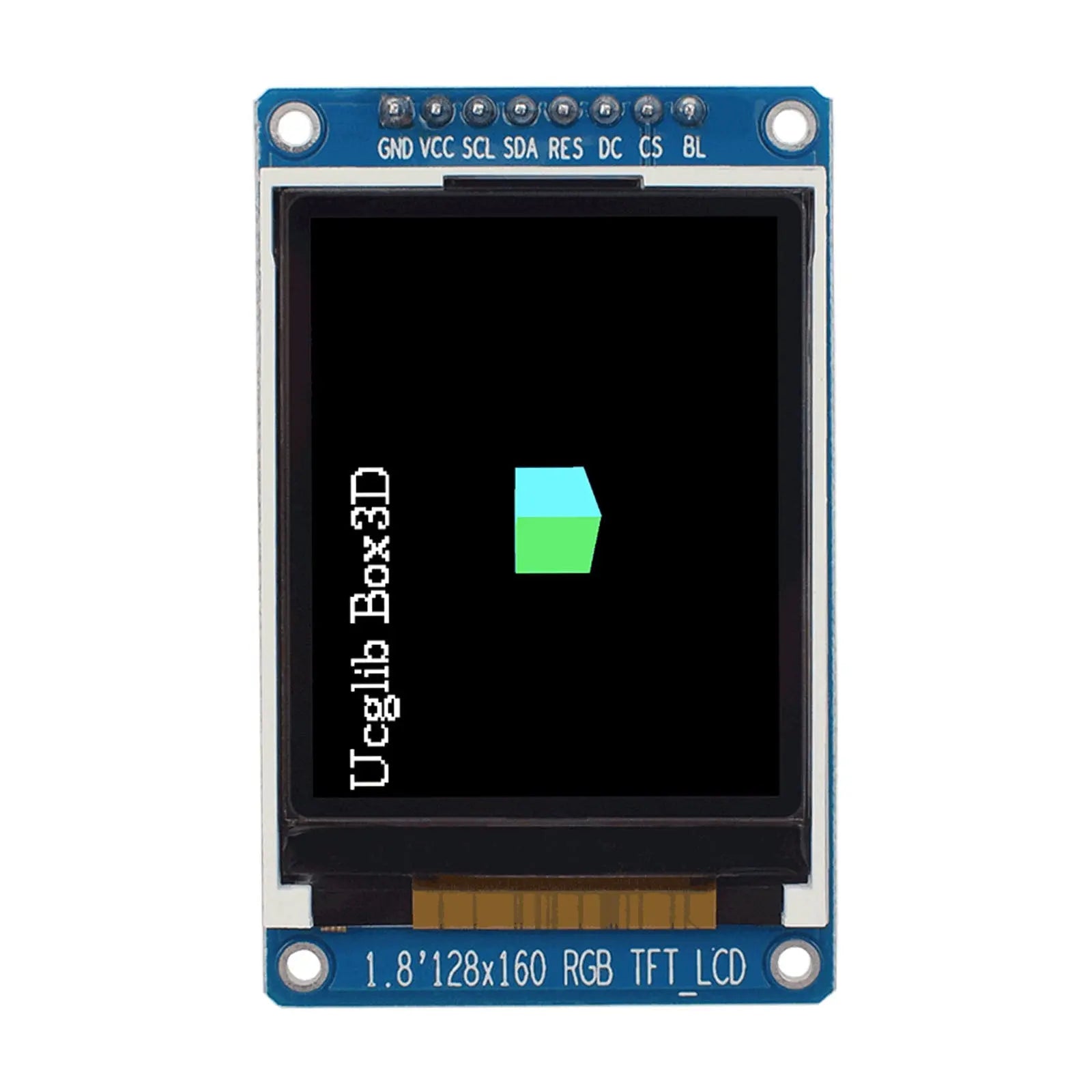

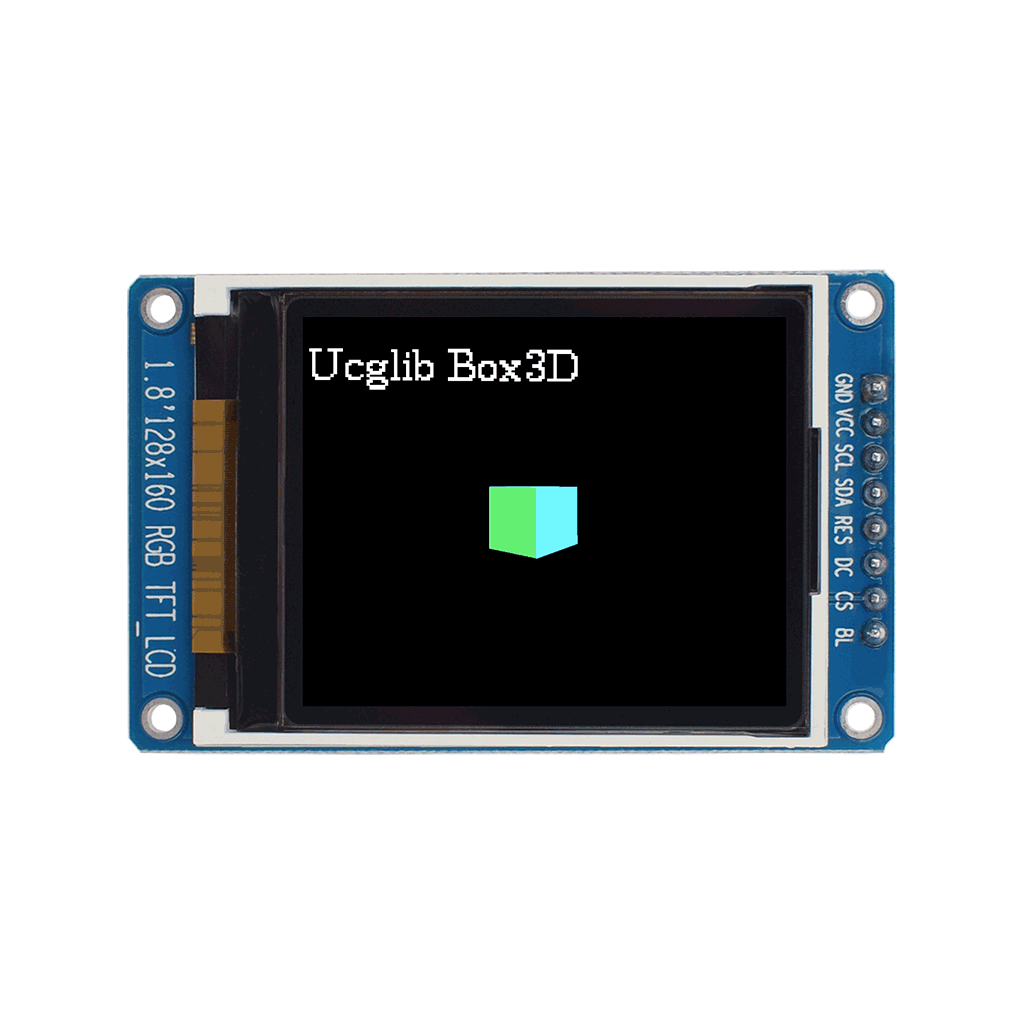

- Arduino Libraries: Ucglib and other ST7735S-compatible libraries provide easy integration
- ESP32 Support: Direct compatibility with ESP32's SPI peripheral for seamless integration
- Raspberry Pi: Works with Raspberry Pi SPI interface with appropriate level shifting
- STM32 & Other MCUs: Compatible with any microcontroller featuring SPI interface capabilities
Documentation: Complete technical specifications, integration guidelines, and programming references.
Downloads: Display Datasheet (PDF) | ST7735S Driver IC Datasheet | Sample Code & Libraries
Mechanical Dimensions: View mechanical drawing
