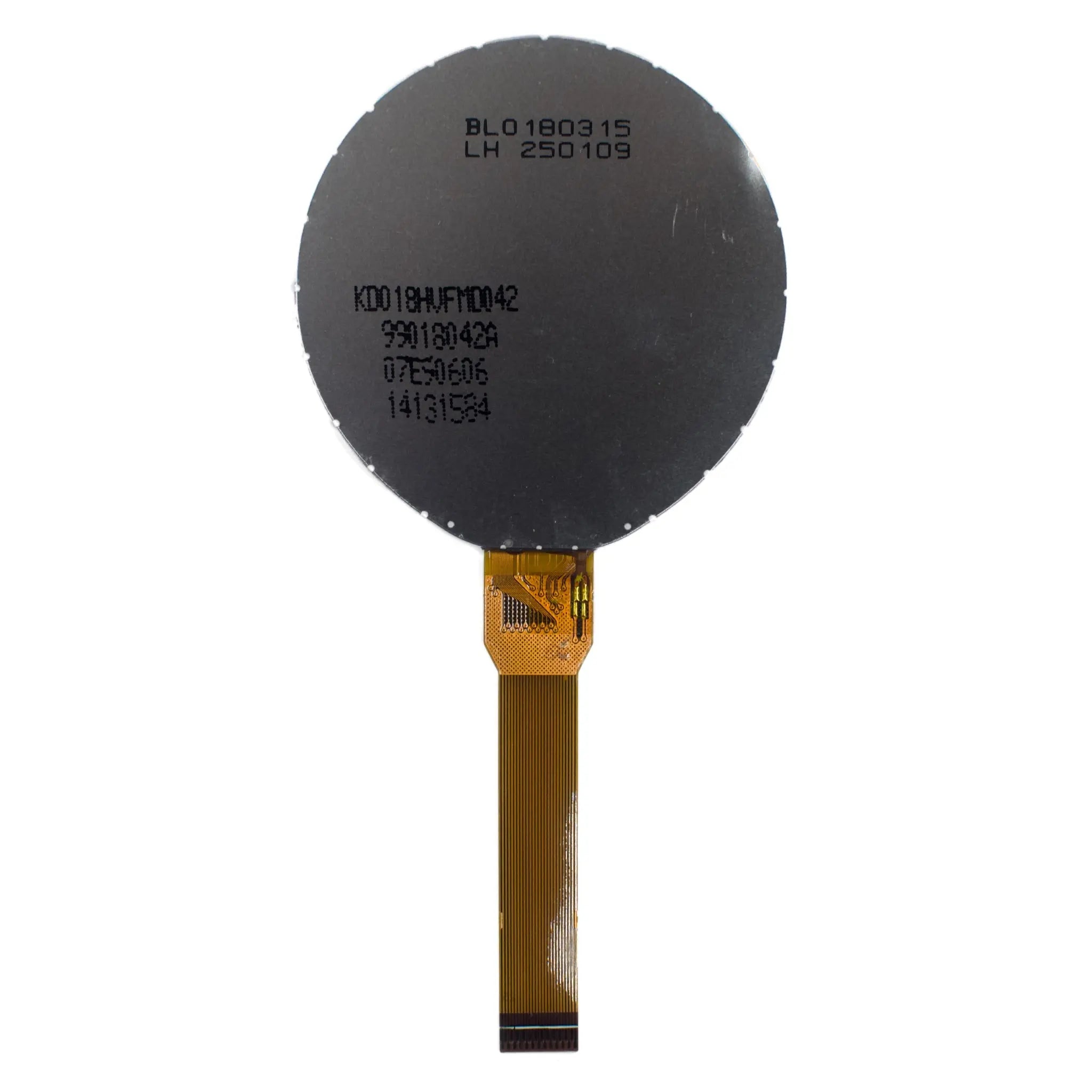

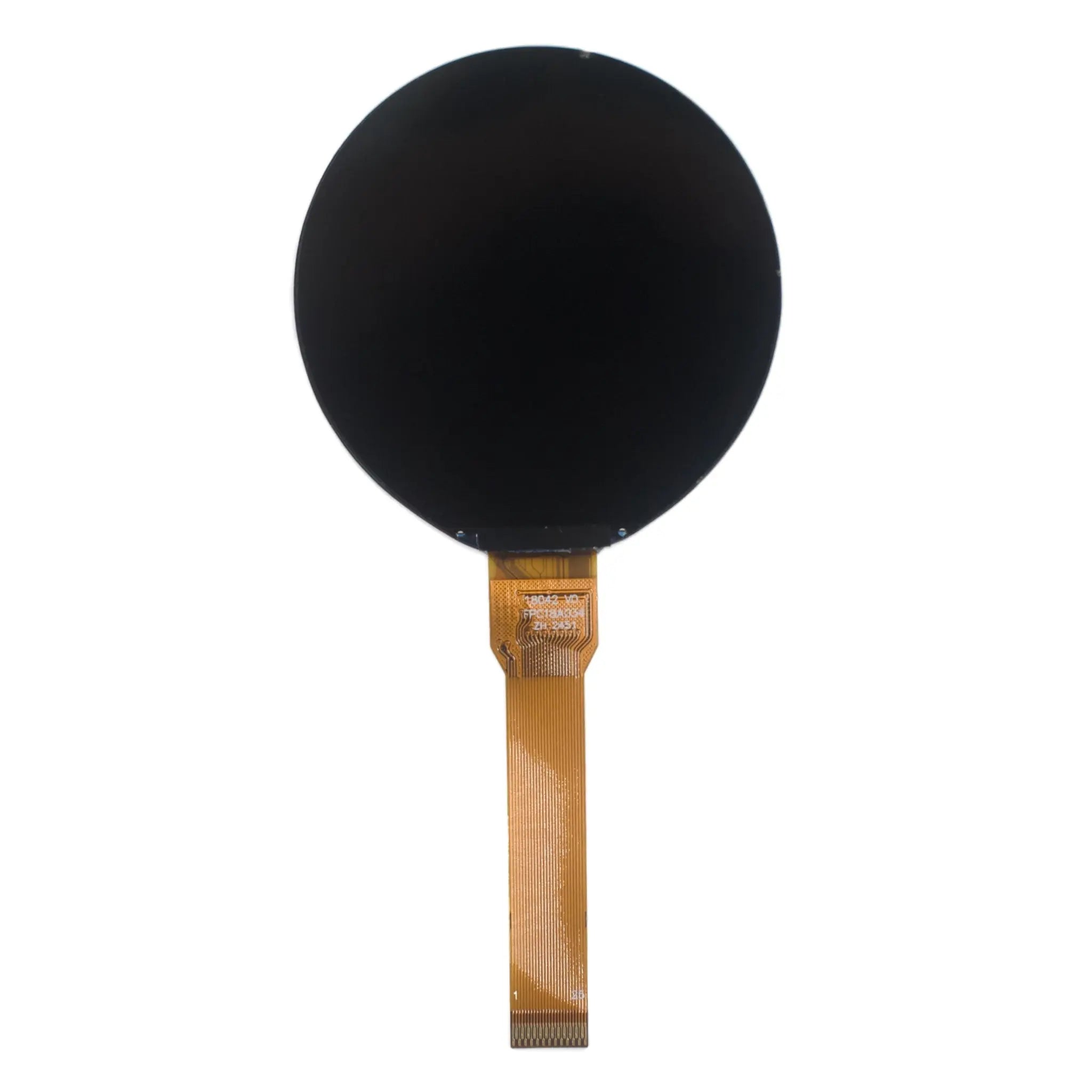

1.8" Round TFT LCD Display 360×360 – SPI Interface
This 1.8-inch circular TFT LCD display delivers sharp 360×360 resolution with 262K colors, using amorphous silicon TFT technology for vibrant visuals in a compact form factor. Ideal for space-constrained applications, it features a transmissive normally black display mode and supports multiple interfaces including SPI for flexible integration.
Engineered with the ST77916 driver IC, this display offers a contrast ratio of 800:1 (typical) and response time of 36ms, ensuring clear motion performance. The RGB vertical stripe pixel arrangement provides accurate color reproduction across an 85° viewing angle.
- Multi-Interface Support: Compatible with 3-wire SPI, 4-wire SPI, QSPI, and 8-bit parallel MCU interfaces, selected via IM0-IM2 pins.
- High Brightness Backlight: Integrated edge-lit LED system with 20 chips delivering 800 cd/m² typical luminance and 50,000-hour lifespan.
- Wide Voltage Range: Operates with VDD 2.65-3.3V and IOVCC 1.65-3.3V, supporting low-power applications.
- Robust Construction: Compact 48.08×49.95×1.94mm module weighing just 7g, designed for portable devices.
| Parameter | Specification |
|---|---|
| Display Size | 1.8 inch |
| Display Area | 45.684 × 45.684 mm |
| Resolution | 360 × 360 pixels |
| Pixel Pitch | 0.1269 × 0.1269 mm |
| Color Depth | 262K colors |
| Controller IC | ST77916 |
| Interface Options | 8-bit MCU, QSPI, 3/4-wire SPI |
| Module Dimensions | 48.08 × 49.95 × 1.94 mm |
| Weight | 7 grams |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Supply Voltage (VDD) | 2.65V to 3.3V (Typical 2.8V) |
| I/O Voltage (IOVCC) | 1.65V to 3.3V (Typical 1.8V) |
| Current Consumption | 11mA typical, 22mA maximum |
We provide customized display solutions for OEM and volume applications, offering flexible options for specialized requirements.
- Bulk Pricing Programs: Volume discounts available for orders exceeding 100 units, with customized packaging and logistics support.
- Custom Configuration: Interface customization, connector options, and backlight adjustments to match specific application needs.
- Technical Support: Dedicated engineering assistance for integration challenges and compliance testing.
Smartwatches and fitness trackers requiring circular, high-resolution displays with low power consumption for extended battery life.
Control panels and instrumentation where the 360×360 resolution provides clear data visualization in compact industrial interfaces.
Portable medical devices benefiting from the wide viewing angles and high contrast ratio for critical readings.
Technical Notes: The display supports SPI clock cycles as fast as 16ns in write mode. Ensure proper reset timing with minimum 10μs pulse width and 5ms delay after reset before sending commands.
Resources: Download complete technical documentation
Mechanical Dimensions
