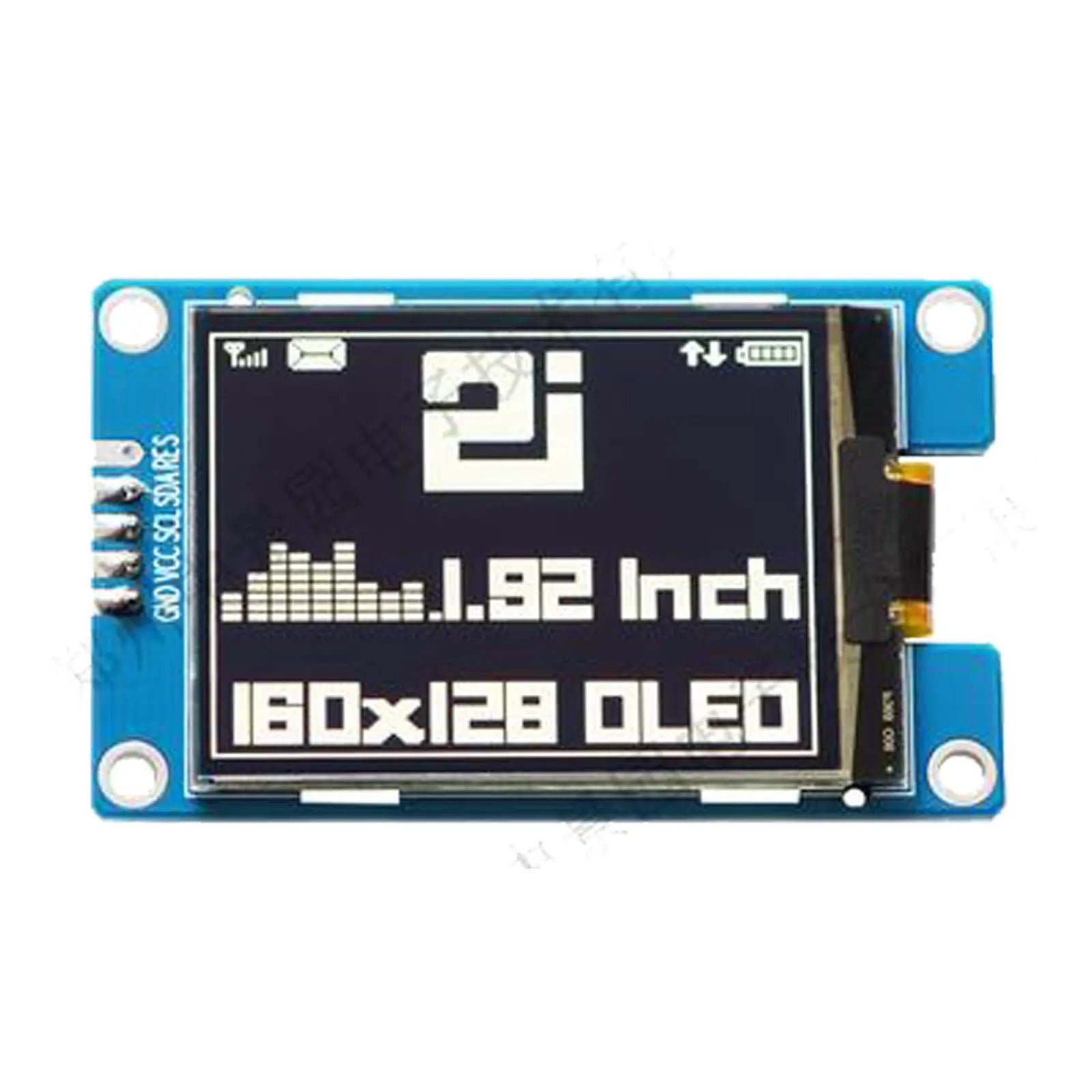

1.92-inch monochrome graphic OLED display screen showing text
1.92-inch OLED Graphic Display with a resolution of 128 by 160 pixels, interfaced with I2C and SPI

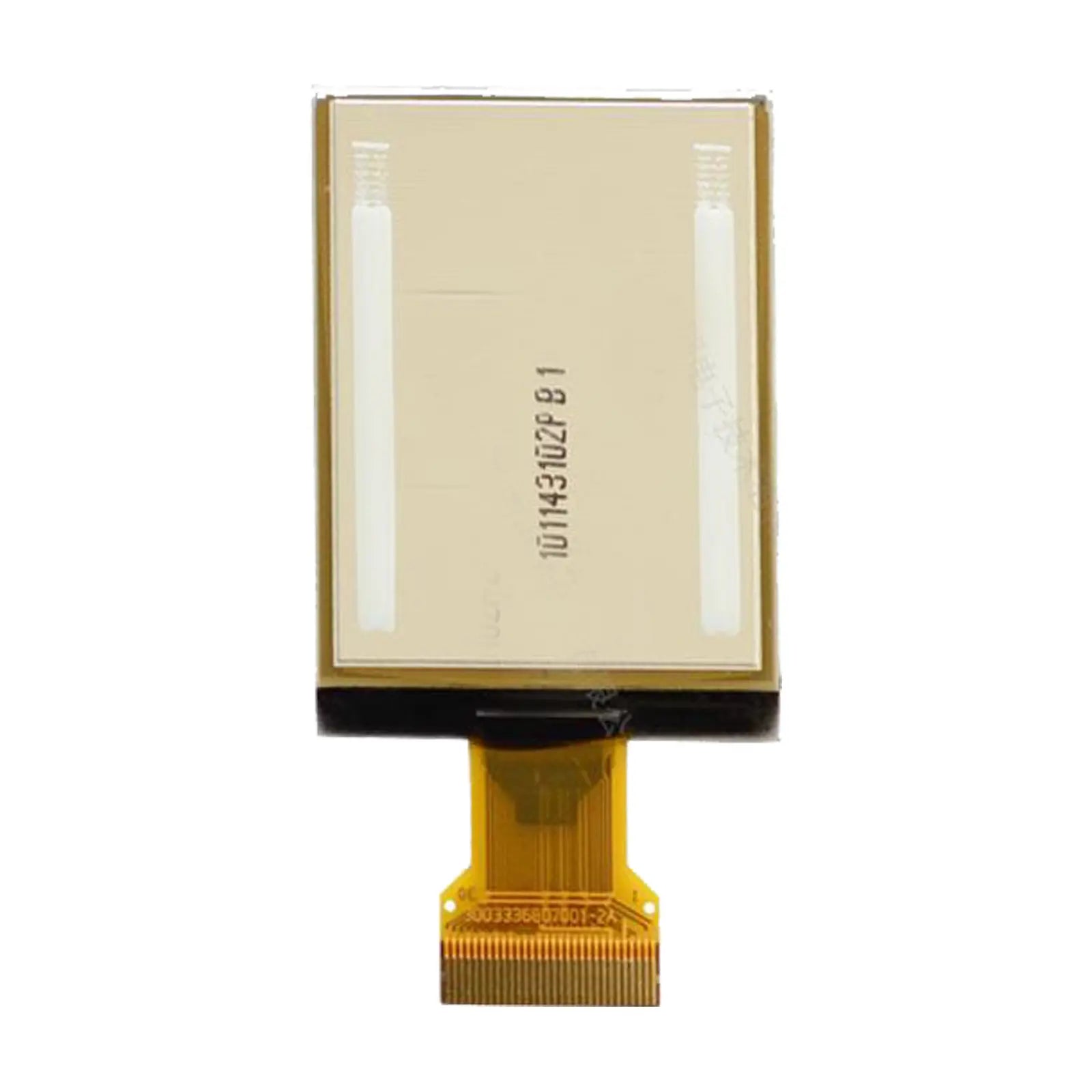

Back of 1.92-inch OLED Graphic Display Panel
1.92-inch monochrome graphic OLED display module showing text

1.92" OLED Graphic Display 128x160 - I2C, SPI

Regular price $14.90
Sale price $14.90 Regular price
Datesheet:
1 pcs original price
5 pcs 8% off
10 pcs 10% off

Customization & Manufacturing

Adapter Custom

Sometimes standard interfaces or adapters may not meet your special needs. We provide custom adapter service for this, make sure you can easily connect our screen with your device perfectly.

Prototype, Pilot Production, Mass Manufacturing

DisplayModule is a subsidiary of NexPCB, thanks to NexPCB's rich experience in design, prototype, mass production, we confidently declare that we can provide one-stop service.

Contact Form

I'm reaching out to DisplayModule because...

Product description

Display Specifications

  • Resolution : 1.92 pixel
  • Display Mode : Passive Matrix OLED
  • Display Color : Monochrome
  • Module Dimension : 32.9 (W) x 65.31 (H) x 1.427 (T)  mm
  • Viewing Area : 28.908 (W) x 39.34 (H) mm
  • Power Supply : 2.85 V
  • Panel Interface : I2C SPI
  • Module Interface : I2C
  • Controller IC : SH1108
  • Operation Temperature : -40℃~70℃
  • Storage Temperature : -40℃~85℃
