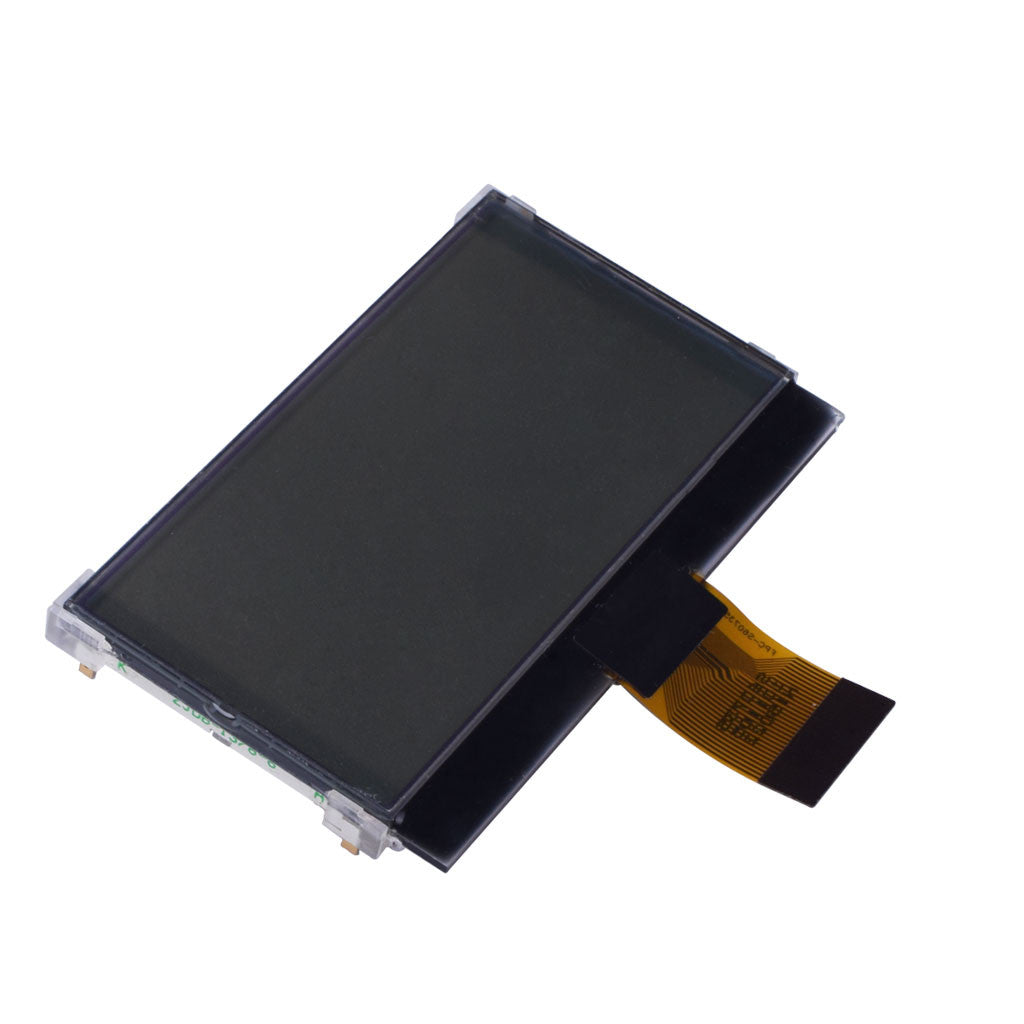

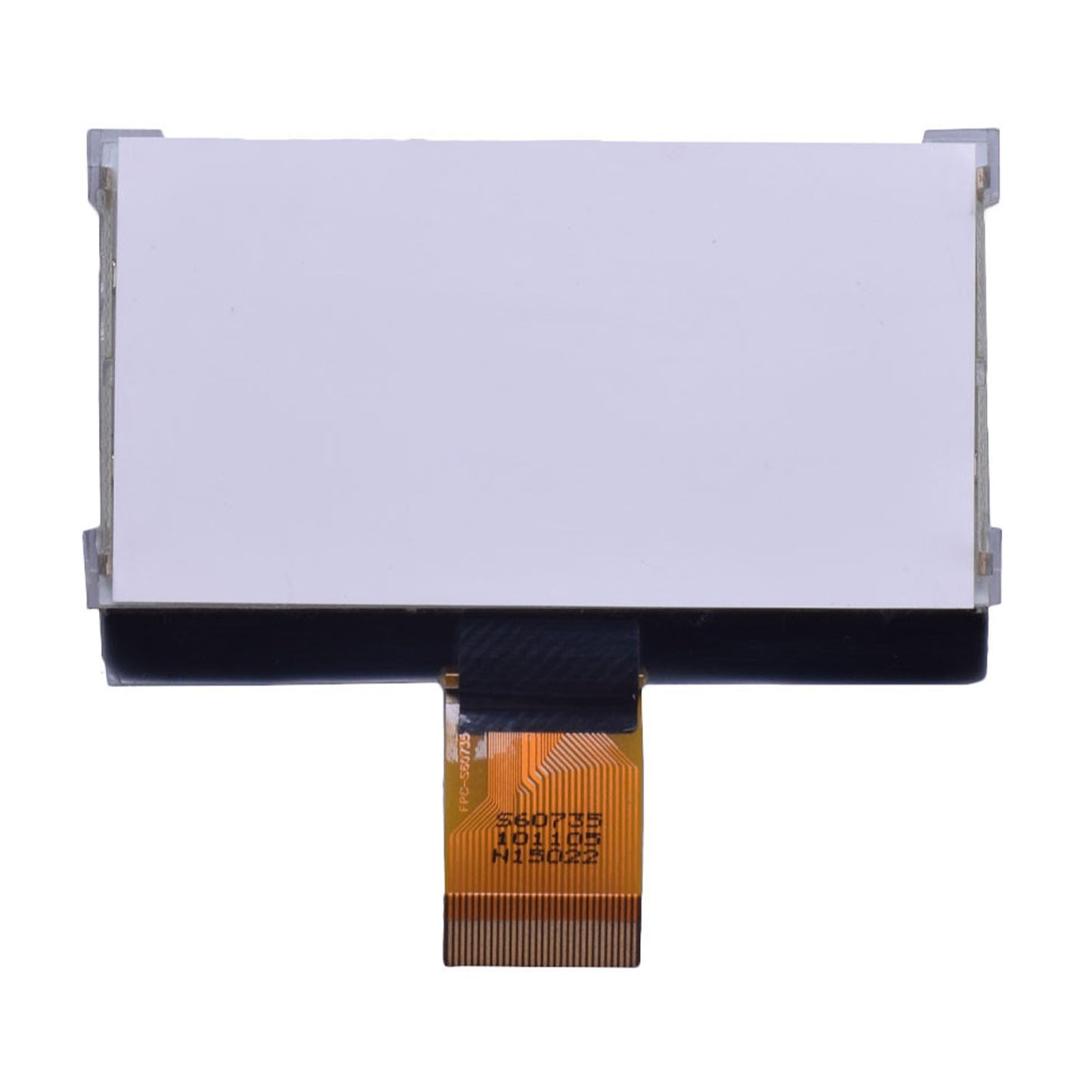

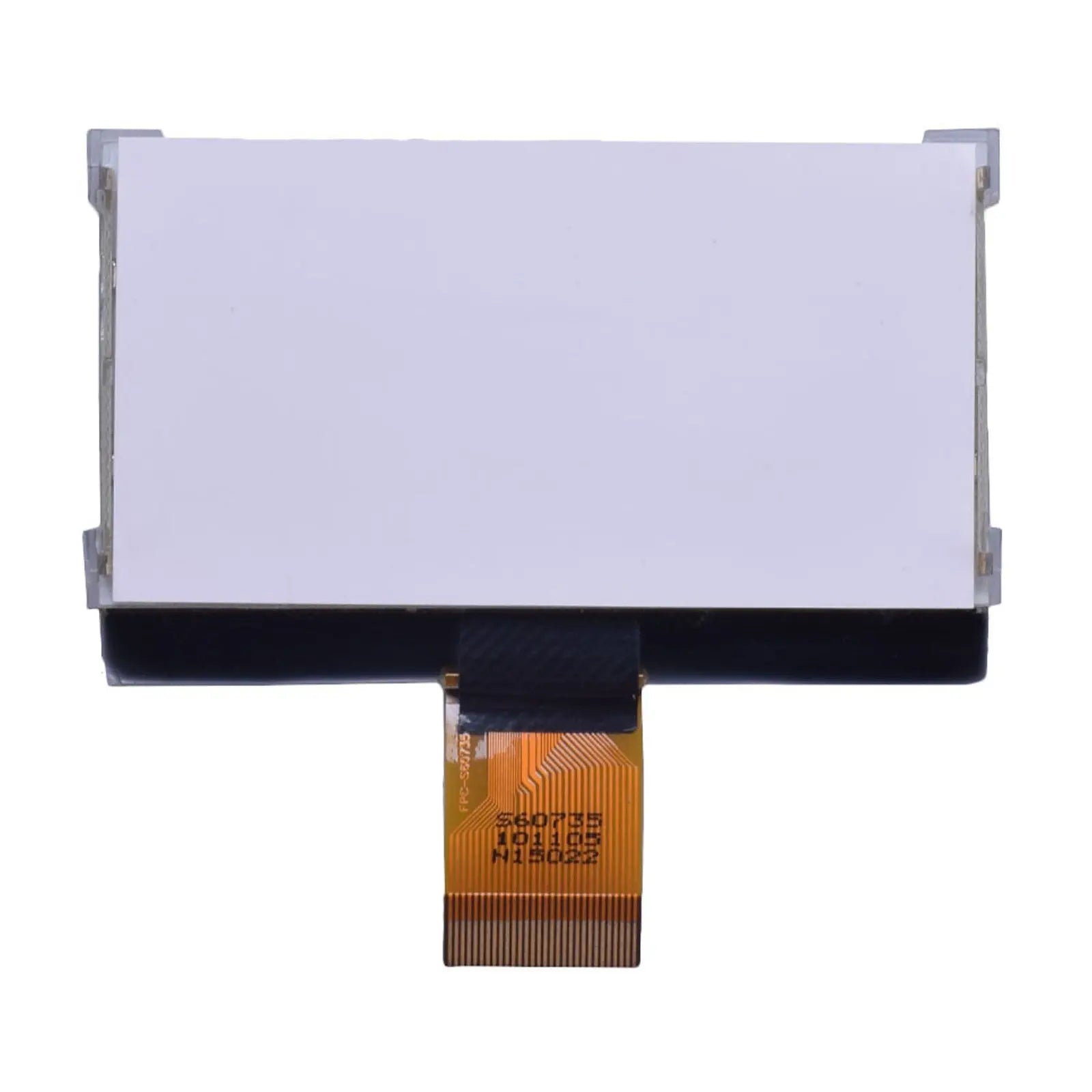

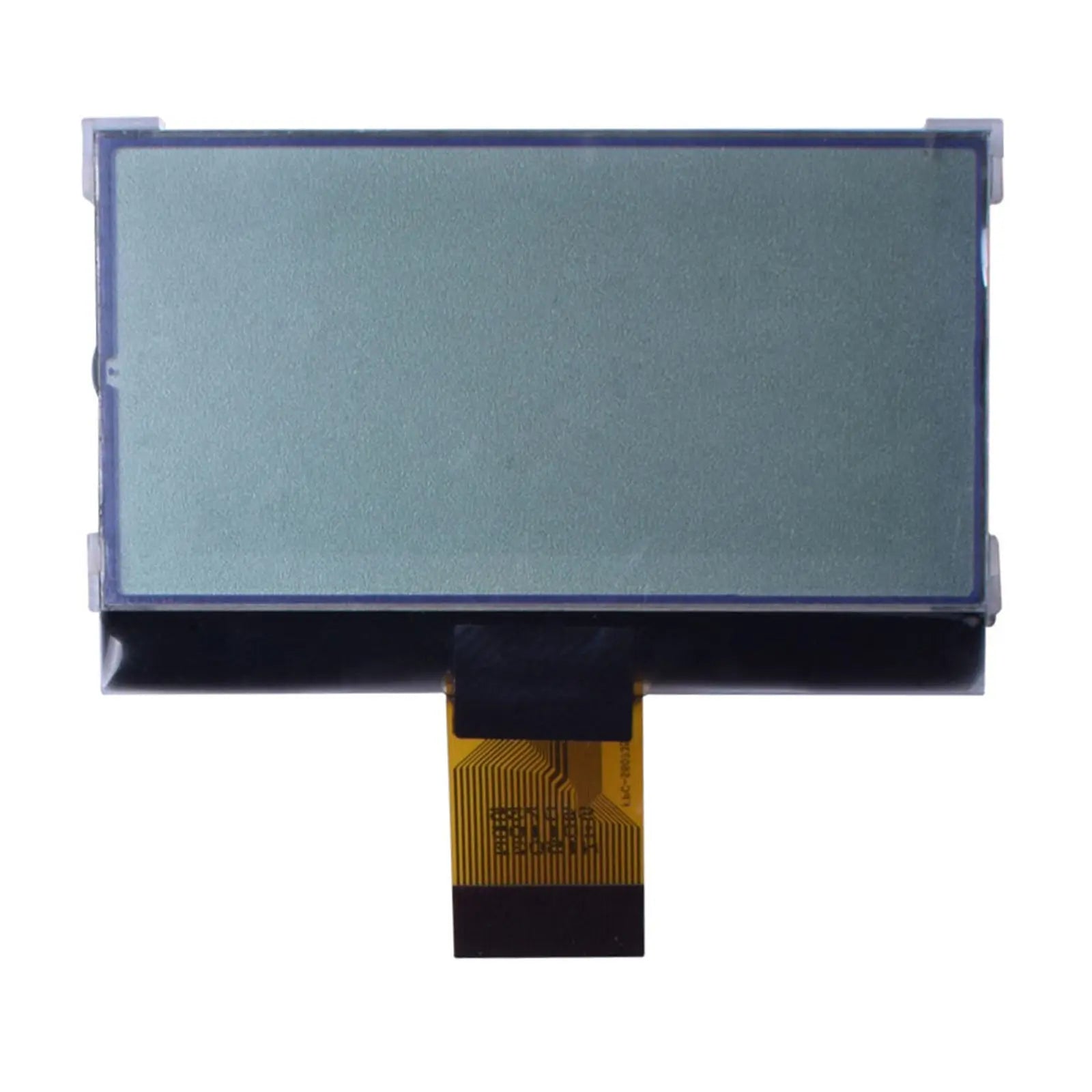

128x64 COG LCD Graphic Display 2.61" - MCU
High-performance 128x64 pixel COG (Chip-on-Glass) LCD display module featuring FSTN transflective technology for exceptional readability in various lighting conditions. Designed with ST7565R controller for reliable MCU integration.
Engineered for industrial and commercial applications, this display module combines crisp 128x64 pixel clarity with robust construction. The FSTN transflective technology ensures optimal visibility with 6:00 viewing direction and white LED edge backlight illumination.
- Dual Interface Support: Compatible with both 8080 and 6800 series MPU interfaces for flexible system integration.
- Wide Temperature Range: Operational from -20℃ to +70℃ with storage capability from -30℃ to +80℃.
- Compact Design: Lightweight 25.5g construction with efficient 2.61" display area.
- Enhanced Visibility: Transflective technology provides excellent readability in both indoor and outdoor lighting conditions.
| Technical Parameter | Specification |
|---|---|
| Display Type | FSTN Transflective |
| Resolution | 128 × 64 pixels |
| Controller IC | ST7565R |
| Interface | 8080/6800 MPU Interface |
| Power Supply | 3.3V ± 0.3V |
| View Direction | 6:00 o'clock |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Backlight | Edge White LED |
| Weight | 25.5 grams |
Custom display solutions tailored for industrial and commercial applications with flexible integration options and volume pricing.
- Custom Configuration: Tailored display solutions with modified interfaces, custom backlighting, and specialized firmware adaptations.
- Volume Procurement: Competitive pricing for bulk orders with dedicated technical support and extended warranty options.
- Integration Services: Professional integration support for complex system implementations and custom interface development.
Real-time monitoring displays for industrial equipment, process control systems, and manufacturing automation with reliable -20℃ to +70℃ operation.
Medical instrumentation displays requiring high reliability, clear readability, and stable performance in critical healthcare environments.
Battery-powered portable equipment with efficient 3.3V operation and compact 25.5g lightweight design for mobility applications.
Seamless integration with various microcontroller platforms and development environments for rapid prototyping and production deployment.
- Microcontroller Support: Compatible with ARM Cortex-M, PIC, AVR, and 8051 series microcontrollers
- Development Tools: Comprehensive driver libraries and example code for popular development platforms
- Interface Flexibility: Selectable 8080/6800 parallel interfaces with optional serial mode configuration
Technical Documentation: Complete technical specifications, interface protocols, and application notes available for download.
Resources: Download Product Datasheet | ST7565 Controller Documentation
Support: Technical support available for integration guidance and application-specific customization requirements.
Dimensions
