128x64 LCD Graphic Display 2.62" - MCU

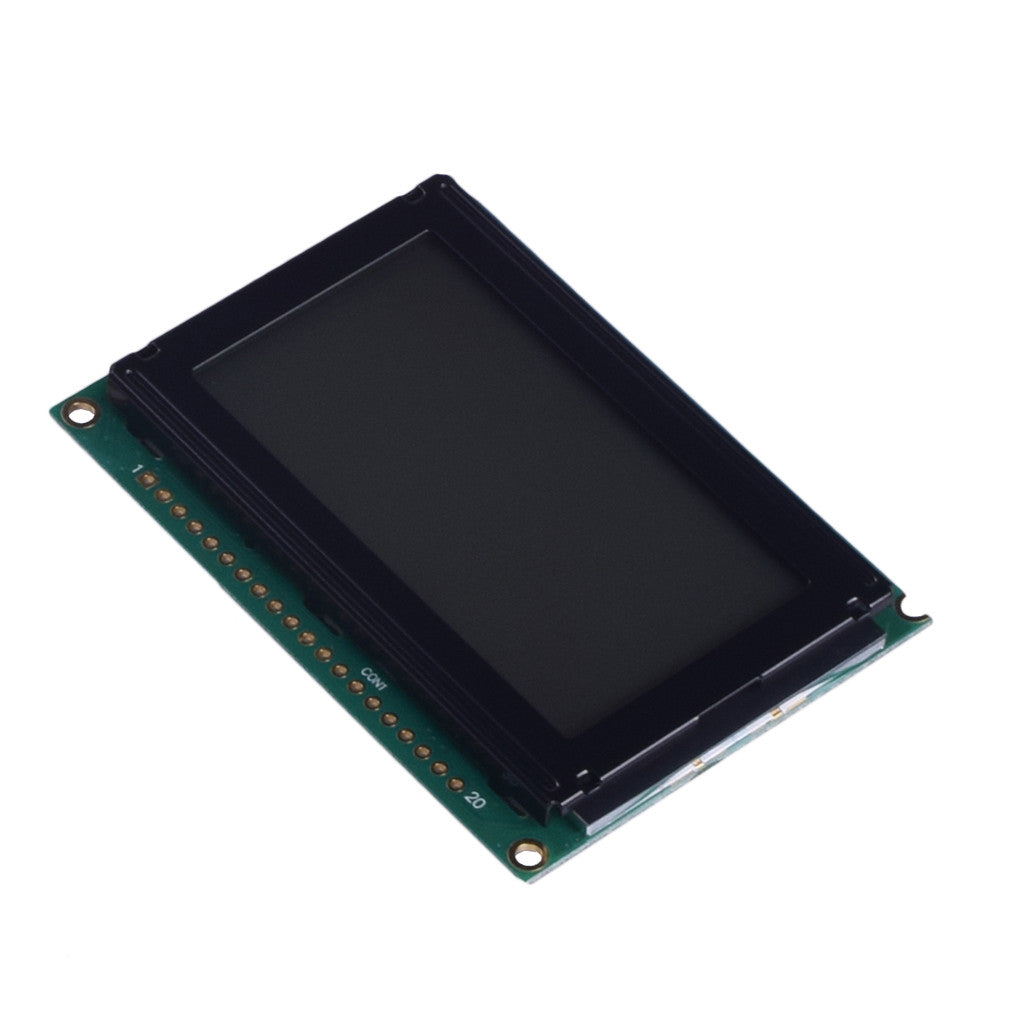

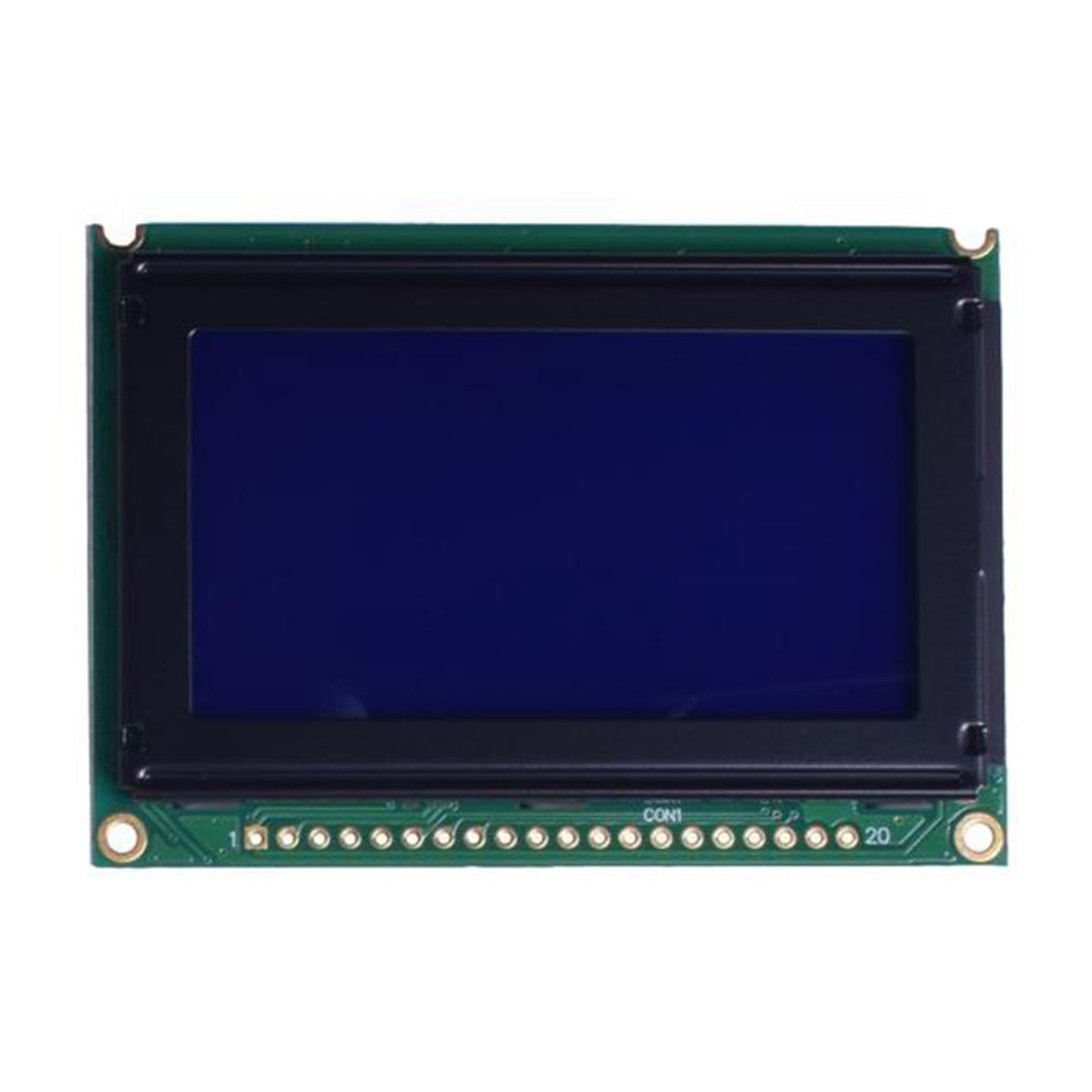

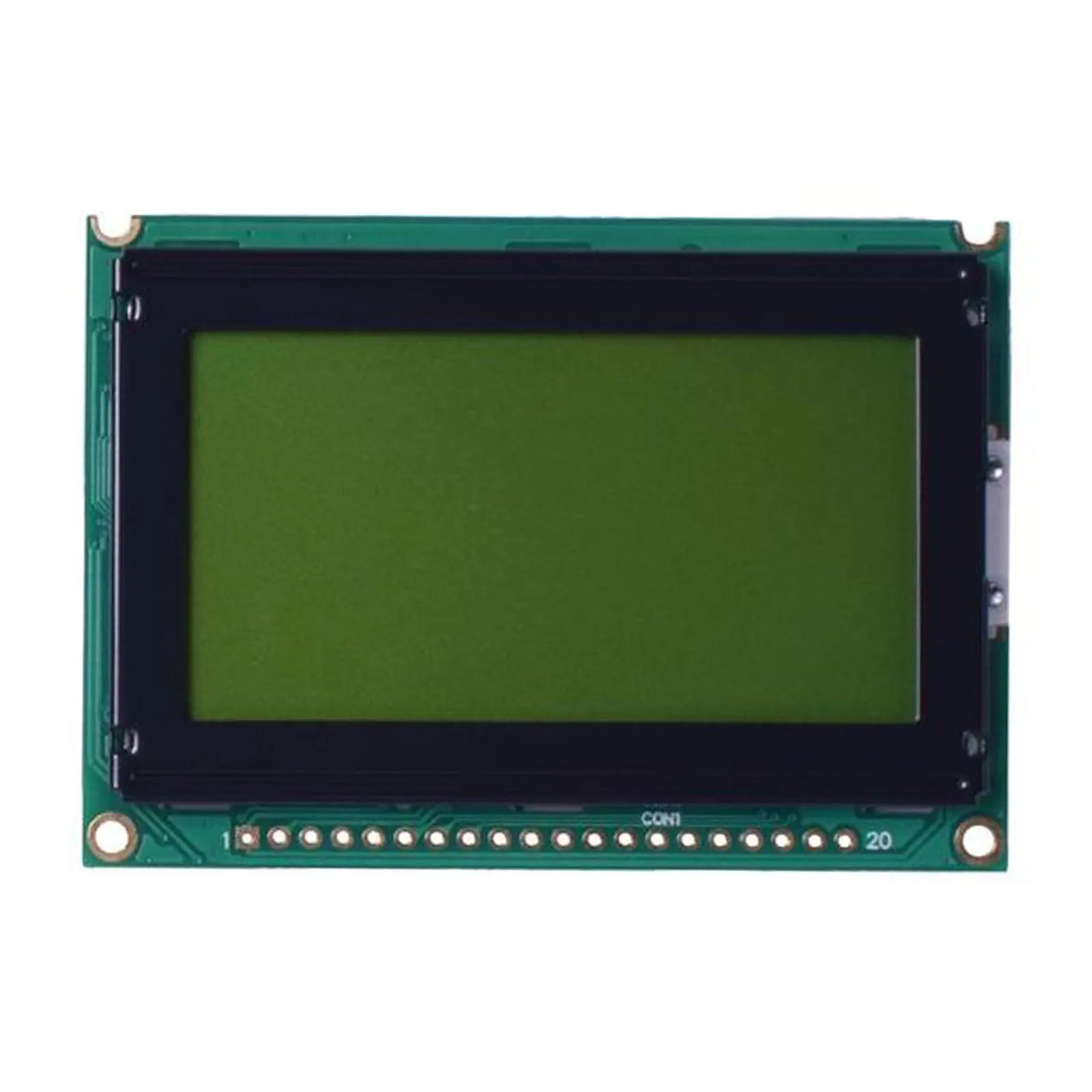

Professional-grade 128x64 graphic LCD display module designed for embedded systems and industrial applications. Featuring FSTN positive transflective technology with parallel MPU interface, delivering crisp graphics and reliable performance in a compact 75.0x52.7mm form factor.

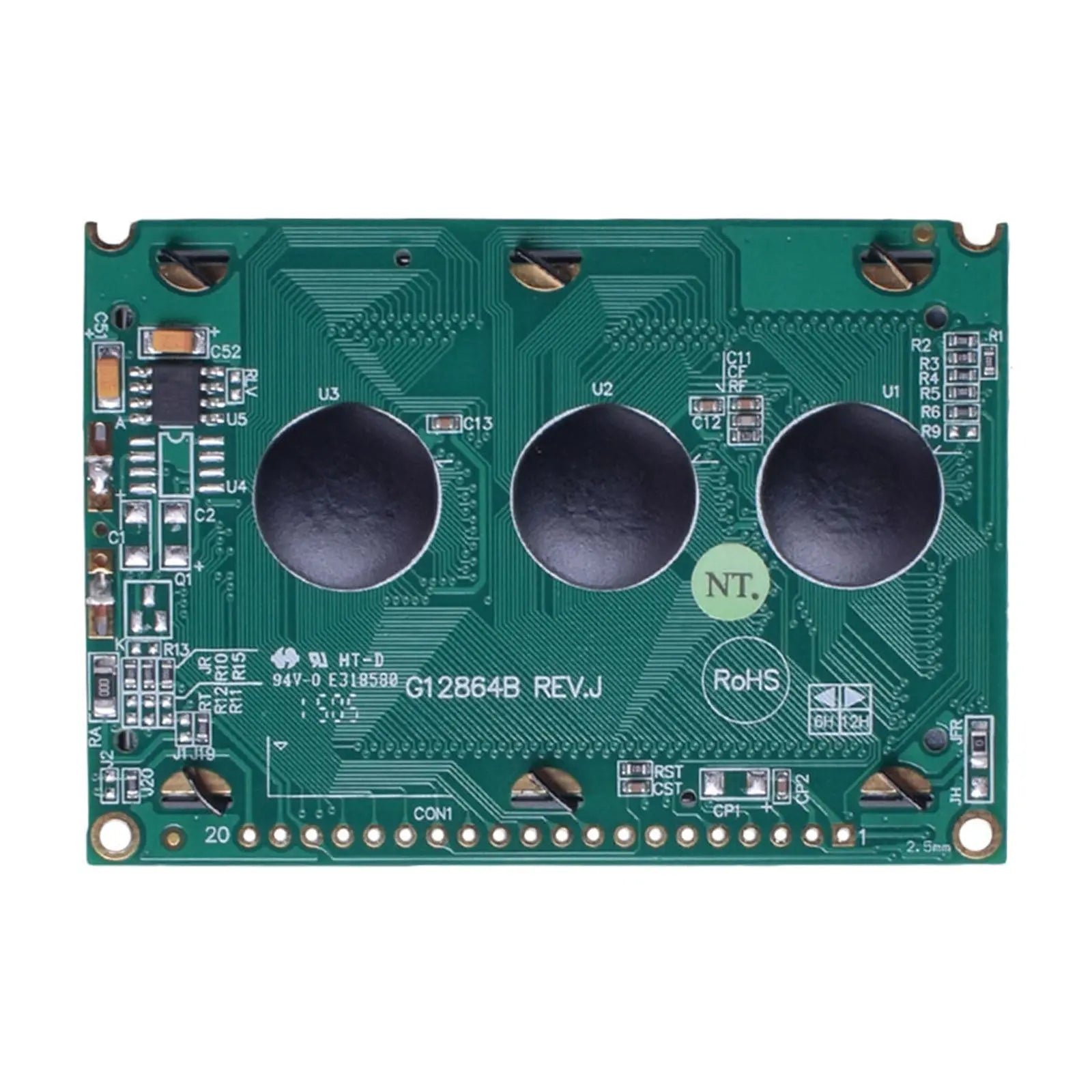

Engineered with NT7108 controller IC, this display module offers 512-byte display RAM capacity with automatic address increment functionality. The parallel MPU interface supports 8-bit data bus with 1000ns E-cycle timing, ensuring seamless integration with various microcontrollers.
- High Reliability: Operating temperature range of -20℃ to +70℃ with storage capability from -30℃ to +80℃, tested under rigorous environmental conditions including thermal shock and vibration resistance.
- Optimized Optics: 30° top viewing angle and 60° bottom viewing angle with 300-400ms response time, providing clear visibility across different lighting conditions.
- Efficient Backlight: White LED backlight system operating at 3.5V typical voltage with 48mA current consumption, delivering 520cd/m² luminance for excellent readability.
- Standard Interface: 20-pin parallel MPU interface with separate control signals (CS1, CS2, R/W, D/I, E) for flexible system integration.
| Parameter | Specification |
|---|---|
| Resolution | 128 × 64 dots |
| Display Mode | FSTN Positive, Transflective |
| Module Dimensions | 75.0 × 52.7 × 8.9mm (MAX) |
| Controller IC | NT7108 |
| Interface | Parallel MPU Interface |
| Power Supply | 5.0V (4.5-5.5V range) |
| View Direction | 6:00 o'clock |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Weight | 35.5g |
| Backlight Type | White LED |
| Backlight Voltage | 3.4-3.6V (Typical 3.5V) |
| Backlight Current | 43.2-60mA (Typical 48mA) |
| Contrast Ratio | 5:1 |
| Response Time | 300-400ms |
We offer customized display solutions for OEM and bulk procurement requirements, supporting various industrial and commercial applications with flexible configuration options.
- Custom Configuration: Tailored display parameters including contrast adjustment, backlight intensity, and interface timing to match specific application requirements.
- Bulk Procurement Programs: Volume discounts and dedicated technical support for large-scale deployments in industrial automation and medical equipment.
White-Label Options: Custom branding and packaging solutions for system integrators and value-added resellers. Industry ApplicationsINDUSTRIAL CONTROL SYSTEMSReal-time monitoring displays for PLC interfaces, CNC machines, and process control panels with reliable operation in harsh environments.
MEDICAL EQUIPMENTPatient monitoring devices, diagnostic equipment, and portable medical instruments requiring clear graphics and low power consumption.
TEST AND MEASUREMENTOscilloscope displays, multimeter interfaces, and laboratory instruments benefiting from the 128x64 resolution and parallel interface.
CompatibilityDesigned for seamless integration with various microcontroller units through standard parallel MPU interface. Compatible with most 8-bit and 16-bit microcontrollers supporting 5V logic levels.
- Interface Standard: Parallel MPU interface with 8-bit data bus (DB0-DB7) and control signals (CS1, CS2, R/W, D/I, E)
- Voltage Compatibility: 5V logic levels with 4.5V to 5.5V operating range, compatible with TTL and CMOS logic families
- Timing Compliance: Meets standard MPU timing requirements with 1000ns E-cycle and 450ns enable pulse width
Technical ResourcesTechnical Documentation: Comprehensive datasheets and application notes available for download to support your design and integration process.
Resources: DM-LCD12864-456 Datasheet | DM-LCD12864-457 Datasheet | DM-LCD12864-458 Datasheet | NT7108 Controller IC Datasheet
