160x128 Graphic LCD 5.12" - MCU

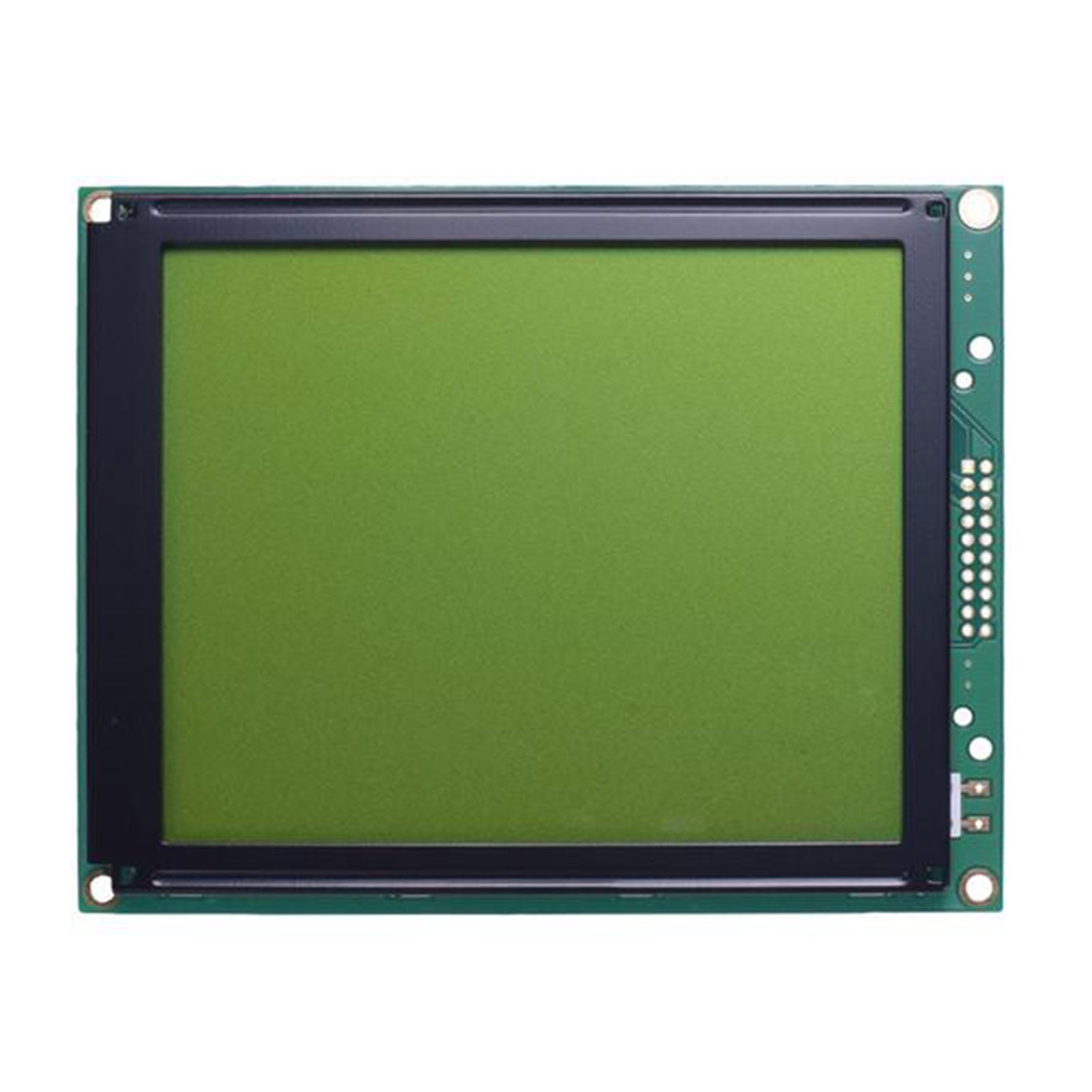

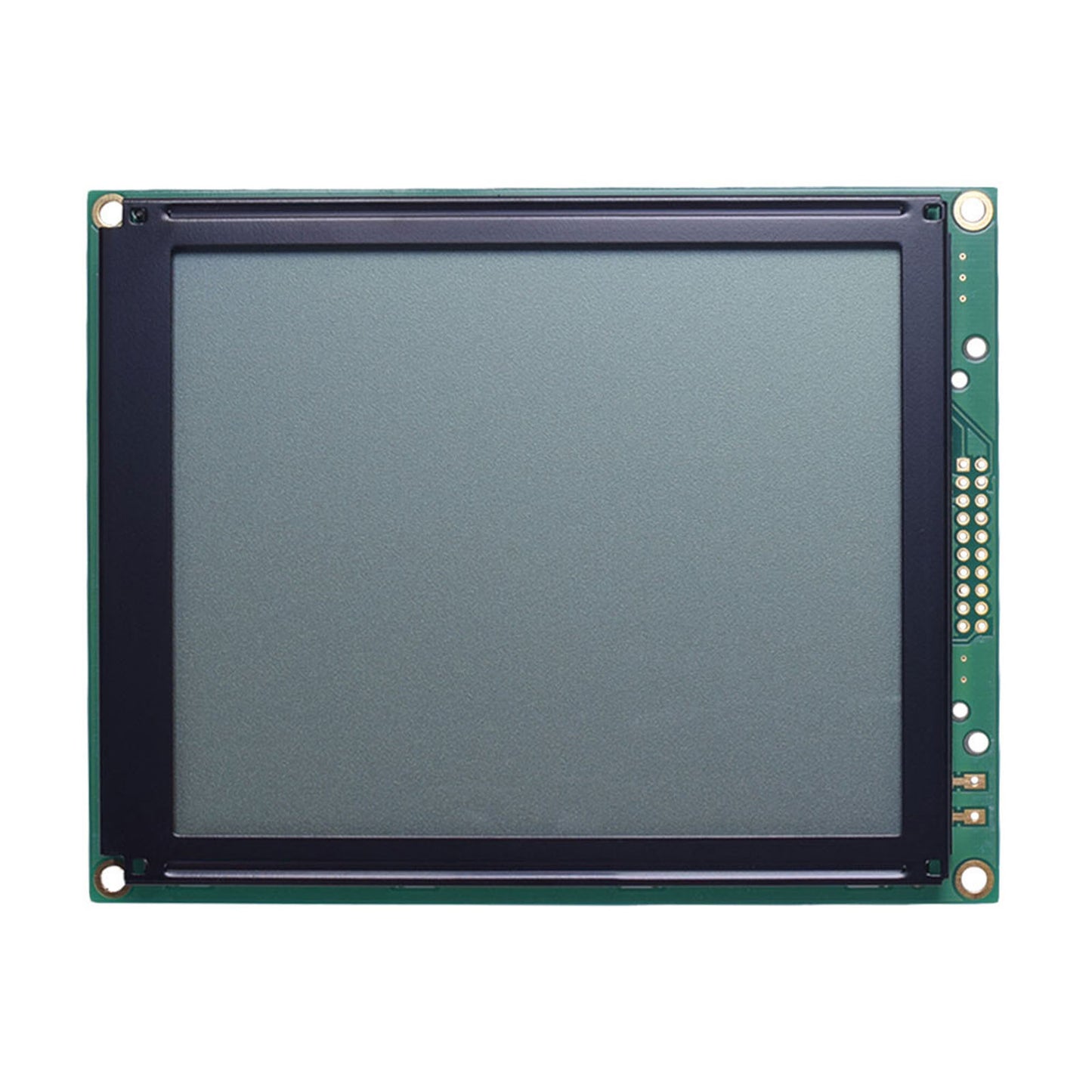

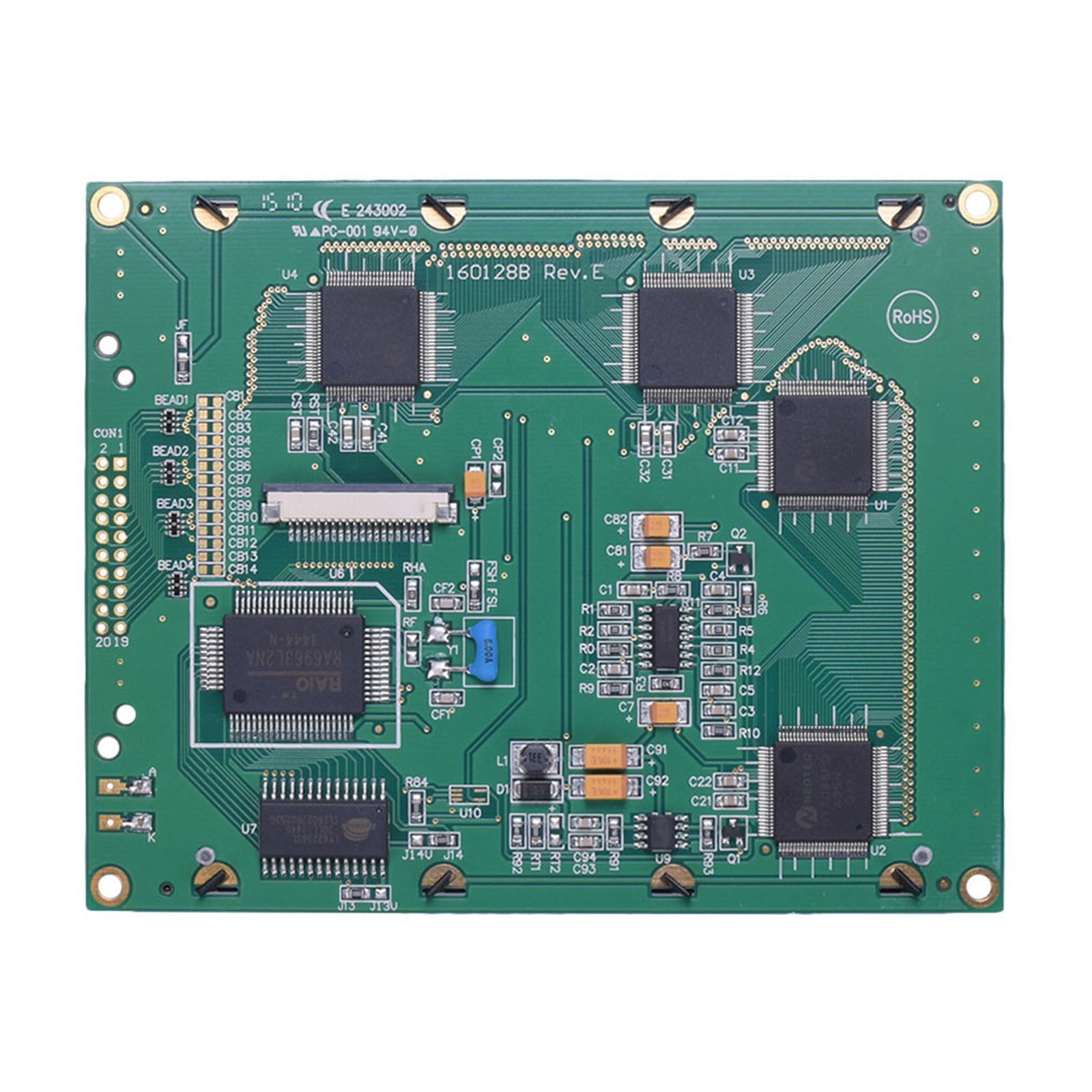

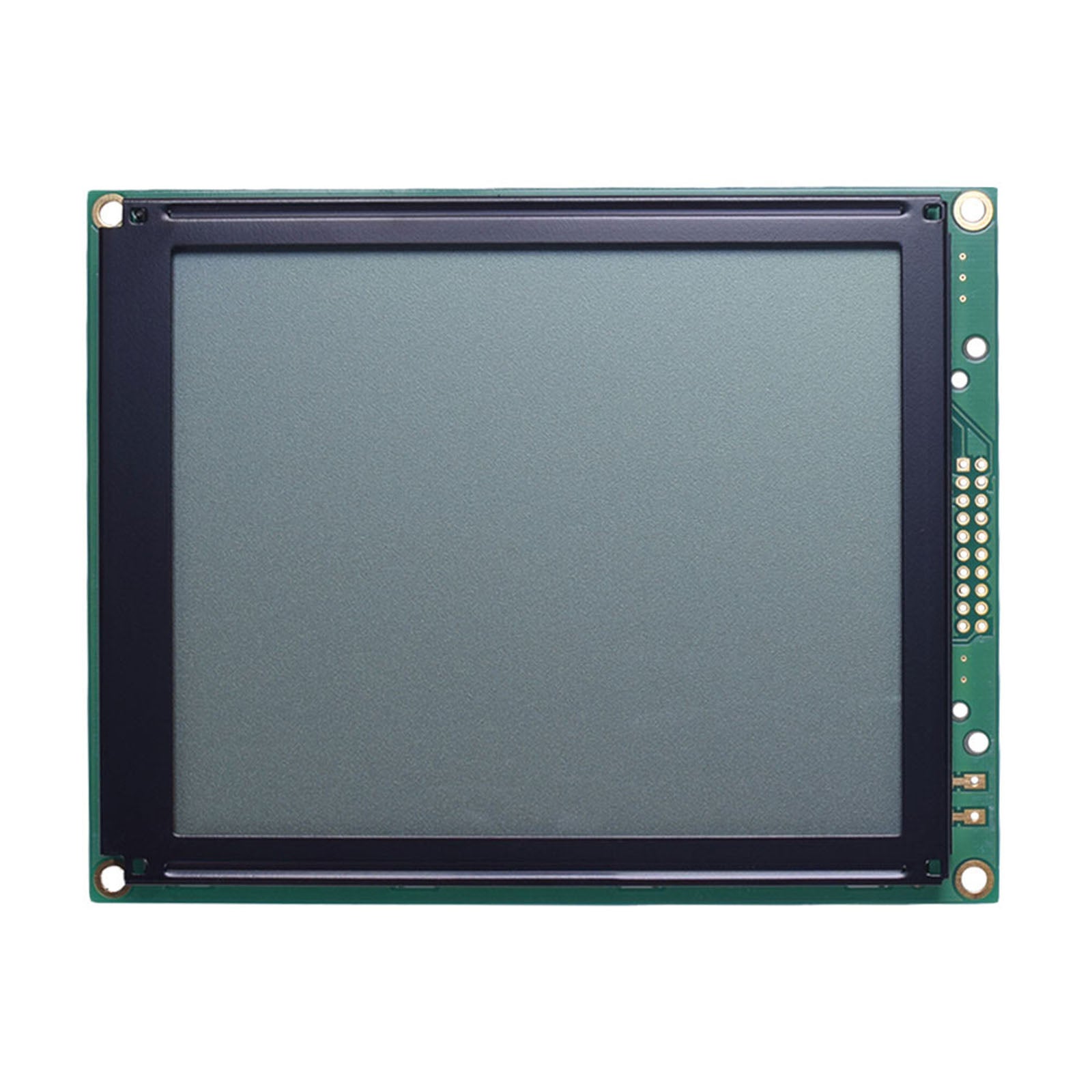

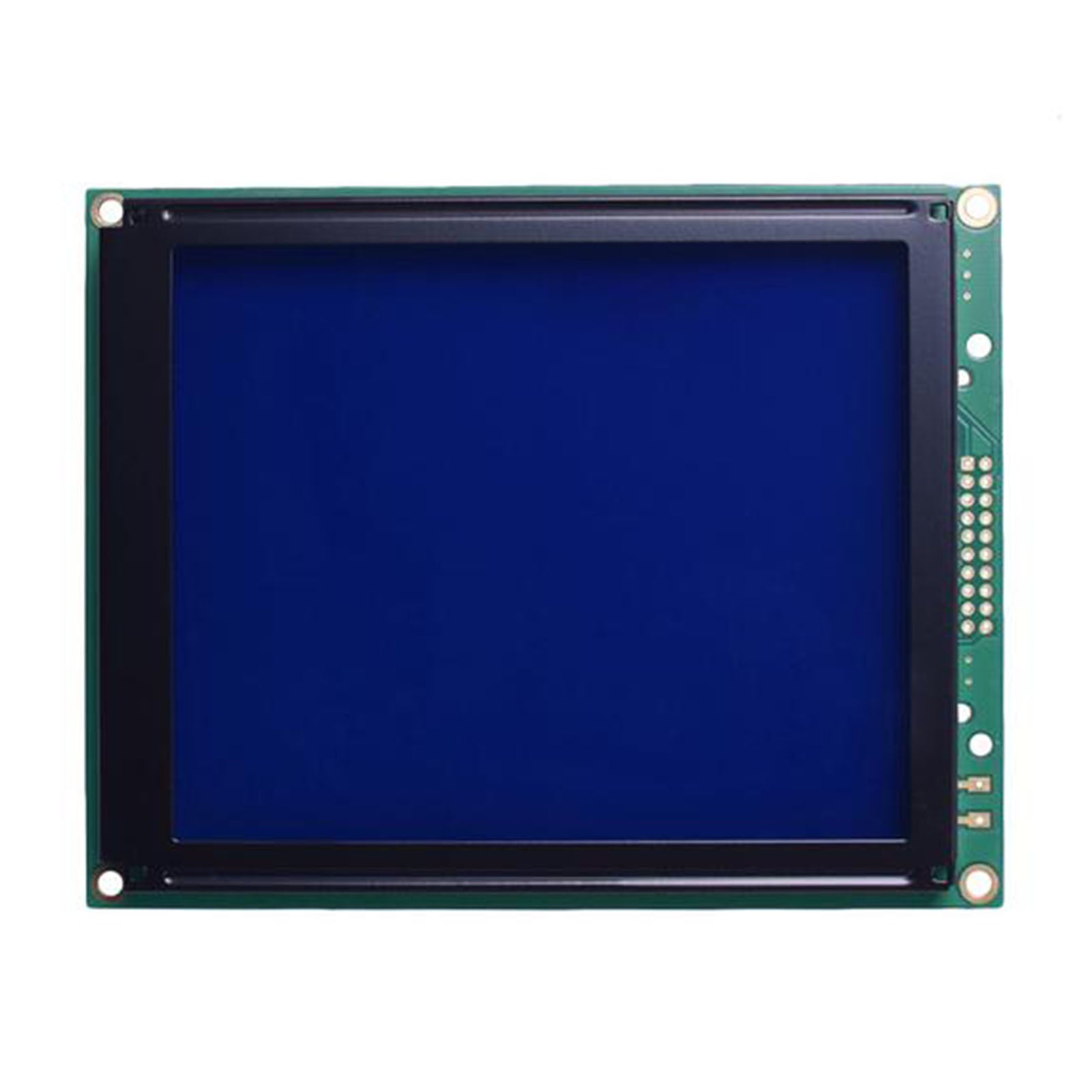

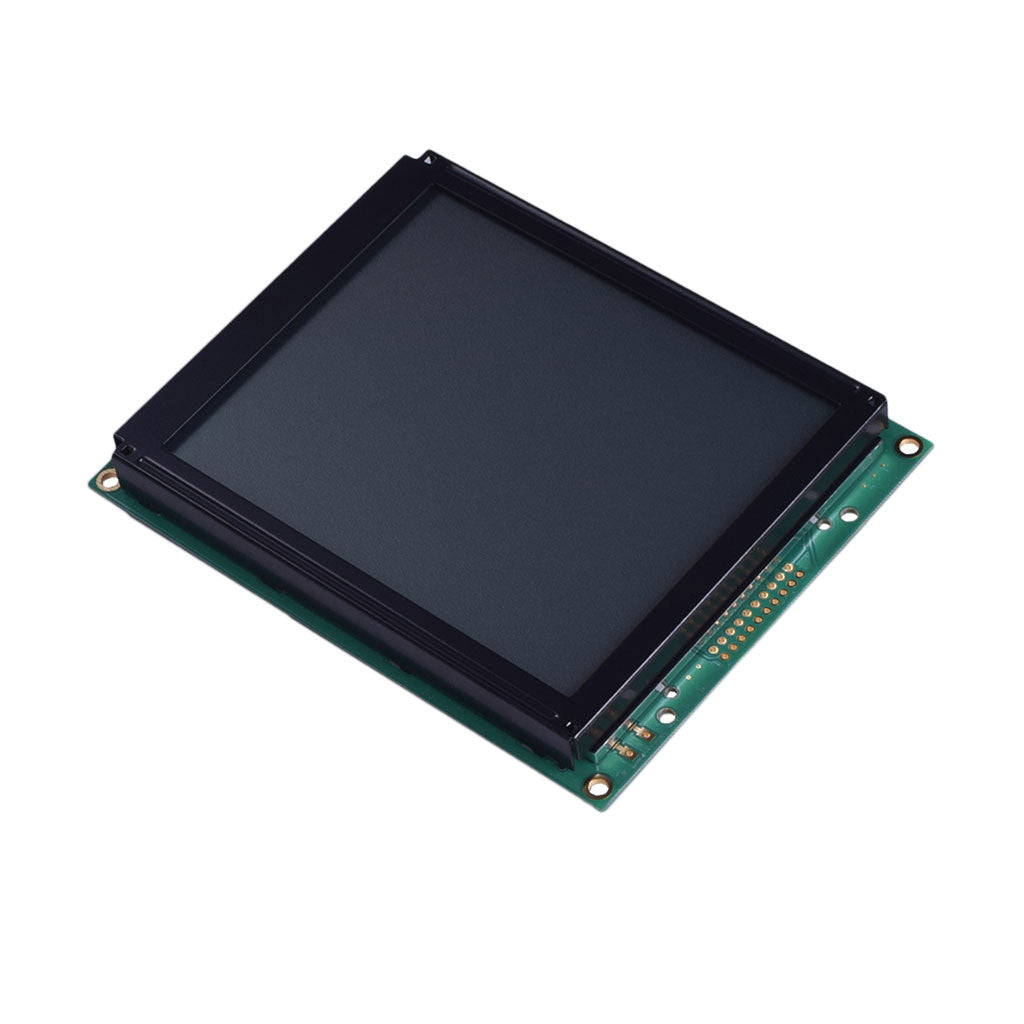

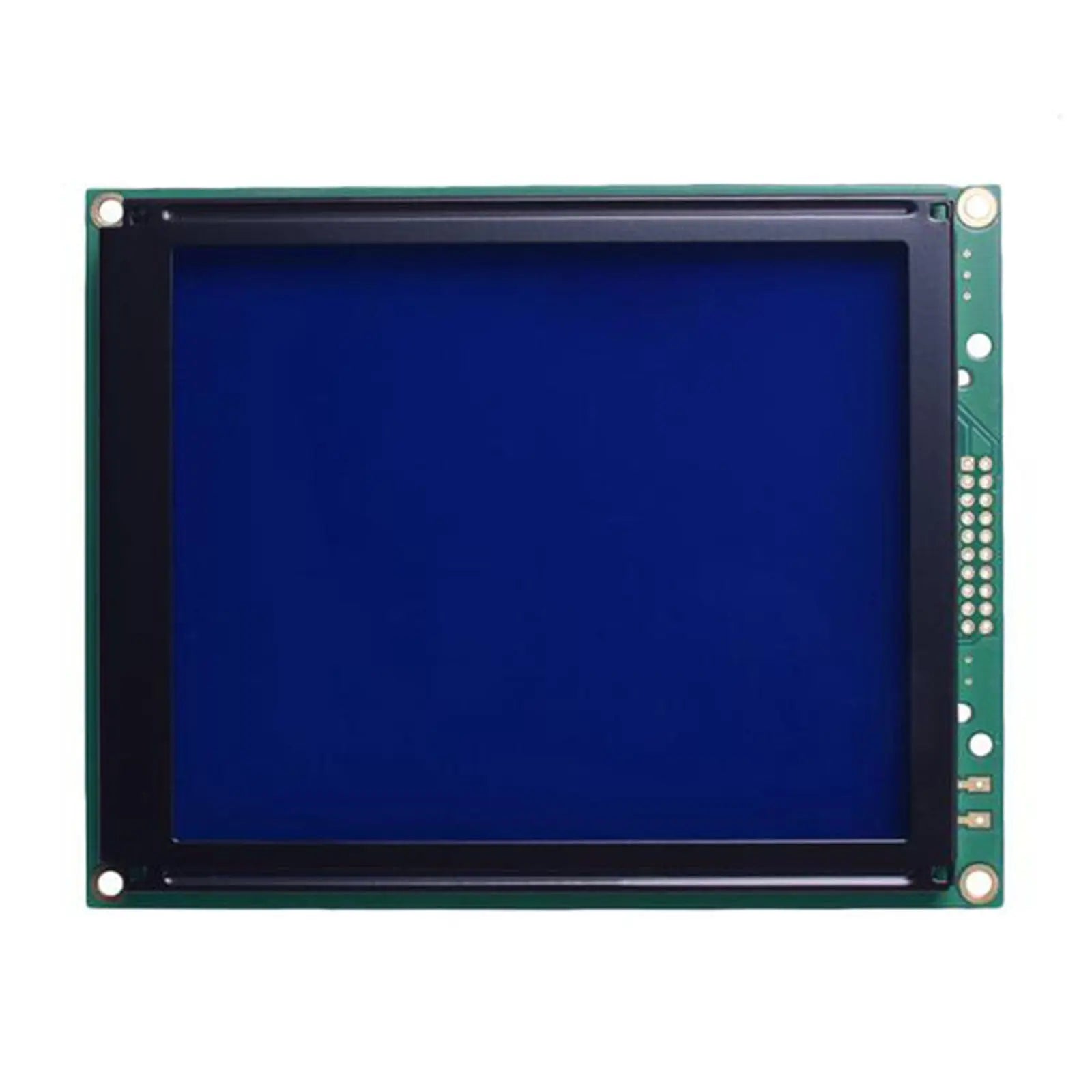

This 5.12-inch graphic LCD module delivers crisp 160x128 pixel resolution with FSTN positive transflective technology, ensuring clear visibility even in bright environments. Powered by the RA6963 controller, it supports parallel MPU interface for seamless integration into embedded systems.
Designed for reliability, the module operates from -20°C to 70°C with a compact footprint of 129.0 x 102.0 mm. The white LED backlight provides uniform illumination while consuming minimal power at 5V supply.
- High Compatibility: Fully compatible with T6963C-based systems, supporting text, graphic, and mixed display modes.
- Robust Construction: Module weight of 171.4g with sturdy 20-pin connector for industrial durability.
- Wide Viewing Angle: 6:00 view direction optimizes readability from standard angles.
- Easy Integration: Parallel interface simplifies connection to microcontrollers like 8080 series MPUs.
| Parameter | Specification |
|---|---|
| Resolution | 160 x 128 pixels |
| Display Mode | FSTN Positive, Transflective |
| View Direction | 6:00 |
| Module Dimension | 129.0 x 102.0 x 16.5(MAX) mm |
| Power Supply | 5.0V |
| Backlight | White LED |
| Interface | Parallel MPU Interface |
| Controller IC | RA6963 |
| Operation Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Weight | 171.4g |
We offer customized solutions for bulk orders and OEM applications, ensuring tailored performance for your specific needs.
- Custom Configuration: Modify display parameters, backlight options, or interface protocols to match your product requirements.
- Volume Discounts: Competitive pricing for large-scale purchases with flexible MOQ options.
- Technical Support: Dedicated engineering assistance for integration and troubleshooting.
Ideal for HMI panels in machinery, PLC interfaces, and monitoring systems due to wide temperature tolerance and reliable performance.
Used in portable medical equipment where clear display and low power consumption are critical, such as patient monitors.
Integrated into dashboard displays and diagnostic tools, leveraging the robust design for vibration-resistant operation.
Compatibility Notes: Compatible with RA6963 controller commands, supporting features like auto-read/write, screen peek, and attribute modes. Ensure proper initialization sequence for optimal performance.
Resources: DM-LCD160128-465 Datasheet | DM-LCD160128-466 Datasheet | DM-LCD160128-467 Datasheet | RA6963-V1.3 Driver IC Documentation
