16x1 Character LCD FSTN Transflective - MCU

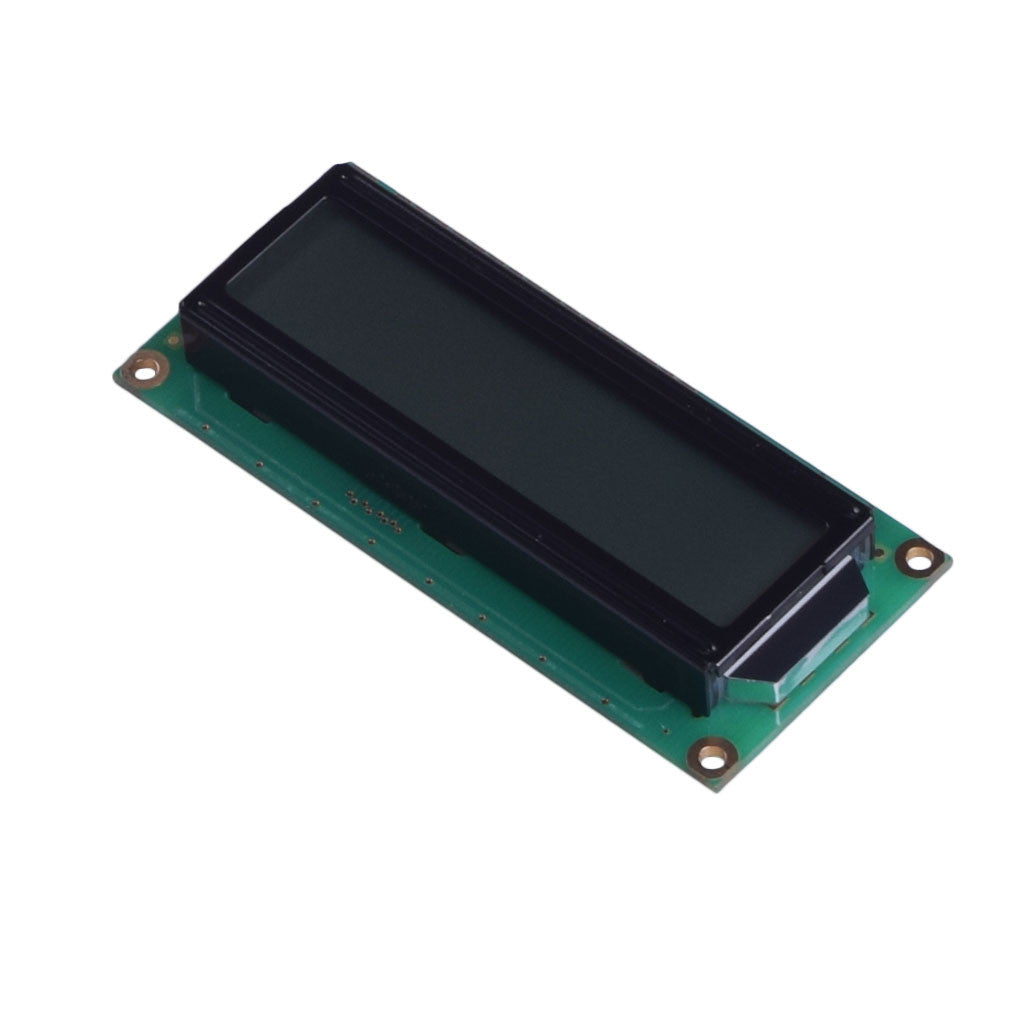

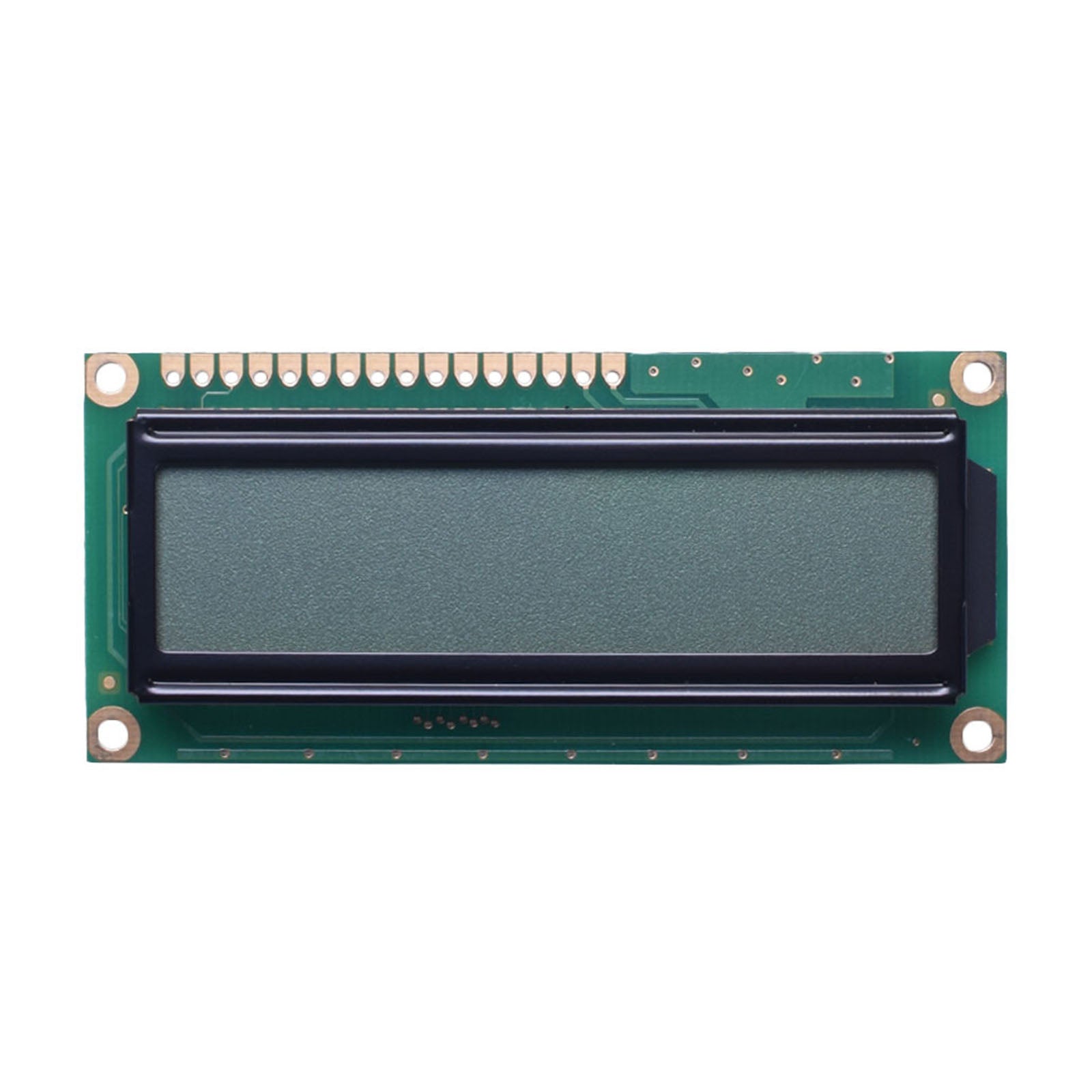

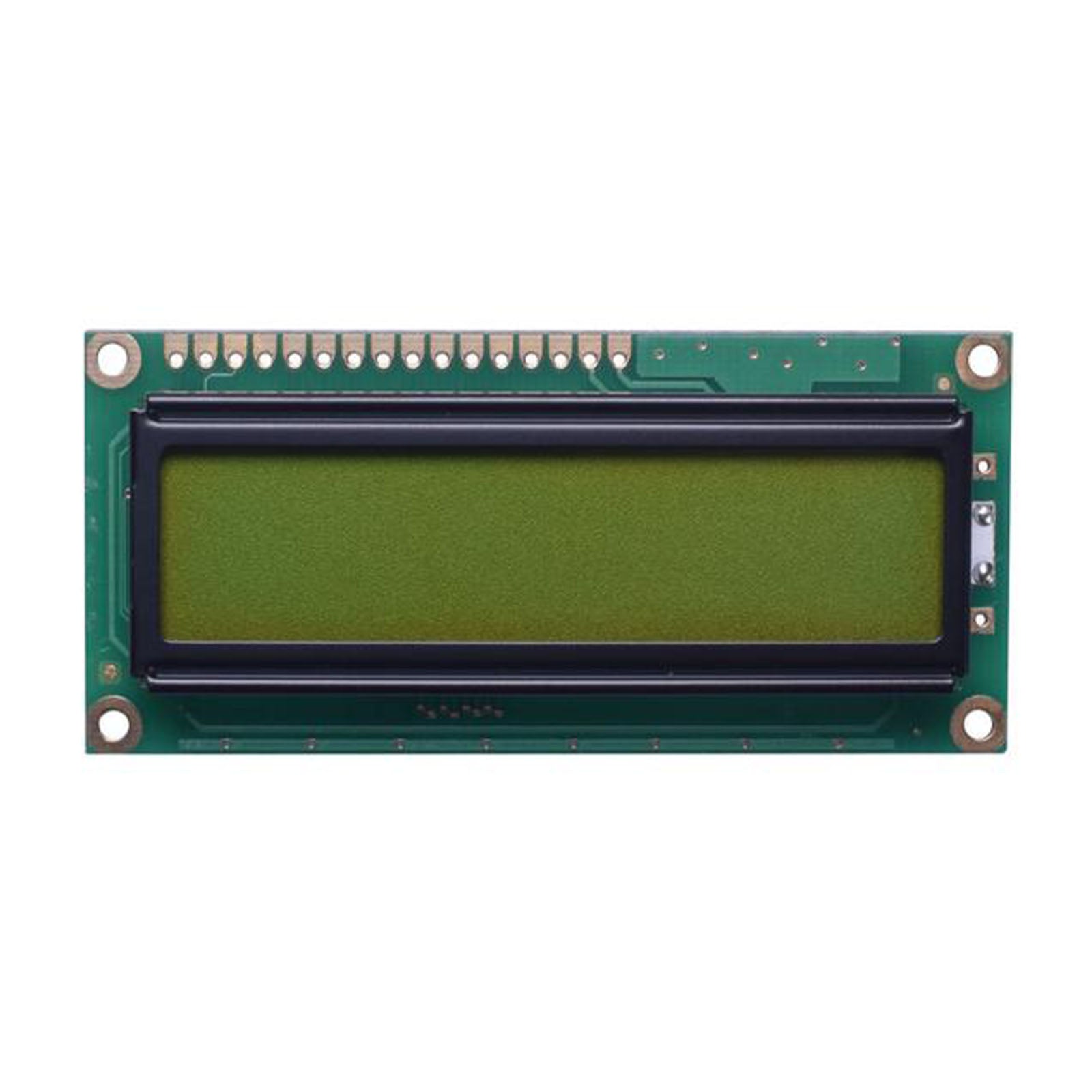

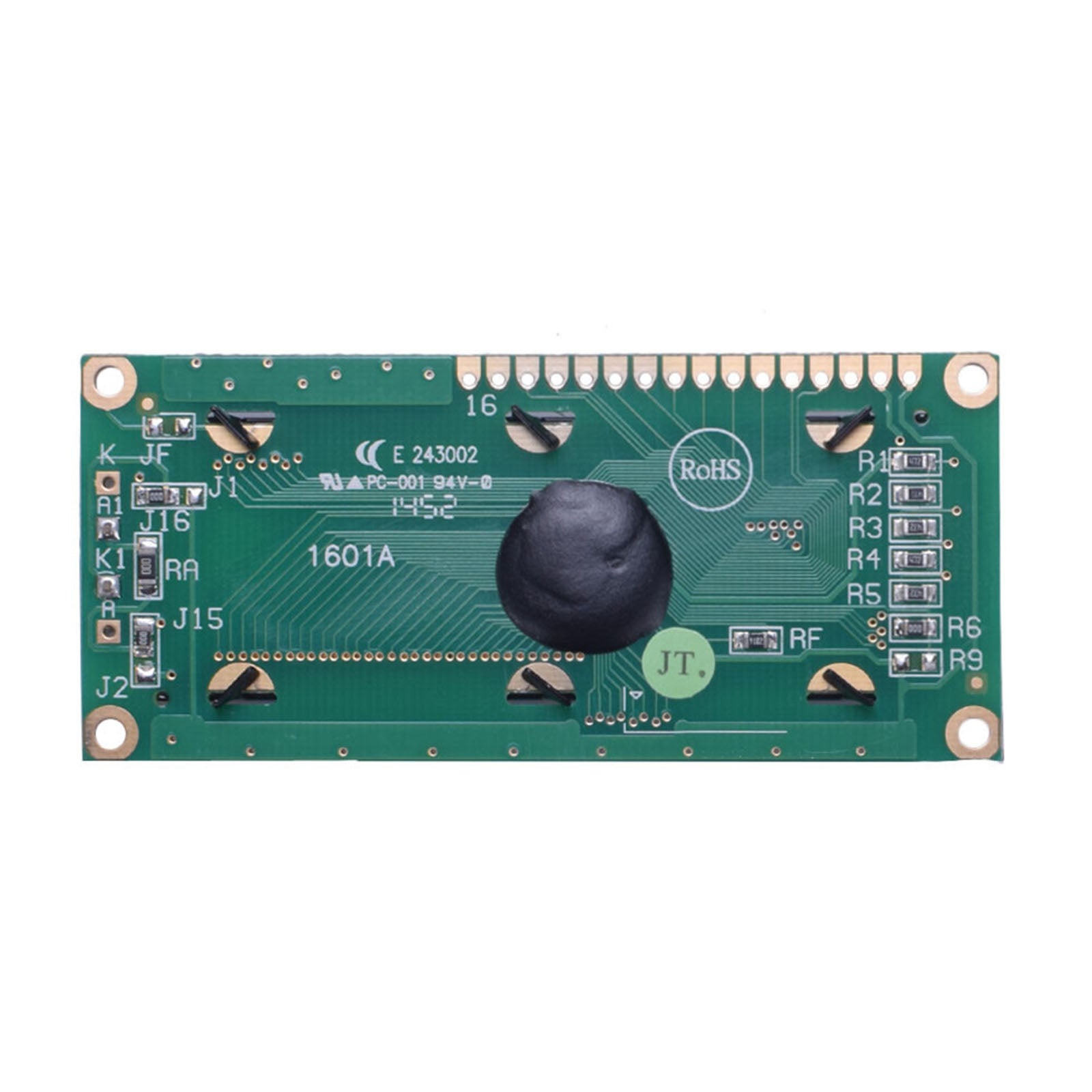

This 16x1 character LCD module features a FSTN (Film Super-Twisted Nematic) positive display with transflective technology, ensuring optimal readability under both ambient light and backlit conditions. Designed for embedded systems, it integrates the ST7066U controller for seamless parallel MPU interface compatibility.
With a compact module size of 80.0 x 36.0 x 13.5 mm and weighing only 34.2 grams, this LCD is ideal for space-constrained applications. The white LED backlight provides uniform illumination with a typical supply current of 130 mA, while the ST7066U controller supports 4-bit or 8-bit data bus modes for flexible system integration.
- High Contrast Ratio: Delivers a typical contrast ratio of 5:1 for sharp character visibility.
- Wide Operating Range: Functions reliably from -20°C to +70°C, with storage tolerance up to -30°C to +80°C.
- Low Power Consumption: Logic supply current typ. 1.2 mA at 5.0 V, minimizing energy use.
- Easy Integration: Plug-and-play compatibility with common MCUs via parallel interface.
| Parameter | Specification |
|---|---|
| Display Format | 16 characters x 1 line |
| Display Mode | FSTN Positive, Transflective |
| Module Dimensions | 80.0 x 36.0 x 13.5 mm (MAX) |
| Weight | 34.2 grams |
| Power Supply | 5.0 V (4.5 V to 5.5 V range) |
| Backlight | White LED |
| Backlight Current | 117 mA (Min), 130 mA (Typ), 156 mA (Max) |
| Interface | 6800 Series MPU Interface |
| Controller IC | ST7066U |
| View Direction | 6:00 o'clock |
| Viewing Angles | Top: 30° (Typ), Bottom: 60° (Typ), Left/Right: 45° (Typ) |
| Response Time | 300 ms (Typ), 400 ms (Max) at 25°C |
| Contrast Ratio | 5 (Typ) |
| Luminance | 500 cd/m² (Typ) without LCD |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
We offer customized solutions for bulk orders and specialized applications. Our team can tailor the LCD module to meet specific requirements, including custom branding, extended temperature ranges, or interface modifications.
- Bulk Procurement: Volume discounts and dedicated support for large-scale deployments.
- Customization Services: Modifications to backlight, interface, or firmware for unique use cases.
This LCD module is widely used in various industries due to its reliability and ease of integration. Below are common application scenarios.
Ideal for machinery interfaces, PLC displays, and sensor readouts where clear character visibility and ruggedness are critical.
Used in portable diagnostic equipment and monitoring systems, thanks to its low power consumption and transflective display.
Integrated into home appliances, POS systems, and embedded gadgets requiring a compact display solution.
The module is compatible with a wide range of microprocessors via the 6800 series MPU interface. The ST7066U controller supports both 4-bit and 8-bit data bus modes, ensuring flexibility with popular MCUs like ARM, AVR, and PIC.
- Interface Modes: Configurable as 4-bit or 8-bit parallel interface for easy adaptation.
- Voltage Levels: Works with 5V logic systems, matching standard MCU outputs.
Technical Notes: For optimal performance, ensure power supply stability within 4.5V to 5.5V. The module requires initialization via standard ST7066U command sequences. Refer to the datasheets for detailed timing diagrams and instruction sets.
Resources: Download DM-LCD1601-412 Datasheet | DM-LCD1601-411 Datasheet | ST7066U Controller Datasheet
