16x2 Character LCD STN Transflective - MCU

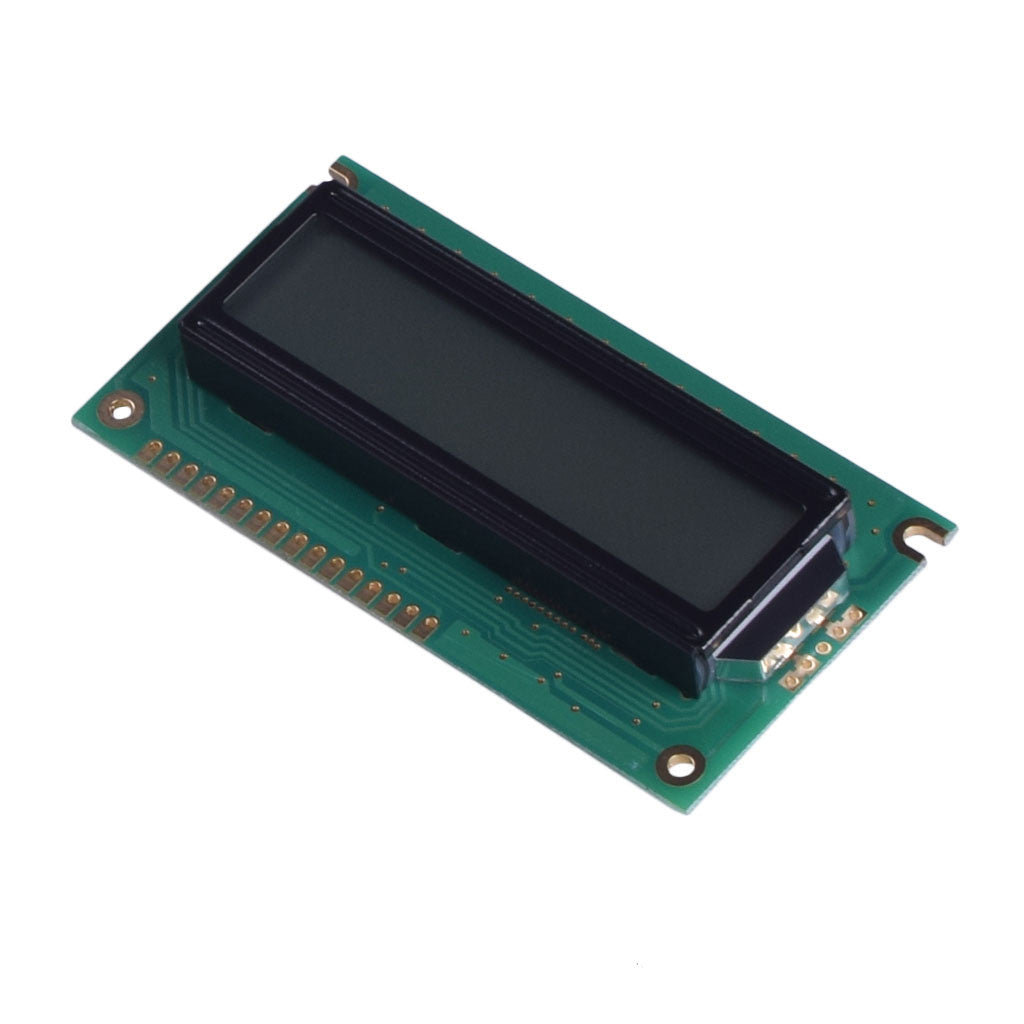

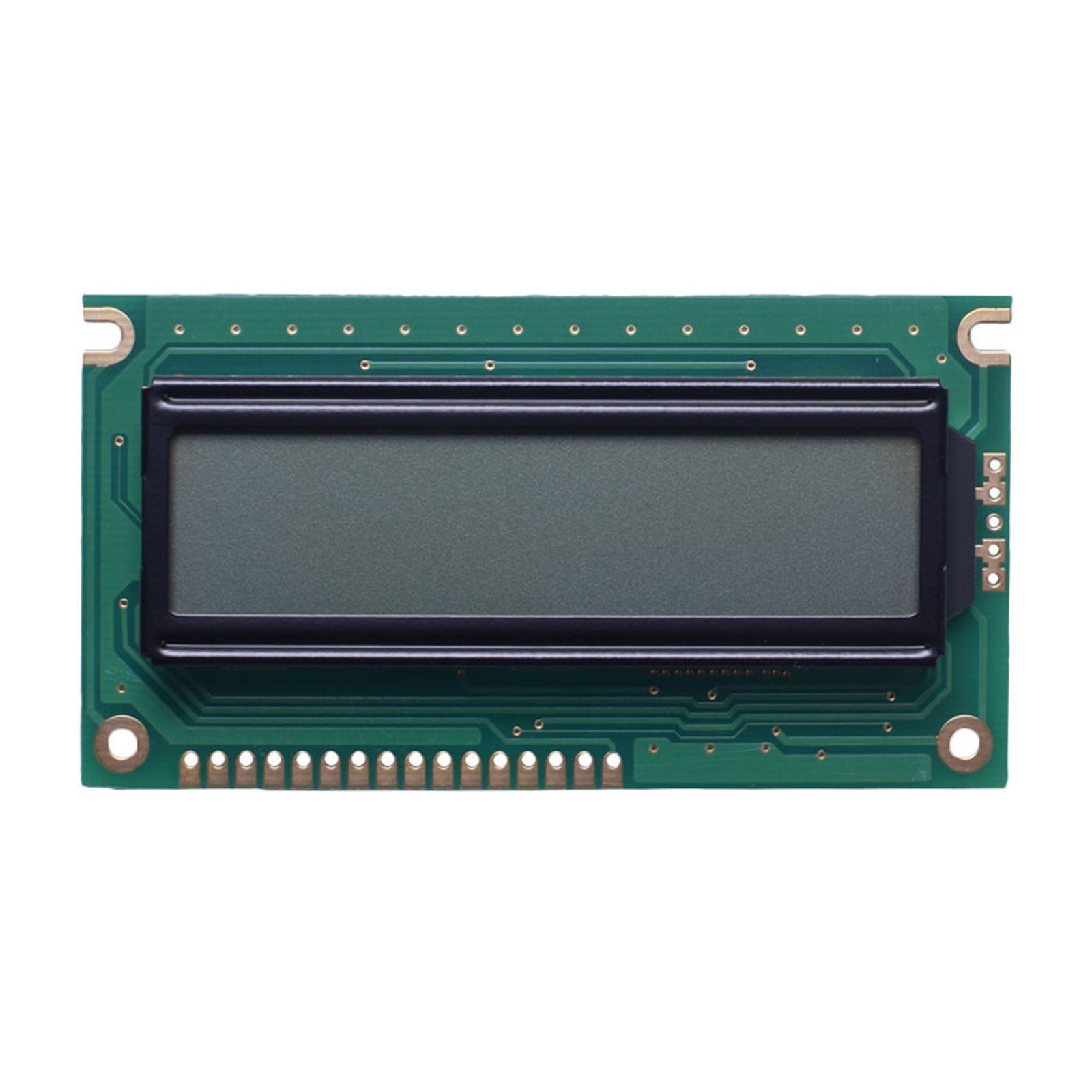

The 16x2 Character LCD STN Transflective Module is a high-reliability display solution designed for embedded systems, offering clear visibility with yellow-green transflective technology and low power consumption. Featuring a built-in ST7066U controller, it supports parallel MPU interface for seamless integration with microcontrollers.

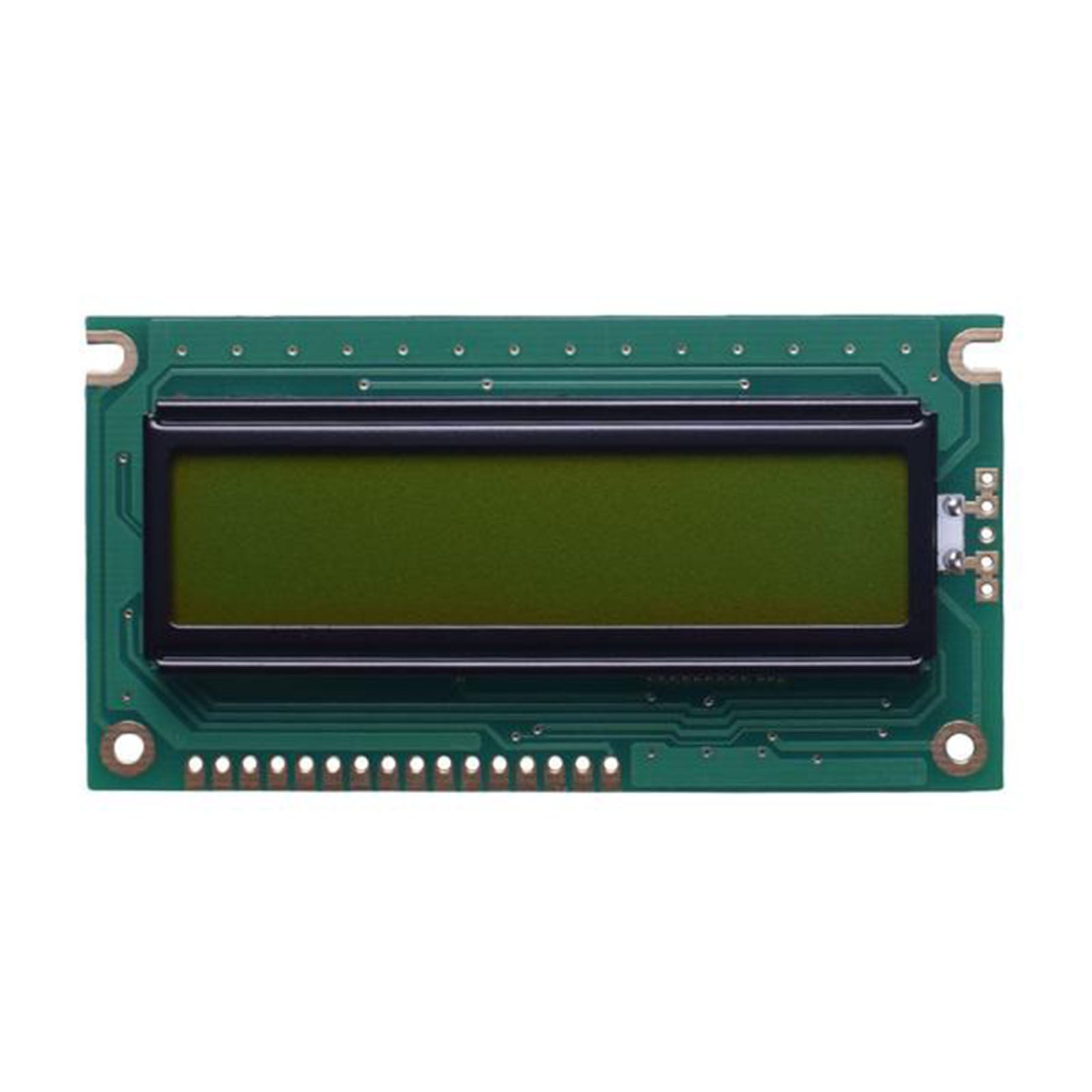

Engineered for industrial and commercial applications, this module provides a wide viewing angle of 6:00 o'clock direction and operates reliably from -20°C to +70°C. The yellow-green LED backlight ensures optimal readability in various lighting conditions.

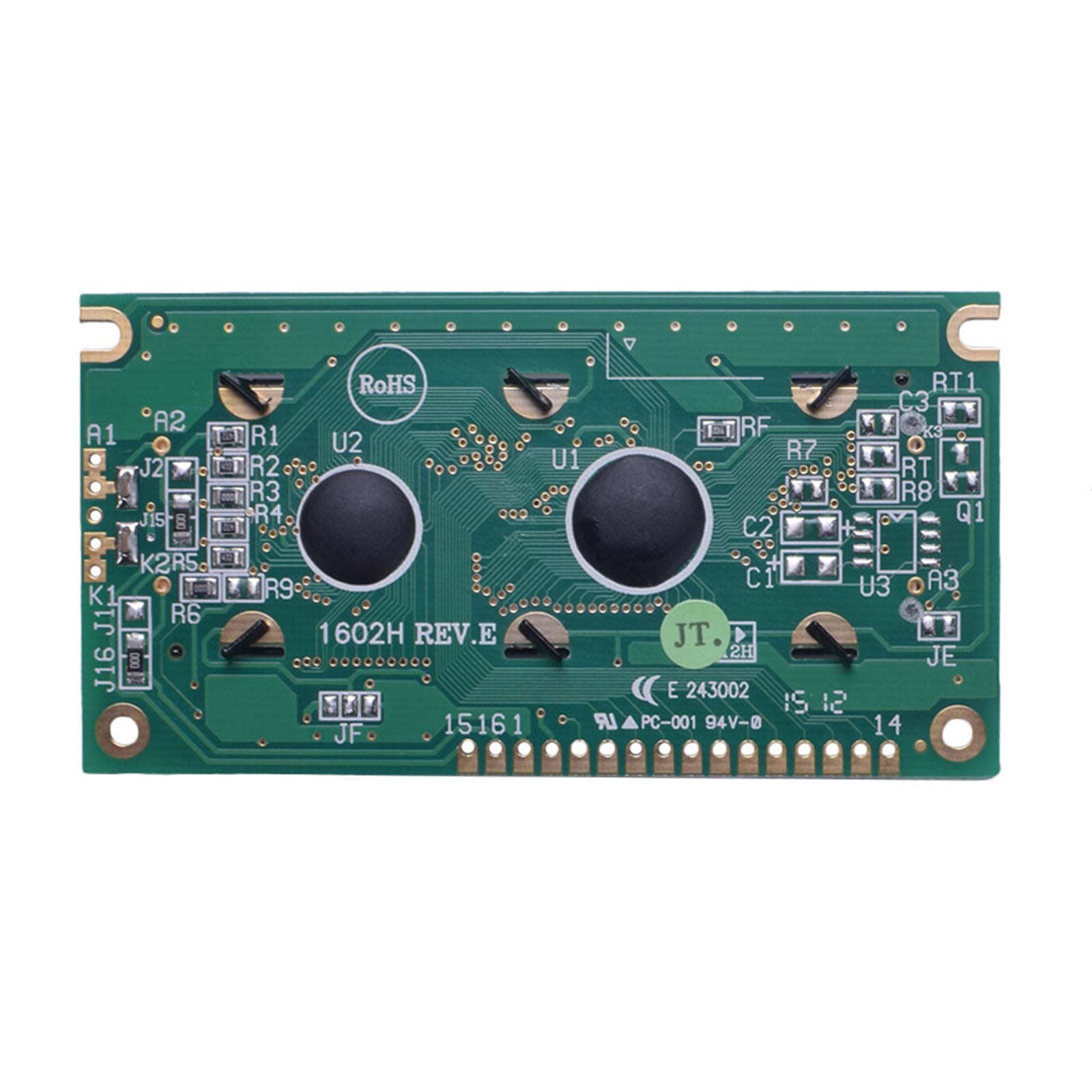

- Advanced Controller: Integrated ST7066U IC supports 4-bit/8-bit MPU interface, custom character generation, and low-power operation.
- Transflective Design: Combines reflective and transmissive modes for clear display in both bright and low-light environments.
- Compact Dimensions: Module size of 84.0mm x 44.0mm x 13.2mm with a lightweight design of 35.3 grams.
- Wide Compatibility: Compatible with various MCUs through standard 6800 series parallel interface.
| Parameter | Specification |
|---|---|
| Display Format | 16 characters x 2 lines |
| Display Mode | STN Positive, Yellow Green, Transflective |
| View Direction | 6:00 |
| Module Dimension | 84.0 x 44.0 x 13.2(MAX) mm |
| Power Supply | 5.0 V |
| Backlight | Yellow Green LED |
| Interface | 6800 Series MPU Interface |
| Controller IC | ST7066U |
| Operation Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Weight | 35.3 g |
Detailed mechanical drawing showing precise module dimensions for easy integration into your designs.
For business and OEM customers, we offer customized display solutions to meet specific project requirements. Our bulk procurement programs provide cost-effective options for large-scale deployments.
- Custom Configurations: Tailored display parameters, including backlight color, interface options, and labeling.
- Volume Discounts: Competitive pricing for orders above 100 units, with flexible delivery schedules.
- Technical Support: Dedicated engineering assistance for integration and troubleshooting.
Used in PLC interfaces, instrumentation panels, and control systems where reliable character display is essential.
Integrated into patient monitoring equipment, diagnostic tools, and portable medical devices for clear data presentation.
Embedded in home appliances, audio equipment, and DIY projects requiring simple text display functionality.
Compatibility Notes: This module is compatible with most microcontrollers supporting 6800 series parallel interface, including Arduino, ARM, and 8051-based systems. The ST7066U controller ensures easy programming with standard instruction sets.
Documentation: Access complete technical details and integration guides through our resource library: DM-LCD1602-422 Datasheet, DM-LCD1602-421 Datasheet, and ST7066U Controller Documentation.
