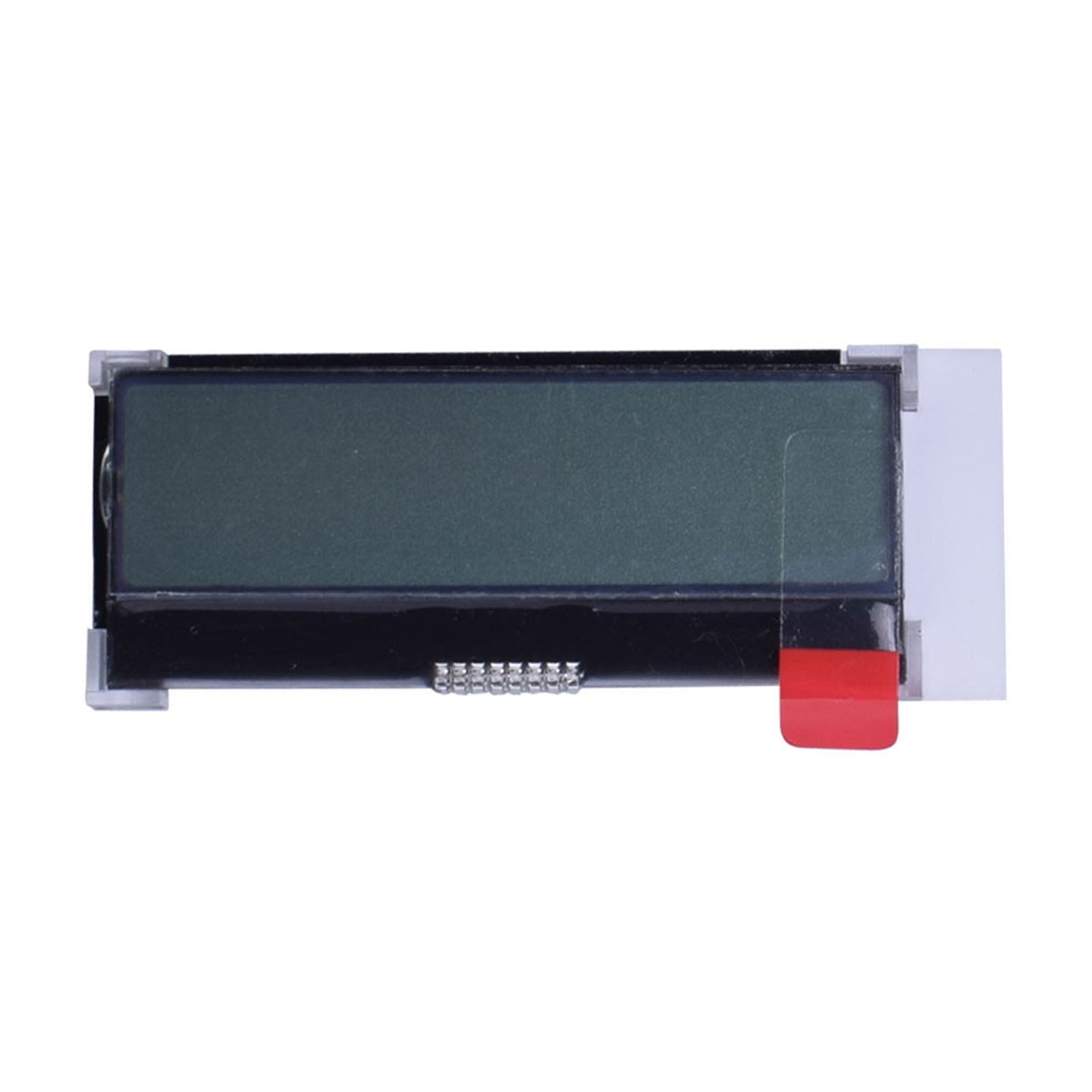

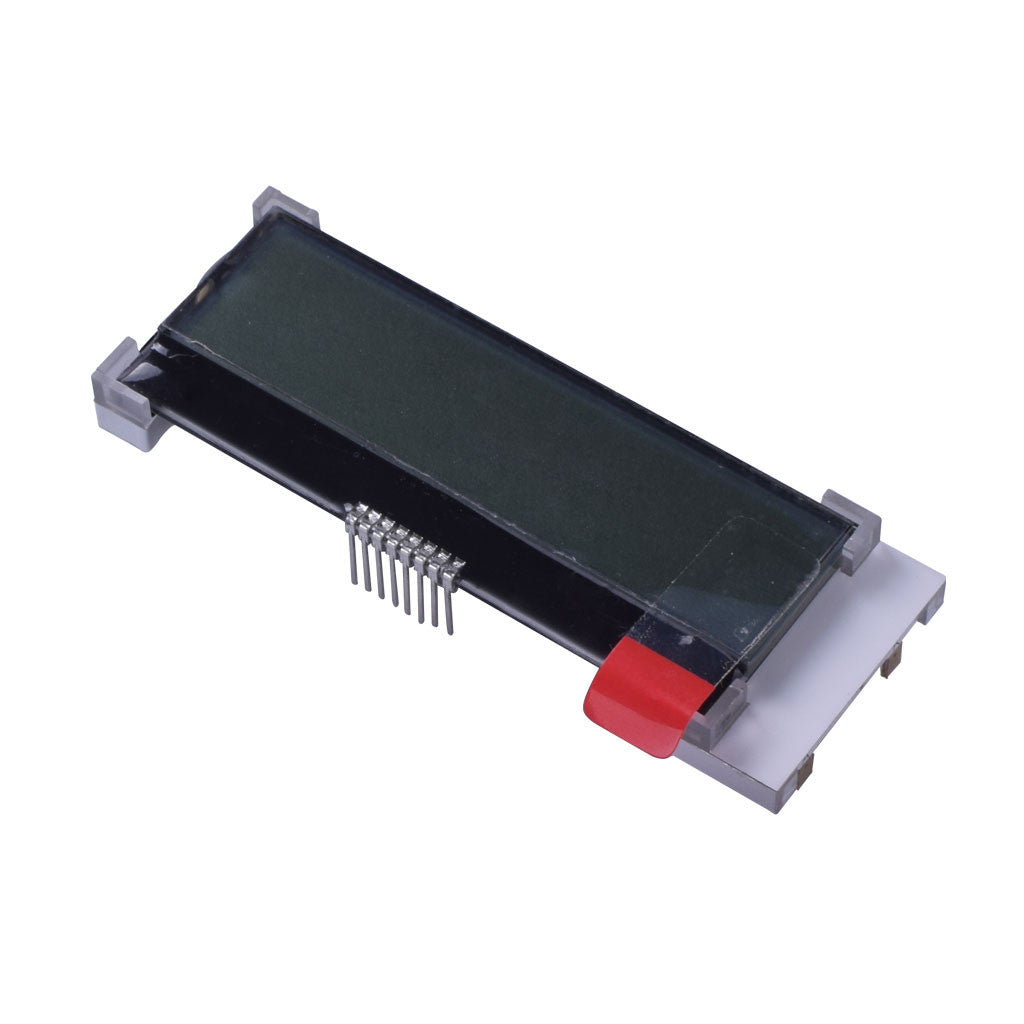

16x2 Character COG LCD Transflective Large - I2C
Professional-grade 16 character x 2 line COG LCD display featuring I2C interface and transflective technology for optimal visibility in various lighting conditions. Engineered with ST7032I controller for reliable performance.
The COG (Chip-on-Glass) technology integrates the ST7032I controller directly onto the glass substrate, reducing component count and enhancing reliability. The transflective display ensures clear visibility in both bright sunlight and low-light conditions.
- Advanced Controller: Built-in ST7032I driver with I2C serial interface supporting 400kHz communication speed
- Optimal Viewing: FSTN positive display with 6:00 viewing direction for consistent readability
- Power Efficiency: Low power consumption of 0.18mA typical operation current at 3.3V
- Robust Backlight: Integrated white LED backlight with 32mA typical current consumption
| Parameter | Specification |
|---|---|
| Display Format | 16 characters × 2 lines |
| LCD Type | FSTN Positive |
| Display Mode | Transflective |
| Controller IC | ST7032I |
| Interface | I2C MPU Interface |
| Power Supply | 3.3V (3.0V-5.0V range) |
| View Direction | 6:00 |
| Duty Cycle | 1/16 duty, 1/5 bias |
| Backlight | White LED |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Weight | 11.3 grams |
Customized display solutions for OEM and volume applications with flexible configuration options.
- Bulk Order Programs: Competitive pricing for volume purchases with flexible delivery schedules
- Custom Configuration: Tailored display solutions including custom character sets, backlight colors, and interface options
- Technical Support: Dedicated engineering support for integration and customization requirements
Process monitoring and equipment status display in manufacturing automation systems with reliable operation in harsh environments.
Patient monitoring equipment and diagnostic instruments requiring clear, reliable alphanumeric display.
Electronic test equipment and laboratory instruments providing precise parameter display.
Home appliances, audio equipment, and portable devices requiring compact, low-power display solutions.
Technical Documentation: Complete specifications, interface protocols, and application notes available for download.
Resources: Download Product Datasheet | ST7032 Controller Documentation
Seamless integration with popular microcontrollers and development platforms through standard I2C interface.
- Standard Protocol: I2C interface compatible with Arduino, Raspberry Pi, STM32, and other popular MCUs
- Easy Programming: HD44780 instruction set compatibility with extended ST7032I features
- Voltage Flexibility: 3.0V to 5.0V operation range for broad system compatibility
Dimensions
